HOW TO: M6 Wagon Wiper on P5 !!!! Smoove

Well after many... many.... many demands on how to do this here we go:
(as a side note, I haven't done this write up out of sheer laziness, not because i didn't want to share)


Items needed:
1) mazda 6 wagon wiper arm & wiper blade

tools needed:
1) 10mm socket
1) Dremel (or similar) grinding tool


There's only two real things that you have to do:

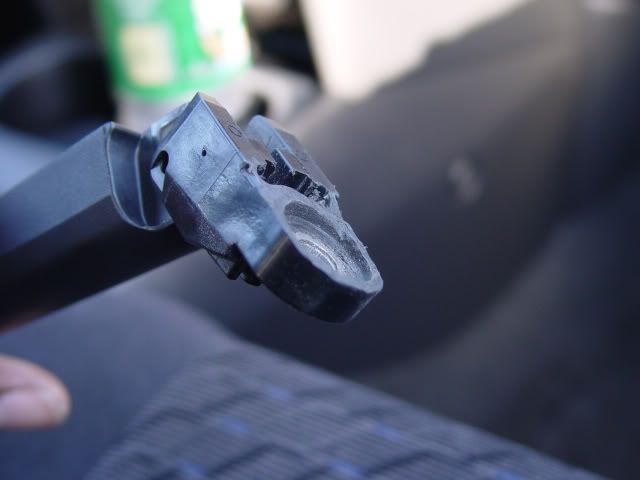

1. Grind away a portion of the M6 Wagon wiper to compensate for the angle when the spring is engaged. I don't have the exact "measurements" but hopefully you can get a sense from the pics below






2. Drill or cut out the black plastic cover from the stock wiper mount just enough to get rid of the "ridge". It should almost be flat, like in the pic below.

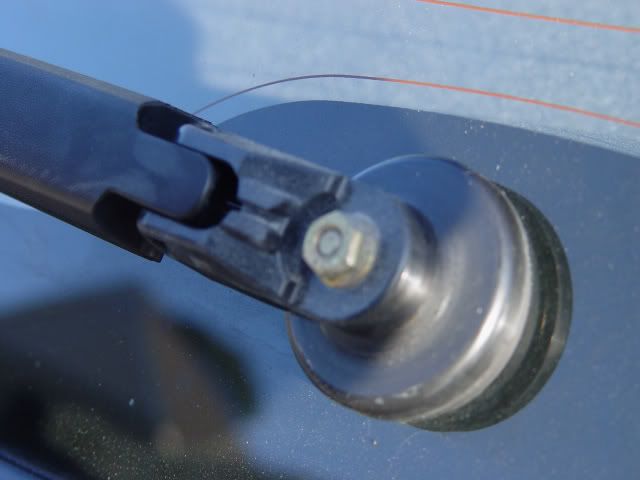

Put it back using the same stock 10mm nut.

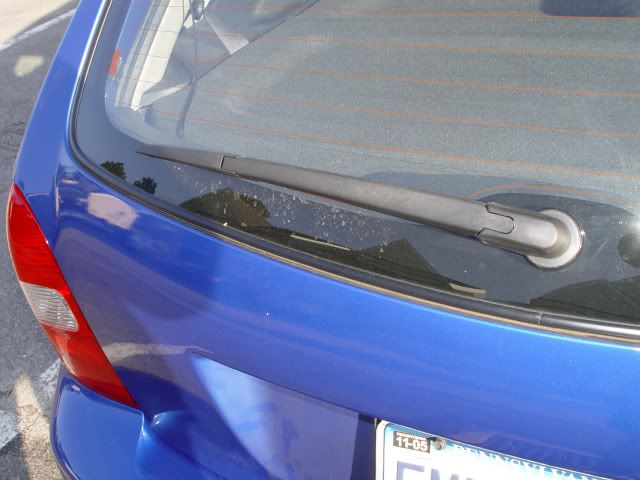

That's pretty much it. There's a good amount of tension in the spring and the "teeth" line up enough to make it work. I've had it for about a year with no problems at all.






Peace n' s***

Cable

Last edited:

dave45090

Member
Contributor
:
Mazda Protege 5
Wait...wait...wait...it was that easy? Wow! Great mod and may I add that you sir are a pioneer for the world of rear P5 rear windows. Thank you for coming through. We love to look at a clean arse ends.

Dave.

Last edited:

aMaff

High Speed Low Drag
:
1992 Miata / 2003 Pathfinder
besides being cleaner, does this work better than the stock P5 wiper? Cuz uh...the stock one sucks lol


Kansei

Banned
omfg how did I miss this?? I'm definitely going to do this soon. I tried with the mazda3 wiper arm but it's not the same size (12mm instead of 10) so it couldn't bolt on.


dave45090

Member
Contributor
:
Mazda Protege 5
Kansei said:
omfg how did I miss this?? I'm definitely going to do this soon. I tried with the mazda3 wiper arm but it's not the same size (12mm instead of 10) so it couldn't bolt on.

I actually meant to pm you but totally forgot. I knew you would be interested.


Kansei

Banned
yeah I'm going to roll it into a pretty big order I'll be placing with onlinemazdaparts.com soon. I need a new gauge cluster and cluster surround, hood latch, an engine mount damper, some plastic clips/screws, and maybe a new headliner if I can get the bit of paint overspray that got on mine.

:D thanks again for the how-to Cable43. I hadn't seen the rear of your P5 before, it looks super clean! Gotta love that laser blue too.


dave45090

Member
Contributor
:
Mazda Protege 5
Phoenix5 said:
Looks clean!I may have to get this!How much would it be at a dealership?

I PMd onlinemazdaparts.com and received a speedy reply. They are much cheaper than the dealership. Try that route.


Phoenix5

Member
:
2K2 Sport20 Familia 5spd-C-Red!
dave45090 said:
I PMd onlinemazdaparts.com and received a speedy reply. They are much cheaper than the dealership. Try that route.

alright,cool!Will do that!Thanx!
