Nice!!!! Did the same. Went from 19's to 17's AT3W.
Show me your CX-5 wheels
- Thread starter minhhh
- Start date
First post! Been a lurker on the forum for awhile. Just upgraded fro
2015 Mazda3 GT hatch to 19 GT Reserve a few weeks ago. Even though it doesn’t drive quite as much like a go cart at the 3, loving the extra cargo space and the torque!
First off, thank you to everyone for your posts. Really gave me a good idea of what direction to go in terms of fitment for the look I was going for.

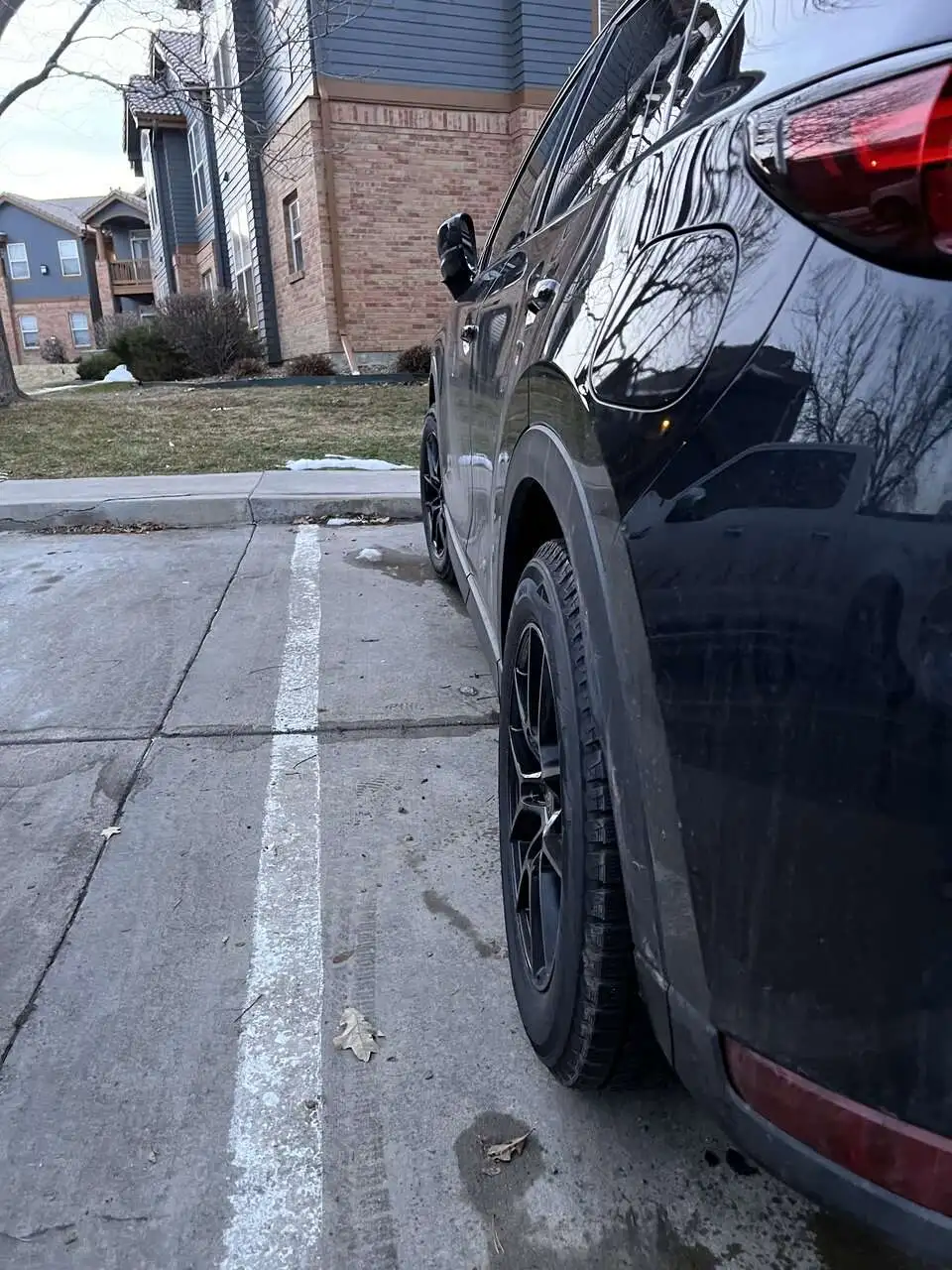

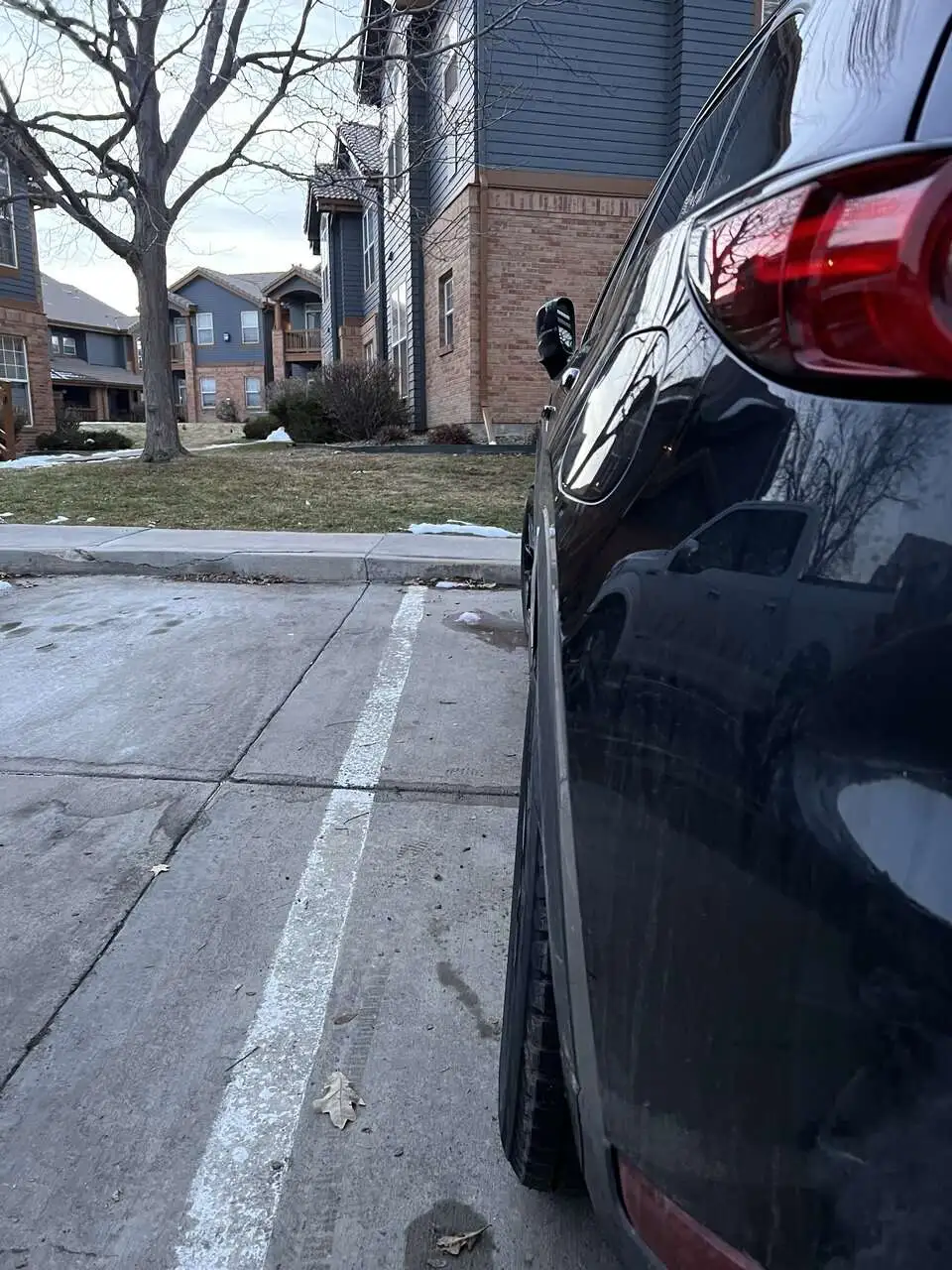

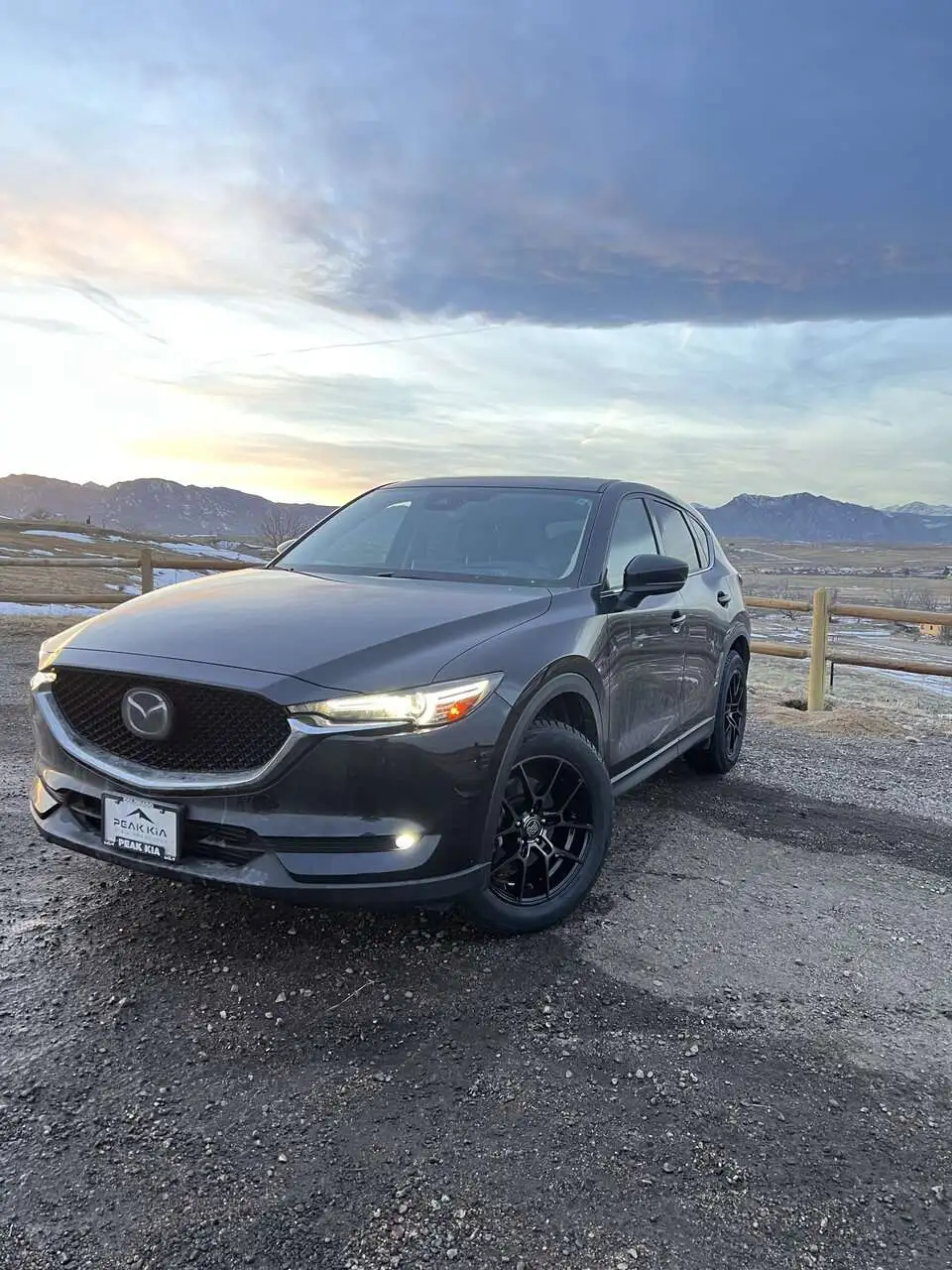

Just got winter shoes put on. Bremmer Kraft BR18 18x8 ET 35 with 235/60r18 Blizzak DM-V2’s.. Steering inputs definitely a bit delayed with the fatter higher profile winter tires compared to stock rubber on 19s. Also feels like a bigger magnitude response to same steering input. I would guess this is because the wheels are a good bit further out from the strut with lower offset and the width increase on the wheel and tire. Longer lever = more movement from same steering wheel input.
That being said, they look great and I’ll get used to the handling characteristics like I did going from 18s with summer tires to 17s with wider wheels and blizzaks on the Mazda3.
I would probably go with 19x8 with 40-45 ET and 235 or 245 if I could go back. I think they would be a bit more responsive with lower profile and look a bit more premium as well. They would also be slightly more conservative in terms in terms of stance. They’re pretty much 100% flush with the 18x8 et 35 with 235/60R18. That being said, the 18s will perform better in the snow and potholes in the Colorado mountains. I’m a powder hound so drive through some pretty gnarly blizzards to get to the best skiing conditions - in the end, safety in those situations is the top priority. Save the risk taking for when I’m on the mountain!
Just happened to have a nice sunset on my drive back from getting them mounted, so here she is! A few different exposures for your viewing pleasure.
2015 Mazda3 GT hatch to 19 GT Reserve a few weeks ago. Even though it doesn’t drive quite as much like a go cart at the 3, loving the extra cargo space and the torque!
First off, thank you to everyone for your posts. Really gave me a good idea of what direction to go in terms of fitment for the look I was going for.
Just got winter shoes put on. Bremmer Kraft BR18 18x8 ET 35 with 235/60r18 Blizzak DM-V2’s.. Steering inputs definitely a bit delayed with the fatter higher profile winter tires compared to stock rubber on 19s. Also feels like a bigger magnitude response to same steering input. I would guess this is because the wheels are a good bit further out from the strut with lower offset and the width increase on the wheel and tire. Longer lever = more movement from same steering wheel input.
That being said, they look great and I’ll get used to the handling characteristics like I did going from 18s with summer tires to 17s with wider wheels and blizzaks on the Mazda3.
I would probably go with 19x8 with 40-45 ET and 235 or 245 if I could go back. I think they would be a bit more responsive with lower profile and look a bit more premium as well. They would also be slightly more conservative in terms in terms of stance. They’re pretty much 100% flush with the 18x8 et 35 with 235/60R18. That being said, the 18s will perform better in the snow and potholes in the Colorado mountains. I’m a powder hound so drive through some pretty gnarly blizzards to get to the best skiing conditions - in the end, safety in those situations is the top priority. Save the risk taking for when I’m on the mountain!
Just happened to have a nice sunset on my drive back from getting them mounted, so here she is! A few different exposures for your viewing pleasure.
Attachments

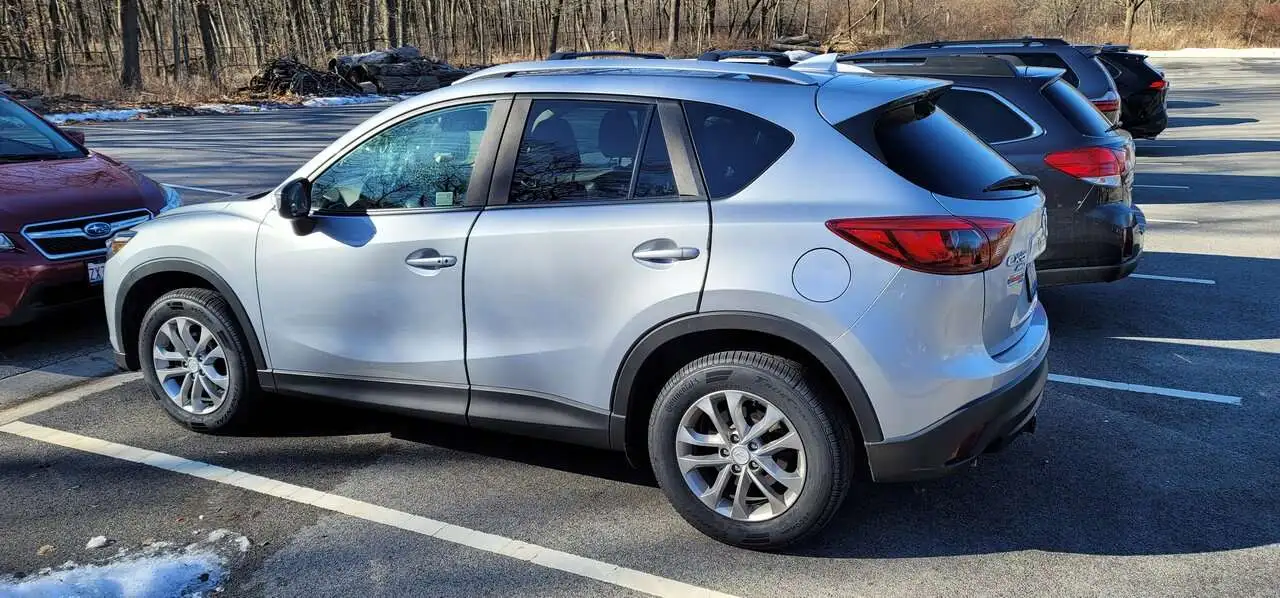

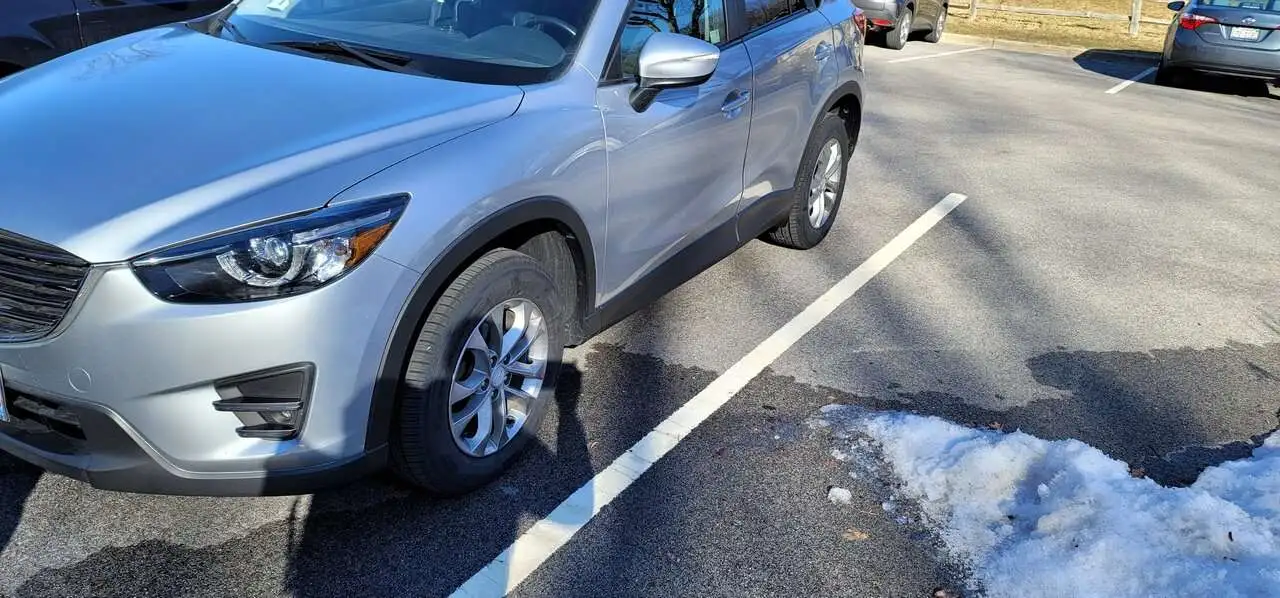

Just swapped back my winter blizzaks set for the contis truecontact.
I did weigh all my wheels this week. Smaller rims = lighter weight. Also, Blizzaks tires are much heavier than A/S contis, a whopping 4.7lbs per tire at 225/65/17. There might be some rim weight difference though, since contis are on 2019 Hyundai SantaFe rims while blizzaks are on 2015 CX5 rims.
Unfortunately, I sold the 19" cx5 set before weighing in. I do remember them being even heavier than my 17" blizzaks set. Guessing ~60lbs per wheel+tire.
I did weigh all my wheels this week. Smaller rims = lighter weight. Also, Blizzaks tires are much heavier than A/S contis, a whopping 4.7lbs per tire at 225/65/17. There might be some rim weight difference though, since contis are on 2019 Hyundai SantaFe rims while blizzaks are on 2015 CX5 rims.
Unfortunately, I sold the 19" cx5 set before weighing in. I do remember them being even heavier than my 17" blizzaks set. Guessing ~60lbs per wheel+tire.
| Car | Tires | Wheels | Weight (lbs) | Comments |
| M6 | 215/65R16 | 16" Mazda3 | 42.7 | Blizzaks WS80 on 2012 OEM 16x6.5 ET50 alloy from Mazda3 |
| M6 | 225/55R17 | 17" Kia Sorento | 48.4 | Michelin Pilot Sport 4 A/S on 2019 17x7 ET47 alloy from Kia Sorento |
| M6 | 224/45R19 | 19" M6 | 52.8 | Achilles ATR Sport 2 on 2014 19x7.5 ET45 alloy from Mazda 6 |
| CX5 | 225/65R17 | 17" Hyindai SantaFe | 49.3 | Continental TrueContact on 2019 17x7 ET47 from Hyundai Santa Fe |
| CX5 | 225/65R17 | 17" CX5 | 54.0 | Blizzaks DM-V2 on 2016 17x7 ET50 from Mazda CX5 |
Attachments
- :
- Canada
- :
- '18 CX-9 Signature

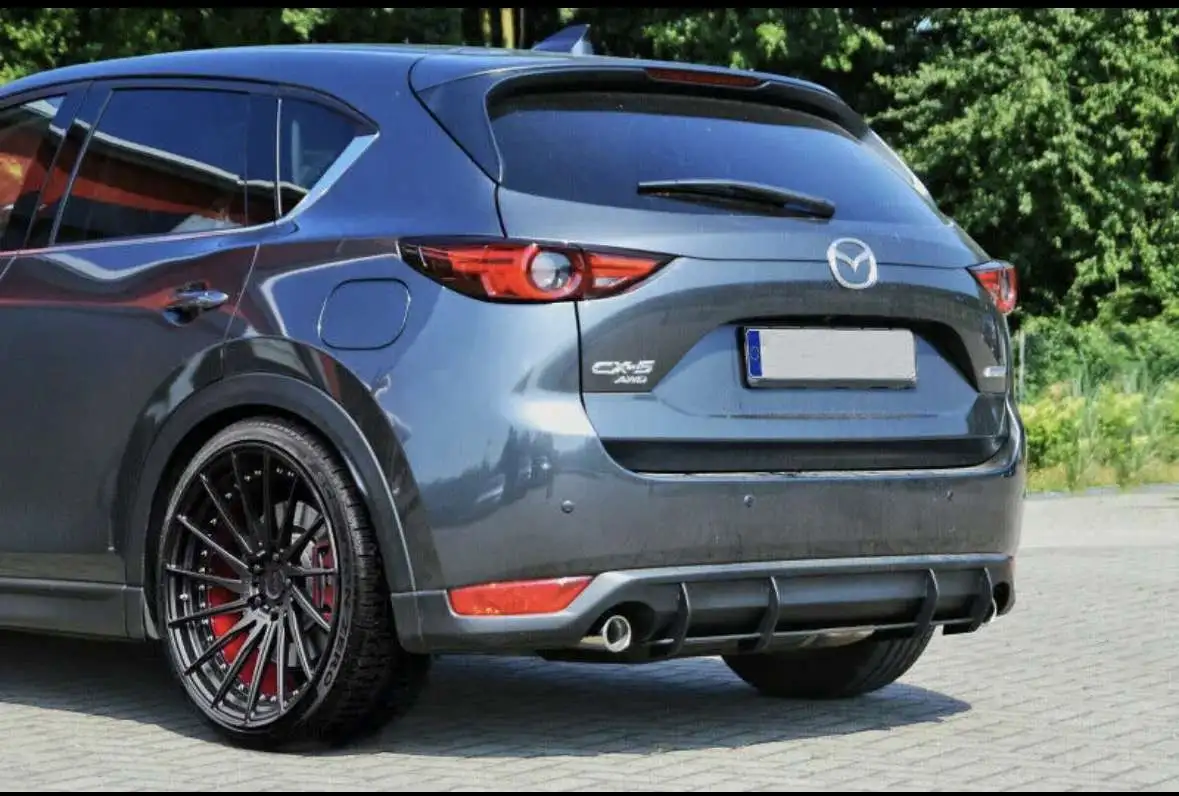

Yep, those are definitely ADV.1 wheels, specifically the ADV15R Track Spec CS Series wheels. They are a 3-piece forged/step-lip construction. Be prepared to spend some money if buying these brand new! They sure do look great though. I think the rim diameter in the picture is 22".
Isn't that so nice of Photobucket that's the reason I stopped using them years ago now!What do you think? I photochopped some rims i'm looking into buying. Black on Black. It's not 100% to scale, but you get the idea.
With big brakes: (too bad they don't make these suckers for the cx-5's yet)
No brakes:
Thanks! ADV.1 just confirmed those are the ADV15Rs as you mentioned. $2950 EACH as shown in the picture. Wish I could splurge on those but that’s way to pricey.
- :
- 2019 CX-5 AWD
That makes Rays wheels look cheap by comparison, and they aren't cheap!
- :
- Canada
- :
- '18 CX-9 Signature
There are some cheaper options available out there, though they won't look exactly like the wheels in the picture you quoted. For example, ADV.1 also sells a similar wheel in a Track Function spec with "entry level pricing", but the spokes don't extend to the lip. There is also the Ace Alloy Devotion, which is also a 15-spoke design, but is 1-piece cast construction, making it heavier but much, much more affordable.
Does anyone have a 22" wheel and can share dimensions for wheels and tires for the CX-5?
- :
- Mazda, CX-5, 2.5L, Auto 6speed, Touring
- :
- Mazda, CX-5, 2.5L, Auto 6speed, Touring

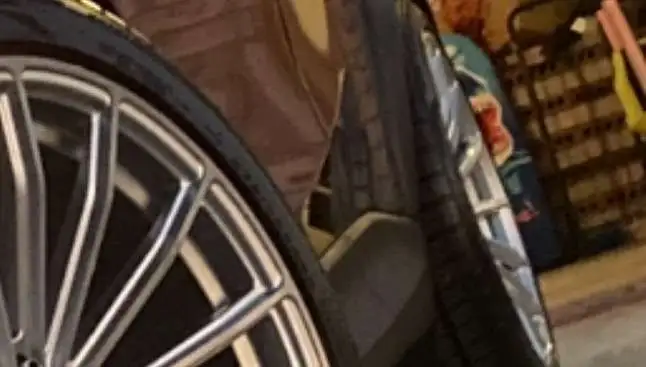

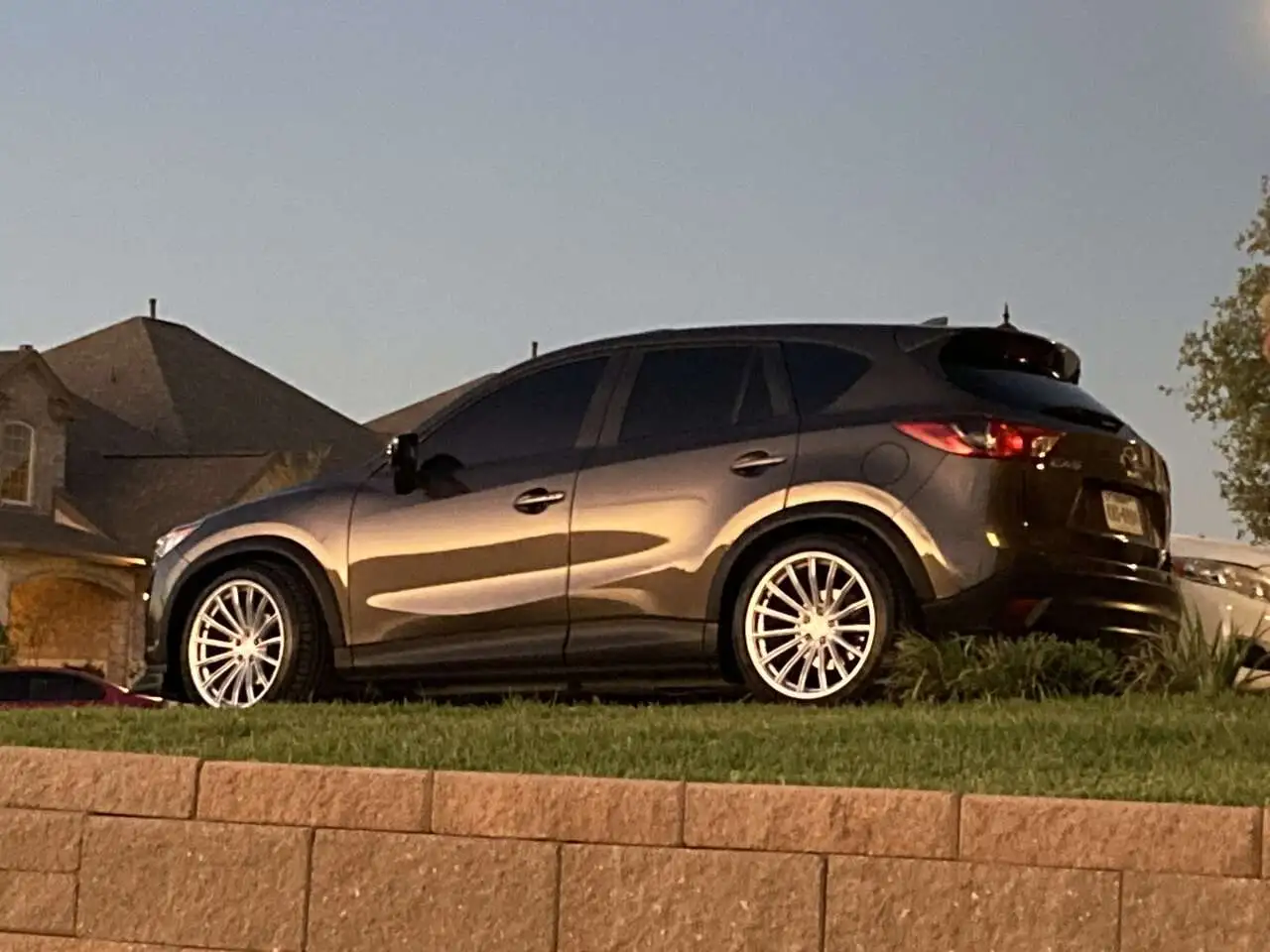

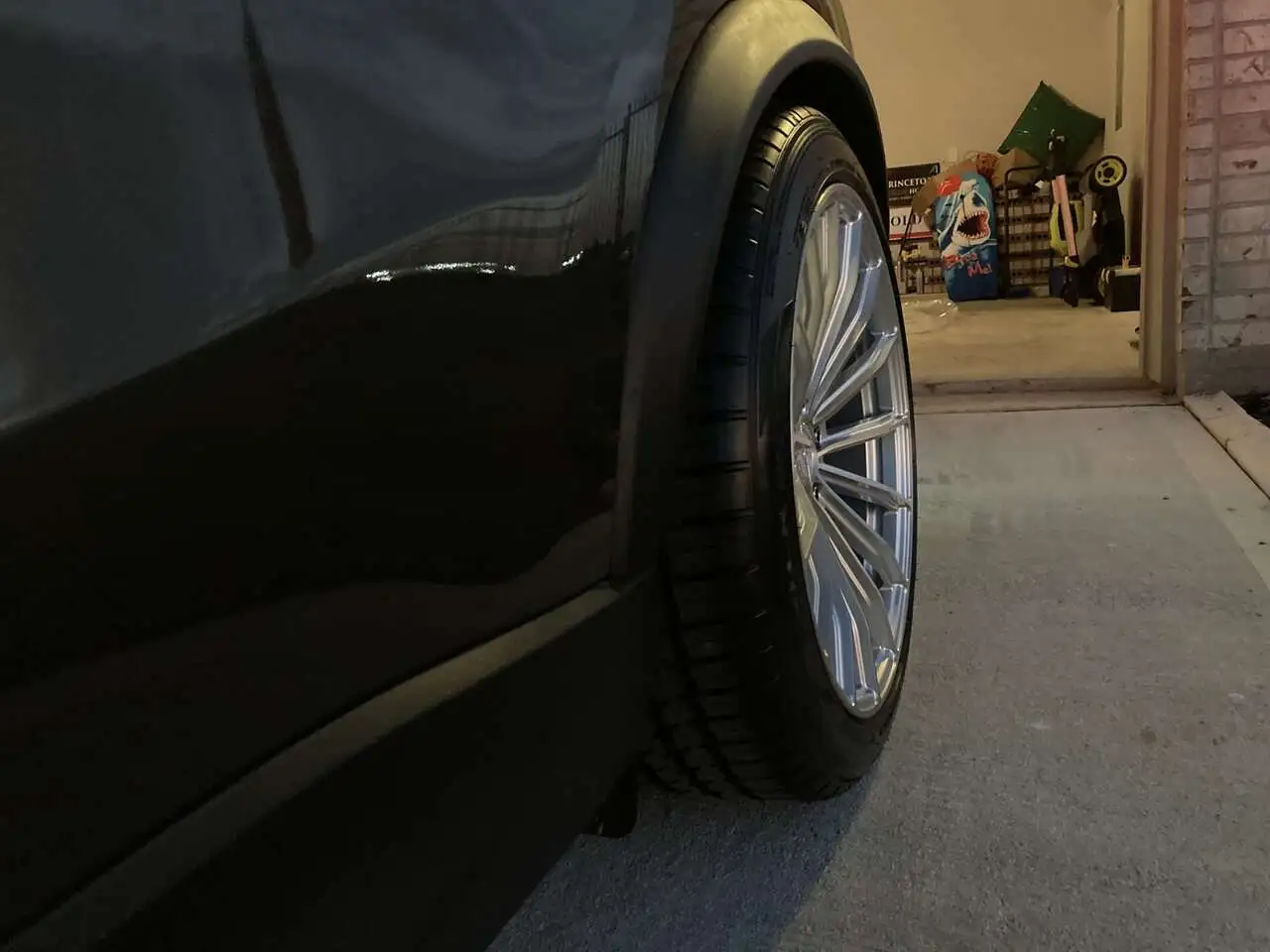

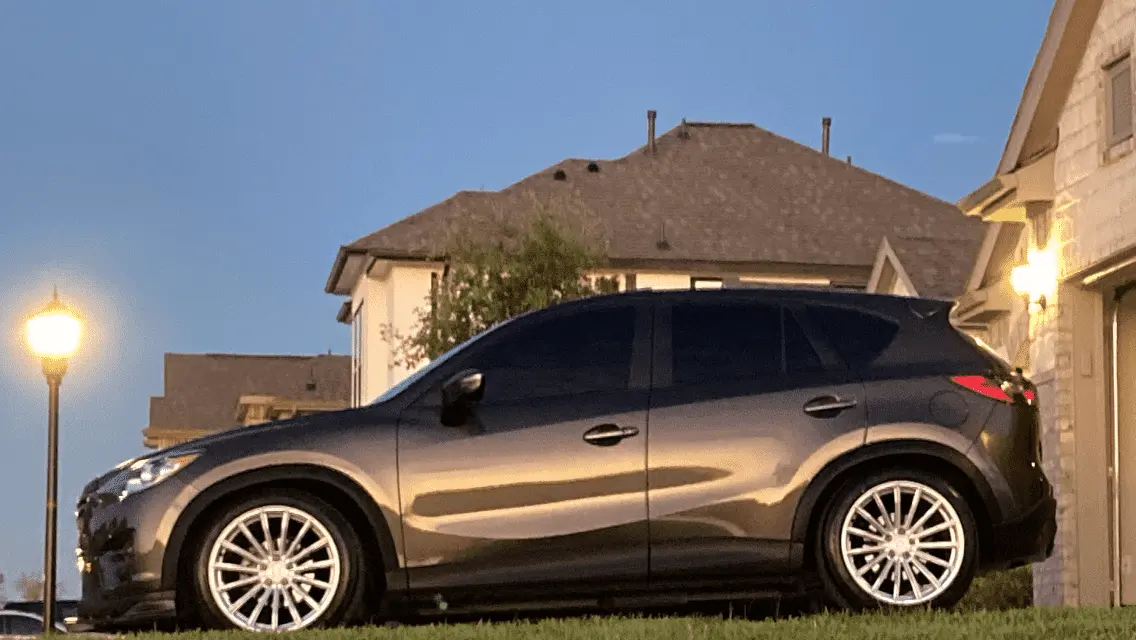

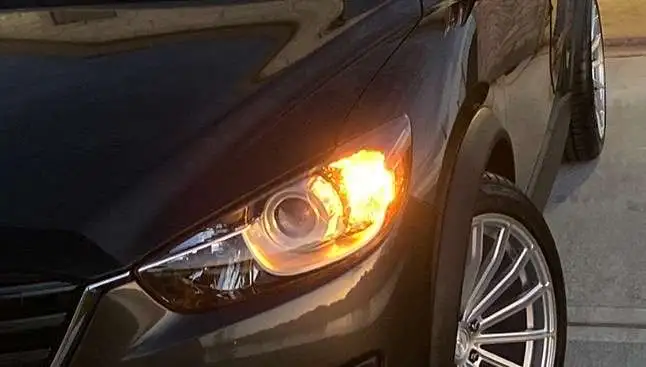

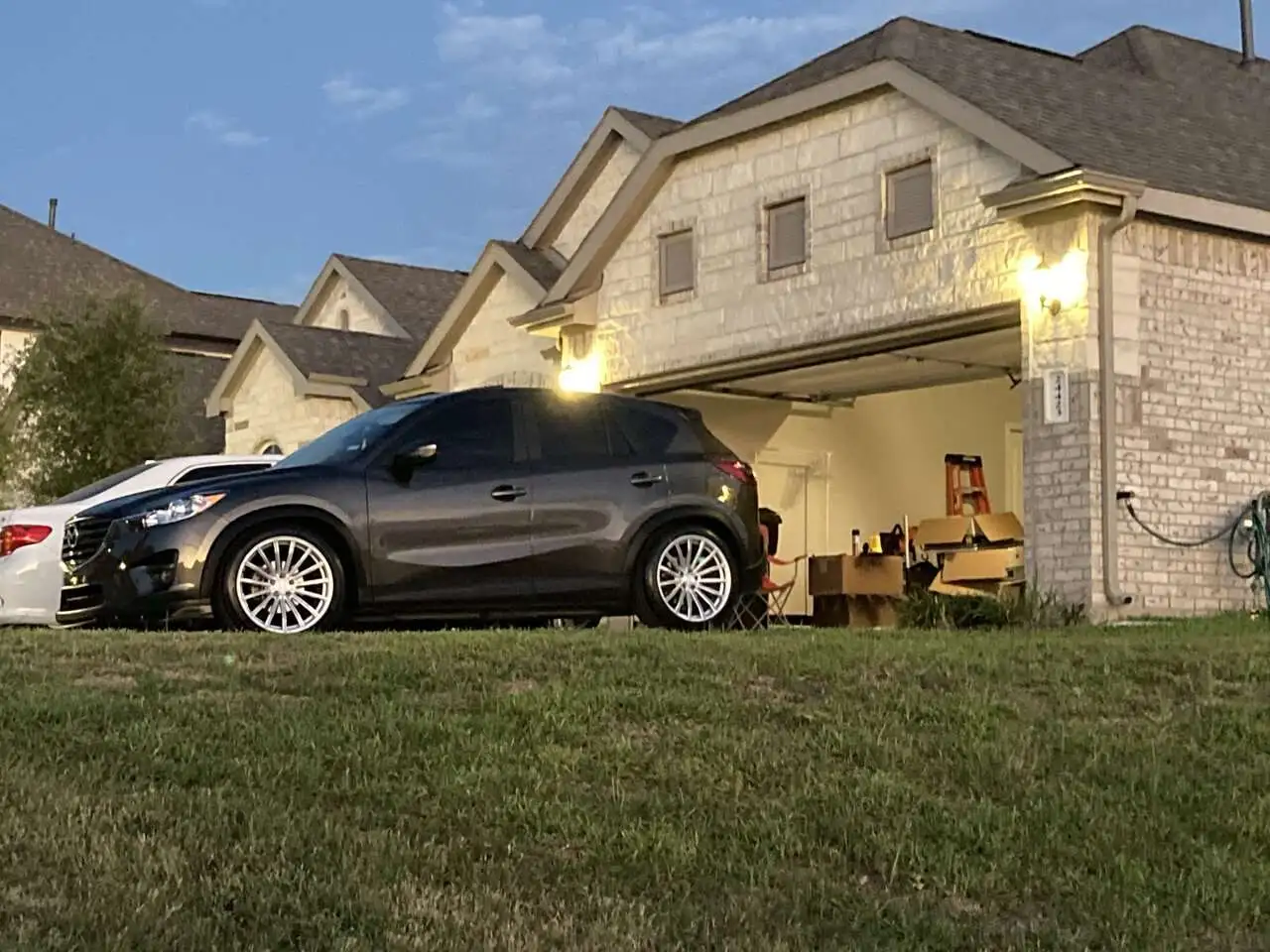

XO wheels London 20x10.5 all 4, offset 30mm front/20mm rear, KGtech silver extended lug nuts, lowered on Megan racing springs, KYB G shocks, 275/40/20 Falken A/S G5 touring tires, MV-tuning fender flares.
- :
- Mazda CX-9 Signature
Love the flares!!
- :
- Canada
- :
- '18 CX-9 Signature
Man this looks soo clean and nice! Well done.
- :
- 2016 GT ST 47A
Very nicely done @TitaniumCX-5! Have to admit, at first glance it gives a Mazda3 hatch profile with the stance.
GTEyes
2022 CX5 Signature - Machine Grey
- :
- NS, Canada
Very nice!
- :
- Mazda, CX-5, 2.5L, Auto 6speed, Touring
Theres some poke if I didn’t have the flares but with the flares it looks flush in my opinion. I’m sure there’s flares for your ride out there.

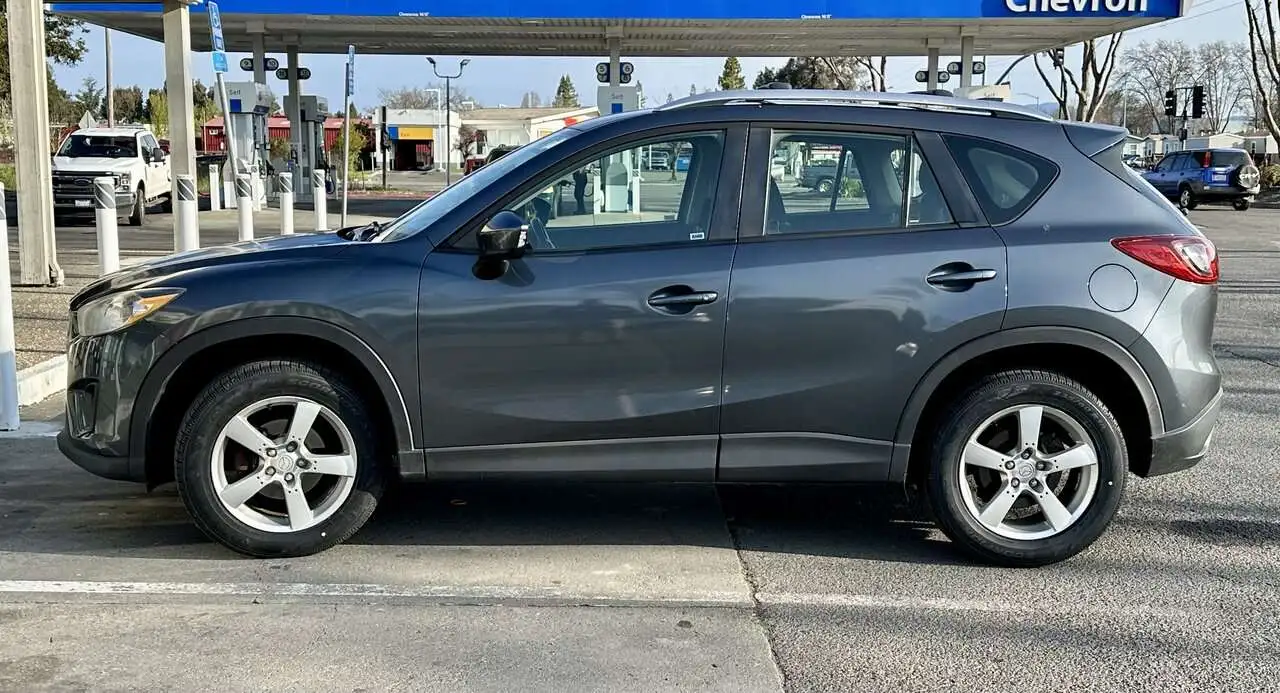

Hey all, new owner of a 2013 CX-5 sport. 200k, manual, great little car. Wanted something oem looking but snazzier than the stock 17s. This thread helped me figure out how great the RX-8 wheels would look so i wanted to post back my car. Tires are Pirelli 235/60/18. Gas mileage did go down slightly with the oversize. Should have stuck to 225/60/18.
