Show me your CX-5 wheels

KOPITE said:

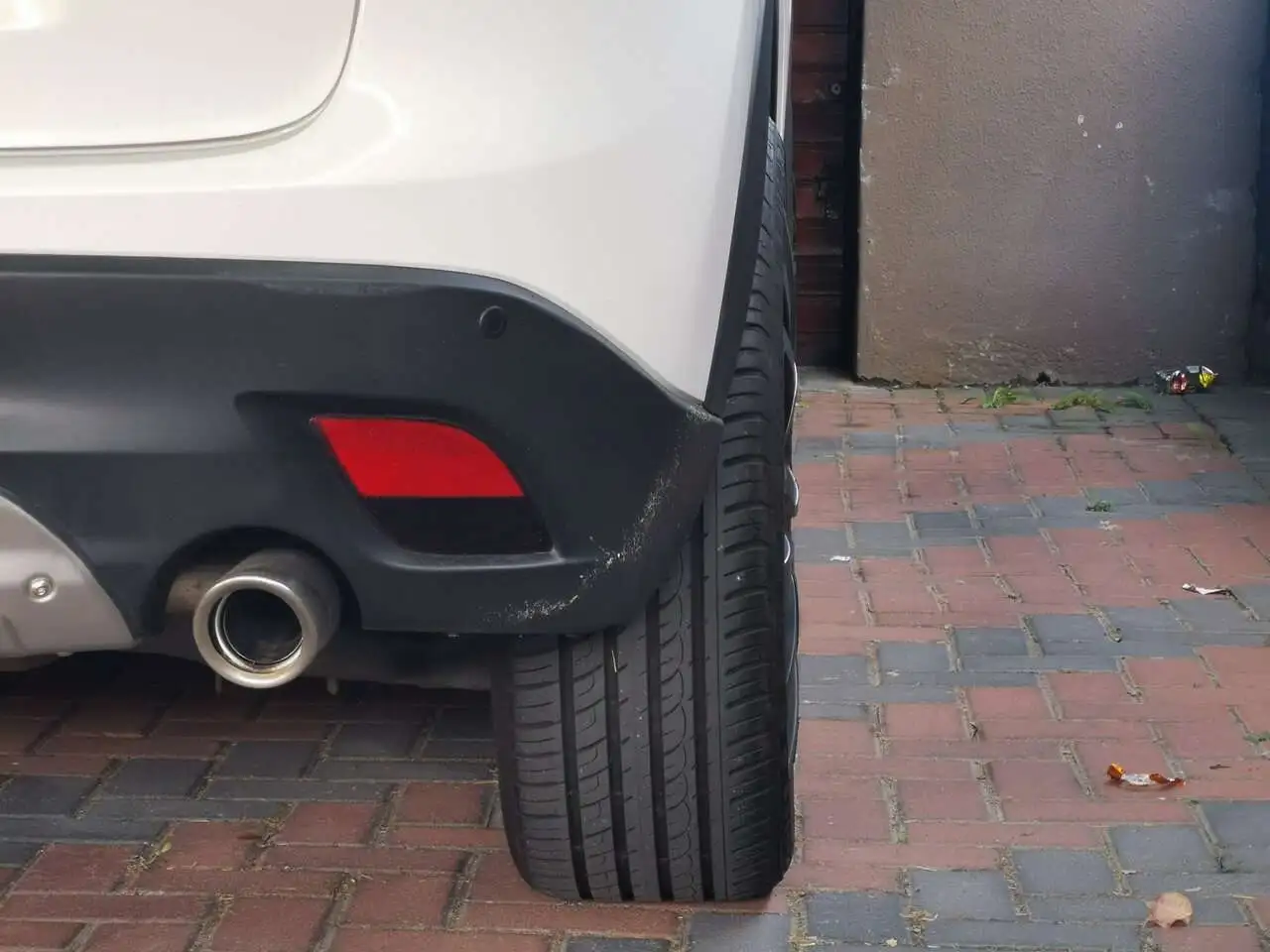

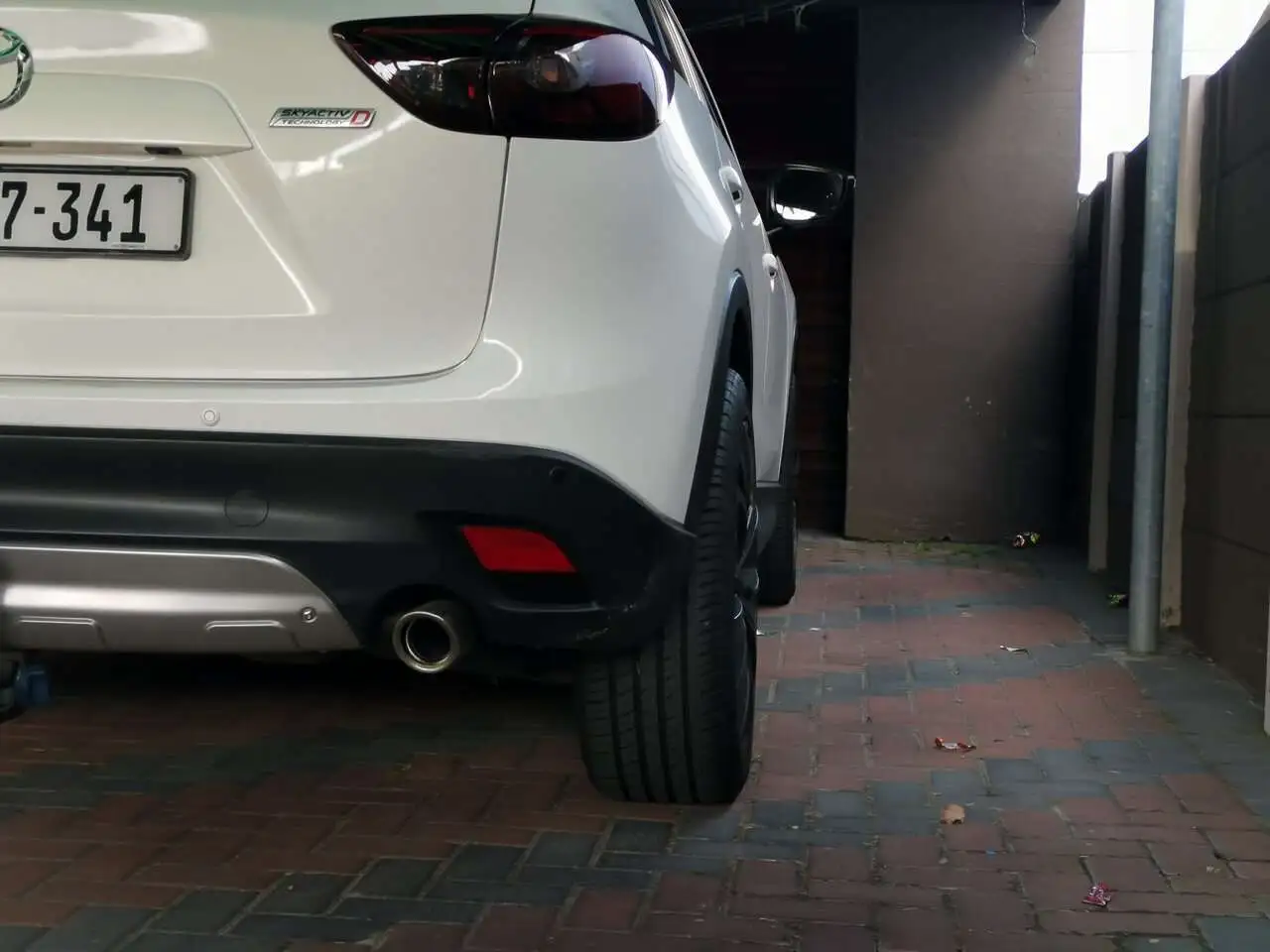

So i finally put on adaptors, 5mm in front and 20mm at the back. the front look good to me, but the rear still does not look the way i wanted it to be. i am thinking of changing them to 25mm at the rear to give me the look i want.

Do you guys think it will be excessive and too much strain on the suspension or will it still be fine.
Click to expand...

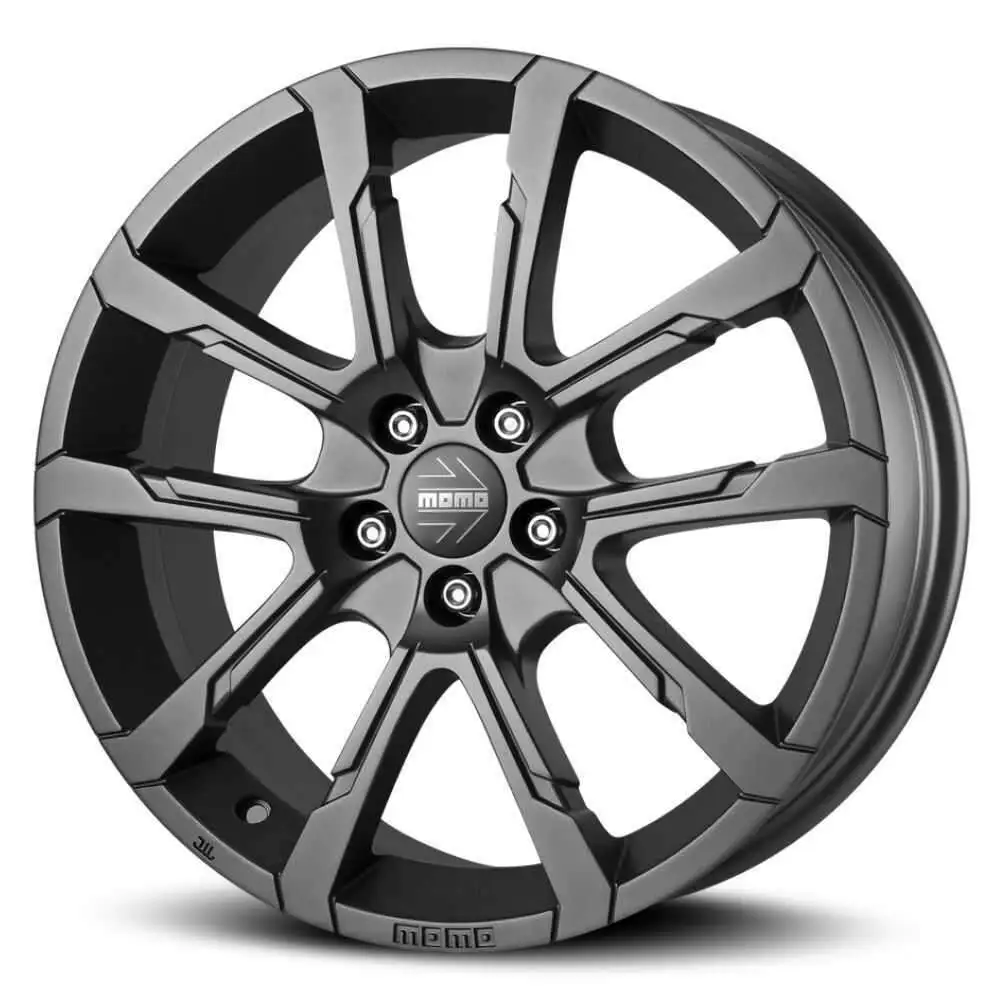

Ok, so i'm thinking of getting these, but they a bit pricey

My current setup on Gen 1 2016 CX-5
20” 8.5J et45 with 255/45/20 RADAR DIMAX R8+ tyres
5mm adaptor front and 20mm rear

These cost US $1333

Front is 20x9.0|5x114|38 20" 790kg CB72.3
Rear 20x9.0|5x114|20 20" 790kg CB72.3

Difference from current setup would be 7mm further out in front (5J outer and ET2mm extra) and rear (5J outer and ET5mm extra. I don't intend to drop it, but concerned about rubbing and ride quailty. Is anyone running this setup, Front is 20x9.0|5x114|38 and Rear 20x9.0|5x114|20 with 255/45/20.

Would appreciate your opinion on expects on ride quality, rubbing, stance, turning and general ride quality. I think it would be a perfect setup with current tyres though, but just my opinion. I would not need the spacer anymore and i guess safer from that aspect.

Or i can just change my current rear adaptor from 20mm to 25mm to give me the look i want and costing only $115


Attachments

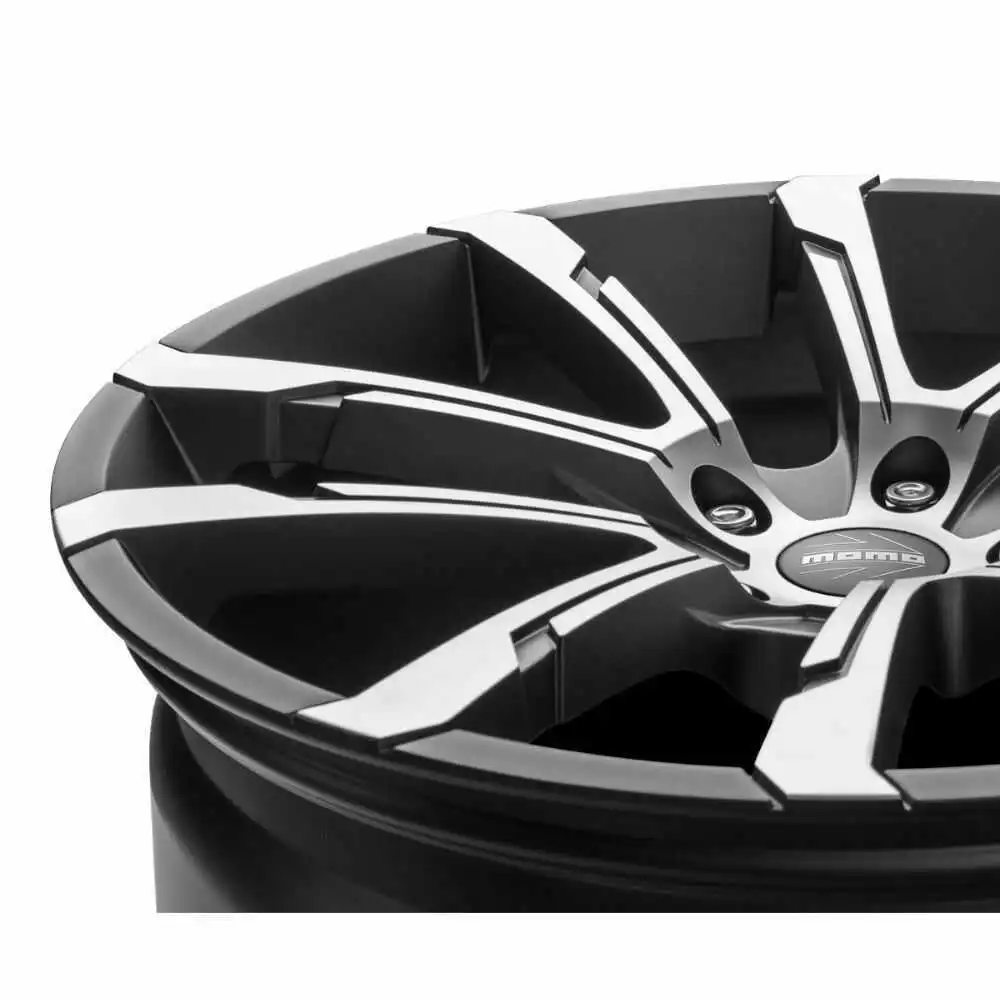

  • Llanta_Momo_Quantum_EVO_1.jpeg
    37.4 KB · Views: 241
  • Llanta_Momo_Quantum_ml.jpeg
    58 KB · Views: 233

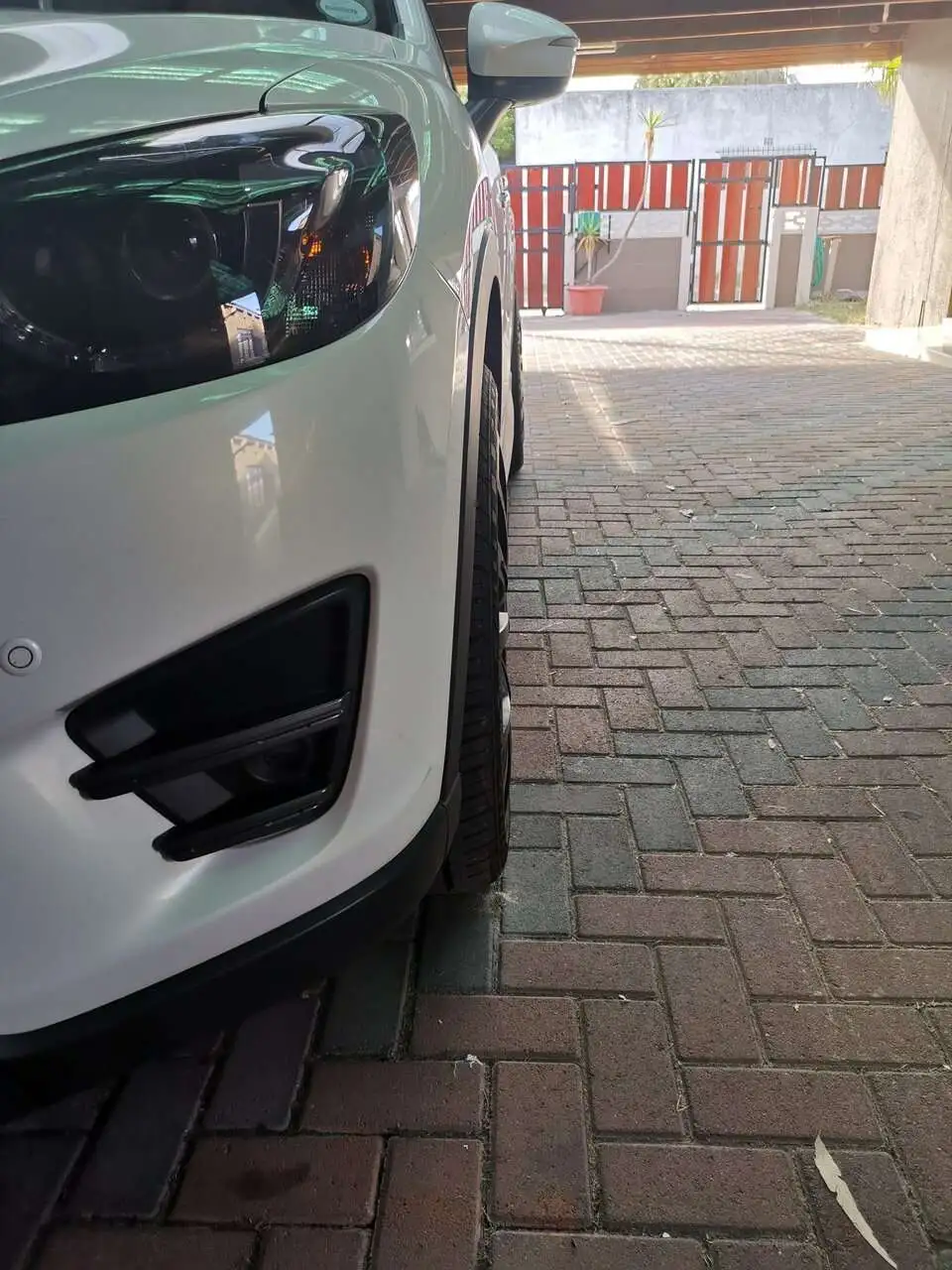

  • IMG_20220511_152829.jpg
    129.6 KB · Views: 247

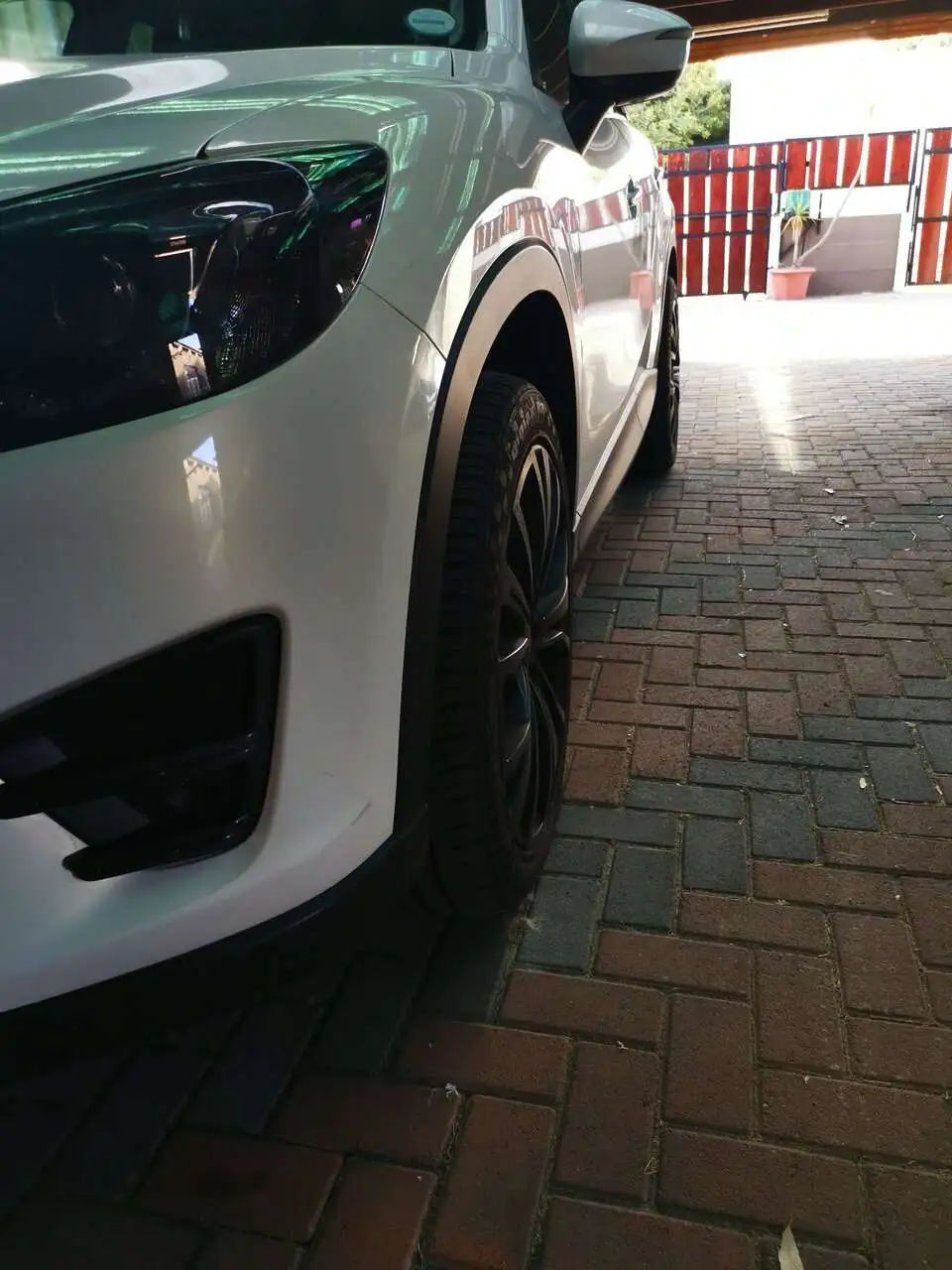

  • IMG_20220511_152832.jpg
    97.9 KB · Views: 241
  • IMG_20220511_153052.jpg
    75.4 KB · Views: 258
  • IMG_20220511_153040.jpg
    60.7 KB · Views: 250

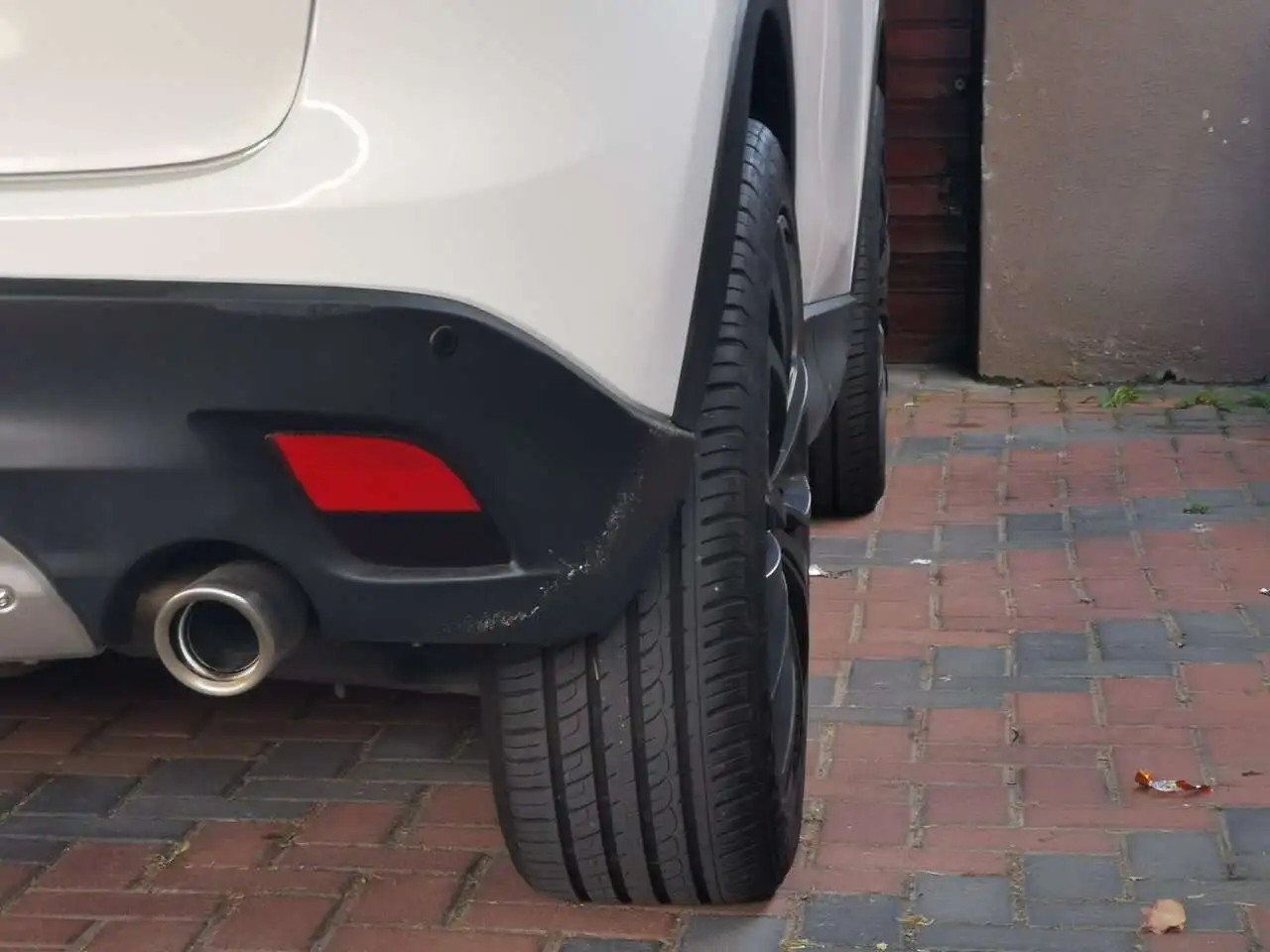

  • IMG_20220511_153057.jpg
    64.6 KB · Views: 272
KOPITE said:
Ok, so i'm thinking of getting these, but they a bit pricey

My current setup on Gen 1 2016 CX-5
20” 8.5J et45 with 255/45/20 RADAR DIMAX R8+ tyres
5mm adaptor front and 20mm rear

These cost US $1333

Front is 20x9.0|5x114|38 20" 790kg CB72.3
Rear 20x9.0|5x114|20 20" 790kg CB72.3

Difference from current setup would be 7mm further out in front (5J outer and ET2mm extra) and rear (5J outer and ET5mm extra. I don't intend to drop it, but concerned about rubbing and ride quailty. Is anyone running this setup, Front is 20x9.0|5x114|38 and Rear 20x9.0|5x114|20 with 255/45/20.

Would appreciate your opinion on expects on ride quality, rubbing, stance, turning and general ride quality. I think it would be a perfect setup with current tyres though, but just my opinion. I would not need the spacer anymore and i guess safer from that aspect.

Or i can just change my current rear adaptor from 20mm to 25mm to give me the look i want and costing only $115
Click to expand...
Not going to comment on pushing it out further as I try to stay as close to stock spec as possible.

But in terms of benefits versus cost...

That's alot of $$$ to spend on new wheels for what's already 6 year old vehicle. Save that money to put towards your new ride.

If you must push it out further, why not go the inexpensive $115 way?

Jack Rabbit said:
Not going to comment on pushing it out further as I try to stay as close to stock spec as possible.

But in terms of benefits versus cost...

That's alot of $$$ to spend on new wheels for what's already 6 year old vehicle. Save that money to put towards your new ride.

If you must push it out further, why not go the inexpensive $115 way?
Click to expand...
Thanks for your very honest opinion, i think you might have swayed me 👍👍👍

Curious-X5 said:
I'd like to install the largest wheels and tires possible on my 2019 CX-5 without having to mess with the car's suspension and without scraping the wheels. I've been thinking about placing 20" rims with 255/50r20 tires. I'm not very concerned with performance but I am concerned about safety. I'm more concerned about the look of it (yes, shame on me). Can someone shed some light on this on whether this is possible and even if I could go even bigger?
Click to expand...
22x9 .. maybe even a 22x10 depending on the ET.. is prob the largest you can stuff in there w/o too much poke ..

I'm running a 19x9.5 for my summer set up ..

Jef said:
That’s a lower offset…. Higher would be 45ish territory.

Added these pics to another previous post, but the 35 offset puts you flush to the fender, but these conti’s are super fat and stick almost a 1/4 inch past the actual wheel lip.

No rubbing, lock to lock on corksport springs.
Click to expand...
correction, I'm looking at 19 x 9 et 32 or 19 x 9.5 et 35.

How is the poke on the front with your set up? Suspension components clearance?

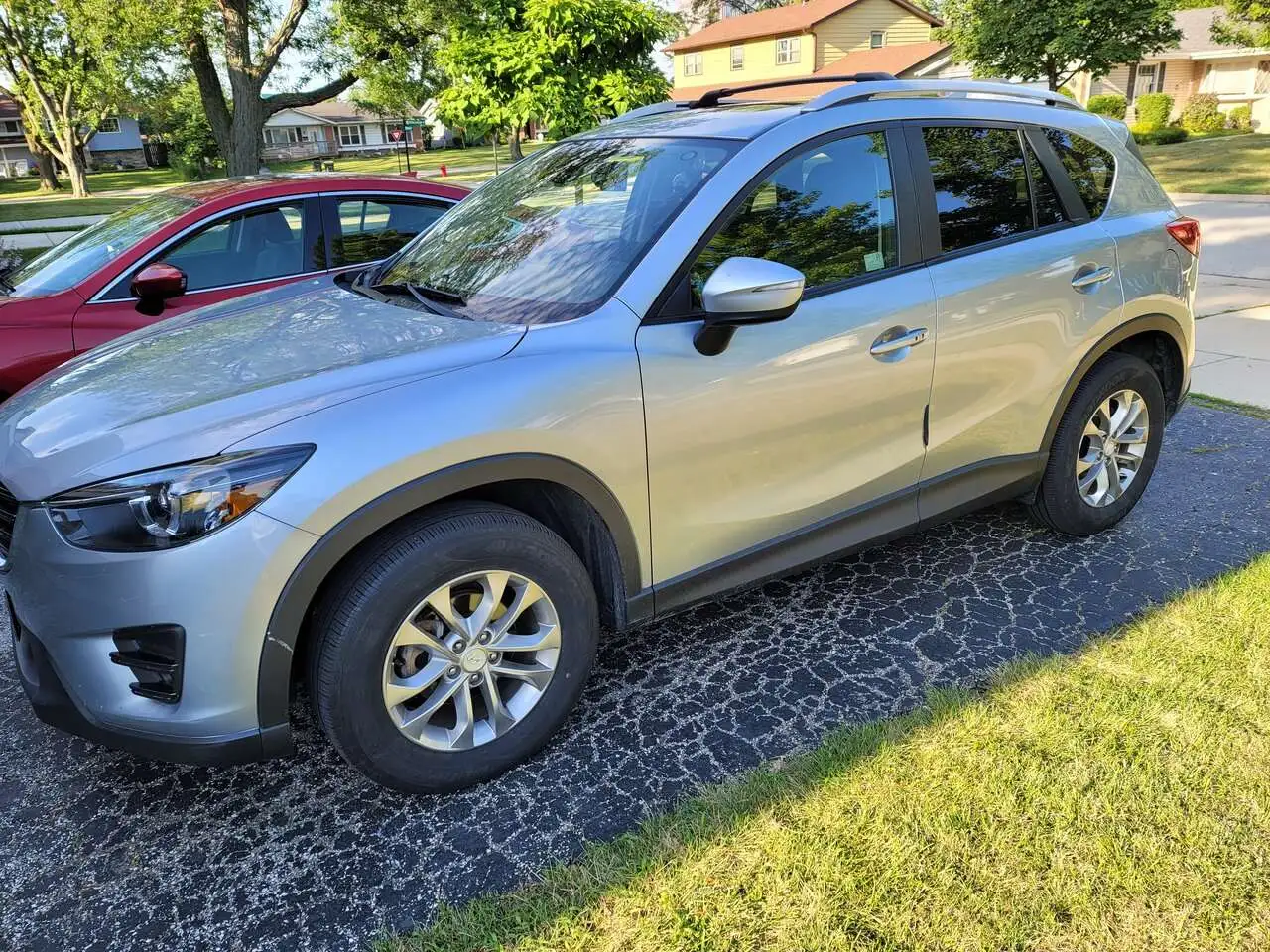

2016 CX5 GT - downsizing from the OEM 19" to 17". The twist - Hyundai Santa Fe wheels & tires.

FB Marketplace is a great place to search for an extra set of OEM wheels - that's what I did for winter sets of three of our cars. And, since all our Mazdas are GTs with 19", I got 17" (CX5s) and 16" (M6) for the winter. 17" is a win-win in price and better Illinois potholes absorption.

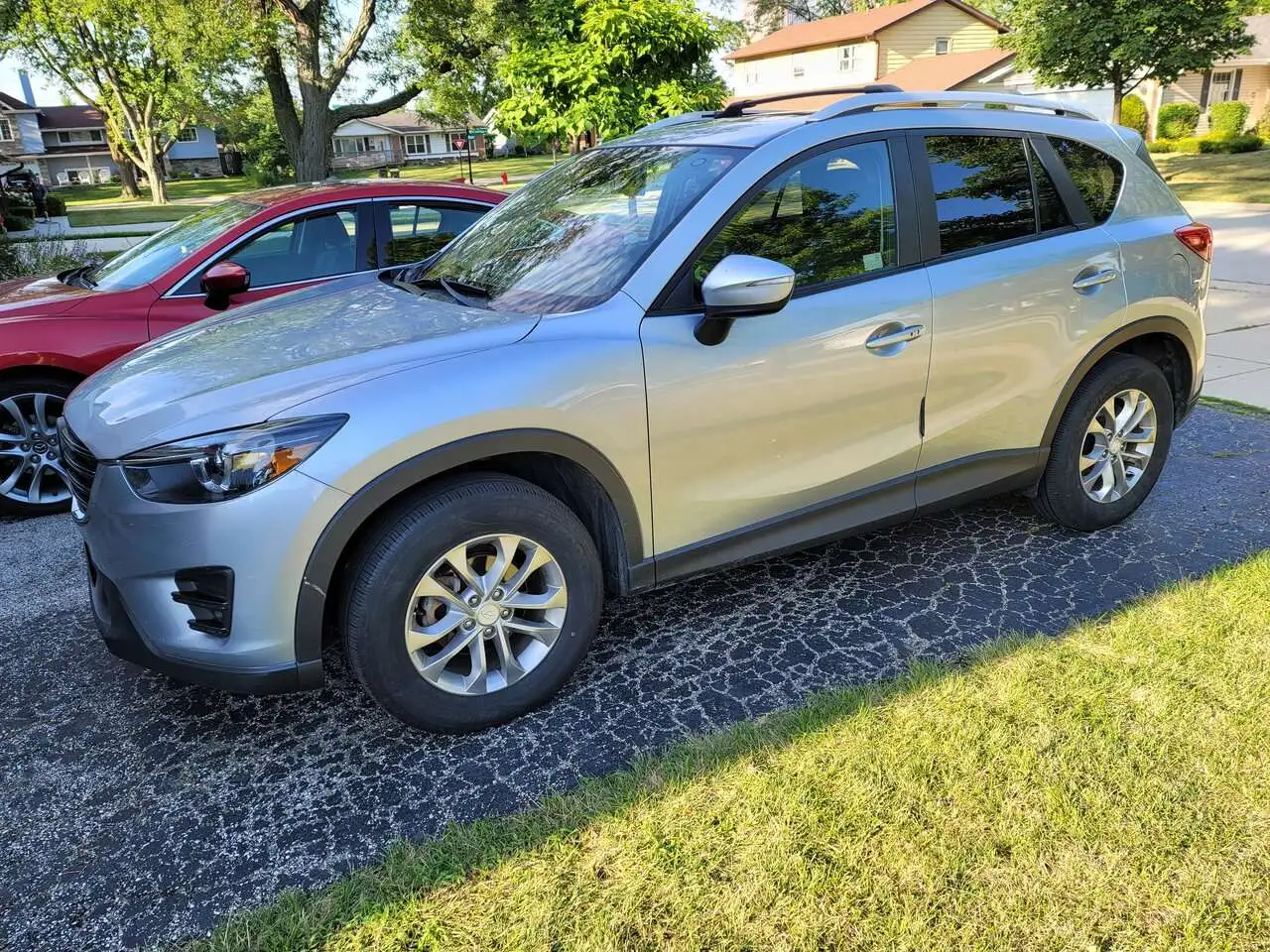

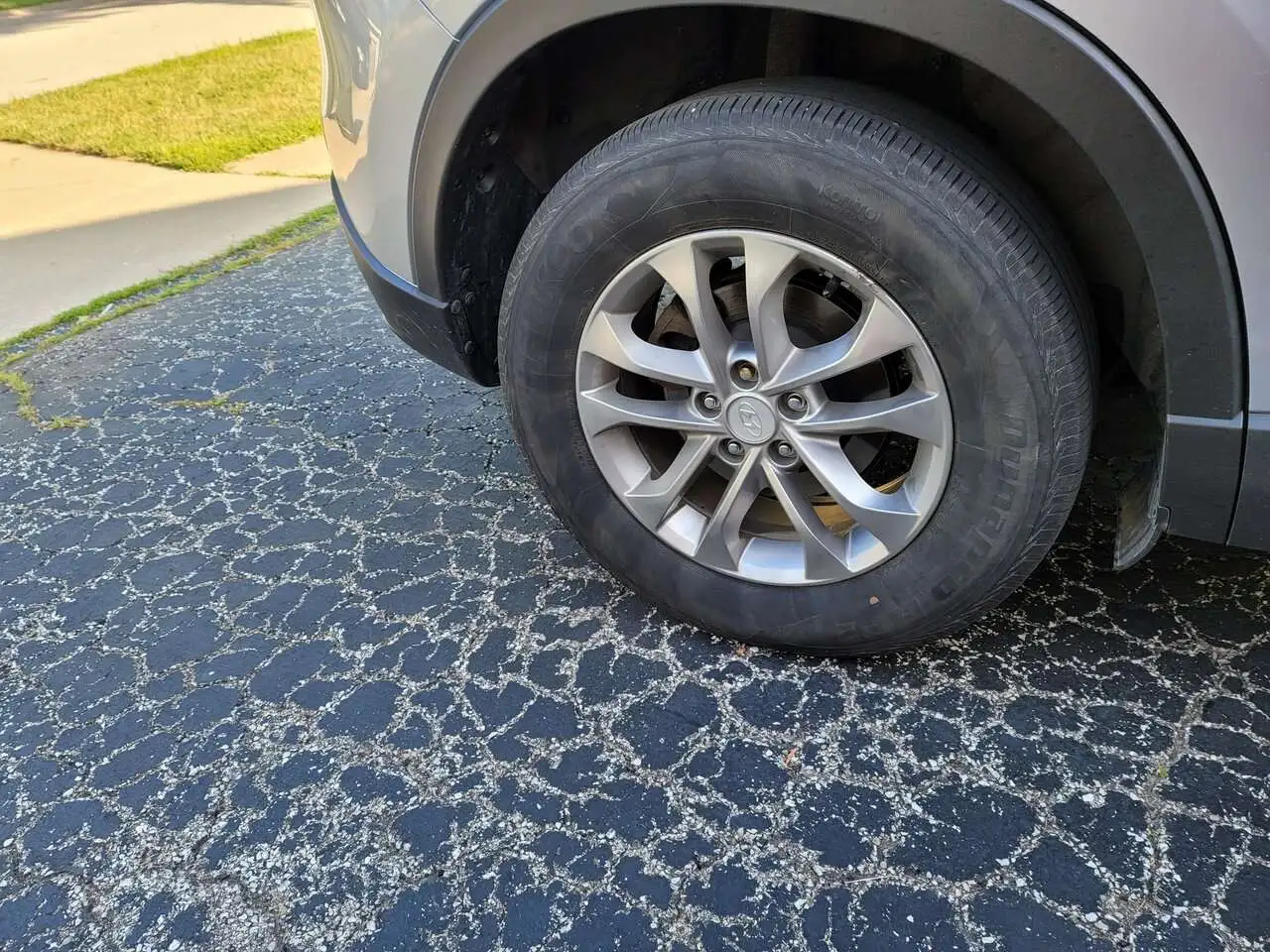

This time, I wanted to replace my summer (all-season) 19" set. I found that Hyundai and Kia wheels have the same bolt pattern AND the same center bore = 67.1 mm. Then happened to find a 2019 Santa Fe 17" set of wheels with 235/65/17 Hankook Dynapro tires. 17x7 ET47. Tried one on at the seller's house and then put all of them there as well. Don't mind some extra width with the 235 vs 225. They fit like a glove. Reused my lugnuts. I felt that Mazda's center caps did not fit as securely as Hyundai's, so I left the Hyundai center caps in. The ride feels as expected. This significantly expands the search criteria given the volume of Hyundai/Kia sold per year. Take a look.


Attachments

  • 20220713_072929.jpg
    265.7 KB · Views: 202
  • 20220713_072926.jpg
    251.2 KB · Views: 207
  • 20220713_072950.jpg
    206.2 KB · Views: 198

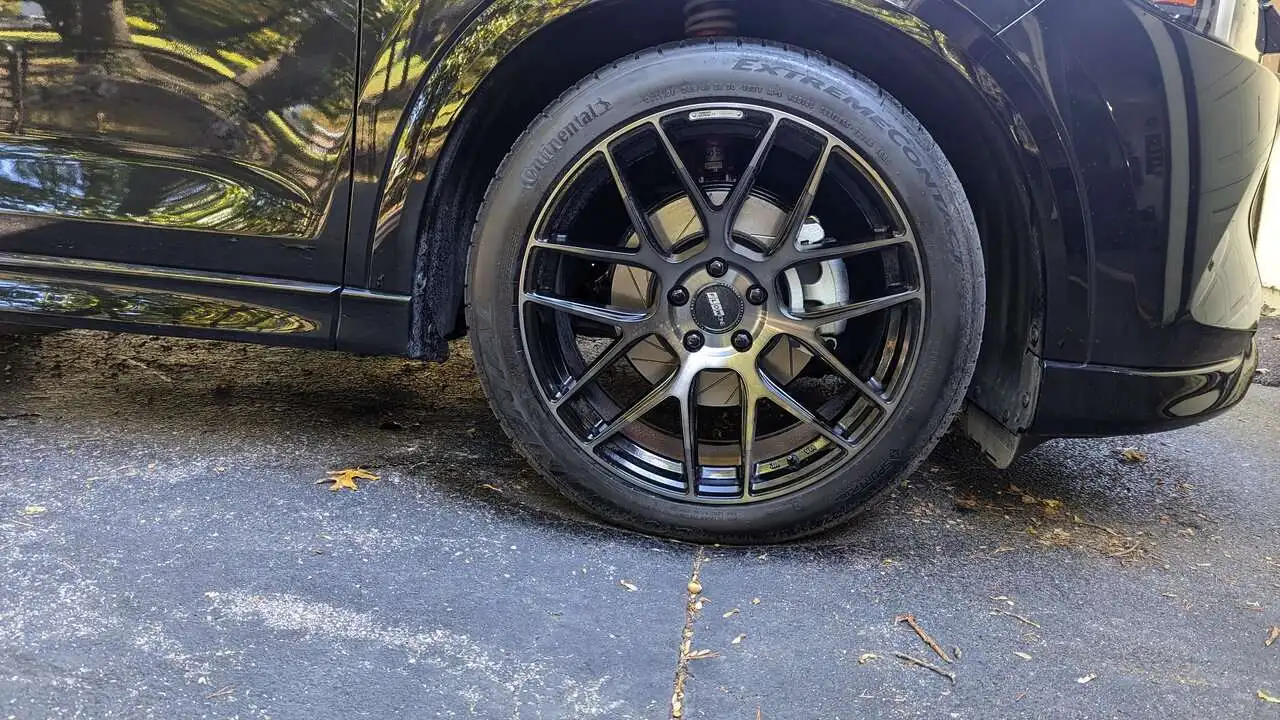

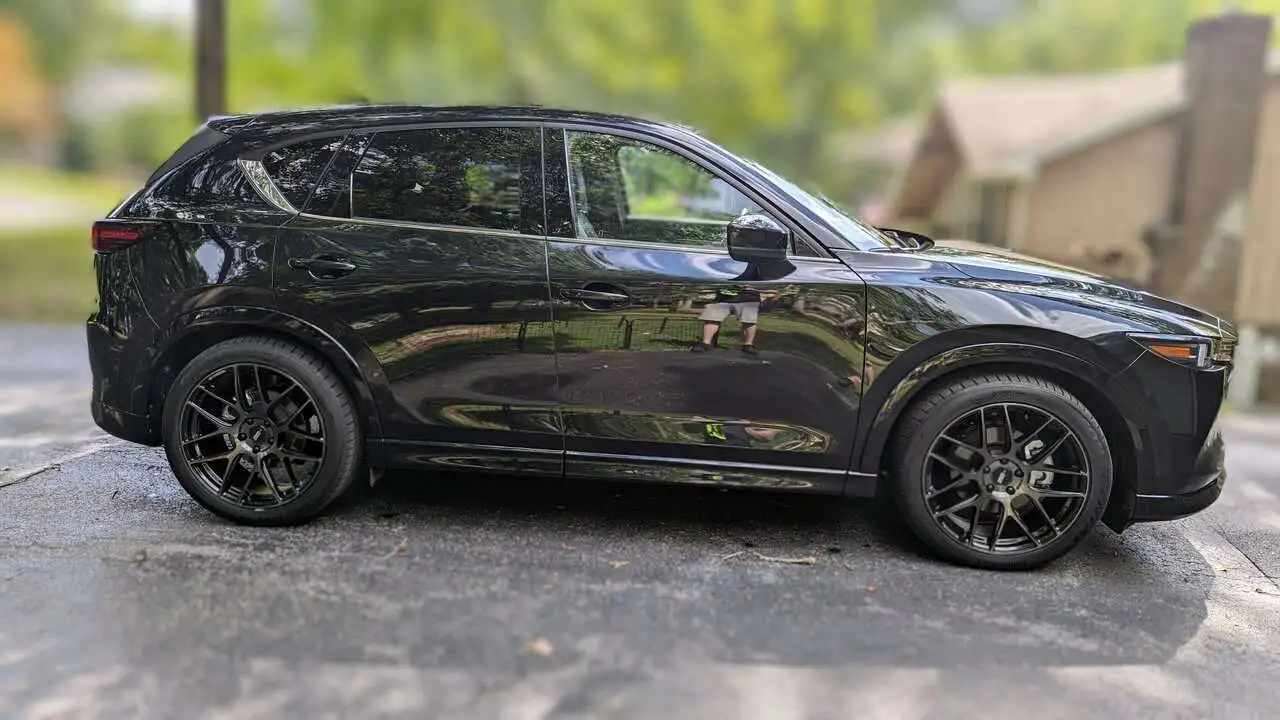

A 2022 Turbo in Black Mica with Flow One Race Spec F2 wheels (20x8.5 +45mm offset) and Continental DSW06+ tires (245/45ZR20).

SUV has been lowered 1.75" front and back.

Bottom pic shows the new slotted rotors with the wheels/tires.



Attachments

  • PXL_20221009_190706179.jpg
    158.3 KB · Views: 336
Last edited:
Clay163 said:
What springs did you go with? Looks really good.
Click to expand...

I had to go with coilovers to get the height adjustment I wanted. I really liked the price of the CorkSport springs, but I originally thought that 2+" drop was a bit lower than I wanted to go.
Looking at it now though, it would have been OK I think.

Still, I like the adjustability I have and if I ever sell it, I have the original suspension unaltered sitting on a shelf in the garage.

dps03 said:

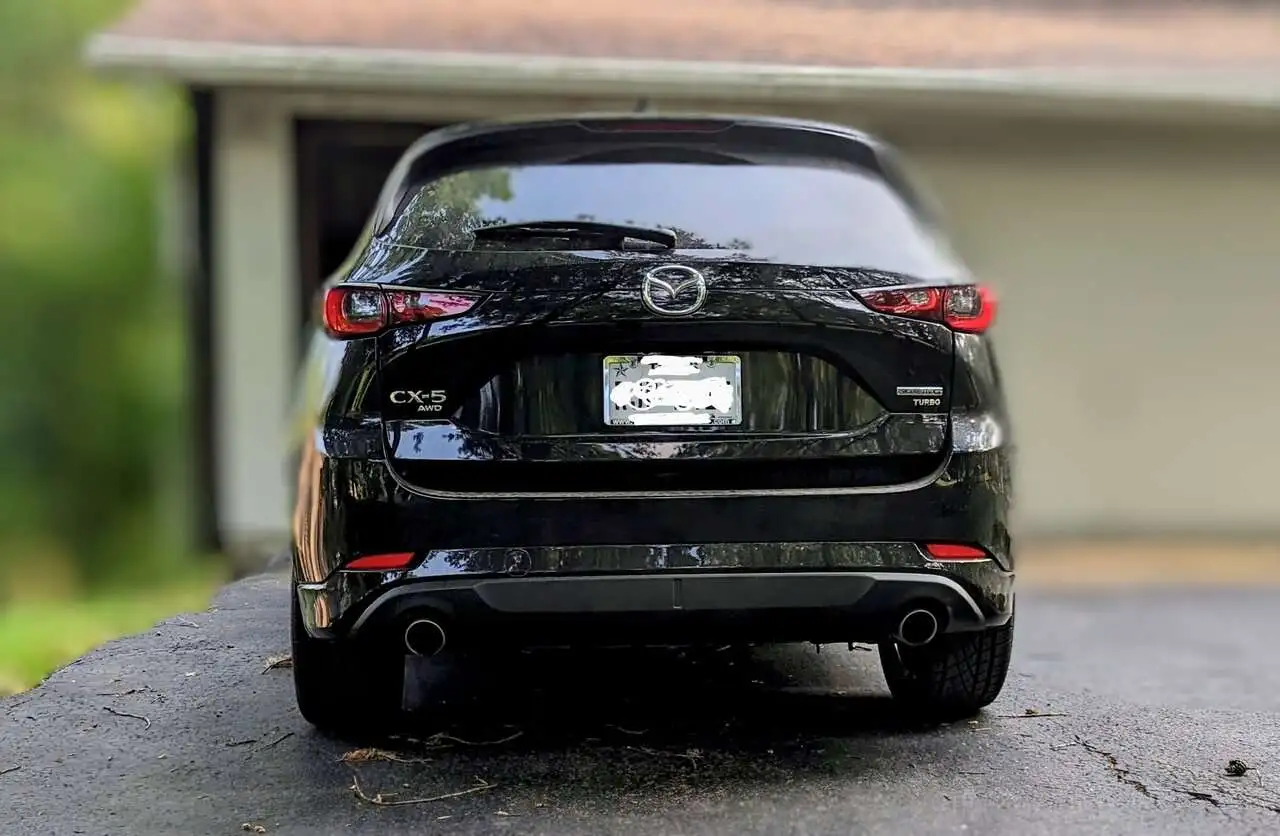

A 2022 Turbo in Black Mica with Flow One Race Spec F2 wheels (20x8.5 +45mm offset) and Continental DSW06+ tires (245/45ZR20).

SUV has been lowered 1.75" front and back.

Bottom pic shows the new slotted rotors with the wheels/tires.

View attachment 312055View attachment 312056
Click to expand...
would you please post more pictures? this is exactly the look I'm looking for. How would you describe the handling differences and overall feel? I have the exact color with stock wheels and they really look pathetically thin.

mmatos1 said:
would you please post more pictures? this is exactly the look I'm looking for. How would you describe the handling differences and overall feel? I have the exact color with stock wheels and they really look pathetically thin.
Click to expand...

I'll try to take some the next time I wash it.

The handling is dramatically different. Much more responsive, less body lean, tighter and a bit stiffer. I have extreme confidence in the braking now as well between the tire, pad, and rotor upgrades.

dps03 said:
I'll try to take some the next time I wash it.

The handling is dramatically different. Much more responsive, less body lean, tighter and a bit stiffer. I have extreme confidence in the braking now as well between the tire, pad, and rotor upgrades.
Click to expand...
How many miles on your coilovers so far?
