Post a picture of your MAZDASPEED3

Well, I might as well join in... I hope you all forgive the fact that I added my Evo too. This was from the last TEMEVO Picnic/Family day we had.






Man I wish they had a body kit like that for th Mazda 3!!!

Led Tail Lights

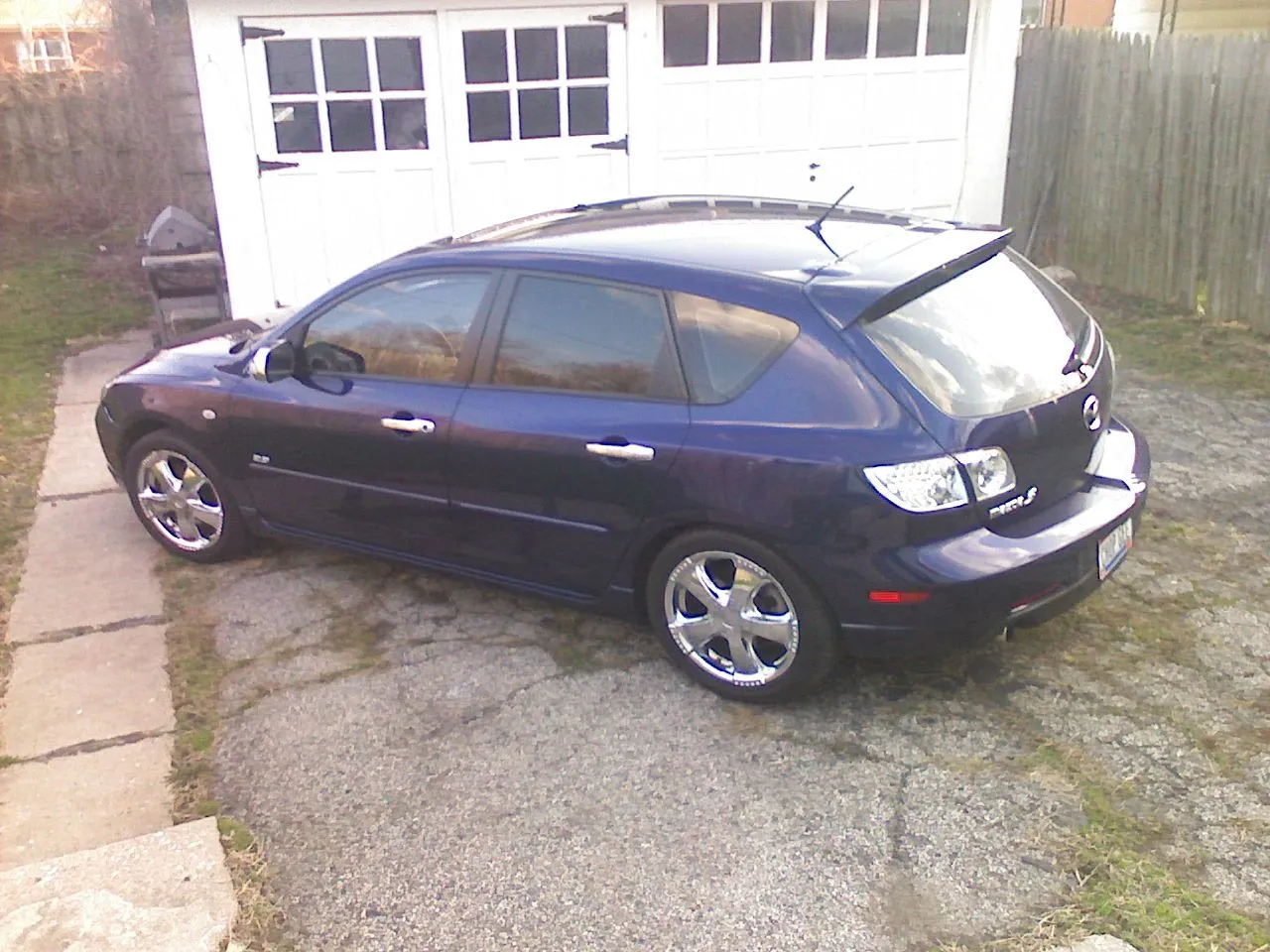

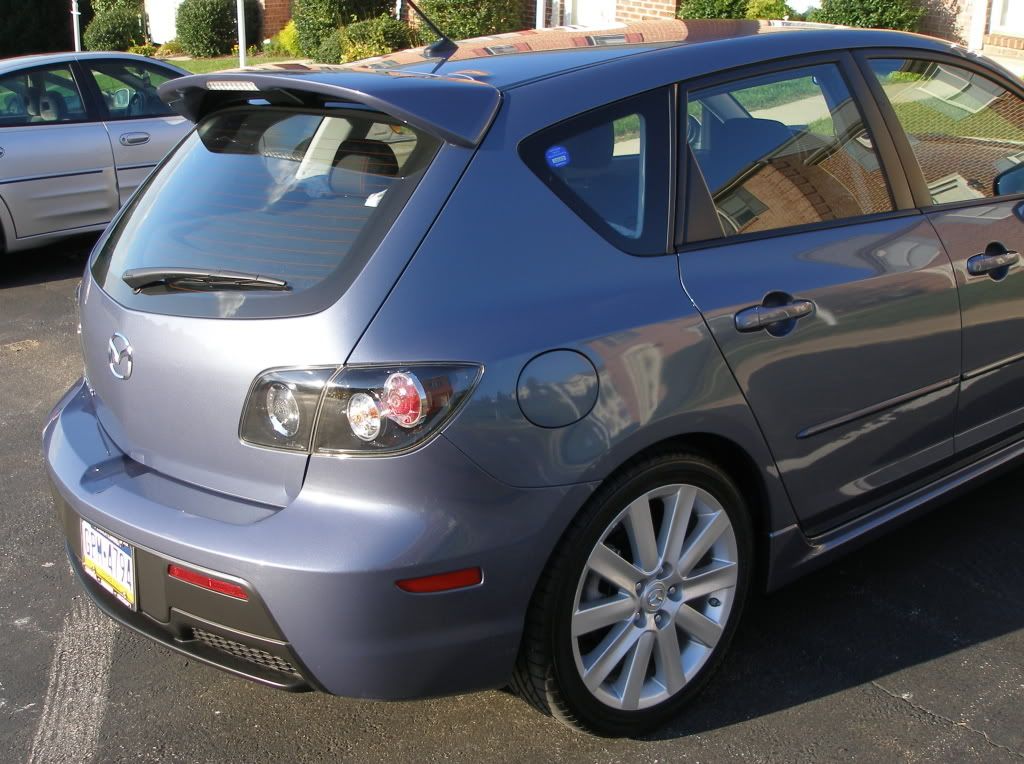

Check out the tail lights.

Also I bought the white side and rear reflectors. I got the sides in (not in picture). Does anyone know how to remove and install the rear reflectors? Your help would be appreciated. They have been sitting in my garage since May.


Attachments

  • tail lights.webp
    tail lights.webp
    137.1 KB · Views: 371
Yes, I know you asked last month, but I'm still catching up on threads after not visiting in a while.

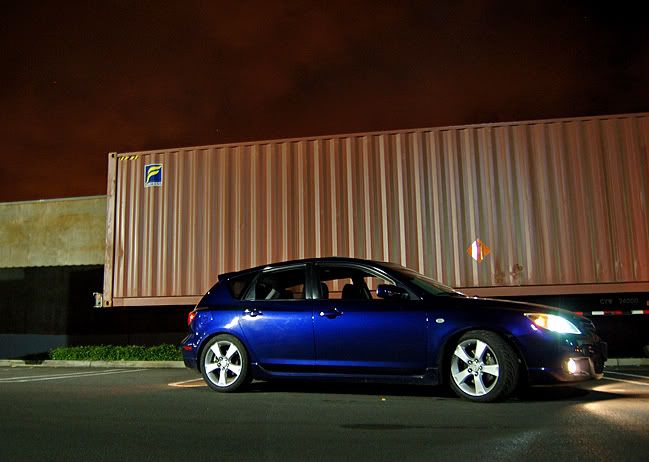

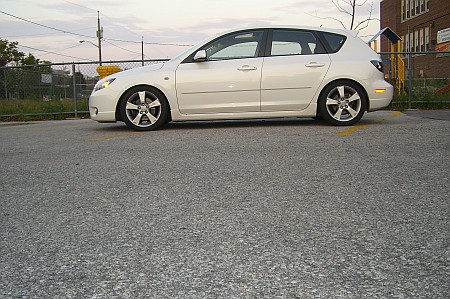

So, here is a crappy driveway pic of my '05 hatch with Tein H-Techs (installed May '06), OEM 17" rims, and BFG gForce Sports in OEM size (205/50/17).

Wow... I hate to say it... But I don't see much of a difference...

Wow... I hate to say it... But I don't see much of a difference...

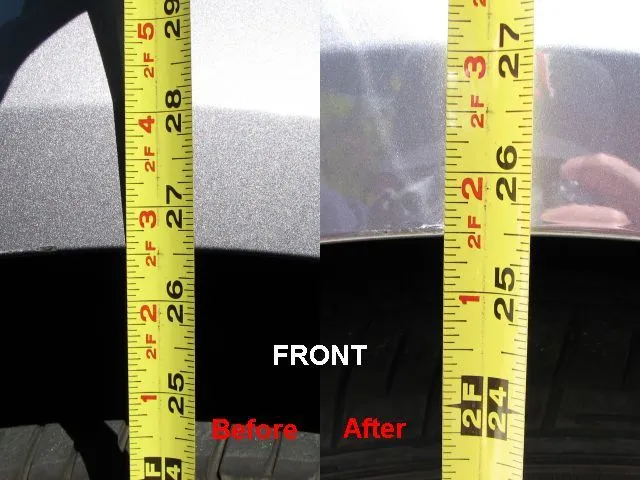

And I won't argue that point. Even when I sit my 3 next to a stock hatch, it isn't all that noticeable. However, I did take some measurement pics both before and after the installation. Admittedly, they don't show the difference in wheel gap, but it does show amount of drop. Both the front and rear have dropped another 5/16" in the 18 months since the installation.


Attachments

  • tein_front.webp
    41 KB · Views: 365
  • tein_rear.webp
    36.2 KB · Views: 322

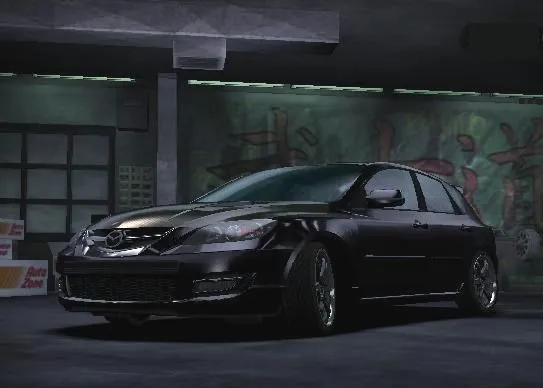

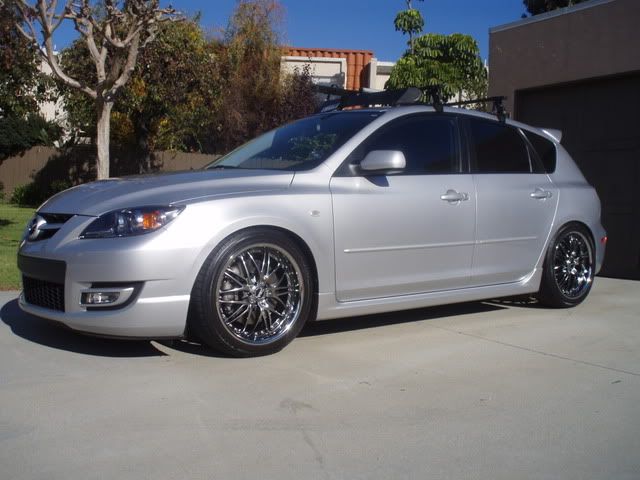

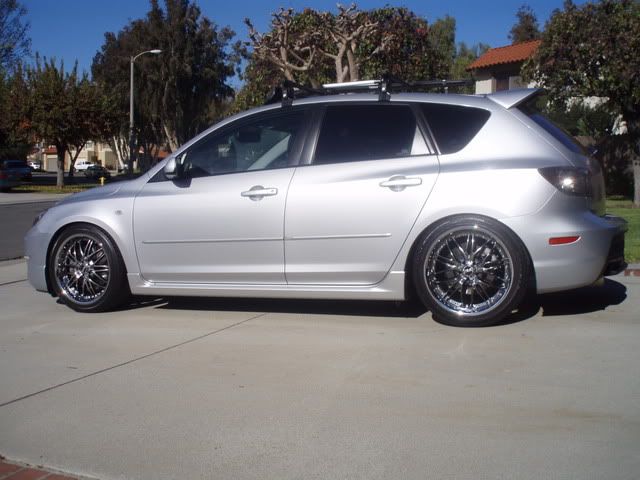

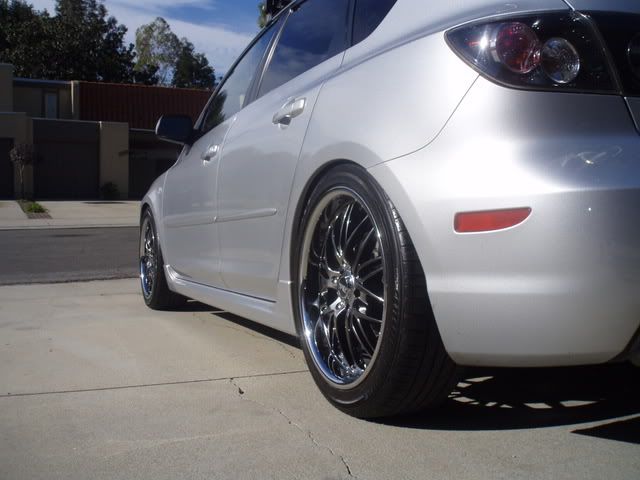

here is my mazdaspeed3... cf hood with 5zigen supersix 20's, and blacked out emblems sidemarkers etc and i dont deal with rice wings and bodykits


Attachments

  • ScreenShot001.webp
    15.8 KB · Views: 418
Last edited:
all nice and clean after a good wathought id post this to help people out as recently wev had quite a few people having problems with bios

all the beep codes are different depending of who makes the bios , but here are some of the more common ones

What is a BIOS Beep Code?
When you power on a computer the BIOS immediately takes control of the computer and performs the P.O.S.T (Power On Self Test). At the end of the POST the computer will play an audible 'BEEP' through either the PC's internal speaker of through speakers attached to the sound card (if you have a built-in sound chip). If the POST completed successfully without detecting any problems with then system will play a single short beep to let you know the test is complete and the computer will continue to startup and load the operating system.
If during the POST the BIOS detects a problem it will normally display a visual error message on the monitor explaining what the problem is. However, if a problem is detected before the BIOS initializes the video card, or a video card is not present or not detected then the BIOS will play several 'BEEPS' through the speaker to let you know there is a problem. Depending on the type of the BIOS you have the BIOS may play beeps in a specific pattern to indicate what the problem is, or play the same beep a number of times indicating the problem. It is very important that you pay close attention to the number and/or pattern of the beeps your computer plays on startup.


Below is a table of the most common AMI, Phoenix and Award BIOS beep codes.

AMI (American Megatrends International) BIOS Beep Codes.
AMI BIOS uses beeps of the same length and pitch. The error is displayed as a number of beeps. For example, 4 beeps indicated a timer failure.
BEEP CODE MEANING POSSIBLE CAUSE
1 Beep (No video) Memory refresh failure Bad memory
2 Beeps Memory parity error Bad memory
3 Beeps Base 64K mem failure Bad memory
4 Beeps Timer not operational Bad motherboard
5 Beeps Processor error Bad processor
6 Beeps 8042 Gate A20 failure Bad CPU or Motherboard
7 Beeps Processor exception Bad processor
8 Beeps Video memory error Bad video card or memory
9 Beeps ROM checksum error Bad BIOS
10 Beeps CMOS checksum error Bad motherboard
11 Beeps Cache memory bad Bad CPU or motherboard



Award BIOS Beep Codes
Award BIOS uses beeps of varying duration. A long beep will typically last for 2 seconds while a short beep will last only 1 second. Award BIOS also uses beeps of different frequency to indicate critical errors. If an Award BIOS detects that the CPU is overheating it may play a high pitched repeating beep while the computer is running.
BEEP CODE MEANING POSSIBLE CAUSE
1 Long, 2 Short Video adapter failure Bad video adapter
Repeating (Endless loop) Memory error Bad memory or bad connection
1 Long, 3 Short Video adapter failure Bad video adapter or memory
High freq. beeps (while running) CPU is overheating CPU fan failure
Repeating High, Low beeps CPU failure Bad processor



Phoenix BIOS Beep Codes
Phoenix BIOS uses beep code patterns to indicate problems. In the table below the '-' indicates a brief pause between beeps.
Example: 1 - 1 - 2 would sound like BEEP <pause> BEEP <pause> BEEP BEEP

BEEP CODE MEANING POSSIBLE CAUSE
1 - 1 - 2 CPU / motherboard failure Bad CPU / motherboard
1 - 1 - 3 CMOS read/write failure Bad motherboard
1 - 1 - 4 BIOS ROM failure Bad BIOS chip
1 - 2 - 1 Timer failure Bad motherboard
1 - 2 - 2 DMA failure Bad motherboard
1 - 2 - 3 DMA failure Bad motherboard
1 - 3 - 1 Memory refresh failure Bad memory
1 - 3 - 2 64K memory failure Bad memory
1 - 3 - 3 64K memory failure Bad memory
1 - 3 - 4 64K memory failure Bad memory
1 - 4 - 1 Address line failure Bad memory
1 - 4 - 2 Parity error Bad memory
1 - 4 - 3 Timer failure Bad motherboard
1 - 4 - 4 NMI port failure Bad motherboard
2 - 1 - 1 64K memory failure Bad memory
2 - 1 - 2 64K memory failure Bad memory
2 - 1 - 3 64K memory failure Bad memory
2 - 1 - 4 64K memory failure Bad memory
2 - 2 - 1 64K memory failure Bad memory
2 - 2 - 2 64K memory failure Bad memory
2 - 2 - 3 64K memory failure Bad memory
2 - 2 - 4 64K memory failure Bad memory
2 - 3 - 1 64K memory failure Bad memory
2 - 3 - 2 64K memory failure Bad memory
2 - 3 - 3 64K memory failure Bad memory
2 - 3 - 4 64K memory failure Bad memory
2 - 4 - 1 64K memory failure Bad memory
2 - 4 - 2 64K memory failure Bad memory
2 - 4 - 4 64K memory failure Bad memory
2 - 4 - 4 64K memory failure Bad memory
3 - 1 - 1 Slave DMA failure Bad motherboard
3 - 1 - 2 Master DMA failure Bad motherboard
3 - 1 - 3 Interrupt controller failure Bad motherboard
3 - 1 -4 Slave IC failure Bad motherboard
3 - 2 -2 Interrupt Controller failure Bad motherboard
3 - 2 - 3 <RESERVED>
3 - 2 - 4 Keyboard control failure Bad motherboard
3 - 3 - 1 CMOS batter failure Bad CMOS battery
3 - 3 - 2 CMOS configuration error Incorrect setting
3 - 3 - 3 <RESERVED>
3 - 3 - 4 Video memory failure Bad video card or memory
3 - 4 - 1 Video init failure Bad video card or memory
4 - 2 - 1 Timer failure Bad motherboard
4 - 2 - 2 CMOS shutdown failure Bad motherboard
4 - 2 - 3 Gate A20 failure Bad motherboard
4 - 2 - 4 Unexpected interrupt Bad processor
4 - 3 - 1 RAM test failure Bad memory
4 - 3 - 3 Timer failure Bad motherboard
4 - 3 - 4 RTC failure Bad motherboard
4 - 4 - 1 Serial port failure Bad motherboard
4 - 4 - 2 Parallel port failure Bad motherboard
4 - 4 - 3 Coprocessor failure Bad motherboard or CPU.
9 - 2 - 1 Video adapter incompatibility Use a different brand of video cardthought id post this to help people out as recently wev had quite a few people having problems with bios

all the beep codes are different depending of who makes the bios , but here are some of the more common ones

What is a BIOS Beep Code?
When you power on a computer the BIOS immediately takes control of the computer and performs the P.O.S.T (Power On Self Test). At the end of the POST the computer will play an audible 'BEEP' through either the PC's internal speaker of through speakers attached to the sound card (if you have a built-in sound chip). If the POST completed successfully without detecting any problems with then system will play a single short beep to let you know the test is complete and the computer will continue to startup and load the operating system.
If during the POST the BIOS detects a problem it will normally display a visual error message on the monitor explaining what the problem is. However, if a problem is detected before the BIOS initializes the video card, or a video card is not present or not detected then the BIOS will play several 'BEEPS' through the speaker to let you know there is a problem. Depending on the type of the BIOS you have the BIOS may play beeps in a specific pattern to indicate what the problem is, or play the same beep a number of times indicating the problem. It is very important that you pay close attention to the number and/or pattern of the beeps your computer plays on startup.


Below is a table of the most common AMI, Phoenix and Award BIOS beep codes.

AMI (American Megatrends International) BIOS Beep Codes.
AMI BIOS uses beeps of the same length and pitch. The error is displayed as a number of beeps. For example, 4 beeps indicated a timer failure.
BEEP CODE MEANING POSSIBLE CAUSE
1 Beep (No video) Memory refresh failure Bad memory
2 Beeps Memory parity error Bad memory
3 Beeps Base 64K mem failure Bad memory
4 Beeps Timer not operational Bad motherboard
5 Beeps Processor error Bad processor
6 Beeps 8042 Gate A20 failure Bad CPU or Motherboard
7 Beeps Processor exception Bad processor
8 Beeps Video memory error Bad video card or memory
9 Beeps ROM checksum error Bad BIOS
10 Beeps CMOS checksum error Bad motherboard
11 Beeps Cache memory bad Bad CPU or motherboard



Award BIOS Beep Codes
Award BIOS uses beeps of varying duration. A long beep will typically last for 2 seconds while a short beep will last only 1 second. Award BIOS also uses beeps of different frequency to indicate critical errors. If an Award BIOS detects that the CPU is overheating it may play a high pitched repeating beep while the computer is running.
BEEP CODE MEANING POSSIBLE CAUSE
1 Long, 2 Short Video adapter failure Bad video adapter
Repeating (Endless loop) Memory error Bad memory or bad connection
1 Long, 3 Short Video adapter failure Bad video adapter or memory
High freq. beeps (while running) CPU is overheating CPU fan failure
Repeating High, Low beeps CPU failure Bad processor



Phoenix BIOS Beep Codes
Phoenix BIOS uses beep code patterns to indicate problems. In the table below the '-' indicates a brief pause between beeps.
Example: 1 - 1 - 2 would sound like BEEP <pause> BEEP <pause> BEEP BEEP

BEEP CODE MEANING POSSIBLE CAUSE
1 - 1 - 2 CPU / motherboard failure Bad CPU / motherboard
1 - 1 - 3 CMOS read/write failure Bad motherboard
1 - 1 - 4 BIOS ROM failure Bad BIOS chip
1 - 2 - 1 Timer failure Bad motherboard
1 - 2 - 2 DMA failure Bad motherboard
1 - 2 - 3 DMA failure Bad motherboard
1 - 3 - 1 Memory refresh failure Bad memory
1 - 3 - 2 64K memory failure Bad memory
1 - 3 - 3 64K memory failure Bad memory
1 - 3 - 4 64K memory failure Bad memory
1 - 4 - 1 Address line failure Bad memory
1 - 4 - 2 Parity error Bad memory
1 - 4 - 3 Timer failure Bad motherboard
1 - 4 - 4 NMI port failure Bad motherboard
2 - 1 - 1 64K memory failure Bad memory
2 - 1 - 2 64K memory failure Bad memory
2 - 1 - 3 64K memory failure Bad memory
2 - 1 - 4 64K memory failure Bad memory
2 - 2 - 1 64K memory failure Bad memory
2 - 2 - 2 64K memory failure Bad memory
2 - 2 - 3 64K memory failure Bad memory
2 - 2 - 4 64K memory failure Bad memory
2 - 3 - 1 64K memory failure Bad memory
2 - 3 - 2 64K memory failure Bad memory
2 - 3 - 3 64K memory failure Bad memory
2 - 3 - 4 64K memory failure Bad memory
2 - 4 - 1 64K memory failure Bad memory
2 - 4 - 2 64K memory failure Bad memory
2 - 4 - 4 64K memory failure Bad memory
2 - 4 - 4 64K memory failure Bad memory
3 - 1 - 1 Slave DMA failure Bad motherboard
3 - 1 - 2 Master DMA failure Bad motherboard
3 - 1 - 3 Interrupt controller failure Bad motherboard
3 - 1 -4 Slave IC failure Bad motherboard
3 - 2 -2 Interrupt Controller failure Bad motherboard
3 - 2 - 3 <RESERVED>
3 - 2 - 4 Keyboard control failure Bad motherboard
3 - 3 - 1 CMOS batter failure Bad CMOS battery
3 - 3 - 2 CMOS configuration error Incorrect setting
3 - 3 - 3 <RESERVED>
3 - 3 - 4 Video memory failure Bad video card or memory
3 - 4 - 1 Video init failure Bad video card or memory
4 - 2 - 1 Timer failure Bad motherboard
4 - 2 - 2 CMOS shutdown failure Bad motherboard
4 - 2 - 3 Gate A20 failure Bad motherboard
4 - 2 - 4 Unexpected interrupt Bad processor
4 - 3 - 1 RAM test failure Bad memory
4 - 3 - 3 Timer failure Bad motherboard
4 - 3 - 4 RTC failure Bad motherboard
4 - 4 - 1 Serial port failure Bad motherboard
4 - 4 - 2 Parallel port failure Bad motherboard
4 - 4 - 3 Coprocessor failure Bad motherboard or CPU.
9 - 2 - 1 Video adapter incompatibility Use a different brand of video card01_0111.jpg[/IMG]

Last edited:
new to this forums. drive an 06 3i sportline drop corksport exhaust f5 intake tb ground advanced timing.
