My TTD build thread

[sm76]

yup. all twelve races (including one enduro at autobaun)

Sweet! keep us posted on how it goes!



[sm76]

Well, spend a decent part of my budget tonight on stuff that won't make my car go any faster: Hans Device, mesh window net (hated the ribbon style and never really used it), right side net, balaclava and more roll bar padding.



[aMaff]

You don't know that. If you feel safer, maybe you'll push harder and go faster?



[sm76]

My helmet had pre-installed anchors so adding the posts was easy.



[sm76]

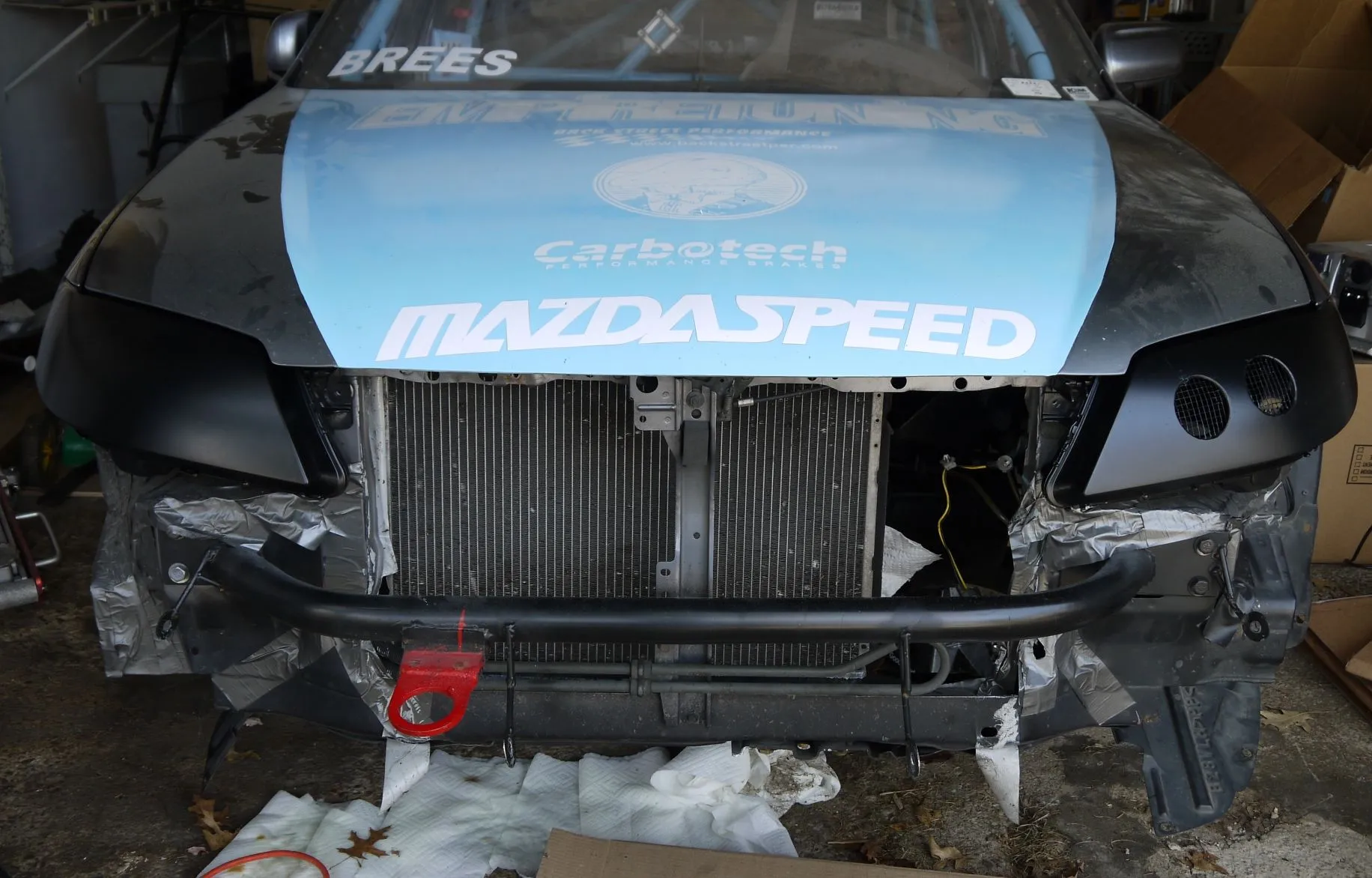

I decided to gut my headlights instead of replacing them with Aluminum so I could keep the bumper supports. Went from 4 pounds each to 1 pound each. I need to add an air inlet to the drivers side then paint them. I'm thinking flat black.

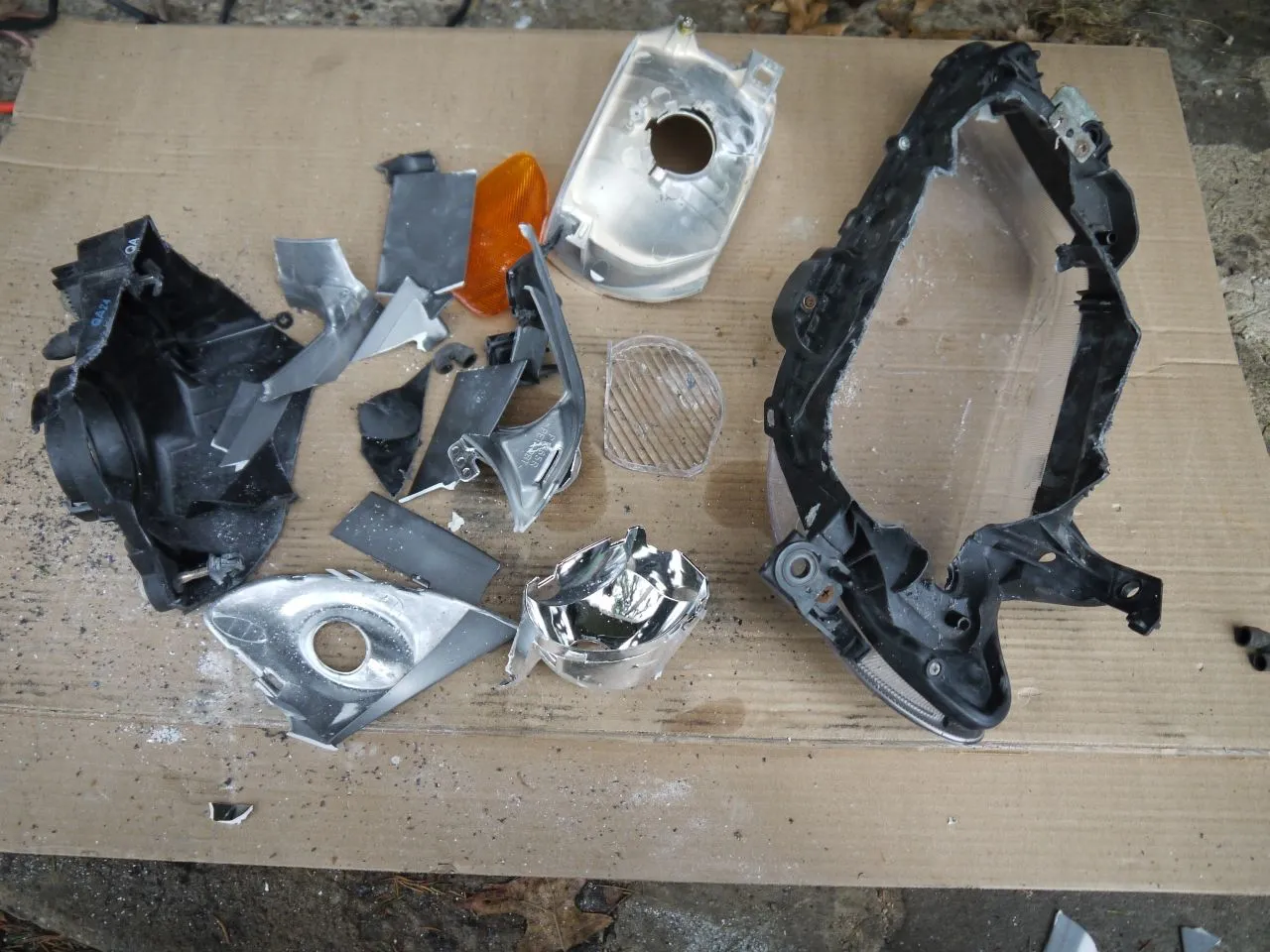

Headlight case on the right, guts I'm throwing away on left.



[sm76]

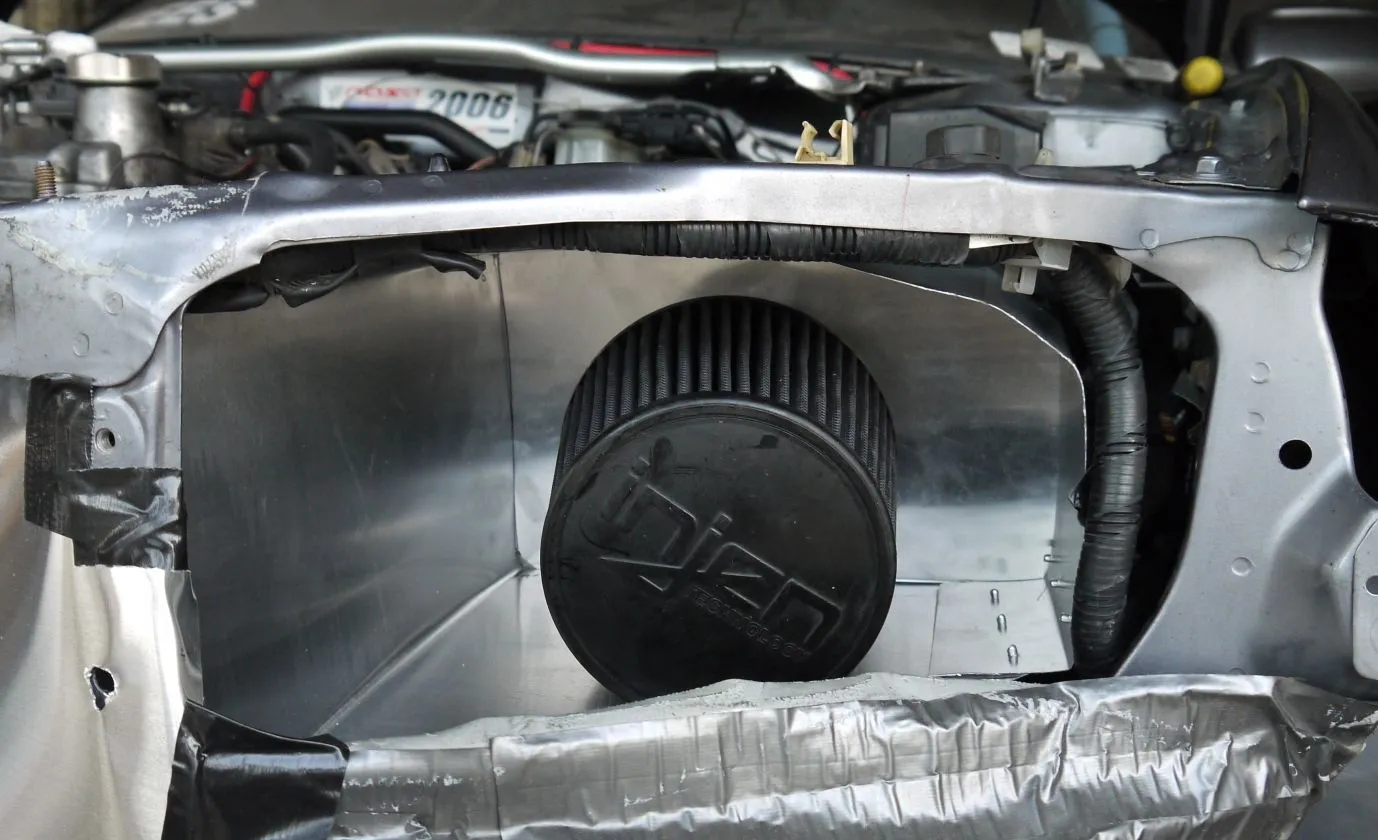

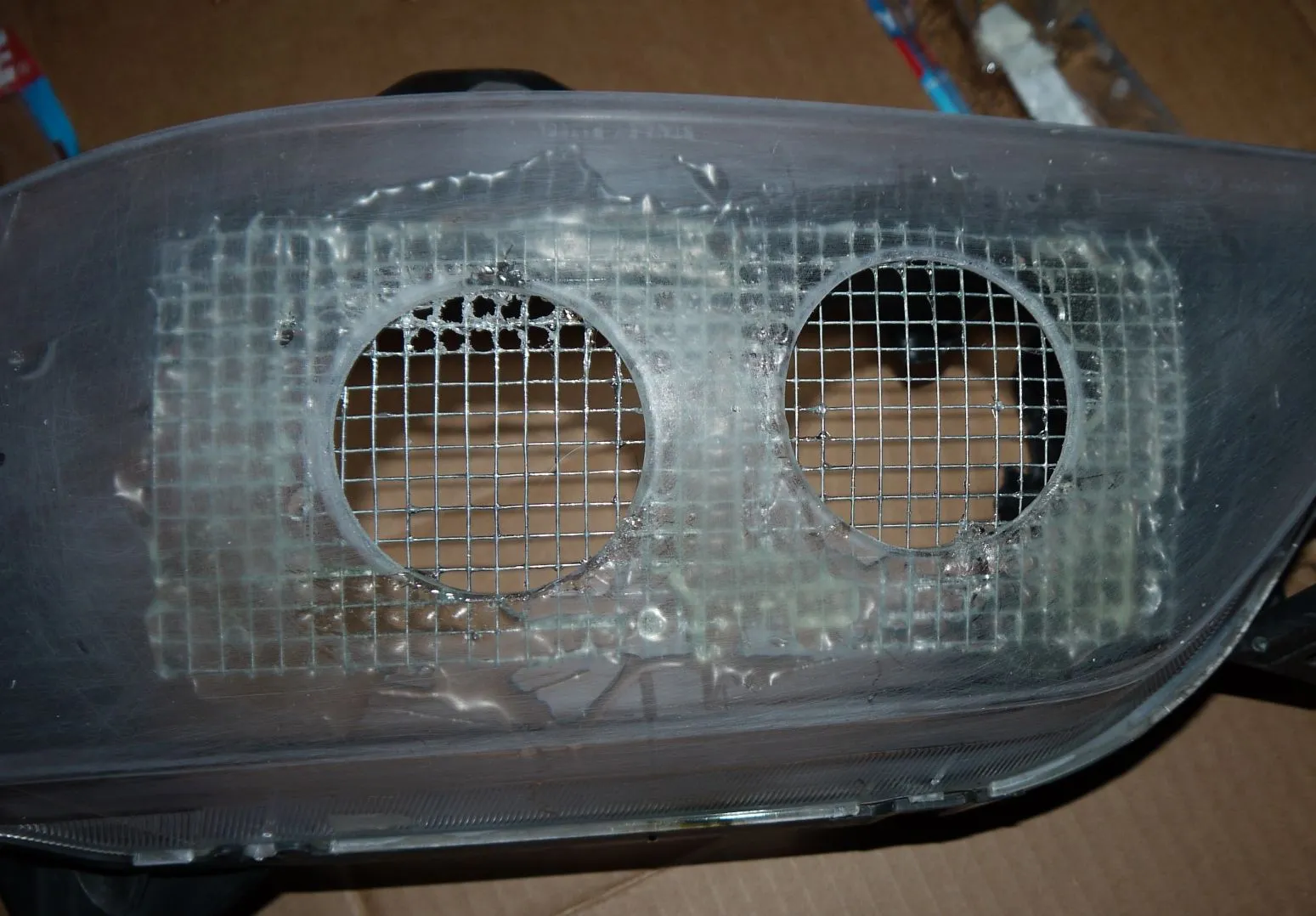

Dirty in-process pictures of the air intake in my headlight. After a little cleanup and painting, it should look good.



[sm76]



[sm76]

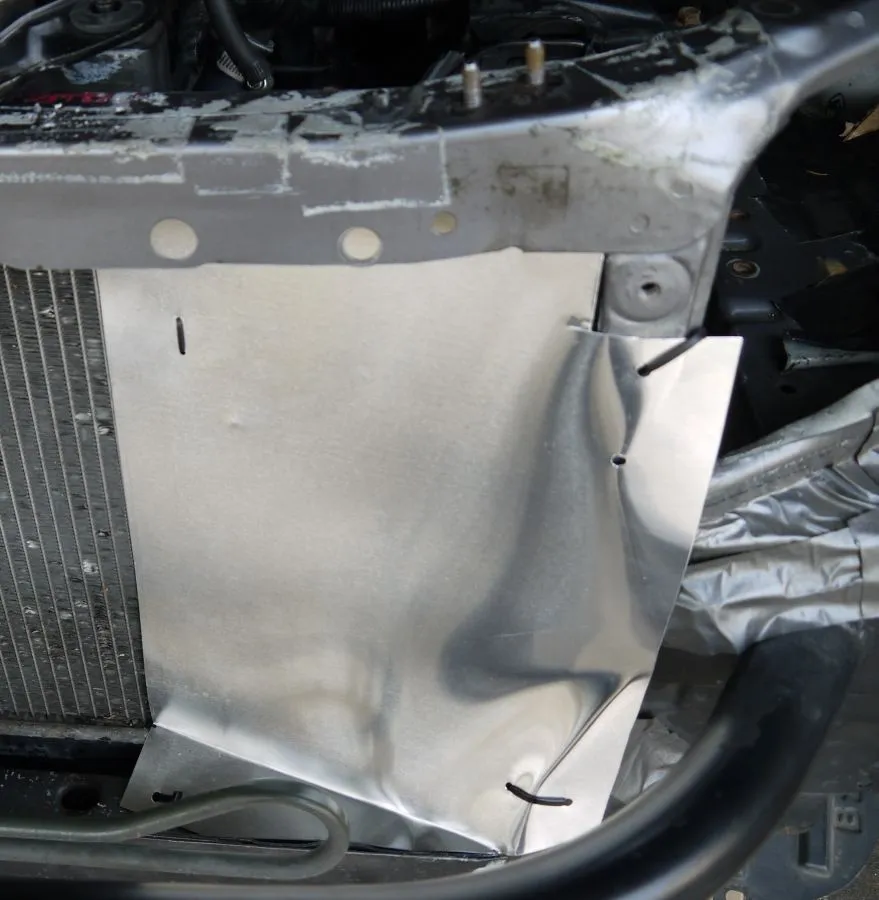

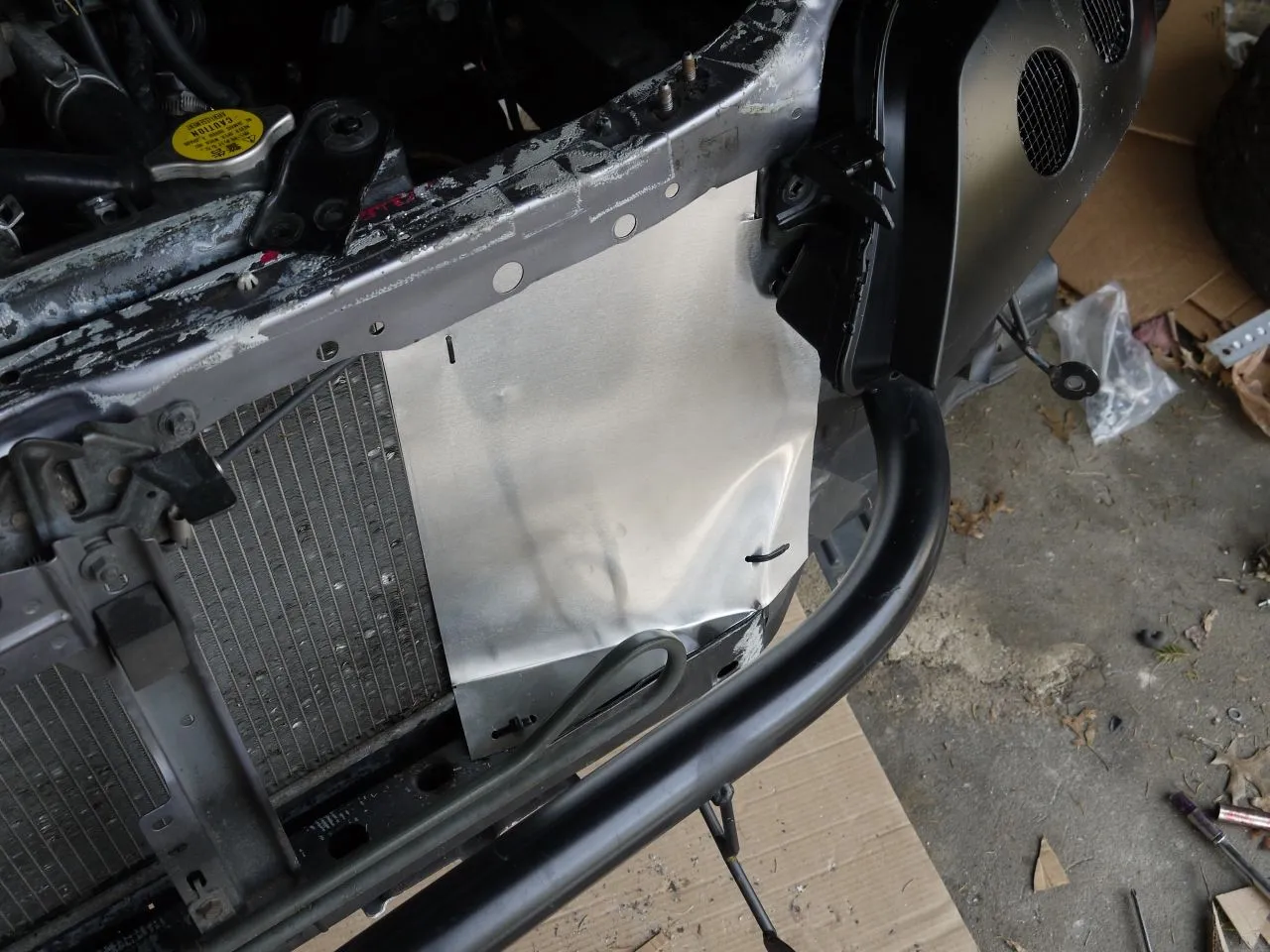

Air deflector to cover the location of the stock intercooler.



[sm76]

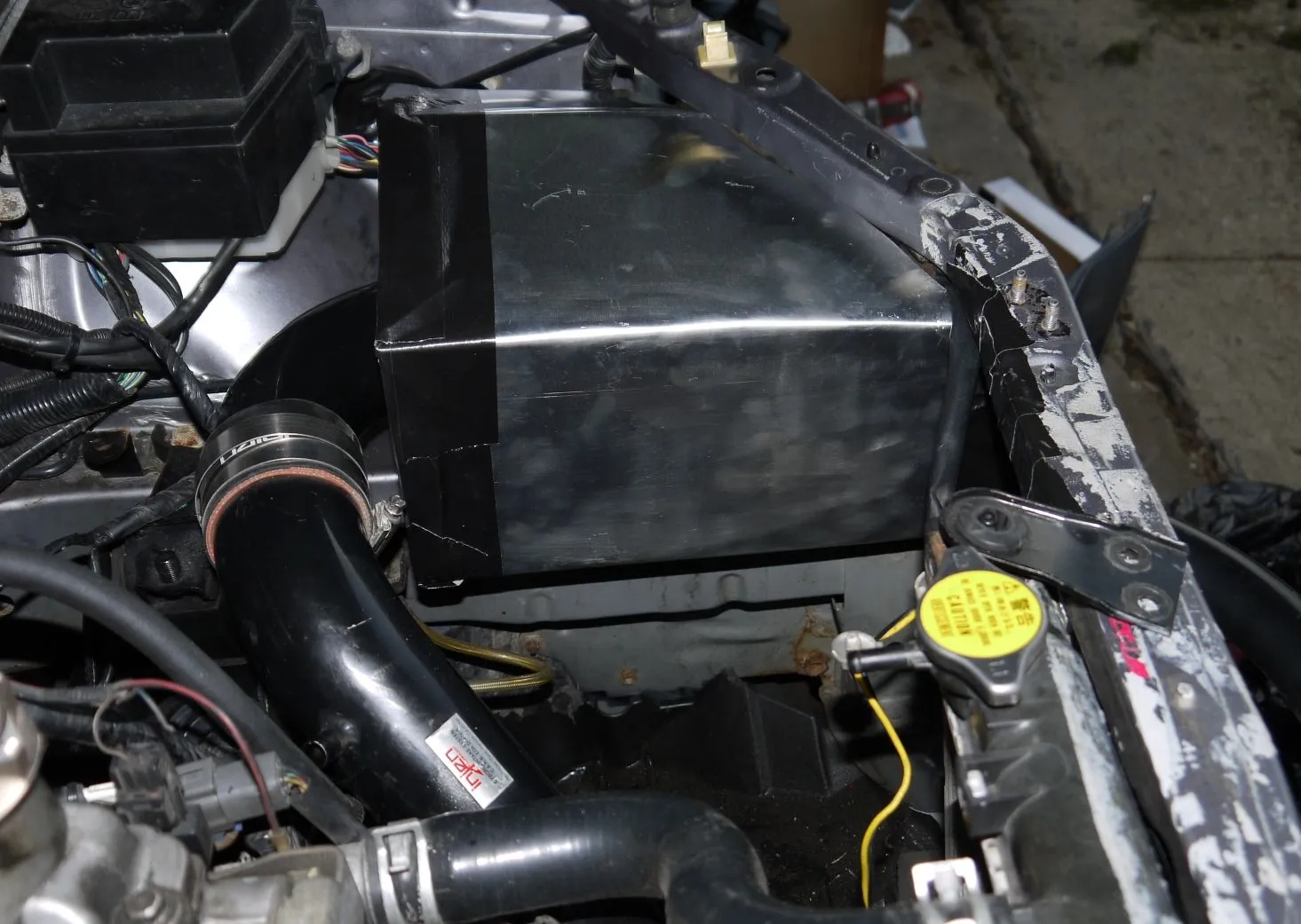

Airbox



[Lewis7789]

Subbin.

Good luck this year, Bill! Looking forward to watching you on track.



[sm76]

Thanks Lewis.

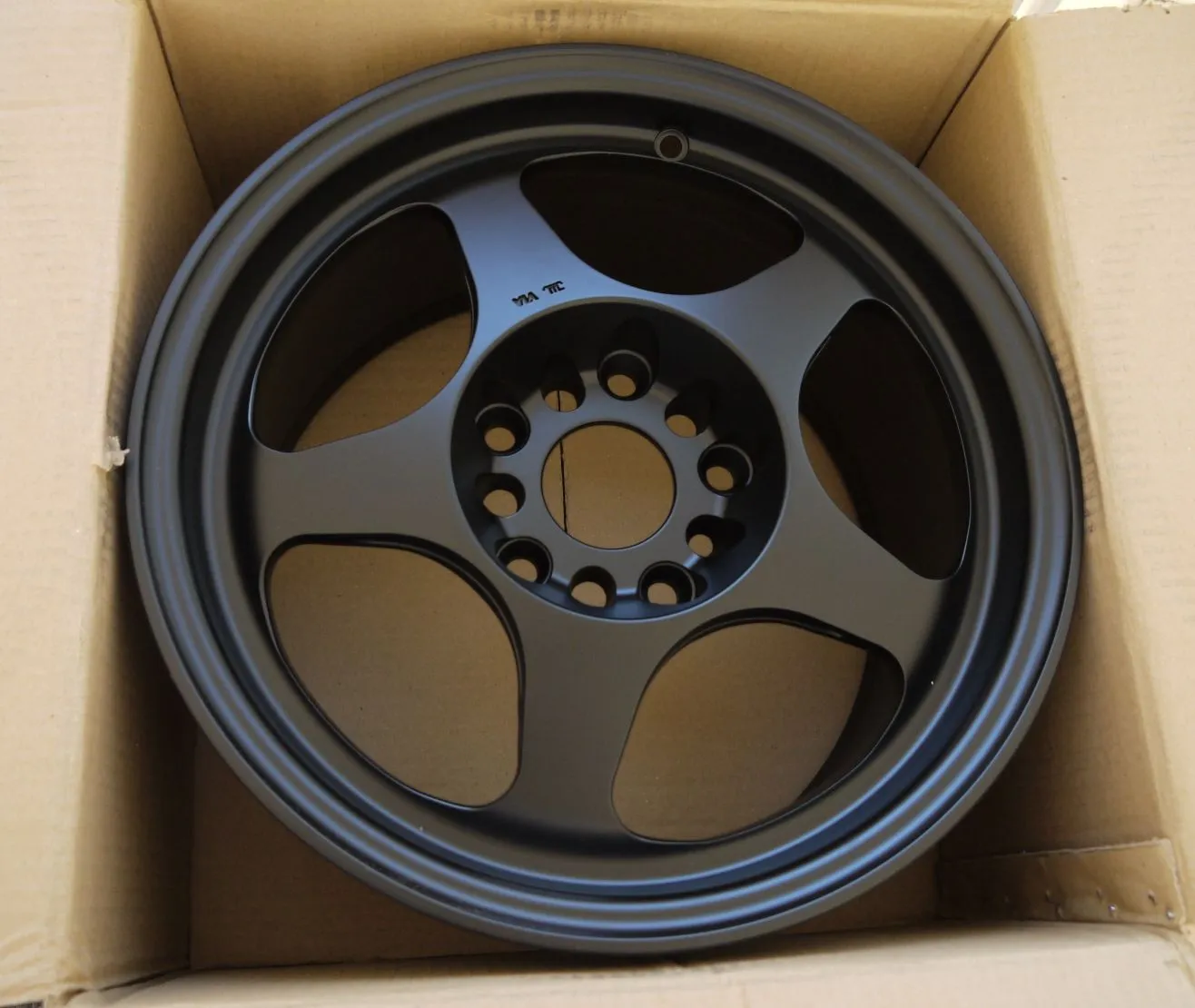

Wheels came in today. The satin black is making me rethink painting this set blue.



[aMaff]

Secksi

What wheels are those?



[sm76]

15x8 Rota Slipstreams



[aMaff]

In that case: blue would probably be a lot easier to inspect for cracks. Just sayin.



[iracemine]

wait.... what do I have?



[aMaff]

wait.... what do I have?

Squaids?



[sm76]

In that case: blue would probably be a lot easier to inspect for cracks. Just sayin.

If they were SubZeros that would be right, but the Slipstreams don't have problems like that.

I think I've decided to try a blue ring around the OD outside the spoke area for a little color.



[sm76]

wait.... what do I have?

?



[aMaff]

I've seen a handful of slipstreams break too. Honestly, for *any* track wheel, I'd keep a close eye on that because any wheel will fail under enough abuse, but the rotas have a bit of a reputation for it.

View attachment 182215?

(rlaugh)



[iracemine]

15X7 and a 40 off set slipstreams. running the 225 45 15 nitto nto1
