mysleeper6
Member
- :
- 2006 Mazdaspeed6
What intercooler are you running? -40 degree boost air temp!
But seriously, what Bova said. Your AP is f'd.
Cobb AP Discussion Thread
- Thread starter djdanny5000
- Start date
What intercooler are you running? -40 degree boost air temp!
But seriously, what Bova said. Your AP is f'd.
Boosted_Squid
Member
- :
- Mazdaspeed6
I just updated the AP before the run...What I didn't do was reinstall the map after the update...
@Zinger- The boost controller is stock, who should I go to for a replacement?
@Sleeper- Stock intercooler...
@Zinger- The boost controller is stock, who should I go to for a replacement?
@Sleeper- Stock intercooler...
mysleeper6
Member
- :
- 2006 Mazdaspeed6
Boosted_Squid
Member
- :
- Mazdaspeed6
So, I replaced the vacuum hose that goes from the TIP to the Boost controller, reinstalled the map and the initial numbers look good. I was able to make 18psi of boost, air flow temp seemed reasonable... I'm gonna wait on getting a few more miles on this map before I give it another run. It was probably just a corrupted datalog. Maybe tomorrow I'll get a good run in...
Nevermind Zing, I must have been confused. but thanks anyways...Where in Canada are you?
Nevermind Zing, I must have been confused. but thanks anyways...Where in Canada are you?
Boosted_Squid
Member
- :
- Mazdaspeed6
Better log
So I put on some miles, pulled this run...Thoughts?
Thanks,
So I put on some miles, pulled this run...Thoughts?
Thanks,
solidtrance
Member
- :
- HIS: 2005 RX-8 WWP GT 6MT* HERS: 2006 Speed6 BCM 6MT**
I am not an expert, but this is what I see. The resolution on that log is really low (should be multiple, like 4-6, data logs per sec). You are nearly maxing out WGDS and only running 15 lbs of boost. Seems odd. KR is low which is good, but LTFTs are too high. Did you follow the steps that Bova explained? Either your AP is still messed up, or your tune is no good. If your AP is logging correctly I would be carefull until you get a better tune on the car. Be carfull, with the WGDS already pegged you have little to no safety margine to handle boost spikes.
Boosted_Squid
Member
- :
- Mazdaspeed6
Yeah, I updated everything (AP + maps). Restored the car to stock, then reinstalled the latest map, made sure I put about 100 miles on the car, then I did the pull. I'm taking it to a tune shop as soon as I get my exhaust. Until then I'll take it easy on her...
well the older APs don't have as good as resolution when logging as the new ones and are even worse when you log that many things as you did. also why do you stop at 5800rpm? go the whole way to red line.
you could definitely use a different tune as you are running rich up high. i don't think you have to take it easy cause I don't see anything wrong, just that a proper tune will net you a lot more than what you are showing now.
you could definitely use a different tune as you are running rich up high. i don't think you have to take it easy cause I don't see anything wrong, just that a proper tune will net you a lot more than what you are showing now.
solidtrance
Member
- :
- HIS: 2005 RX-8 WWP GT 6MT* HERS: 2006 Speed6 BCM 6MT**
As I said, I am not an expert. So the high WGDS would not worry you?
mysleeper6
Member
- :
- 2006 Mazdaspeed6
Bova, correcet me if I'm wrong, but step one when installing a new map should be calibrating your MAF; if you don't any changes that you make will have you chasing your tail if problems arise. Get those LTFT's closer to zero, then see how everything else looks. Good luck!
Boosted_Squid
Member
- :
- Mazdaspeed6
Right on. Thanks everyone for the advice. Is calibrating my MAF something I can do through the AP?
mysleeper6
Member
- :
- 2006 Mazdaspeed6
Absolutely. Use ATR (you can get it from Cobb, assuming you don't already have it), and the directions are right in the user's guide. They are a little confusing: basically, you get a good log, then go into the MAF tables, and adjust based on your results. There are 4 or 5 (can't remember exactly) different ranges within the air flow continuum (measured in g/sec, I think) that the ECU looks at for fueling (all of this is in the instructions). You just see what your LTFT's are at each range and adjust the tables in ATR. For example, if at one range, your trims are 12, you change the table values for that range to 1.12, to tell the ECU to add 12% more fuel. As a result, your trims for that range should go to something closer to zero. Hope that isnt too confusing; I know there are other guys on here who can probably explain it a little better, but it really is the best first step to take.

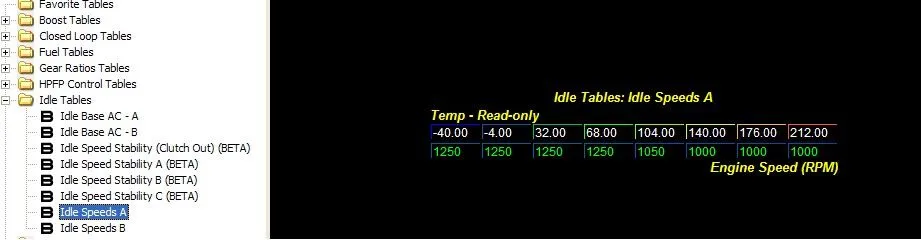

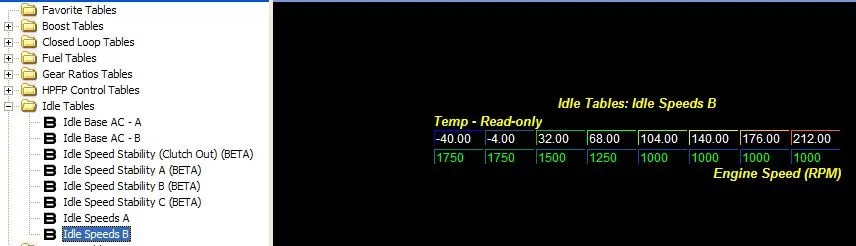

Update: Ok got my answer on the MSF. You need to edit both the Idle Speeds A/B and the Idle Base AC A/B tables to increase your idle speed. I have increase these values to 1000RPM, I'm not smoking at the moment but just had a new K04 turbo installed and i want to run a higher idle as a preventative measure.
Silverspeed2015
Member
- :
- 2007 Mazdaspeed6 Grand Touring
how do you set the launch control for the MS6?
