1999 Mazda Protege won’t start…Help

I have found a guy with a 2000 1.6 L so I am gonna take a look at it and see if I can swap that entire rear harness out the car he has ran just got rear ended so I’m gonna steal the harness from it


pcb

The Diagram Dude
:
2002 MP5
I have found a guy with a 2000 1.6 L so I am gonna take a look at it and see if I can swap that entire rear harness out the car he has ran just got rear ended so I’m gonna steal the harness from it

Check the resistance of the alternator and wire on the donor car, to see if it's the same as your car.

I still think you've got a bad alternator.

Maybe swap the alternator first instead?

Check the resistance of the alternator and wire on the donor car, to see if it's the same as your car.

I still think you've got a bad alternator.

Maybe swap the alternator first instead?
I’m gonna see if I can return the other alternator and get both the harness and alternator from the donor car


pcb

The Diagram Dude
:
2002 MP5
I’m gonna see if I can return the other alternator and get both the harness and alternator from the donor car

I don't think there is anything wrong with your harness.
Everything was working fine until your battery light came on.

Your car runs fine until you connect the new alternator, but your old alternator doesn't blow the fuse.

Having zero ohms from the positive post on your alternator to the metal case is wrong.

If there was something wrong with your harness, it would blow the fuse with the alternator disconnected or with your old alternator connected.

Check the resistance of the donor car alternator between the positive post and the metal case.
It was and probably still is working.

I'm almost positive that all you need is the donor alternator.



On my car the battery light comes on when the voltage is too high or too low.
When an alternator gets old, the brushes inside wear out and no longer make contact then the output stops.
Your brushes may be wearing out and they are only losing contact at higher rpms.


pcb

The Diagram Dude
:
2002 MP5

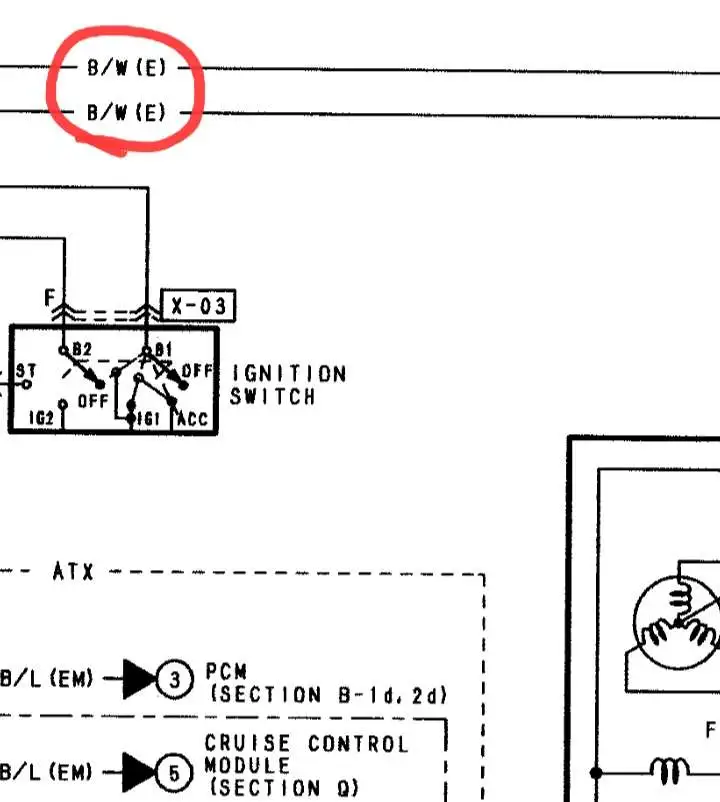

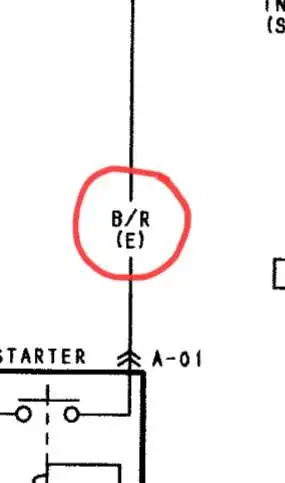

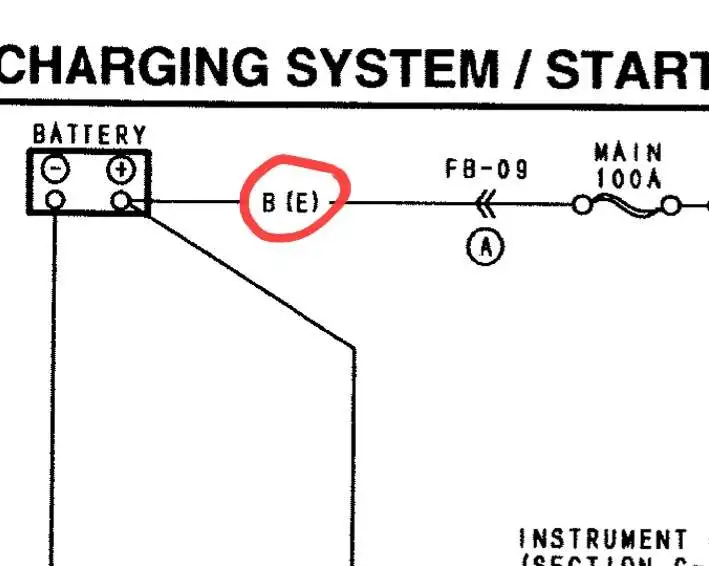

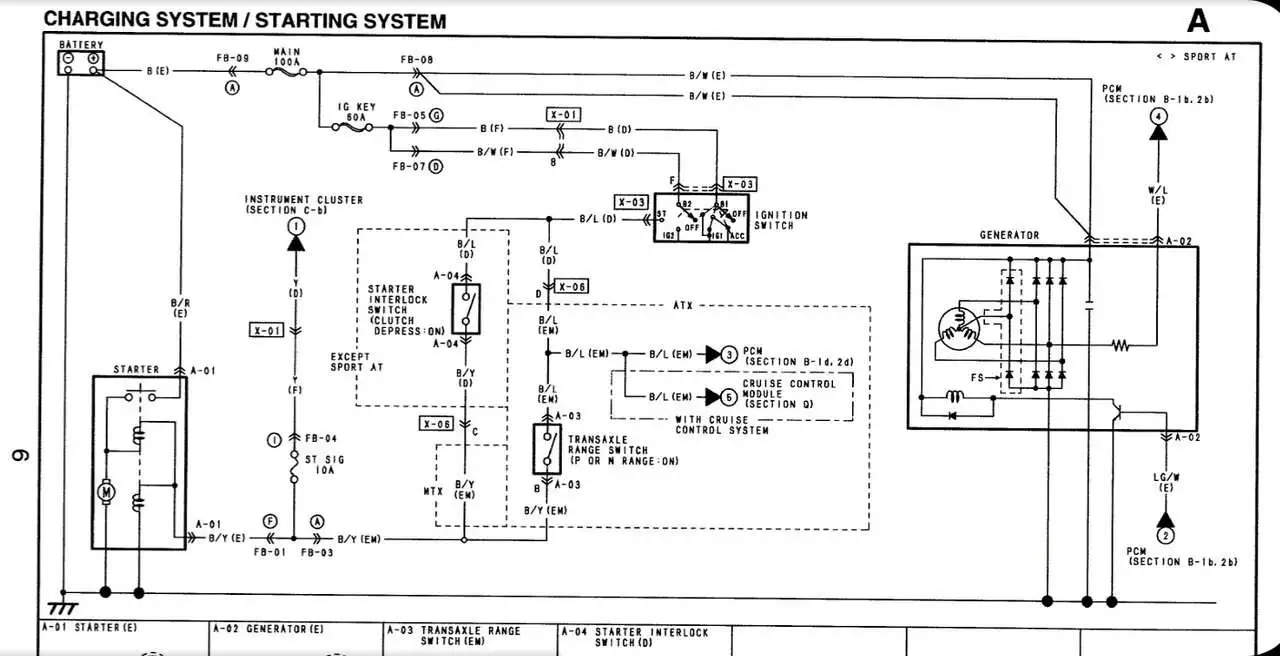

On my car the big ground wire is black leading from the negative of the battery, but the positive going to the 100amp main fuse is also black.

That's just stupid.

The fat positive wire going to alternator is black with a white stripe and the fat positive wire going to the starter motor is black with a red stripe.

That's stupid.
All those wires should be white or red.


Screenshot_20221205-152644_Acrobat for Samsung.jpg
Screenshot_20221205-153137_Acrobat for Samsung.jpg
Screenshot_20221205-152839_Acrobat for Samsung.jpg
Screenshot_20221205-153120_Acrobat for Samsung.jpg

On my car the big ground wire is black leading from the negative of the battery, but the positive going to the 100amp main fuse is also black.

That's just stupid.

The fat positive wire going to alternator is black with a white stripe and the fat positive wire going to the starter motor is black with a red stripe.

That's stupid.
All those wires should be white or red.


View attachment 314528 View attachment 314529 View attachment 314530 View attachment 314531
So I replaced the harness unfortunately the guy didn’t have a tester on him and neither did I also my old alternator blew the fuse in the first place but I went through an disconnect and checked every wire in the harness and it’s all fine so I think you are right the only thing that could still cuase this to happen would be the alternator so I will talk with home tomorrow and see if I can get it it looked pretty corroded but still usable so I will see if I can swing by and test it or get him to test it for me
