SkyActiv Oil Analysis Thread

[cz5gt]

breakin is done by 15k-16k and 4-5 oil changes.



[cz5gt]

glitter is normal in a new engine here was mine..I have been changing oil in new cars since 1977 and first oil change and often second oil change especially if the first one was changed early which I have always done has glitter. if you want a shocker cut open the oil filter....

what filter do you use?
I have never seen glitter in mine and I have few cx5s on which I change the oil from new. The only diff is I am in dry warm climate, pretty aggressive with oil change frequency (less than 5k and oem filters and Mazda Moly and Amsoil oils) , first oil changes less than 1000 miles and change engine filter (oem) every year if that matters.



[N7turbo]

Well like I said if I hadn't looked at the oil film on the bottom in the light at the right angle I wouldn't have noticed it. You won't see it just looking at the oil in the pan.



[cz5gt]

Its possible yes. I wouldnt be concerned. Was just curious.



[jadmt]

what filter do you use?
I have never seen glitter in mine and I have few cx5s on which I change the oil from new. The only diff is I am in dry warm climate, pretty aggressive with oil change frequency (less than 5k and oem filters and Mazda Moly and Amsoil oils) , first oil changes less than 1000 miles and change engine filter (oem) every year if that matters.

that is the from the first oil change and would be around 1000-1500 miles I can't remember but I always change early on the first one. my wife has the car so I can't look. I use the oem filters



[propflux01]

Since we're on the subject of oil consumption:

I owned a 2004 Acura RSX Type S. These weren't particularly known for burning oil...some did but most didn't. I followed the 10k "recommended" schedule up until my oil light came on around 55k. The engine took maybe 4 qts and I had burned through enough of that within 10k to trigger the light. After that I started monitoring usage. Ultimately it was burning a quart every 2500 miles...not terrible but not great. It also developed a timing chain tensioner slap (pretty common on those engines) that may or may not have been encouraged by long OCIs.

I've had my 2015 CX5 GT for almost 10 years now. Coming up on 100k miles and I've changed the oil every 5k and it consumes about 1/2 qt every 5k and that's been consistent at least for the past 8 years.

Anyway, I wonder if these 10k OCIs factories recommend are just too long? Also, most of us probably need to maintain our cars using the manual's "extreme" schedule. Short trips and city driving is how I mainly drive and those repeated shut downs and start ups can't be great on an engine.

IMHO, yes, they are, but they are designed for the least amount of maintenance over the average life of the automobile. Which on average is about 150K miles. I think you'll see that most people that have autos that have more than this mileage usually don't follow the extended book times, and usually use superior oils and filters



[N7turbo]

I'll get my oil analyzed on the next oil change at about 11k mi to compare our turbo to N7Turbo's report.

to be an apples to apples you need to use the same oil analyzer he used

Oil Analyzers via the Amsoil kit.



[AL Cx5]

Oil Analyzers via the Amsoil kit.

I might send it to two places



[AL Cx5]

I use Eurofins to test oil. I bought 10 tests kits.

I'll look into Amsoil test kit for direct comparison and sent off a sample to Eurofin. Eurofin is geared towards testing expensive machinery like power plant turbines. I trust there reports over consumer companies.



[jadmt]

I use Eurofins to test oil. I bought 10 tests kits.

I'll look into Amsoil test kit for direct comparison and sent off a sample to Eurofin. Eurofin is geared towards testing expensive machinery like power plant turbines. I trust there reports over consumer companies.

excellent plan.



[N7turbo]

I use Eurofins to test oil. I bought 10 tests kits.

I'll look into Amsoil test kit for direct comparison and sent off a sample to Eurofin. Eurofin is geared towards testing expensive machinery like power plant turbines. I trust there reports over consumer companies.

Are they set up to analyze the common wear metals, fuel dilution, and oil additives seen in today's automotive engines?



[jadmt]

Are they set up to analyze the common wear metals, fuel dilution, and oil additives seen in today's automotive engines?

I just looked at their website and did not see anything to show automotive oil testing.



[AL Cx5]

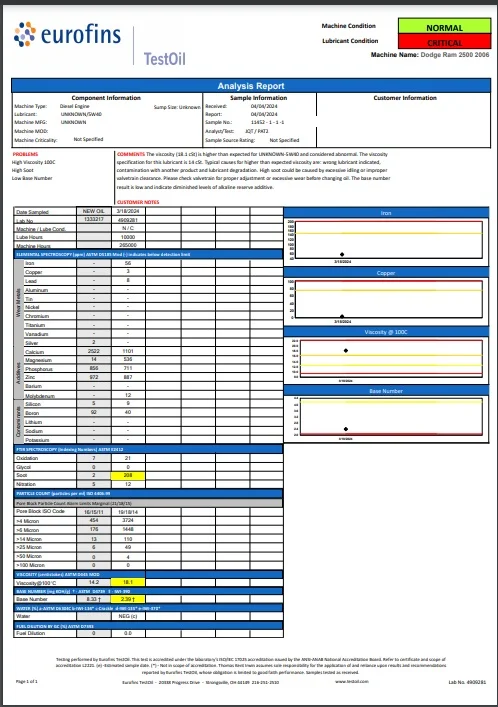

The attached Eurofin tests results are for my 06 Dodge Ram, 2500, 5.9 Cummins Diesel. I had to do some searching on their website to find the automotive tests.

At the bottom of the report it shows amount of fuel in the oil. Diesel fuel in the oil is of major concern. When injectors start to fail, it over fuels and dilutes the oil.

You will note the high soot and viscosity numbers. I was surprised to see this BUT I had treated the oil with Hot Shot Secret Stiction Elimination. It looks like the oil additive is cleaning out the engine and hopefully the build up between the pistons and rings. This was the second treatment. The engine starts quicker, more power and good FE. It sounded different after the first treatment. We treat excavators and Bob Cats with HS SS with great success.

Note an important test, Base Number. Below 3 means it's time to change oil. I believe this was caused by HS Stiction Elimination. I'll test again at 265k mi.

I gave our 08 Accord an 1/2 quart HS Stiction Elimination treatment at 110k mi. It perked up this engine and had the best FE numbers in it's life. Our CX 5 replaced it.

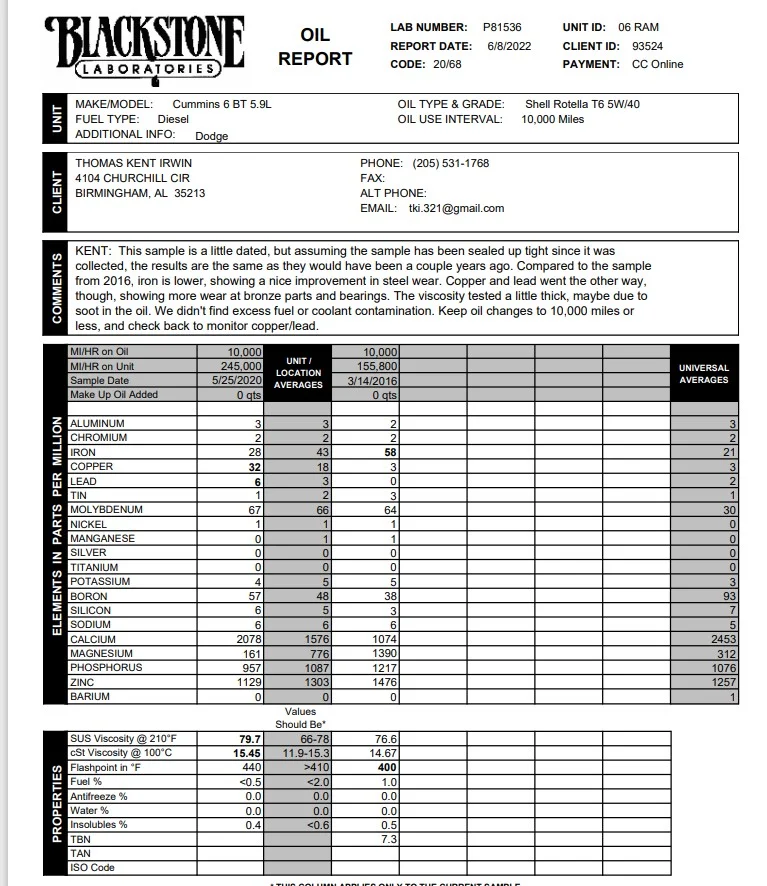

I attached a Blackstone report at 245k mi. This oil had the first HS Stiction Elimination. Blackstone didn't test for soot but noted it might have some due to the HS SE. Also, no Base Number test.

I'm assuming Eurofin will run a different fuel and no soot test on my gas burner, CX 5. We will see.



[cz5gt]

Usually oil change is recommended earlier than 10k if additives are added in it.



[AL Cx5]

Usually oil change is recommended earlier than 10k if additives are added in it.

We followed HSS SE directions. The Cummins holds 3 gallons of oil. 1 quart of SE didn'tt seem like alot. HSS said to use 2 quarts on the 1st treatment the 1 quart on the 2nd. BUT the oil report confirms 10k was too long. The Base Number was below 3. Eurofin tagged this value on the report.

Now I wish I had tested the Honda's oil with HSS SE before our daughter got it.

I've NEVER been an oil or fuel additive guy until a few years back when we started burning ATF amd 2SO in the diesel fuel. Without ATF injectors lasted up to 200k., most go 150k mi. A buddy went 400k mi on injectors burning some ATF. Six injectors are over 3k for the parts. The install is about 8 to 10 hours stretched out over the engine..not fun.

Many of us have "fixed" smoking enginee on our Cummins using HSS SE. Like I mentioned it helped our Honda and a friend tried it on a Toyota with 165k mi and it perked up too.

Now I'm experimenting using Stay Bil in the T CX5 fuel.It is looking promising. FE is above break even. It adds 0.10 more per gallon. We run 91 oct based on our tunners advice. More on that later after I get more data...



[tb196s]

New to the thread, great info here on the SkyActiv Turbos and non.

Here's an oil analysis for my 2019 Mazda 6 Signature. A little history...
1. Bought at just over 84k miles, one owner, mechanically pristine for the mileage and drove great.
2. Per Carfax, avg just over 10k miles per oil change (dealerships and various oil change places).
3. Last oil change before purchase was at Mazda dealership, claimed they use Mazda OEM 5w-30 semi-syn blend. From the oil analysis here, could be an Idemitsu product when comparing to VOAs online but can't nail down who makes it. Filter was not OEM, so who knows.
4. Since purchase (3k ish miles), driven 80% commute, 20% highway, some-what spirited (this car doesn't like over 100 mph on the highway IMO, definitely not German-like and mostly expected). Avg mpg just under 21. Oil was in the engine about 10 months, probably overdue for a change.

Everything looks great from a wear standpoint, no sky-high potassium levels or anything strange. Just fuel in the oil of course and lowered viscosity, same issue as some cases I've read about on this and other threads.

Changed oil 2 weeks ago with Castrol Edge Dexos Gen 3 5w-30, Thailand OEM filter (PY, not PE). From looking at other UOAs from 2.5Ts and some EcoBoosts, seems like this oil might reduce sheering a bit. Worth a try. I'll post another sample to Oil Analyzers at 3k mileage and post the report. Would prefer to change oil every 6k miles or twice a year if I can (I average 12k mileage a year).

Doubt there's a way to curtail the oil dilution but if anyone knows of a remedy please share. Maybe just but the highest viscosity 5w-30 one can find if the Castrol Edge sheers off quickly.



[N7turbo]

Doubt there's a way to curtail the oil dilution but if anyone knows of a remedy please share. Maybe just but the highest viscosity 5w-30 one can find if the Castrol Edge sheers off quickly.

Looks similar to mine.

Also, the detergents in that oil look a bit low. I'm sure your new oil will be better.



[AL Cx5]

New to the thread, great info here on the SkyActiv Turbos and non.

Here's an oil analysis for my 2019 Mazda 6 Signature. A little history...
1. Bought at just over 84k miles, one owner, mechanically pristine for the mileage and drove great.
2. Per Carfax, avg just over 10k miles per oil change (dealerships and various oil change places).
3. Last oil change before purchase was at Mazda dealership, claimed they use Mazda OEM 5w-30 semi-syn blend. From the oil analysis here, could be an Idemitsu product when comparing to VOAs online but can't nail down who makes it. Filter was not OEM, so who knows.
4. Since purchase (3k ish miles), driven 80% commute, 20% highway, some-what spirited (this car doesn't like over 100 mph on the highway IMO, definitely not German-like and mostly expected). Avg mpg just under 21. Oil was in the engine about 10 months, probably overdue for a change.

Everything looks great from a wear standpoint, no sky-high potassium levels or anything strange. Just fuel in the oil of course and lowered viscosity, same issue as some cases I've read about on this and other threads.

Changed oil 2 weeks ago with Castrol Edge Dexos Gen 3 5w-30, Thailand OEM filter (PY, not PE). From looking at other UOAs from 2.5Ts and some EcoBoosts, seems like this oil might reduce sheering a bit. Worth a try. I'll post another sample to Oil Analyzers at 3k mileage and post the report. Would prefer to change oil every 6k miles or twice a year if I can (I average 12k mileage a year).

Doubt there's a way to curtail the oil dilution but if anyone knows of a remedy please share. Maybe just but the highest viscosity 5w-30 one can find if the Castrol Edge sheers off quickly.

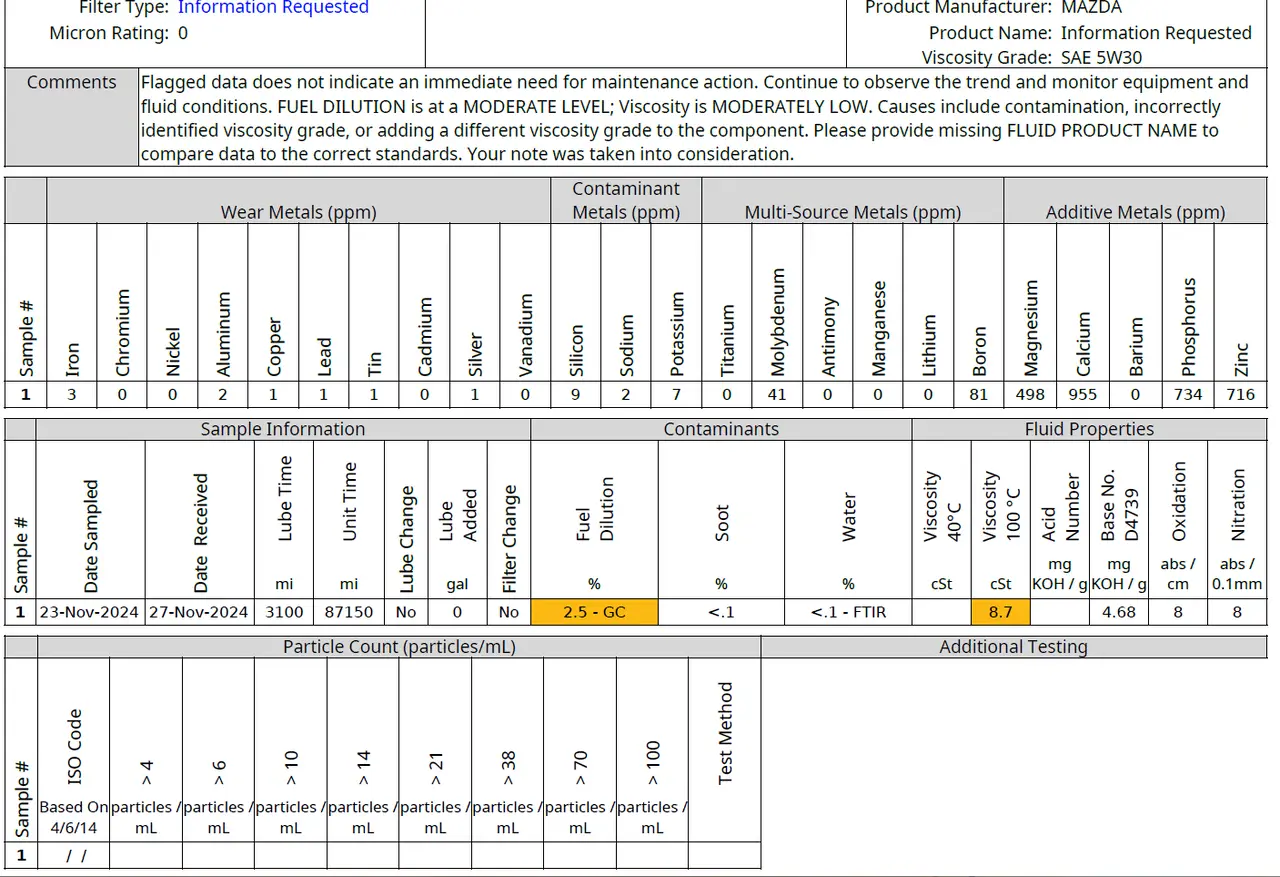

View attachment 333423

I would attempt to get the engine up to operating temp every trip and not idle the engine any more than required. No cold start warm up and such.

Install a block and oil pan heater and run it a couple hours before starting.

Change the oil more frequently and possible go up an oil grade if dilution continues.

Continue to get the oil sampled and report back.

There is a good oil dilution thread on Bob the Oil Guy forum. THIS form doesn't allow us to help you find it by posting a link....why? It's worth reading.

I'll post my oil sample report in a few weeks. It will be interesting since I did 10 to 15 WOT tests for the tuner and my other mods. We have been driving is gently ever since.

I'll get a trans test as well for a base line. Then again at 30k mi.



[tb196s]

Thanks for the responses all. I’ll take a look at that oil dilution thread and get more educated.



[sm1ke]

There is a good oil dilution thread on Bob the Oil Guy forum. THIS form doesn't allow us to help you find it by posting a link....why? It's worth reading.

Links to external sites are usually only removed if they are obvious spam links. I believe we have linked to other sites in the past, including BITOG.

I'm not sure what happened in your case, but it might be a good idea to send a message to the admin team by using the "Contact Us" link at the bottom of the page, so they can investigate further.
