How To: Wire Tuck/Engine Clean Up

[idrivemazda]

In the 3rd picture are those aftermarket battery connector??? Can you tell me where did u get them and how much???

I also removed the water resevrior tank since I don't use my rear windshield wiper or front wipers. I don't have any pictures, sorry.

This is what I removed from the motor.

I'm sure some brackets can be used in other places to move other things.

This is some current shots of the motor right now. I have since got a new intake and put my radiator fluid can back in.

You can see the 3 sensors that were on the intake manifold before have been moved to the firewall. The only things that are on the manifold are groundwires.

For the car show, I removed my AC fan and my mud guards from under the car.

A lot of other things have not been discussed in this thread also. How to clean the motor can be found in the apperance section. I usually just use simple green, hose everything down, and wipe everything clean (be sure to remove the battery and intake and tape of the throttle body!)

I also removed my power steering line that runs in front of the radiator as you can see from the picture above. Here is how I re-routed it (not my car obviously)

The pink is the lines I removed and the blue is how I redid it. I have had no problems with my car since doing this.



[Maxx Mazda]

ok stop twisting my arm

Where did you mount your coils to? Have a better pic? I want to do the same with mine.



[Boston5761]

L8R...did you just paint your radiator brackets, or what?

sorry for all the questions dude....your engine bay is beyond clean.



[AzteCypher]

sub



[L8R]

Mods: could you move this to the how-to section? If it is worthy enough that is



[L8R]

L8R...did you just paint your radiator brackets, or what?

sorry for all the questions dude....your engine bay is beyond clean.

I got custom aluminum ones made. Well, a vendor sold them on the forum before, but have since been banned I believe.



[L8R]

Some pictures were removed by accident, but here is a current setup:

But stare at Pirana's motor, that would be my ideal motor look.



[Mutmatt]

i'm still looking for those battery teminals



[Pirana]

L8R, that looks sweet....I love it!!!! Sometimes I think I want that DG engine cover I also did the P/S removal...cleaned up the bay even more...and one little detail I have done....see if you can find it.

PS-whatever you see, dont say anything about my missing bolt cap...got lost during the show.



[Prodigy]

weight reduction mods:
-missing bolt cap
-lightweight JDM mad tyte racing oil cap



[Pirana]

(lol) Nope....hehehe



[Prodigy]

(lol) Nope....hehehe

well, the oil cap is different atleast.... correct?



[Bala]

L8R, that looks sweet....I love it!!!! Sometimes I think I want that DG engine cover I also did the P/S removal...cleaned up the bay even more...and one little detail I have done....see if you can find it.

PS-whatever you see, dont say anything about my missing bolt cap...got lost during the show.

Is that a wiper arm bolt cap on the head?



[L8R]

Besides the HKS oil cap, I have no idea... ARGHHH I've been staring at it for too long. Thanks for the compliment also



[Pirana]

Nope, but you found it, you are good!!!! Its a cap to cover the unsightly hole left by the distributionless ignition.



[Dpwhitehead1]

subbin. i HAVE TO DO SOMETHING TO MY CAR!!!!!!!RAHHHH



[Boston5761]

where did you relocate the circled item, and how?



[L8R]

I just removed that huge bracket and moved the wires somewhere else. Most of the wires connected are just grounding points and I have not had any problems since I moved the wires around. You will need a razor blade to cut the electrical tape off to let the wires be a little more free and retape things after you move them. It is time consuming.

That one plug you see within the red circle was moved somewhere under the intake manifold.



[CRZbrussian]

nice thread! lol i love how installing a turbo is just a side job while hiding wires

those are some clean ass engine bays! holy crap



[Dpwhitehead1]

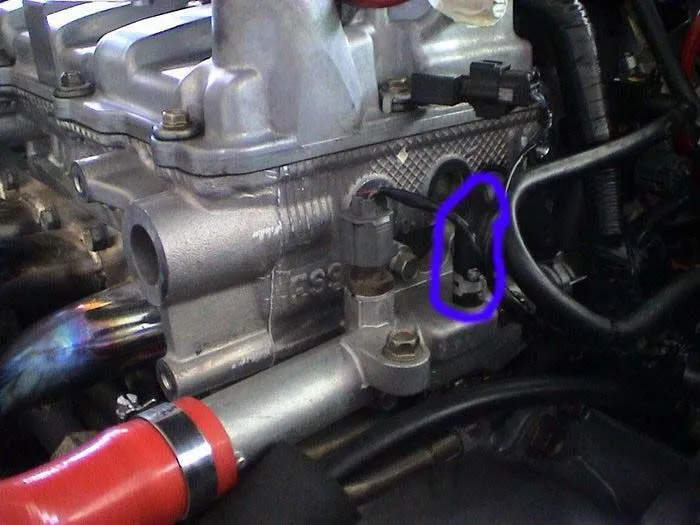

ok, blue circle...where does that go to? i can't find minE!!!!!!
