How To: Variable Speed Intermittent Wiper

It worked... took 10 minutes and works beautifully, can't wait to try it in the rain... whoever came up with this mod was a geniouos...

the link to the howto isnt working. i didnt find anything in the search. is it really as simple as putting in the 2003 mpv stalk?

Ezeikiel said:
the link to the howto isnt working. i didnt find anything in the search. is it really as simple as putting in the 2003 mpv stalk?
Damn straight, easy as pie man. Anyone, I repeat anyone can do it!

Hey Guys,

I just finished putting in my Euro 626 Wiper Stalk that I got from CorkSport. I now have intermittent wipers in my Sedan :D

Here is the info:

Part Number: GE6M-66-128 Wiper Stalk
$66.00+Shipping at CorkSport.

Just give them a call and ask for Derrick, He is the one that ordered mine so it should be pretty easy for him to get one for you if you want. Just be warned it takes a while to get. it's just as easy as putting in the other one into the protege5.

P5 variable wiper install

remove screws 1 2 and 3



release stearing wheel clamp hight ajuster

pry appart top and bottom plastic pieces



to make life easier remove screws (4 and 5) that hold on ignisian(sp) light to lower plastic cover

remove three screws (6,7.8) that hold the windshied wiper stalk to stearing column



remove stalk and replace with variable windshield wiper stalk

insert screws 6,7,8

insert screws 4 and 5 (screw 5 is tricky use a magnetic screw driver)

clip back on bottom and top steering wheel column covers

move steering wheel column to max hight and tighten clamp

insert screws 1,2,3

vola your done and it should look like this


i got 'em!!

i got in my gf's car (a ford laser/escort) and noticed that she had intermittent wipers,.... anyway i rang up ford about ti and they said yeah they can do tha for me!!!

* part number GE7V66128

this is the sedan part.... i just have to wait for ford to ship it now!! of yeah US$65 was the cost!!!

no wait on a second.. don't order that part... its for right hand drives... i'll leave it up for other RHD peeps...

Re: 3rd Gen Variable Intermittent Wiper Mod

LinuxRacr said:
Guys, thank Edwin (TheMan) for this usefull bit of info:

Wiper Mod Link

hi, is there another How-To for this mod? the link about is dead, and the Mazdastuff.com site is down too.. can I get the wipers anywhere else?

Wipers? or Control Stalk? If it is the stalk: I ordered mine from the dealer but try a salvage yard. To install it, it is very easy to do. Just take off the steering column cover and remove the old stalk and replace it with the new variable one. I know, this was short, but I am not sure what the question is.

Re: P5 variable wiper install

banned bandit said:
remove screws 1 2 and 3



release stearing wheel clamp hight ajuster

pry appart top and bottom plastic pieces



to make life easier remove screws (4 and 5) that hold on ignisian(sp) light to lower plastic cover

remove three screws (6,7.8) that hold the windshied wiper stalk to stearing column



remove stalk and replace with variable windshield wiper stalk

insert screws 6,7,8

insert screws 4 and 5 (screw 5 is tricky use a magnetic screw driver)

clip back on bottom and top steering wheel column covers

move steering wheel column to max hight and tighten clamp

insert screws 1,2,3

vola your done and it should look like this

:confused:

Re: i got 'em!!

ahb11m said:
i got in my gf's car (a ford laser/escort) and noticed that she had intermittent wipers,.... anyway i rang up ford about ti and they said yeah they can do tha for me!!!

* part number GE7V66128

this is the sedan part.... i just have to wait for ford to ship it now!! of yeah US$65 was the cost!!!

you mean that the wiper stock from ford will work for the P5?

wiper

yeah but like i said before, that is the RHD model, which would mean you will have to move your indicator stalk to use that specific part number...

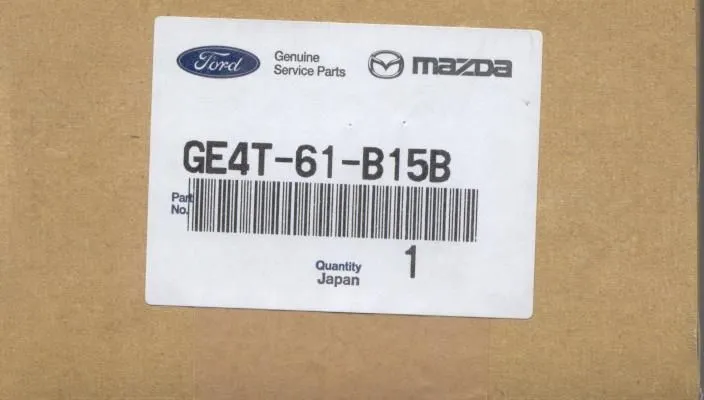

most part in oz can be gotten from mazda or ford, hence this box below!! (this was for my heater resistor)


Attachments

  • picture 001.webp
    picture 001.webp
    21.1 KB · Views: 373
the US part# for an MPV/Protege5 is GE6V-66-128. VERY close numerically. I just had my ford technician buddy order me one. (hooray for homie hookups)

jrodhotrod said:
Hey Guys,

I just finished putting in my Euro 626 Wiper Stalk that I got from CorkSport. I now have intermittent wipers in my Sedan :D

Here is the info:

Part Number: GE6M-66-128 Wiper Stalk
$66.00+Shipping at CorkSport.

Just give them a call and ask for Derrick, He is the one that ordered mine so it should be pretty easy for him to get one for you if you want. Just be warned it takes a while to get. it's just as easy as putting in the other one into the protege5.
Yes, I posted it earlier in this thread, here it is again. Call Corksport to order it, it might take a while, but the price is right and it works perfectly.

now do you think we can get convex mirrors this same way???
my brother's Mz6 has these, would they be similar or no?
