How To: Painting Pro5 rear valence

mx-p5

Team Fail Motorsports
Contributor
:
03.5 Protege5
Alright, done it to my 2 Pro5's, and, have had requests on how it's done. Sorry I don't have pics, but, if anyone does this and takes pics in the process, I'd be happy to add em to this for a referance.

So, here we go.

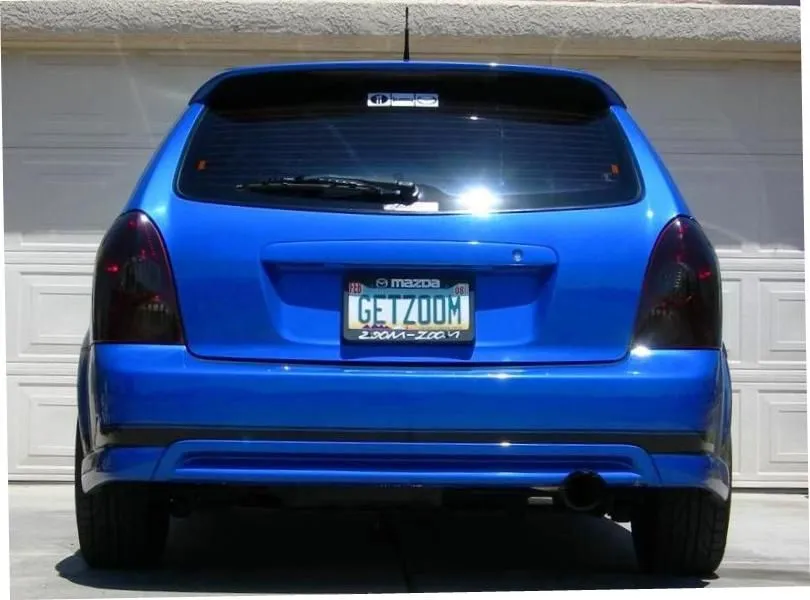

You'll be starting with a bumper that looks like this



What you'll need:
1 can of matte black spray paint-(I used Krylon BBQ black)
1 roll of blue painters tape
1 Sunday Newspaper
1 Piece red scotchbrite pad(or anything abrasive actually)

First,
go to the hardware store and pick up a can of (I used Krylon BBQ flat black) that I had leftover from blacking out my headlights. Also, a roll of blue painters tape and a Sunday newspaper.

Second,
take that blue tape you just bought and line the outside line of the valance. I'm not so skilled with it, so, I used A LOT of small pieces to go around the curved ends.

Once you've got it all taped off,
sand down the valance. I didn't go extreme. I just got a nice even scuff. Then, wiped it down with a wet rag to wipe off any particles left behind during the sanding.

I then went ahead and added the newspaper and pretty much covered the whole backend of the car. Then, slide the bag the newspaper came in over your tailpipe.

Once you're all masked off,
Hit it with the first coat of paint. Give it 15 minutes or so until it's dry to the touch, then, hit it with coat number 2.

After dry, pull your baggie off the pipe, and pull the masking off. You should now have a bumper that looks like this.





Hope this helps someone, and happy painting to all!! Post up any pics if you've got em of in process or finished!!

Tylor

Nice writeup! Do you think it would be helpful to add a coat or two of clear as well? I am thinking I may do this in the spring once things warm up. Perhaps finishing up my can of black satin Krylon Fusion?

BTW...time to update your sig pic with a shot of your updated arses! :)

Of "In process"? If that's what you're asking, sorry, no I don't. I wasn't thinking to do a write-up as I did it.

I do have to take some pics tonight of the valence painted on my wife's white P5, I'll have those up tomorrow.

Or, are you asking for pics from dif. angles?

If anyone does do this mod, please either email, or post up pics, then I can add them to the write-up.


CTt3PT-
I am in the process of cleaning up my garage, so, i'll get a new shot once that's all cleaned up. As to a clear, I don't think I would, the matte looks factory, and I think a glossy clear would make it look like it's painted, rather than a separate black section. Just my thoughts on it.

Tylor

CTt3P5- (fixed for ya ;))
I am in the process of cleaning up my garage, so, i'll get a new shot once that's all cleaned up. As to a clear, I don't think I would, the matte looks factory, and I think a glossy clear would make it look like it's painted, rather than a separate black section. Just my thoughts on it.

Tylor

Ya, I know what you mean about wanting to keep it matte. Just thought it might help protect the paint (dunno)

And x2 on painting those rear emblems!!

...but what if I don't get the Sunday news?

....hehe... but seriously, can you get a matte clearcoat? It would be nice to have that extra little bit of protection. Actually I think I'll leave this one to the pros- I have to get some bumper scrapes fixed up(they were there when I bought the car, honestly!) so I'll just get them to do this while they're back there. ++++mod!

Snapped a quick shot of my wife's white p5. Sorry it's filthy, dark, it's early and my flash isn't that good.



Tylor

Looks nice....No I just have to wait 5 months for the weather to be warm enough for the paint to dry...

Funny you did this. I have an 04 Hatch Mz3 and was thinking about changing mine back to the body color or at least covering up the plastic with shiny, gloss black. Anything shiny is nice! If I do this, I will try to do a write up. Looks quite nice!

I might have to do this eventually, I love how it looks! But the only thing holding me back is that it's irreversible unless you get the entire bumper repainted.


Pro5x2, is that the duplicolor gunmetal you painted your rims? I am considering this and have been looking for the stockers painted that color for a while...how clean are they in that pic?<SCRIPT type=text/javascript> vbmenu_register("postmenu_3523787", true); </SCRIPT>

Pro5x2, is that the duplicolor gunmetal you painted your rims? I am considering this and have been looking for the stockers painted that color for a while...how clean are they in that pic?<SCRIPT type=text/javascript> vbmenu_register("postmenu_3523787", true); </SCRIPT>

They're painted a special electronic color called Photoshop. (nana)

I was playing around with it to decide on rim color as well. It was the only one on my computer that I hadn't messed with the rear bumper yet.

Tylor

It looks more stock than stock. and I do mean that as a compliment

I like this look except it wouldn't go with my paint scheme.
