Guide: 2nd Generation CX-9: Sequential LED turn signal installation (side mirrors)

[sm1ke]

This is a DIY How-To for an aftermarket sequential LED turn signal installation on the side mirrors of a 2nd Generation Mazda CX-9. I decided to document this process because I haven't seen anyone else document the process, and the parts didn't come with any instructions. Note that these instructions should be very similar (if not the exact same) for the 2017+ CX-5 and the CX-8.

This process was documented/photographed by myself, using my crappy cellphone camera and my 2018 Mazda CX-9 Signature as the "demo" vehicle. This DIY is provided as a learning aid and reference guide. I assume no responsibility for any warranties this process may void, or damages you may inflict on yourself or your vehicle.

The CX-9 comes factory equipped with LED turn signals on the side mirrors. I came across these sequential LEDs on AliExpress and decided to give them a shot. I'm very happy with them! The sequential LEDs look great. The only downside is that I can no longer see the turn signal blinking on the side mirror from inside the car in the daytime (this may be a pro for you if you're easily distracted by that light at the edge).


What you'll need:

- Aftermarket sequential LED turn signal housings (I bought these ones)
- A flat head screwdriver (preferably longer)
- Phillips head screwdriver
- Plastic pry tool
- Towel to catch the side mirror caps in case they fall

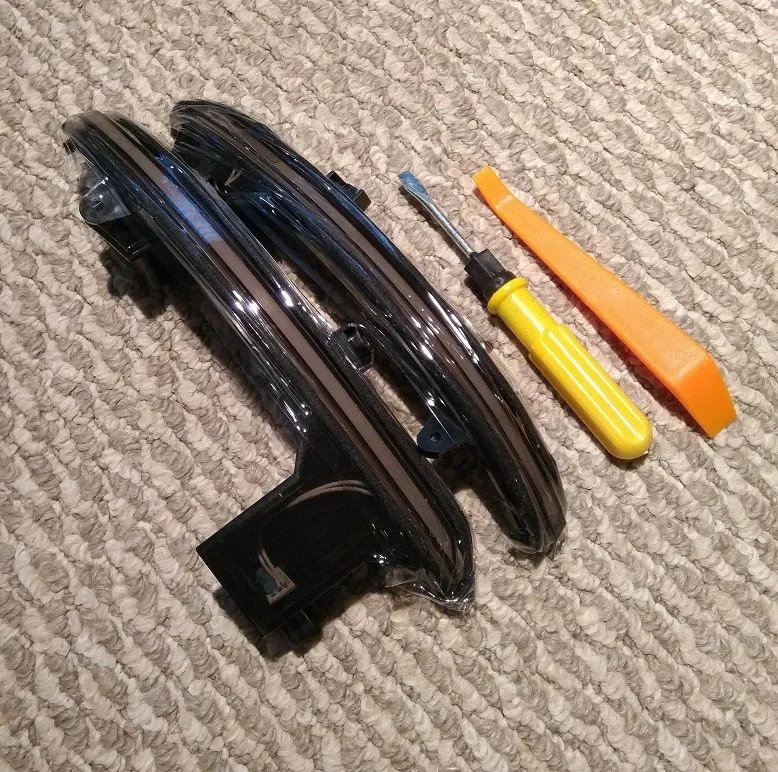

The LED turn signals I bought came with a flat head screwdriver and a pry tool in the package.

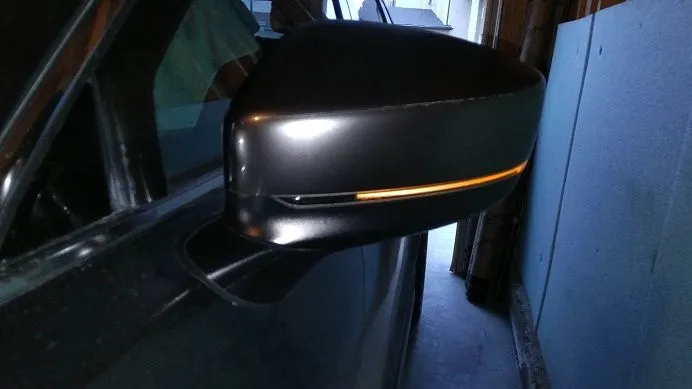

There are also two color options, clear and smoked. I got the smoked version, and it looks very close to the OEM in appearance:

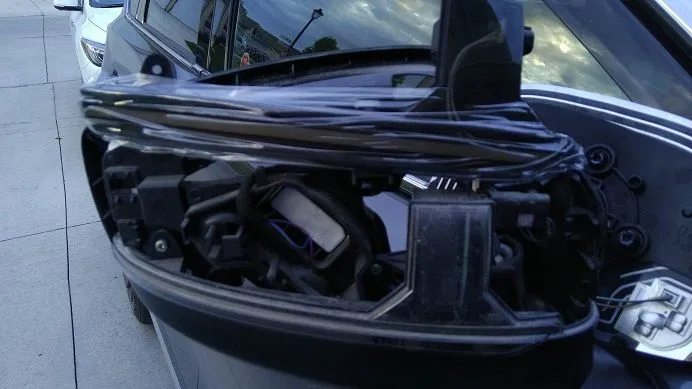

Finally, it seems the the OEM turn signal doesn't illuminate the entire length of the strip. There's a small portion that stays dark, while the entire strip is illuminated on the aftermarket turn signal. OEM signal shown here.

On to the install!



[sm1ke]

Side mirror glass removal

First, turn the car on to the ACC position (or start it). Using the mirror adjustment control, turn the mirror "in" so that you can reach in behind it with your fingers.

EDIT: For vehicles with the 360 Camera feature, take extra care during these next few steps to ensure you don't damage the camera wiring in the mirror housing. Unfortunately, my 2018 does not have the 360 Camera, so I'm unable to show you what to be mindful of, but it should be fairly obvious. Thanks Turborascal for the heads up!

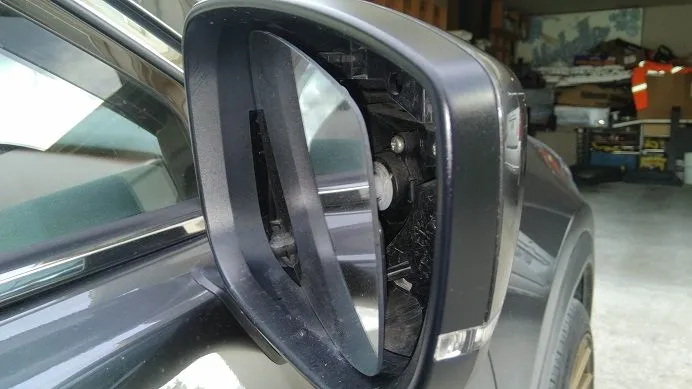

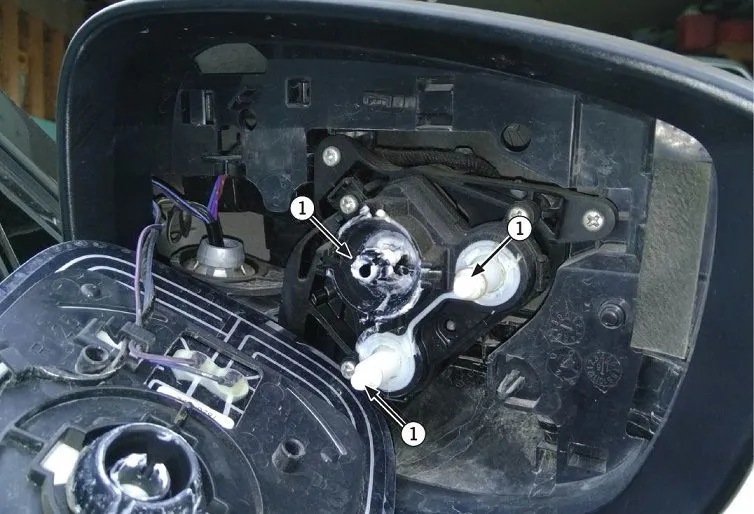

Here's a photo of the mirror detached. The back of the mirror is held in at 3 points, one right at the center, one just below the center and one off to the side (1). You'll want to pull from the back, not from the edge. I found that it does take a bit of force to get it to come loose, but this can vary depending on how much grease you have at those points. Hopefully this photo helps you figure out how to pull it out, and reassures you that the glass will come out with enough force. Again, do not pull from the edges, pull from the back.

EDIT: Here's a video that shows you how to "pull from the back" (skip to 0:45).



[sm1ke]

Side mirror cap removal

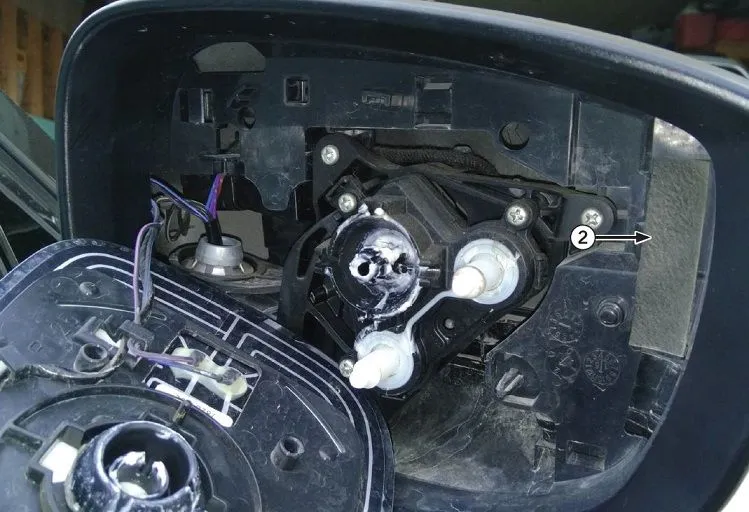

Remove the adhesive tape (2) and set it aside for reinstallation. Lay a towel down on the ground in case the mirror cap falls.

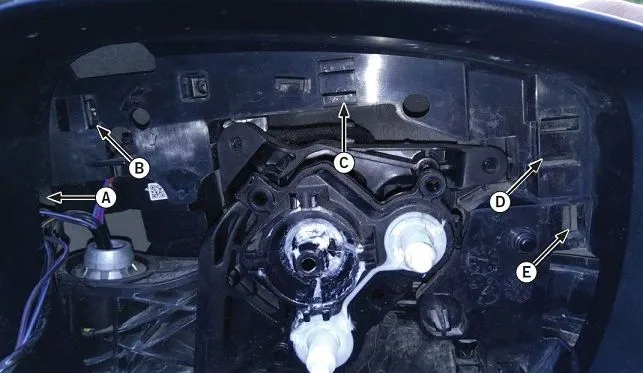

With the glass out of the way, you can now see how the mirror cap attaches to the housing at points A-E.

EDIT: Two other users have reported that it was easier for them to start releasing clips from the outside in (starting at "E"). Truth be told, I hadn't even tried starting at E, and given that clip E is much more accessible than clip A, it probably is much easier. Thanks for the tips Cx-9 Guy and Turborascal!

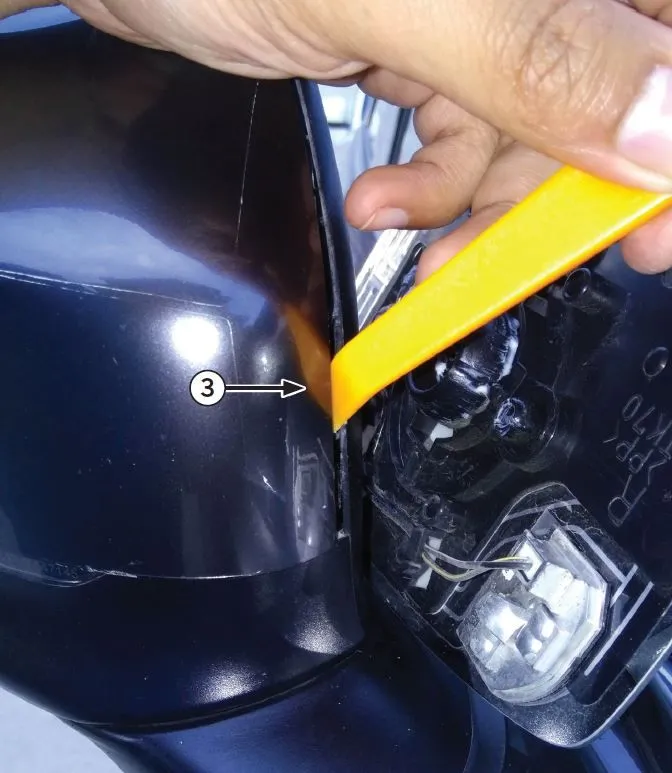

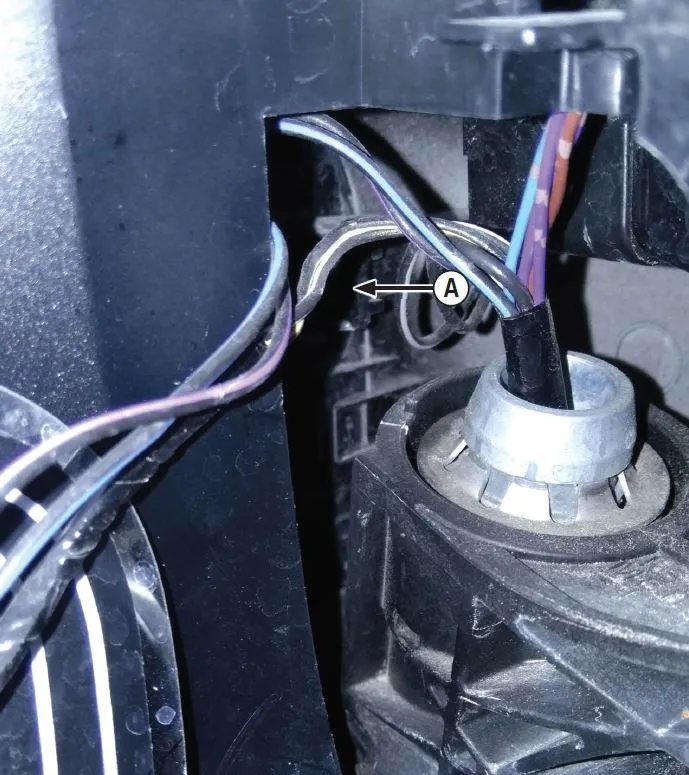

Insert a flat head screwdriver and push on the clip shown (A). Apologies for the s*** photo. This should be enough to wedge a pry tool in from the other side (3).

Work the pry tool up and down to loosen the other 2 clips in that area, then work your way along the top of the mirror cap, using the flat head screwdriver to release clips B-E as you go.



[sm1ke]

LED turn signal removal

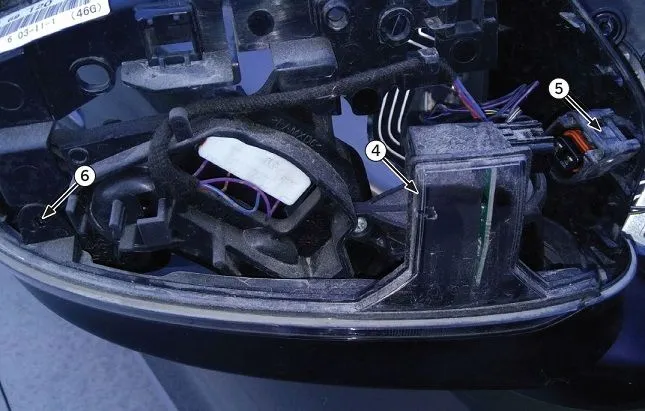

With the mirror cap set aside, the turn signal housing (4) will be exposed. Use a flat head screwdriver to lift the tab on the harness connector (5), then pull the connector off of the turn signal housing. Using a Philips screwdriver, remove the screw shown (6).

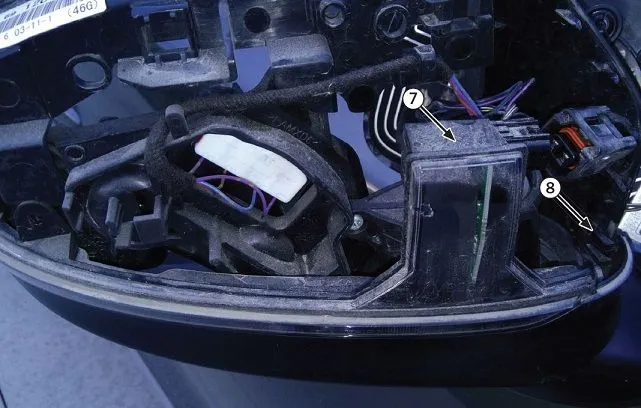

Grab the housing where the connector was installed (7) and work it back and forth a little bit to loosen the clips along the bottom of the mirror. Use a flat head screwdriver to release the last clip (8) from the housing.

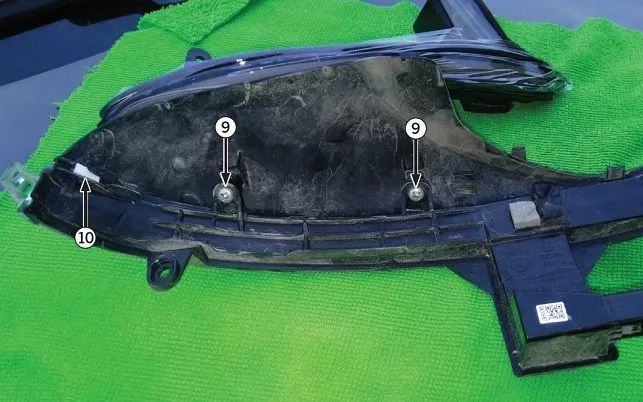

With the turn signal off of the car, remove the two screws shown (9) using a Philips screwdriver.

Note 1: On the OEM turn signal, you'll see a small white spacer (1O) near the end of the housing. Remove this spacer and reinstall it in the same spot on the new turn signals. This will prevent a gap from developing during reinstallation.

Note 2: When screwing the two screws back in, ensure that the housings "seat over" the screw pegs before tightening the screws.


Installation is the reverse of removal, just replace the OEM turn signal housing with the new one. Ensure that you test each signal once the harness is plugged back in, just in case. Also be sure to replace the adhesive tape that was removed in the previous post. Repeat for the other side, and that's it!

EDIT: One thing I forgot to mention. When pressing the mirror glass back into place, if you're able to tilt the glass to the left/right or up/down easily, one of the attachment points is still loose. This is usually one of the white pegs shown in the second picture of post #2. If it tilts up/down, line the mirror up with the lower white peg and press it in until it clicks. If it tilts left/right, line the mirror up with the outer white peg and press it in until it clicks. You'll know its attached correctly if there's resistance when you try to tilt the mirror with your fingers.



[sm1ke]

Quick video of the sequential turn signals in action:



[CharlestonMX5]

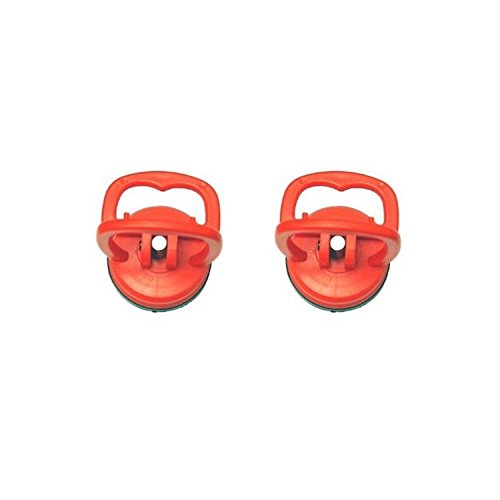

Great write up. but the video is not showing up. The only advice I would add cost me $10 on Amazon. https://www.amazon.com/dp/ (commissions earned) When I was removing this mirror glass to replace the back cover I bought these suction cups, attached to the center of the mirror, so you could have an evenly distributed pull on the outside of the mirror while your pried from underneath, they were on there tight. These suction cups had a very thick rubber pad and did not slip a bit, really helped remove the glass. I didn't want to break it because it wasn't cheap.
