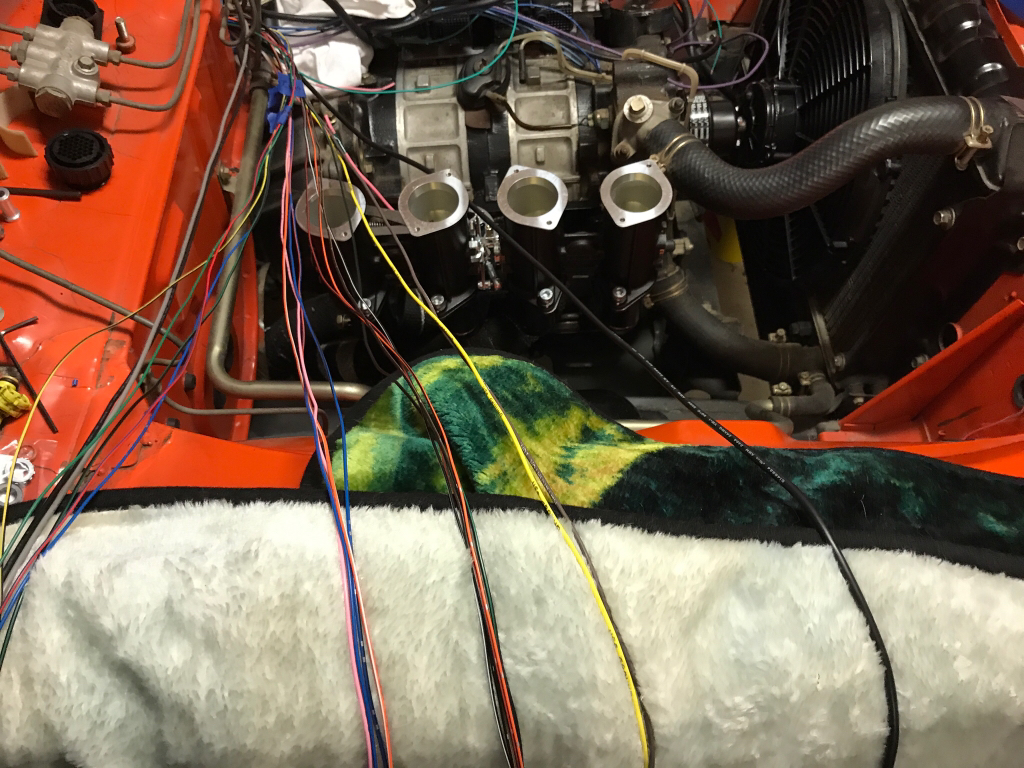

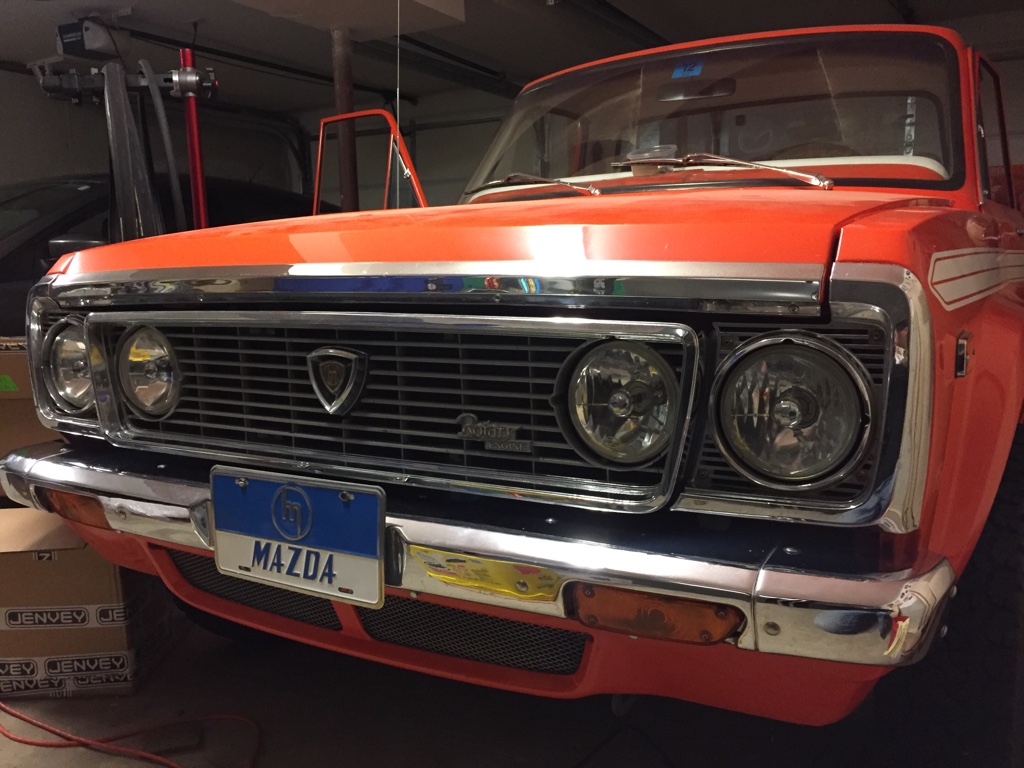

Wire tuck for the front end complete. I can check off turn signals, marker lights, head lights, high beams, horn, and electric fan. It's nice to see this old face again.

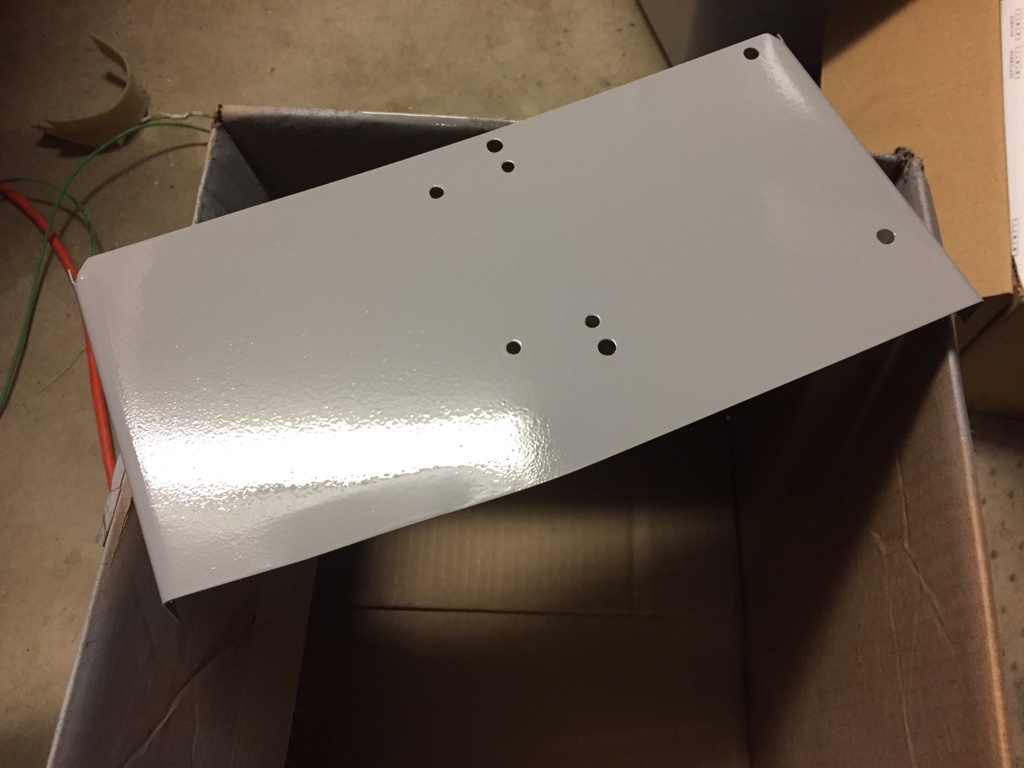

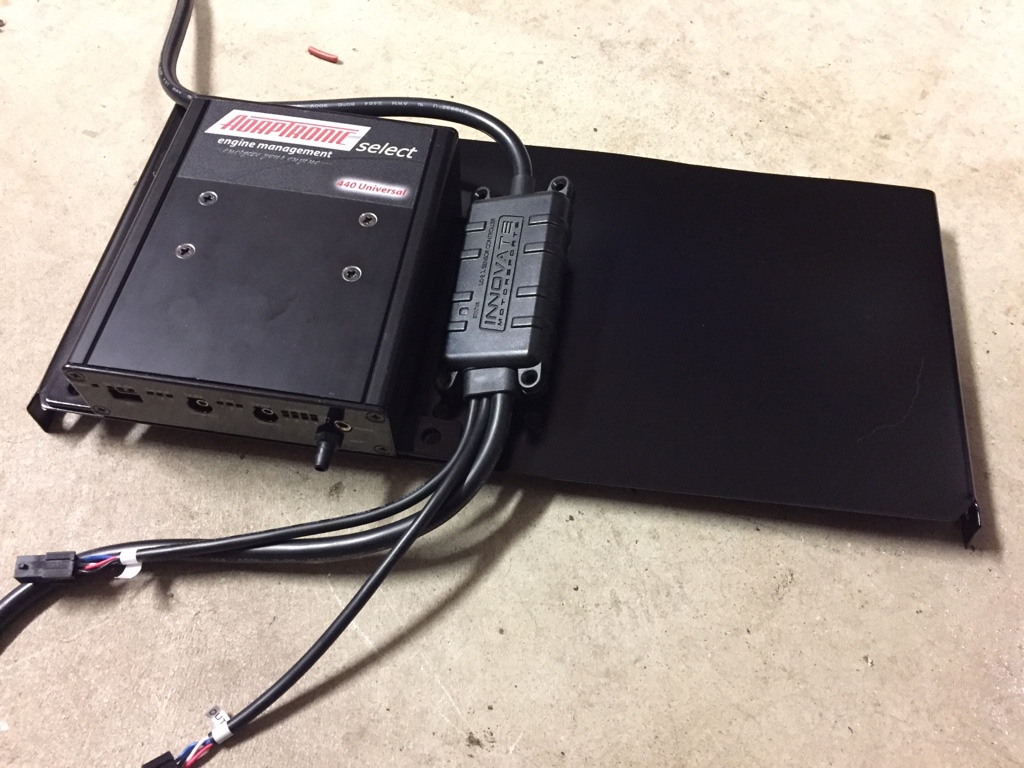

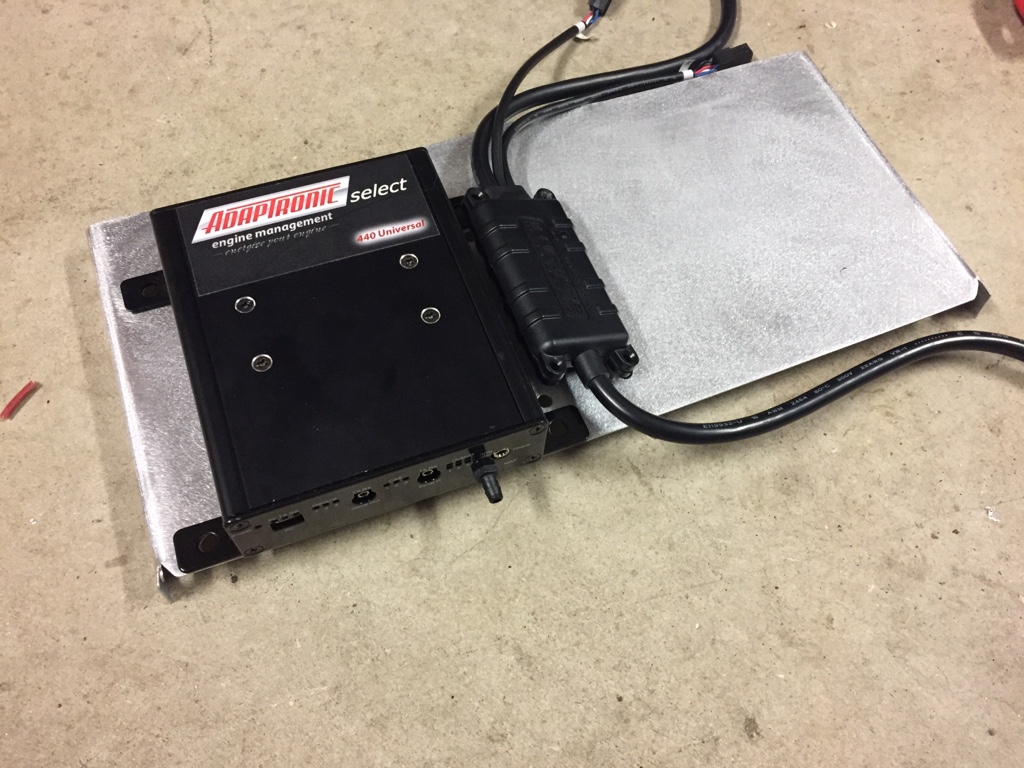

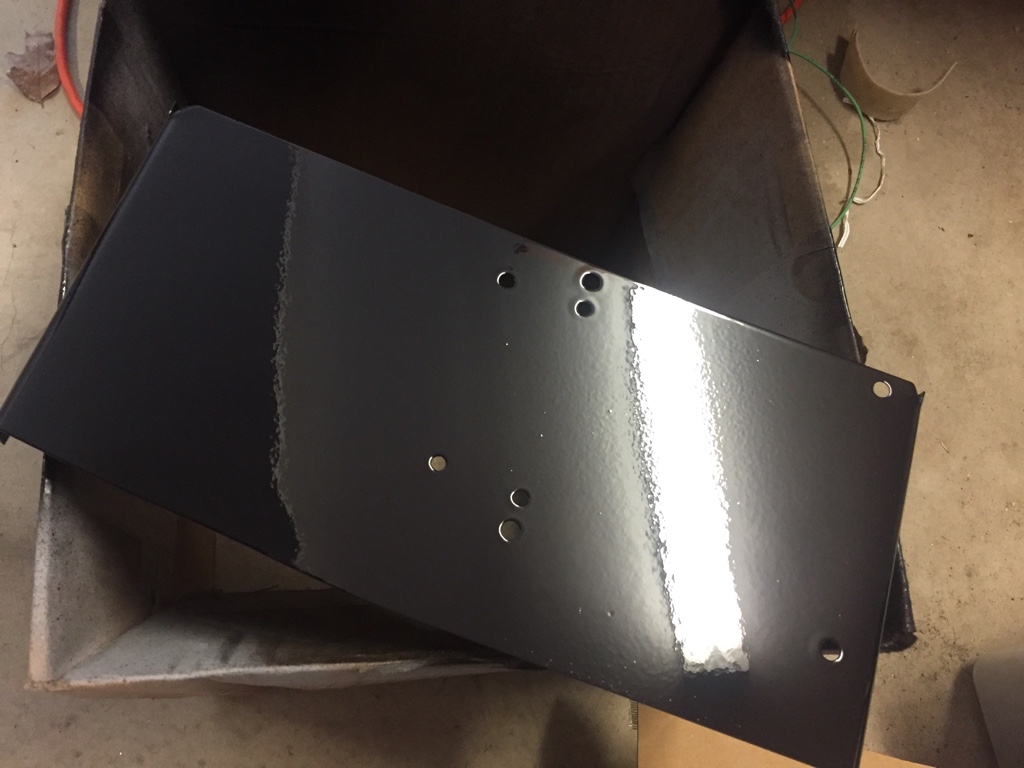

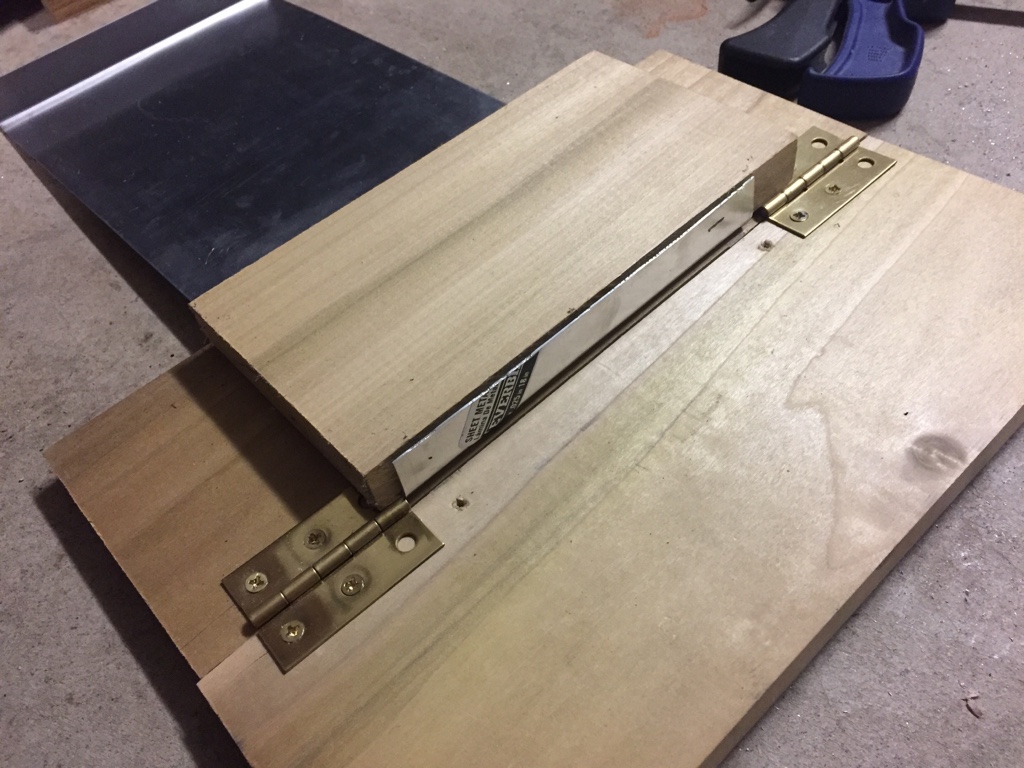

I'm also working on a panel to mount the ECU and O2 sensor module.











CTt3P5

TAD
Contributor
:
2016 GT ST 47A
Awesome work Chris! I would have given up a long time ago, simply because I'd be tangled up in all of those wires.


rx7cx9

Member
:
2016 CX9, 93 RX7 , 85 RX7 GSLSE
nice REPU , I bought one last week other pic is my FD and GSLSE

Last edited:

chuyler1

goes to eleven
:
2013 CX-9

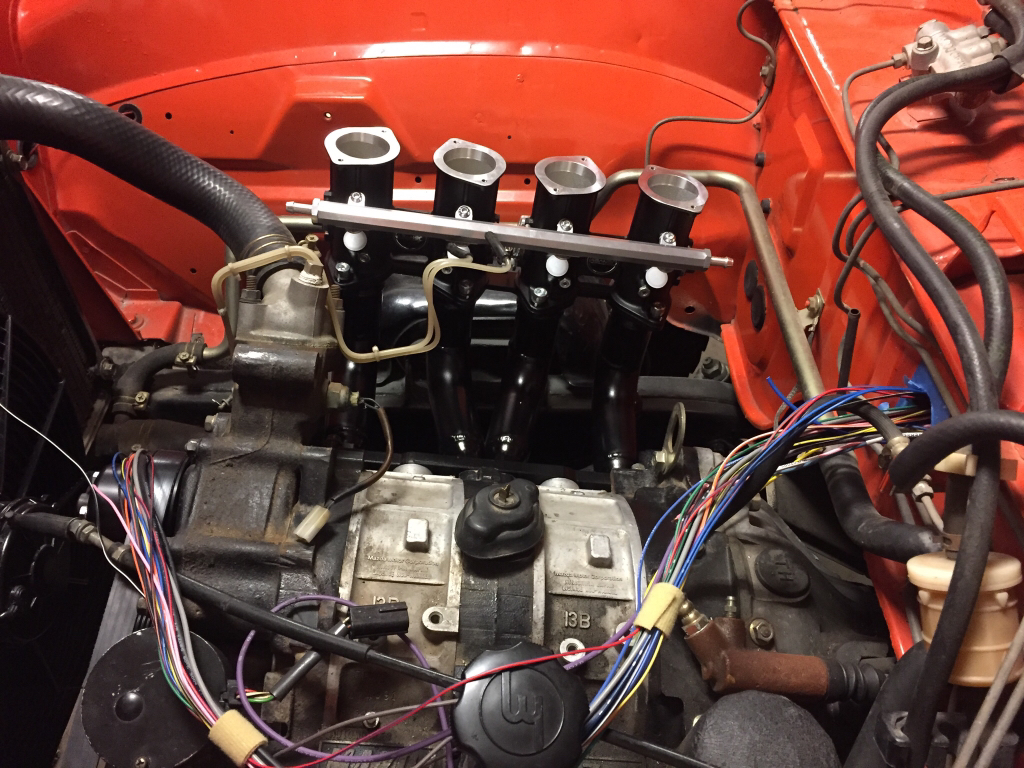

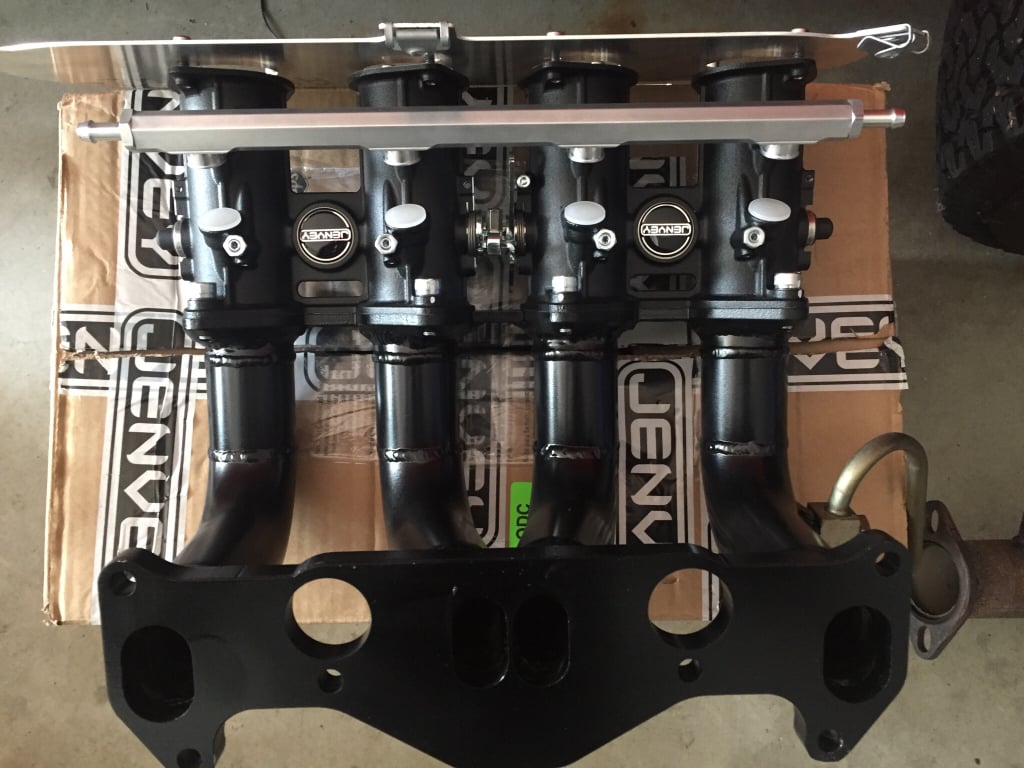

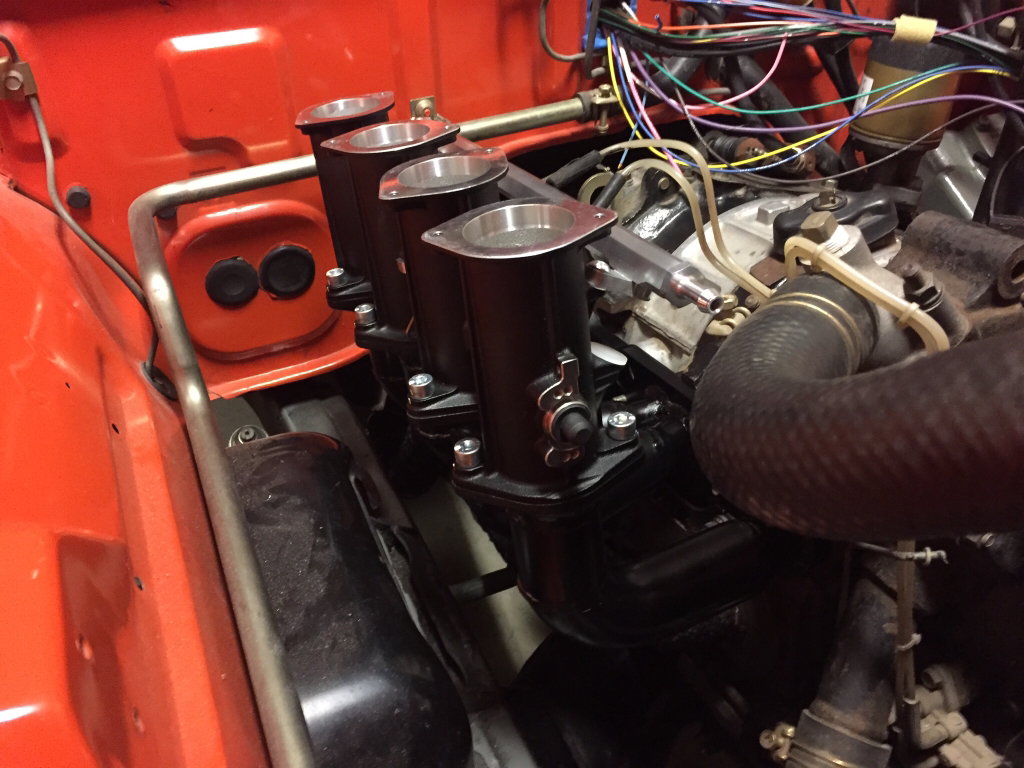

After months of waiting, I finally have an intake manifold.

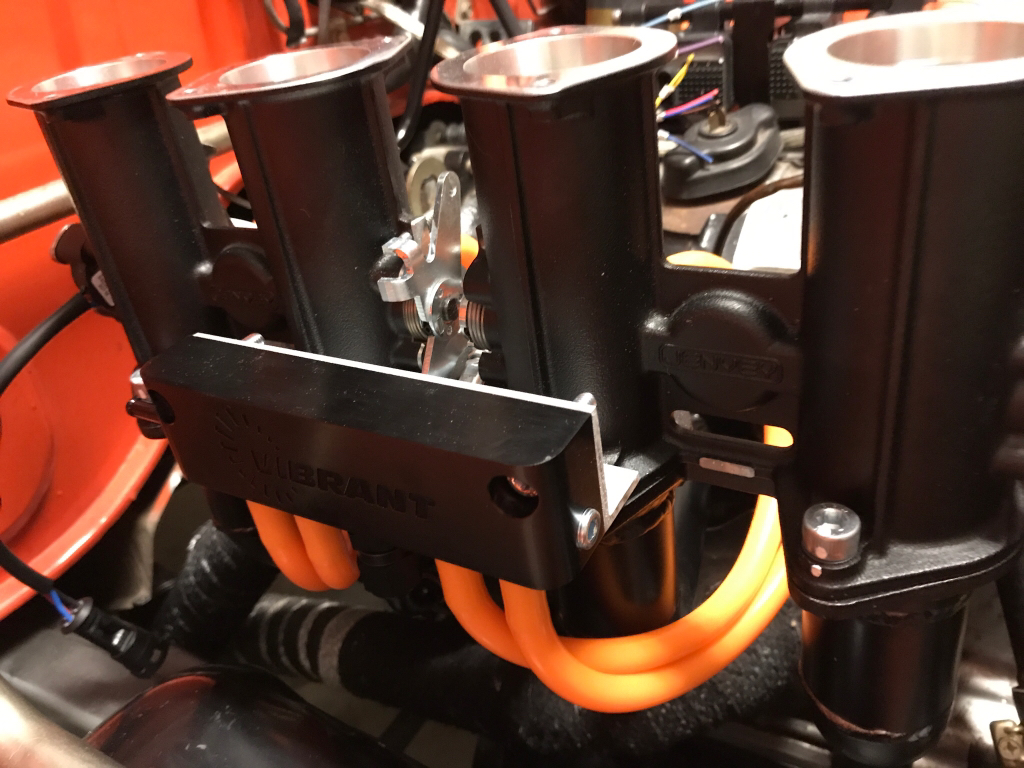

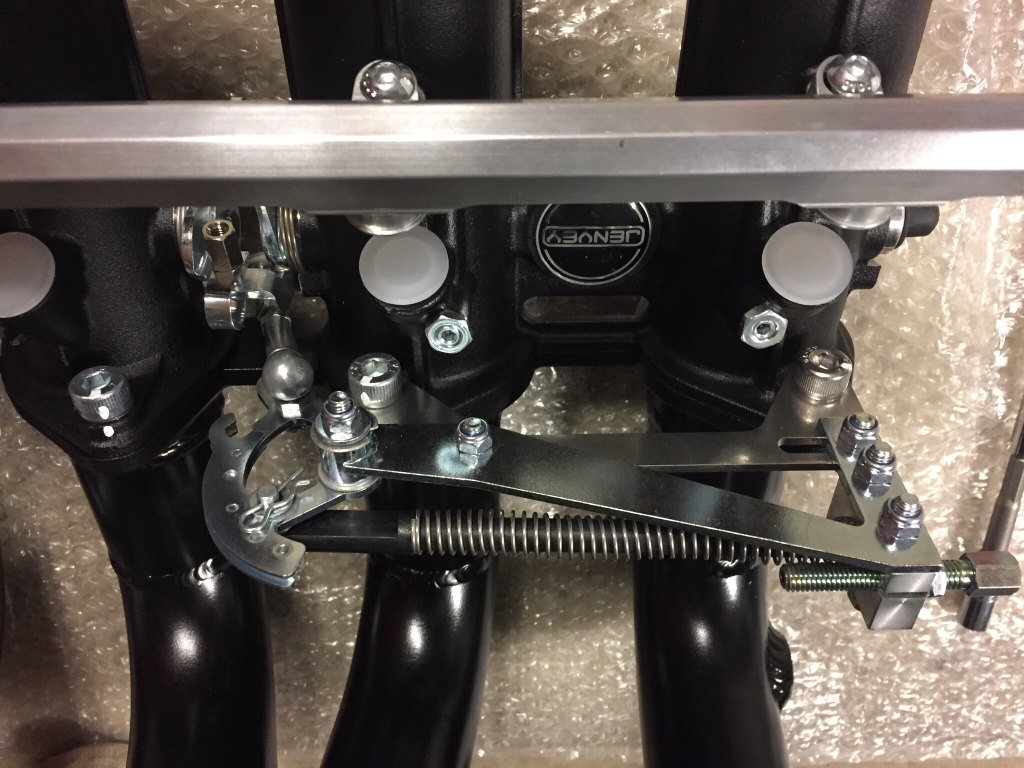

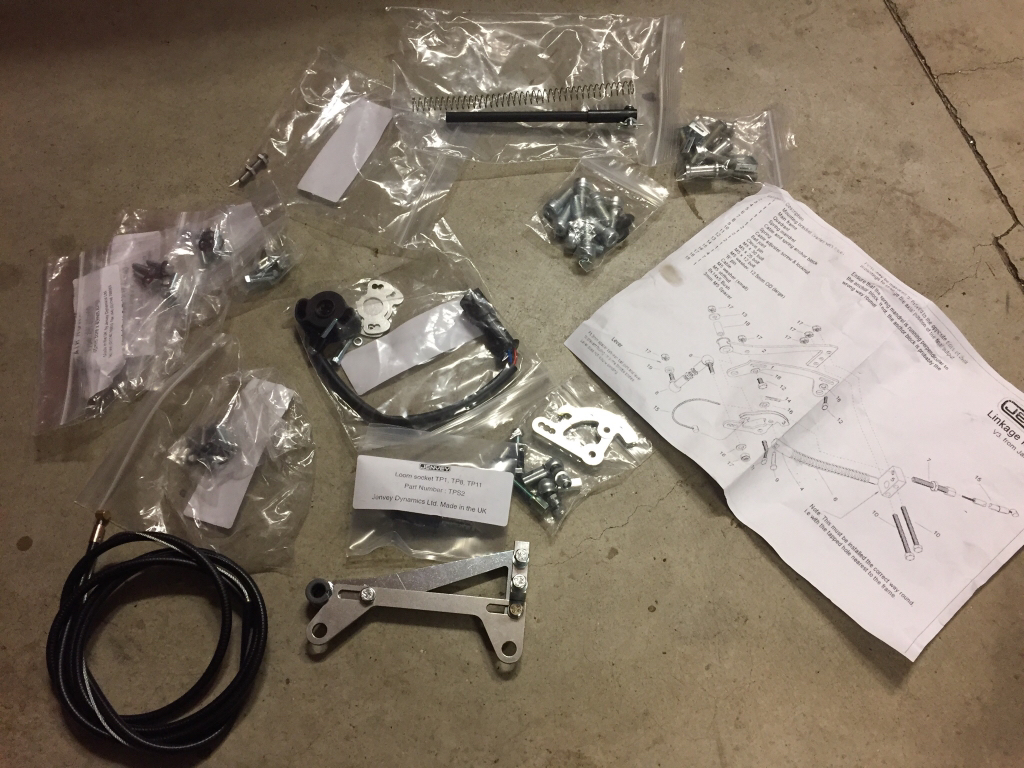

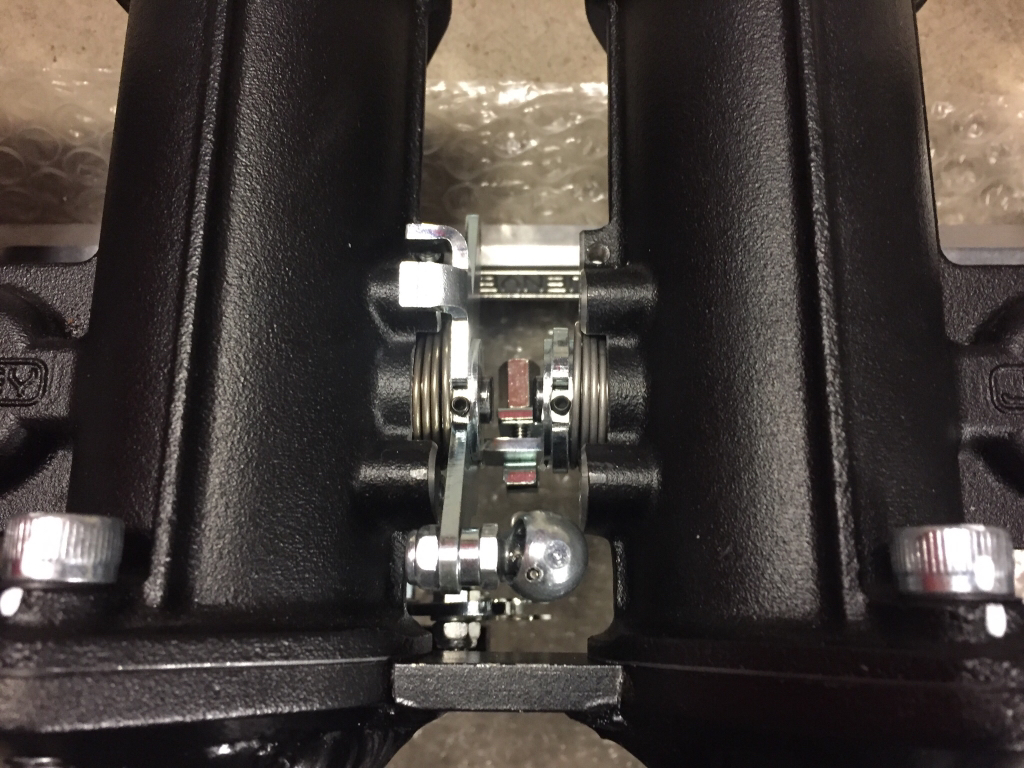

Last night I started messing with the throttle linkage. Some assembly required.







Reitrof

Contributor
:
08 Miata;18 3;21 3
I thought farms had wells??

Nice Chris, looks good. Don't sneeze or drop any of the linkage parts.

It is just the repu or is the RX7 getting one.


chuyler1

goes to eleven
:
2013 CX-9
Making progress this week.

Rear lights and trailer hitch are all wires up now. Turn signals, hazards, brake lights, and reverse lights are all up and running.

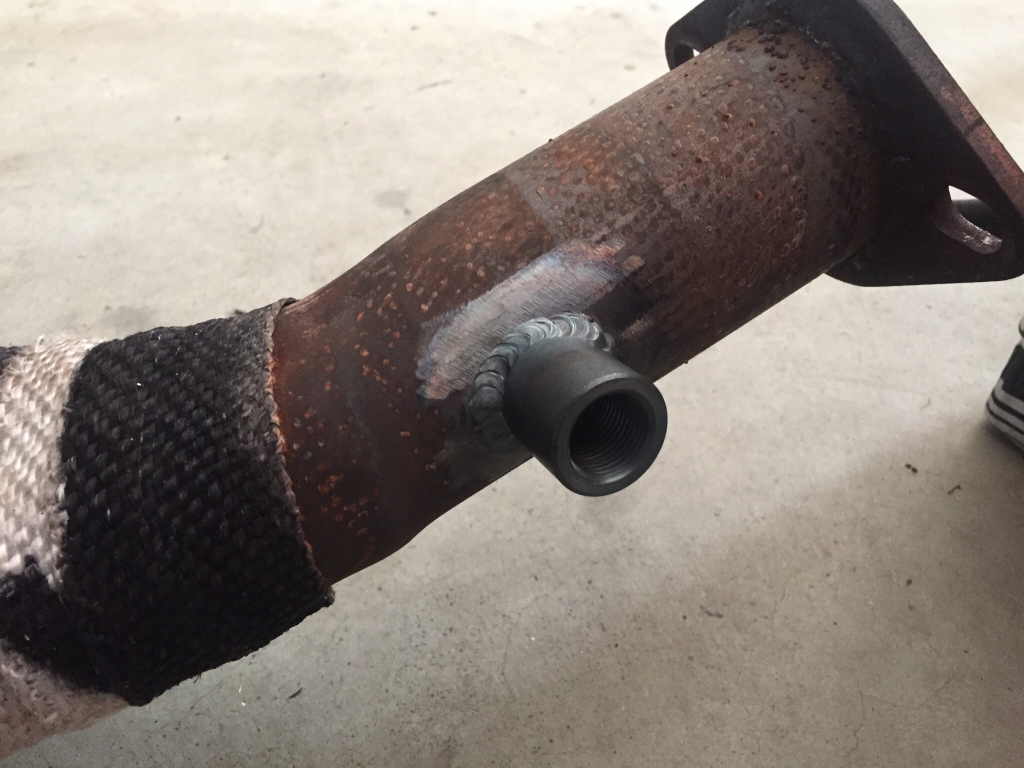

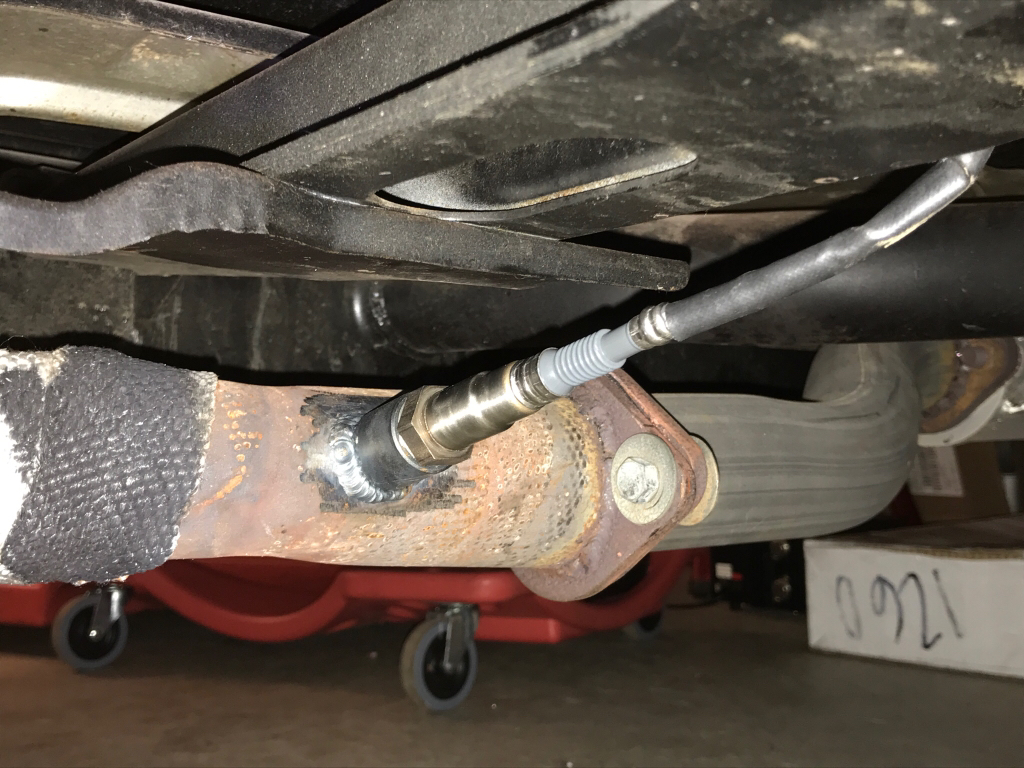

O2 sensor, reverse switch on transmission and starter are all plugged in.

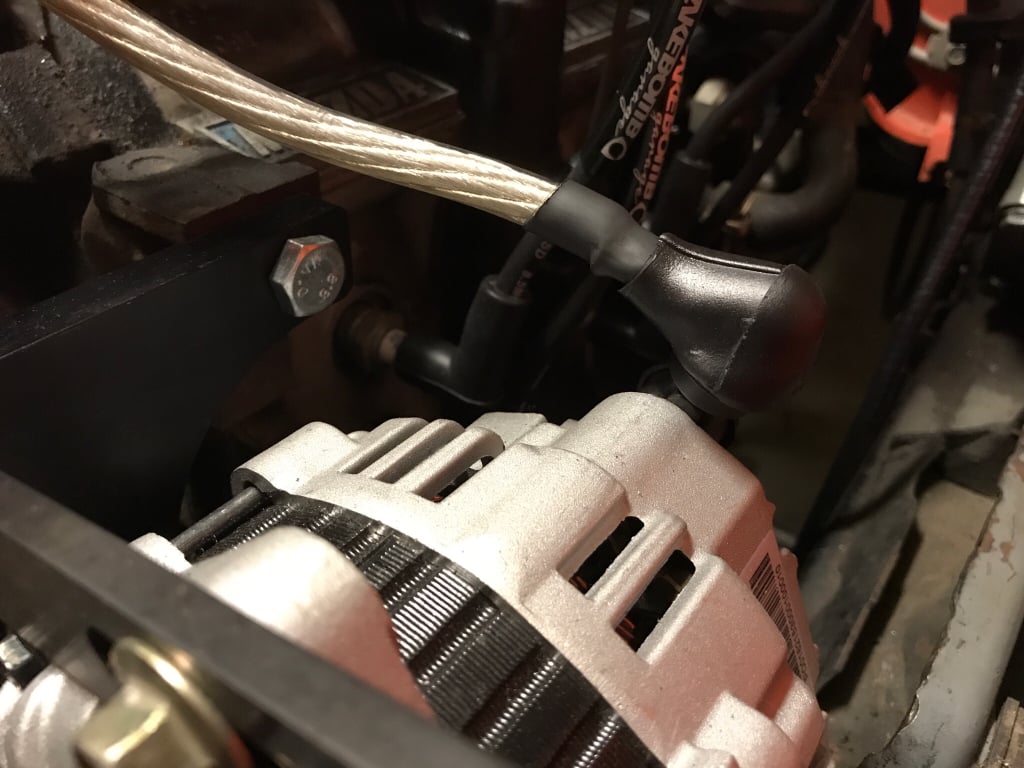

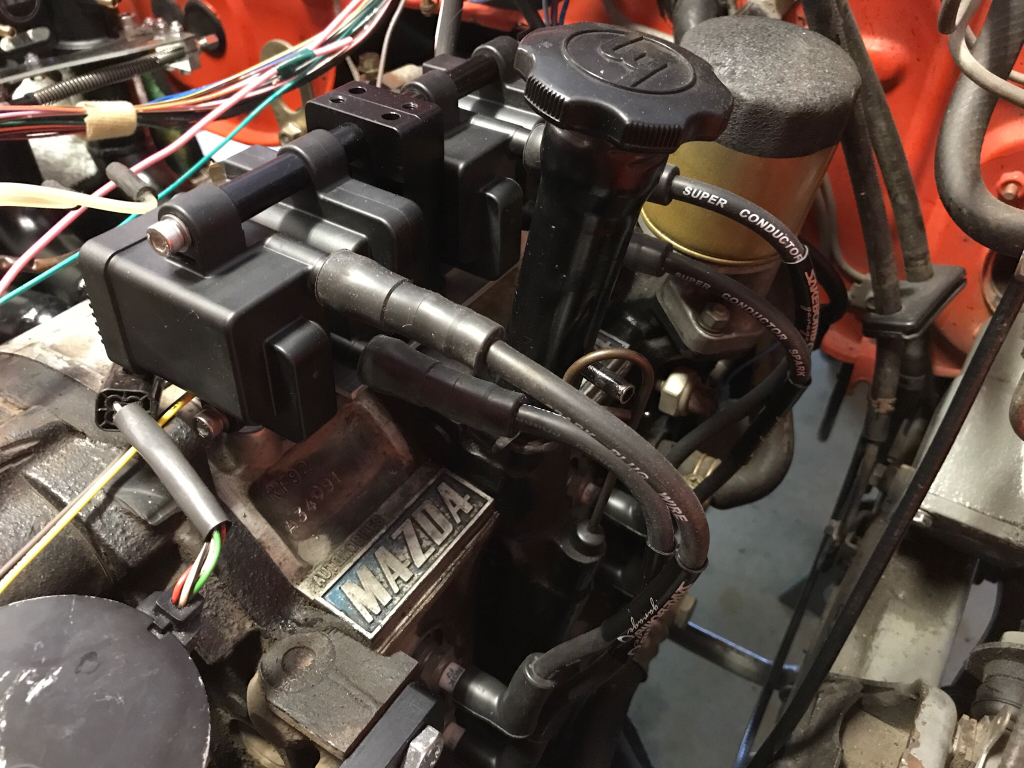

Coils are mounted and custom short spark plug wires connected.

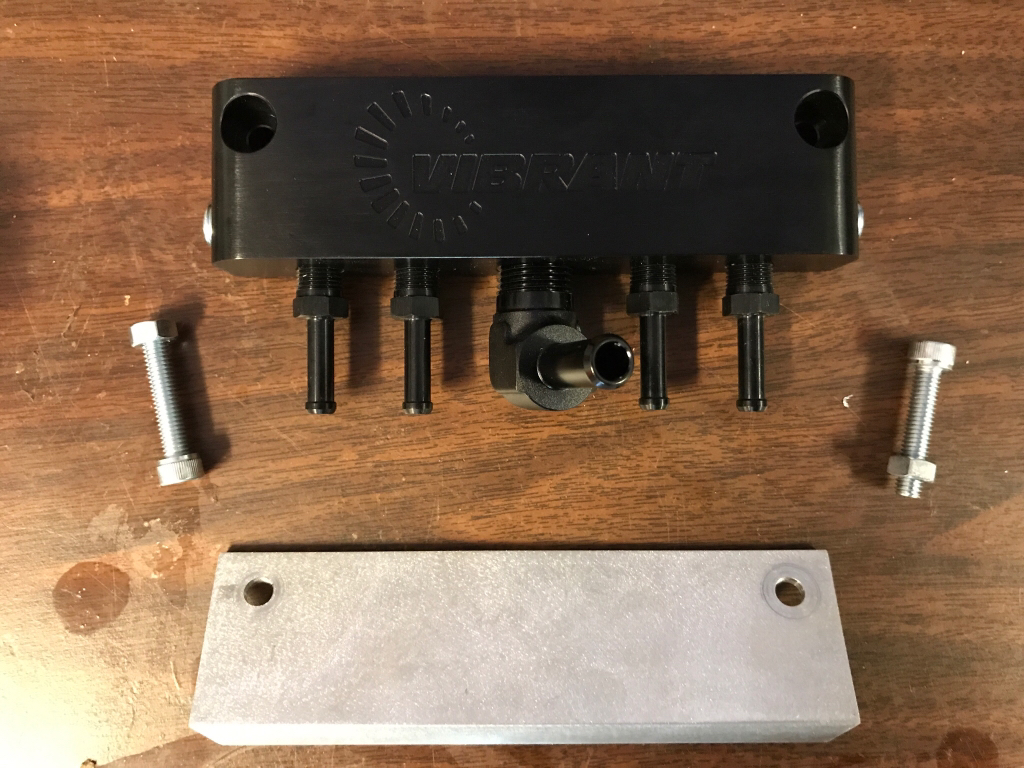

I fabbed up a bracket to mount the vacuum line manifold to the back side of the throttle bodies using some angle aluminum from Home Depot.



Lui stopped by to help out with the engine wiring harness.

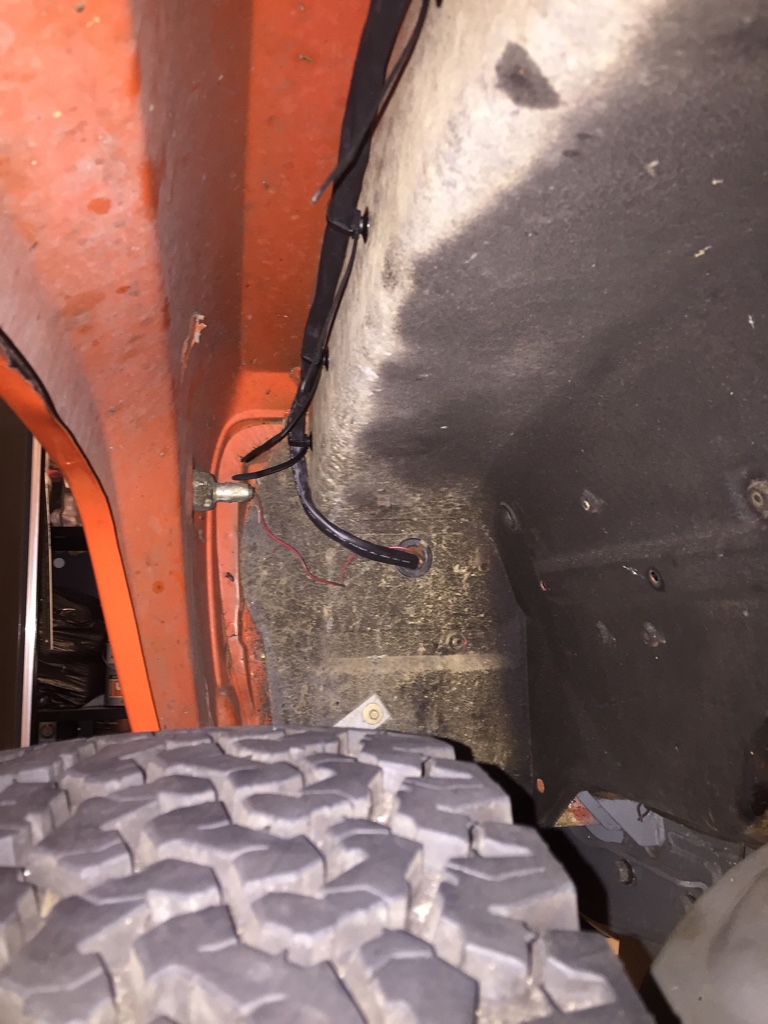

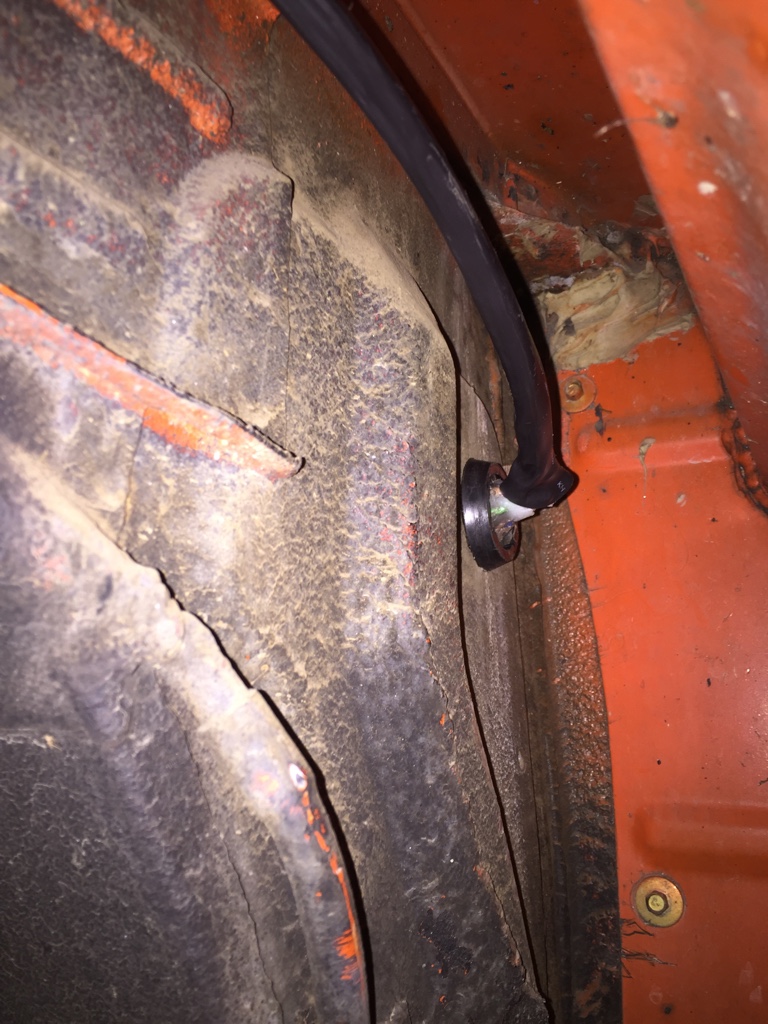

Meanwhile I snaked 8ga wire through the cabin to connect the alternator to the fuse box.

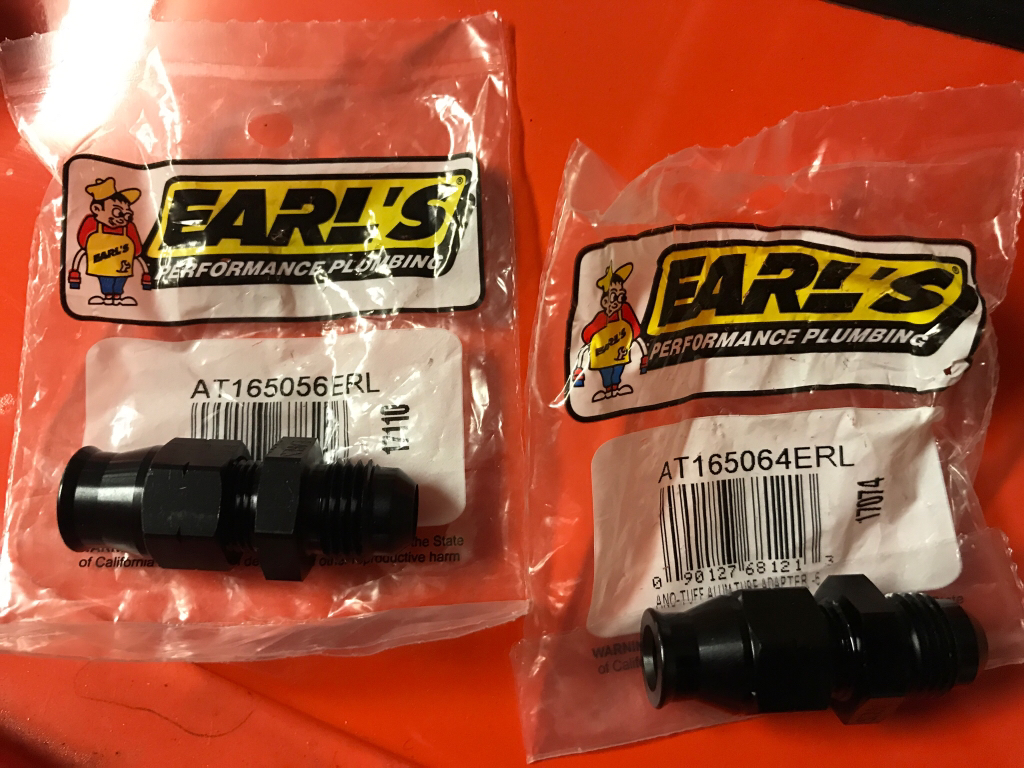

We need to figure out what size injectors fit this fuel rail and procure a few more fittings, then we should see this truck up and running in a week or two.


chuyler1

goes to eleven
:
2013 CX-9

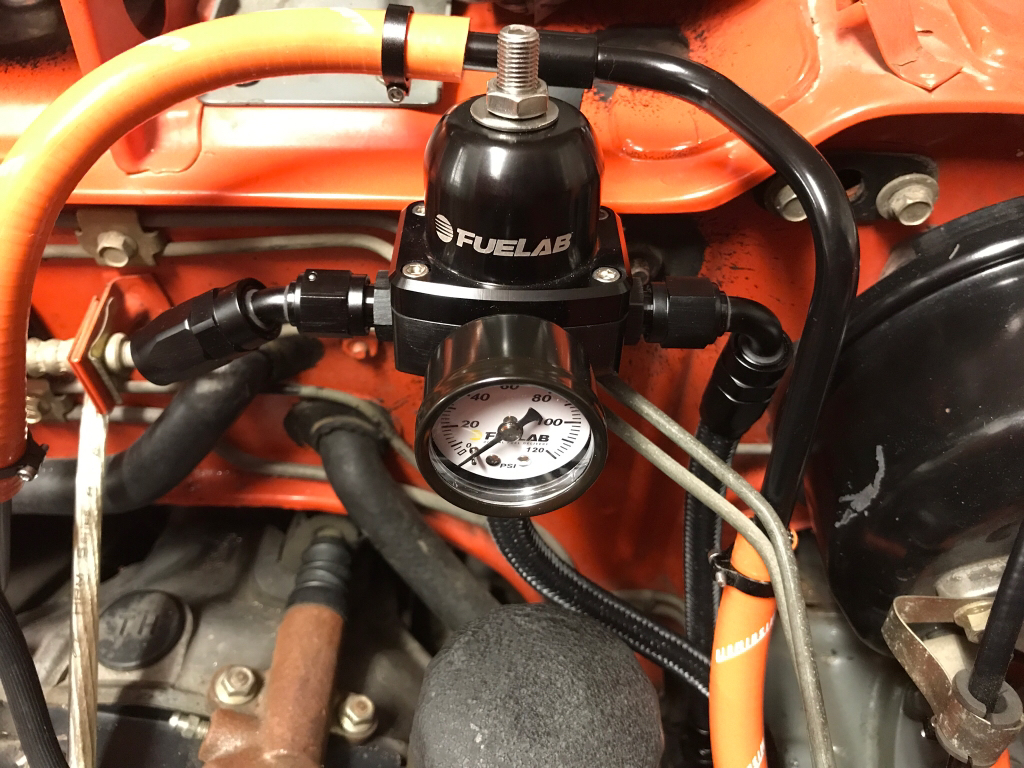

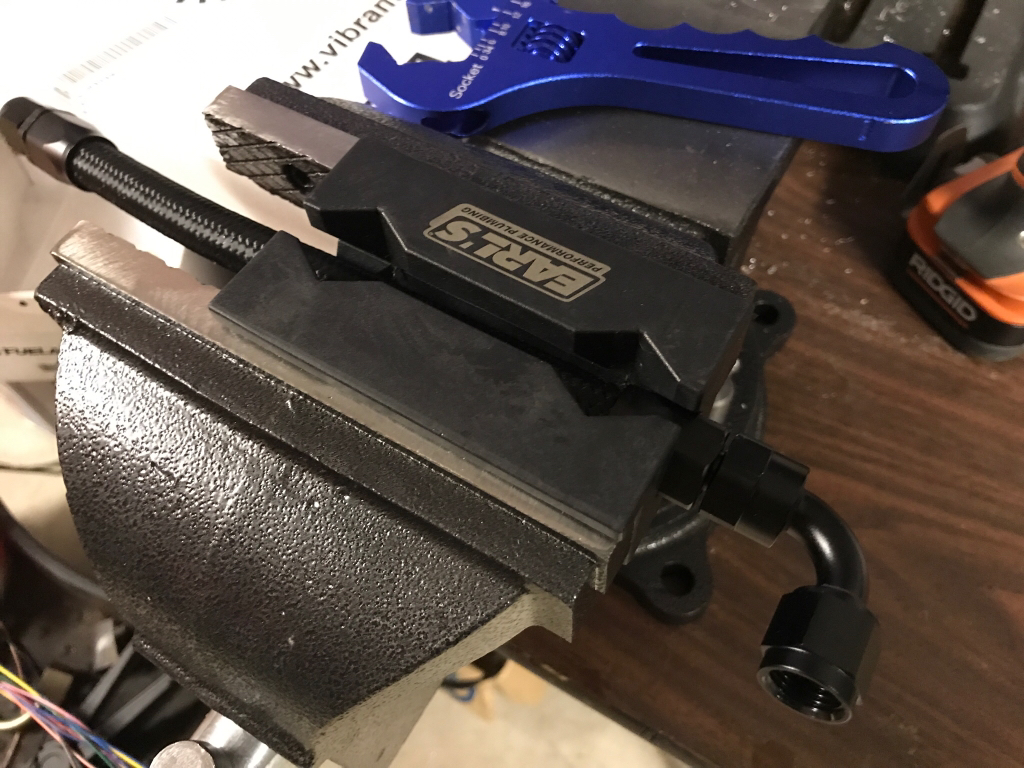

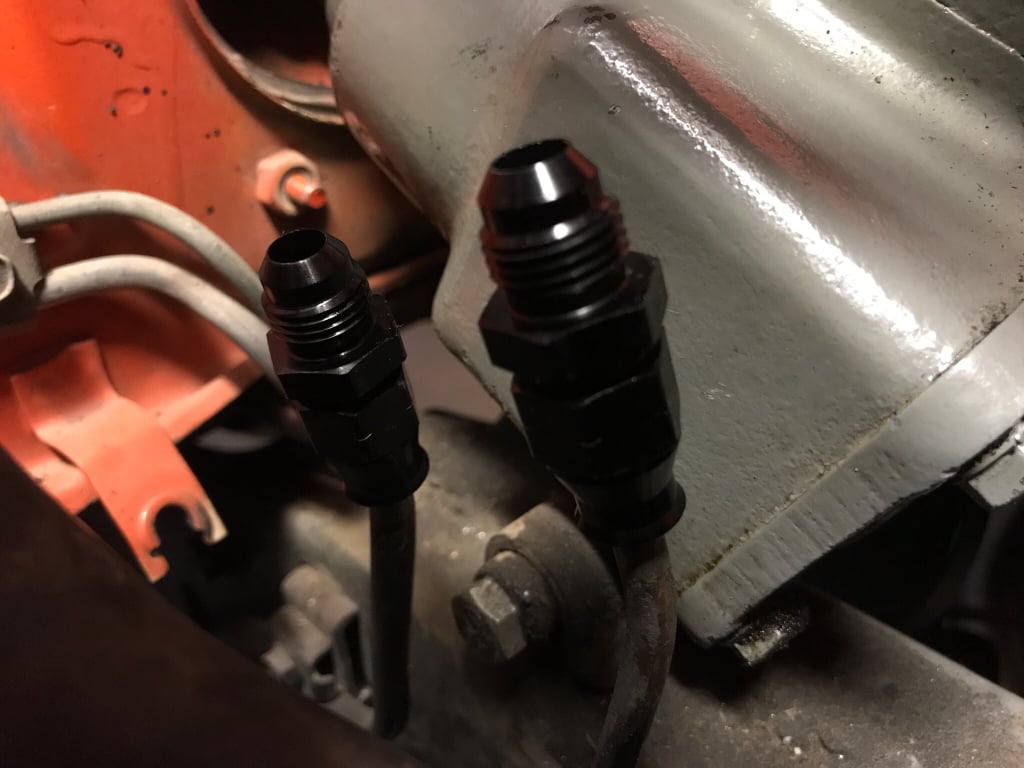

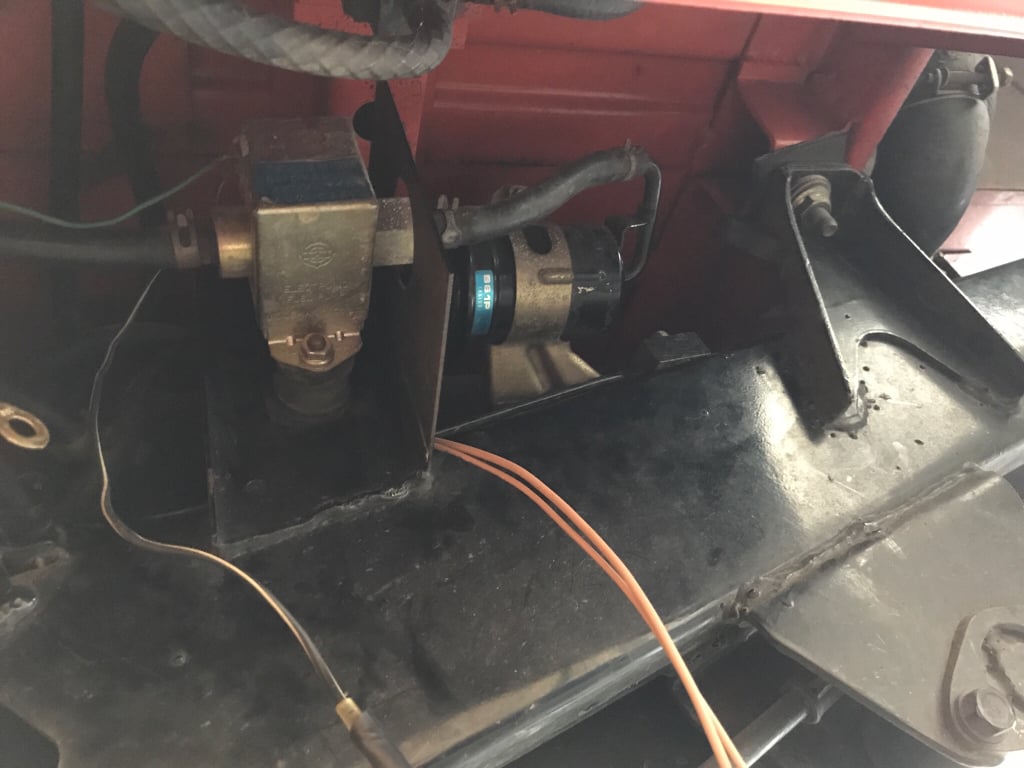

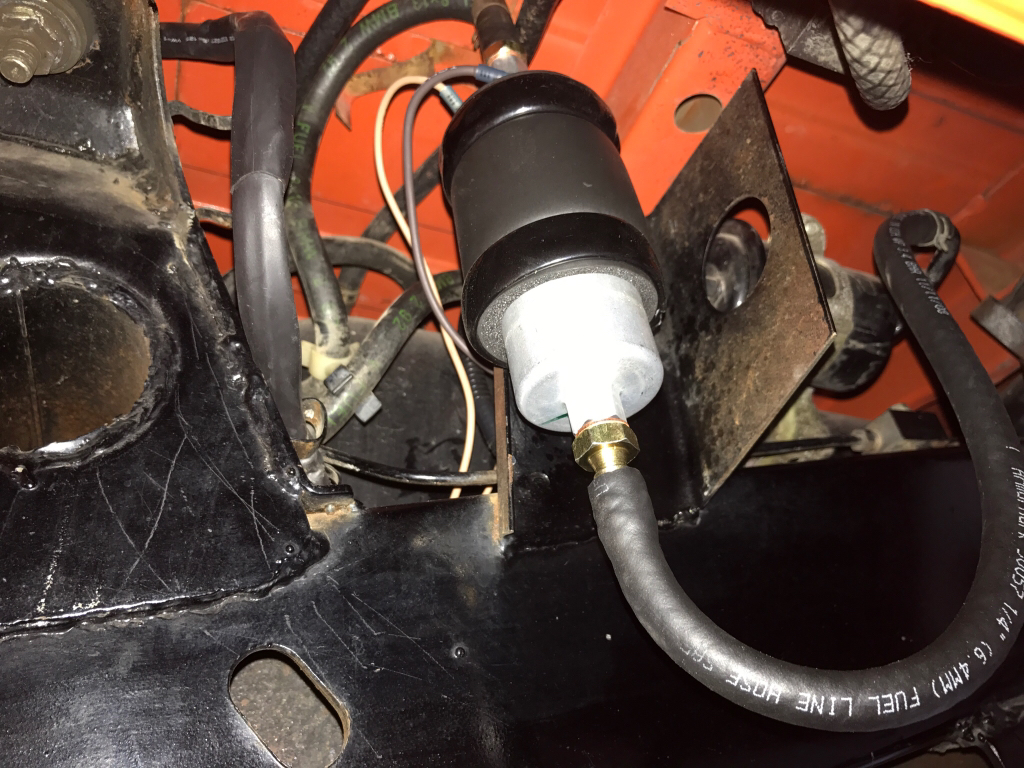

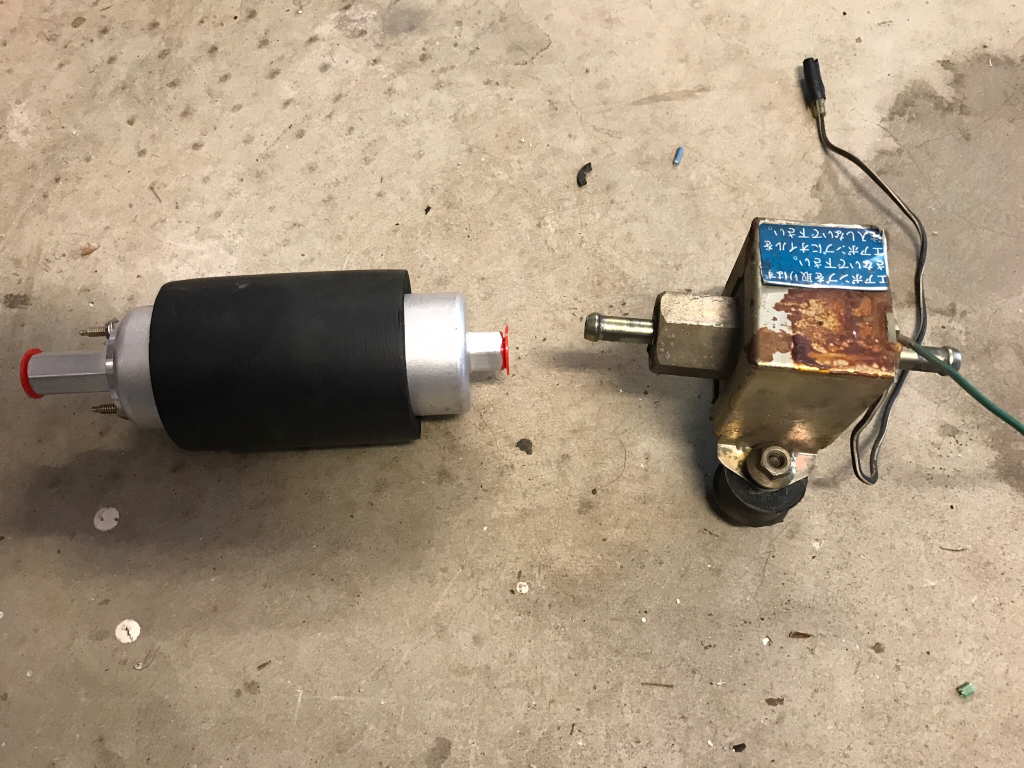

Swapped out the old fuel pump fora walbro unit. I will revisit this later with proper fittings but that will require removing the bed to access the rest of the lines.







chuyler1

goes to eleven
:
2013 CX-9

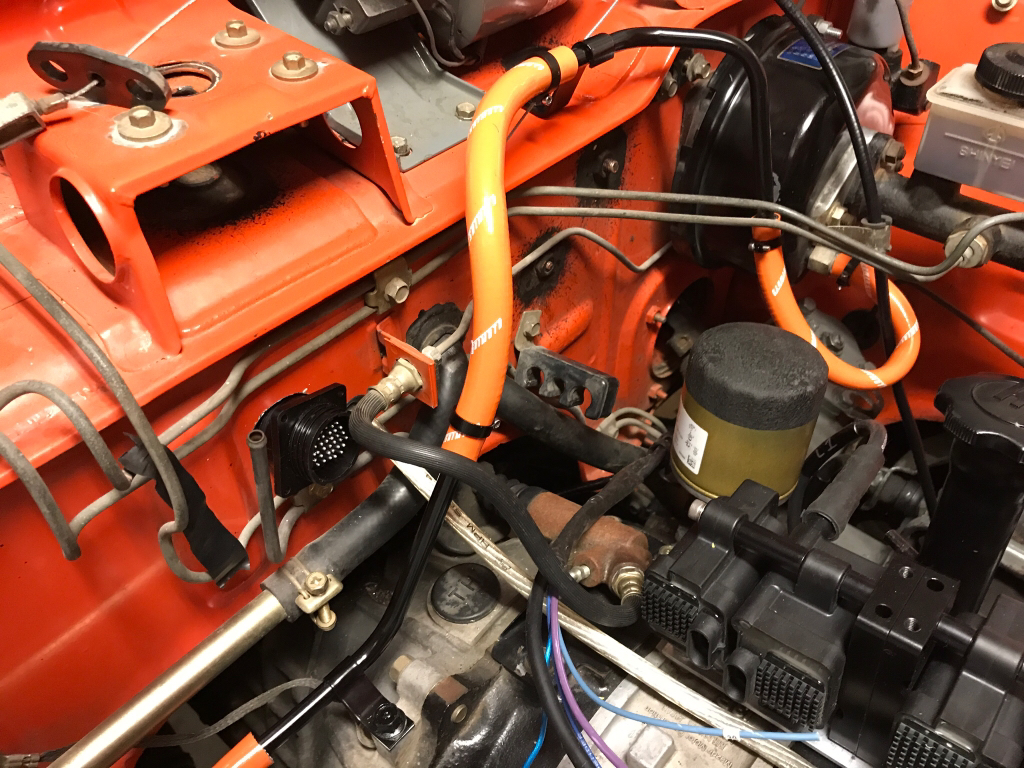

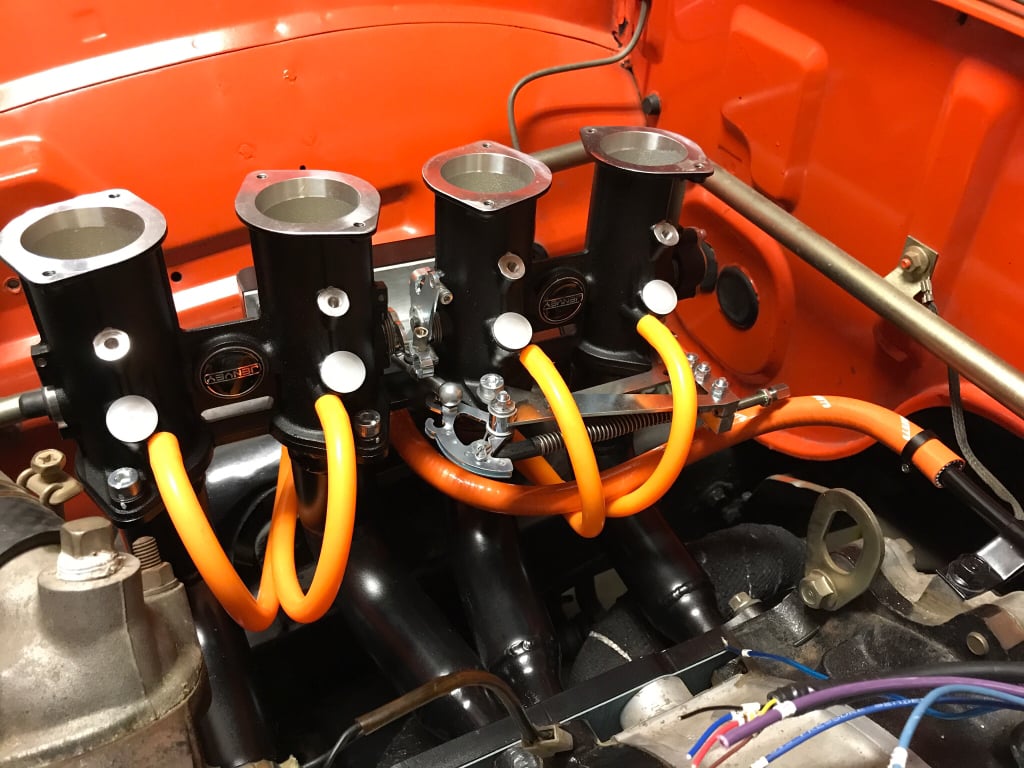

Painted vacuum hard lines and installed new orange mishimoto vacuum hose. Also competed the engine harness bulkhead connector.



chuyler1

goes to eleven
:
2013 CX-9

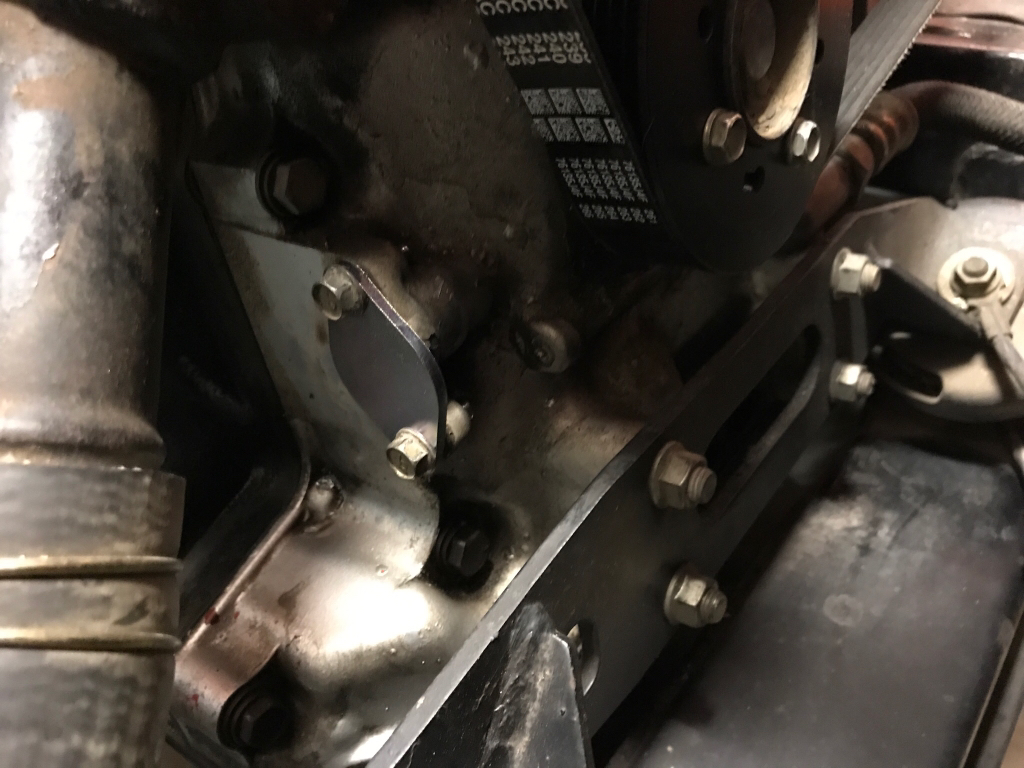

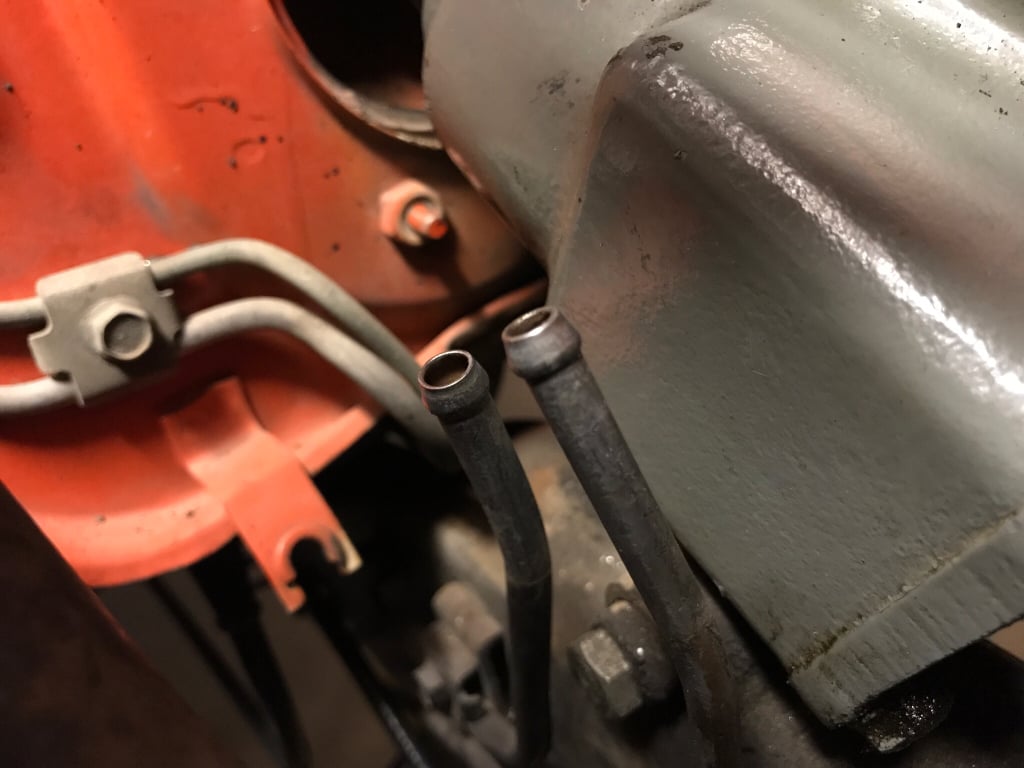

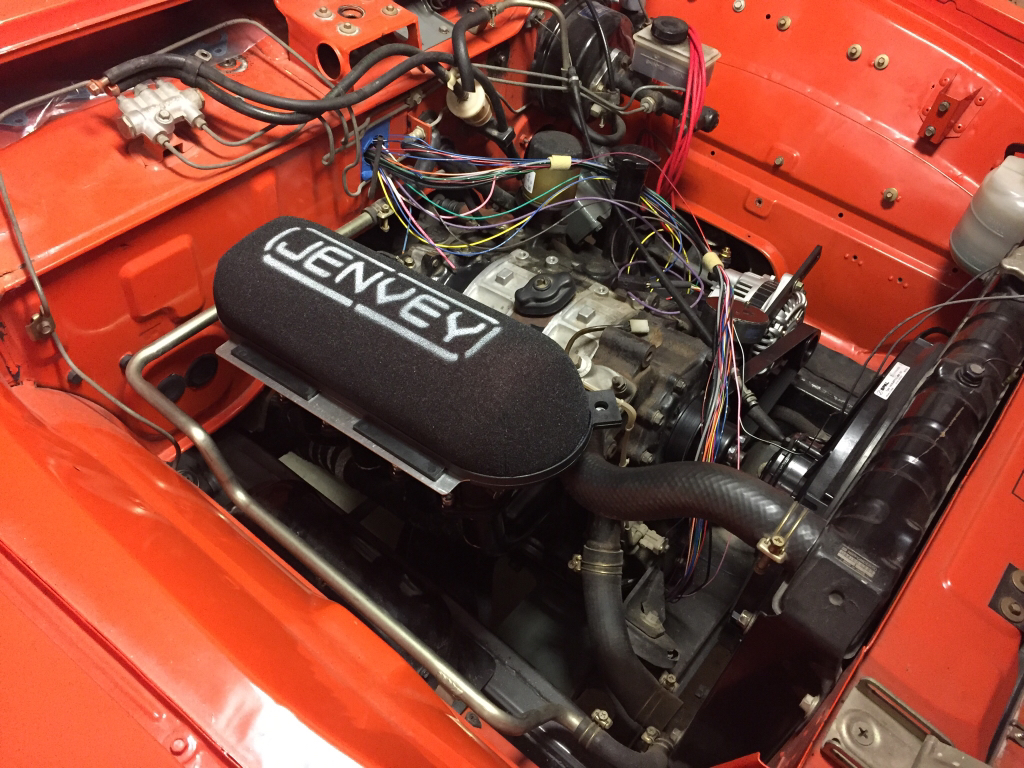

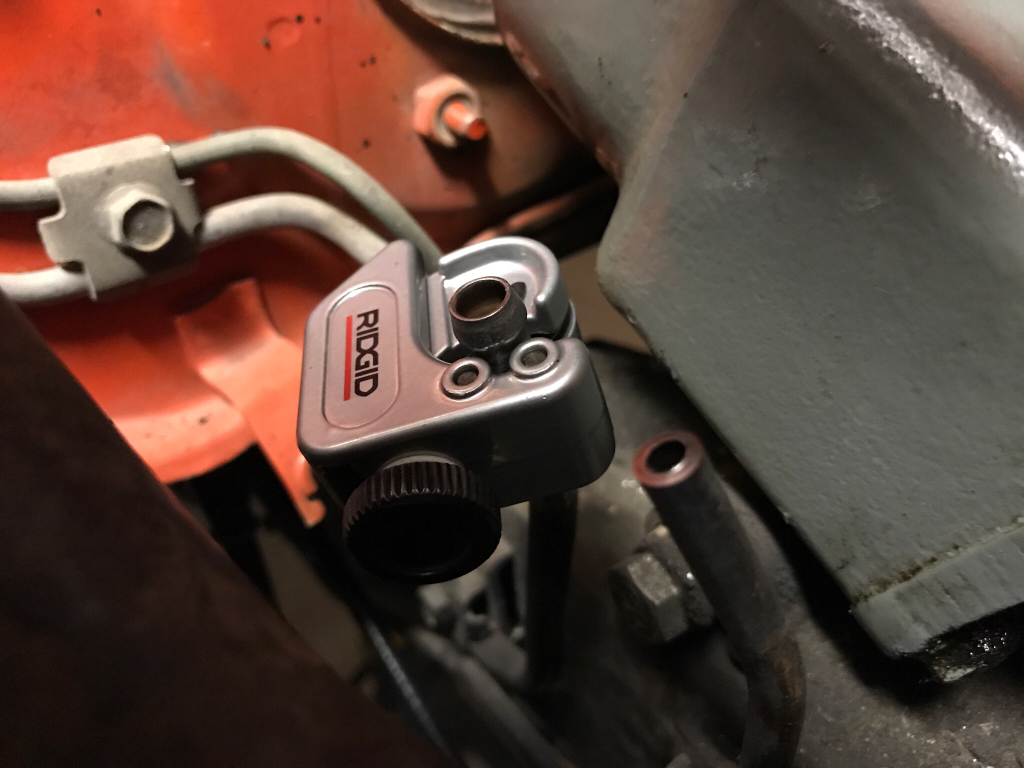

Coolant ports blocked off, OMP blocked off (going to pre-mix), intake finally bolted in place, and vacuum lines sorted.
