few fmic ?s

[opie]

i have been lookin for a fmic but most everone i find requires some kind of cuttin on my car. is there any out there that dont require any cuttin. also what is the biggest intercooler u can install



[theEZV]

the hi boost kit requires no cutting



[BOOSTR]

look harder and research Metallic36s fmic kits for sale.
fmic's are another thing were it is not about the biggest size.



[Beat]

i have been lookin for a fmic but most everone i find requires some kind of cuttin on my car. is there any out there that dont require any cuttin. also what is the biggest intercooler u can install

Look up for Turbolife, great kit.


http://www.mazdas247.com/forum/showthread.php?p=4808587&posted=1#post4808587



[Metallic36]

With my kits, there is minimal cutting on the lower edges of the frame to allow for the piping, and a couple of the pipes will need cut. With my kit, you leave the crash bar in place as it already is. The intercooler mounts to the bottom of the crash bar and the design allows for quite a few choices for the intercooler size. If you want one that isn't going to hang below the MSP lip on the bumper, you will want to look at the ones that are 5.5" and 6" high. My website is www.alteredcustoms.net and I also supply instructions along with any help you need from me answering questions you might have. I took some quick photos (still trying to get the other one to upload) just now since my front bumper is off, you can see the areas that would need cut. My car was originally cut for the MAM kit, but as you can see in the photo, you really wouldn't have to cut as much as mine on that side.



[kasanova]

Hello everyone, what do you thing about the Ion performance FMIC kit?

Thanks you.



[JasonBourne]

hi, where can i buy the ion or hi boost FMIC??



[slo03.5msp]

ion=kinetic motorsport lias i checked they still offer them on their website.
http://www.kineticmotorsport.com/products/KINETIC_MOTORSPORT_MAZDASPEED_PROTEGE_FMIC_KIT-38-135.html

there you go.



[slo03.5msp]

it does require cutting though. But you get to keep your front crash bar.



[Wagonbacker9]

I can show you how to do a custom kit using whatever core you prefer, and ebay piping as well. I did no cutting other than bending back a piece of metal off the end of the frame on the driver's side.



[Patrickenator]

wagonbacker can you PM me how many of each pipe and coupler you used? i have an ebay kit which wants to get put on...



[JasonBourne]

and the hi boost where can i find it?? this kit doesn't requier cutting, right?



[Wagonbacker9]

and the hi boost where can i find it?? this kit doesn't requier cutting, right?

no but you have to relocate your radiator mount points, and remove the SMIC



[JasonBourne]

and with the ion performance, have i to cut? or which is the best option, if i want no cut, and don't remove the SMIC?



[Wagonbacker9]

and with the ion performance, have i to cut? or which is the best option, if i want no cut, and don't remove the SMIC?

picking up some ebay piping, and making a custom kit. like I said, I'll walk you through it.



[JasonBourne]

can you send me the instructions and what FMIC and pipes use?



[Wagonbacker9]

PM sent... furter explaination would be easier over chat with pics.



[Wagonbacker9]

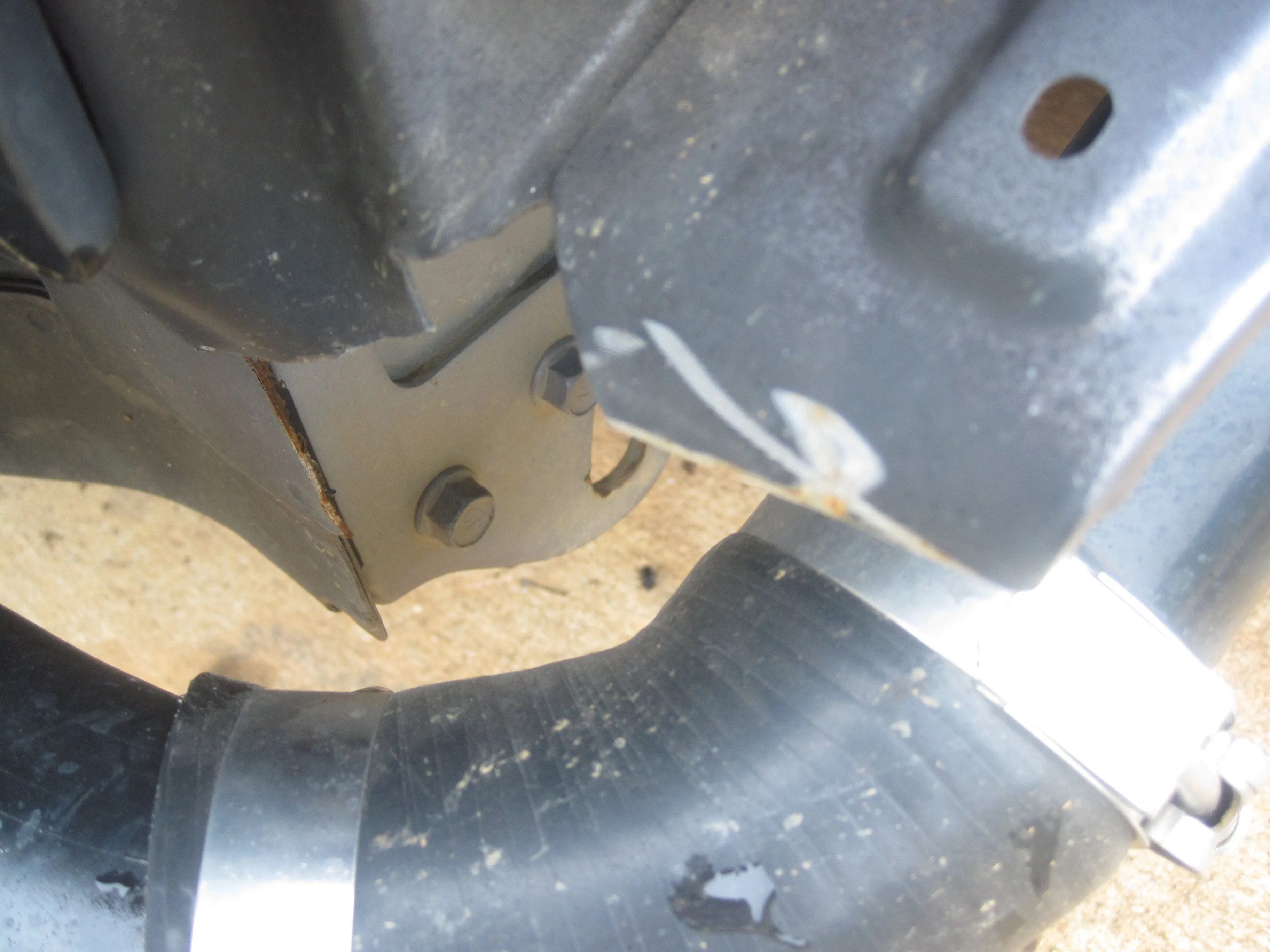

here:
