When is system readyness after code clearing?

ismellrealbad

Member
:
2000 Protege ES 5spd
Pulled the battery after installing new secondary O2 to remedy P0171 system lean lean code. No CEL anymore. Went for inspection the next day (almost a week ago) and it failed for readiness. Went back today and it is still failing for readiness. How many miles or cycles does this thing need to go through?? 2000 1.8 manual.

readiness monitors monitor sensors for emissions reasons. They are compared to data that is collected over a long (40 miles, they say) period of driving under various conditions. Car manufacturers were forced to do this when OBDII was adopted so that people couldn't just clear the codes and get it checked while the code was off.
Anyway, history aside, you have to drive the car at slow speeds, you have to drive it at interstate speeds. For some systems, you have to change your speed a certain amount (not more, not less) over a very specific period of time. Basically, it more complicated than just driving to the store. With the 2.0L that I have, some readiness tests would not pass until I hit interstate speeds for at least 5 minutes. The O2 heater readiness test checks out within a couple of minutes (especially if the car's already hot), the EGR test requires your car to drive under certain conditions to where your EGR valve would open a prescribed amount a prescribed number of times. The evaporative test actually requires you to either leave the car sitting for an hour or so and/or else fill the tank up.

I can tell i'm getting carried away in non-specifics. to make a long explanation shorter, you will not get them all immediately. Some of mine take months to pass. The older the car gets, the harder it is to pass emissions stuff. That's why states will still allow your car to pass emissions tests with 1 or more (depending on car's age) readiness tests still not passing. If you're fed up with going to the shop and getting turned down, then either buy an OBD scanner, have autozone check (they do it for free)

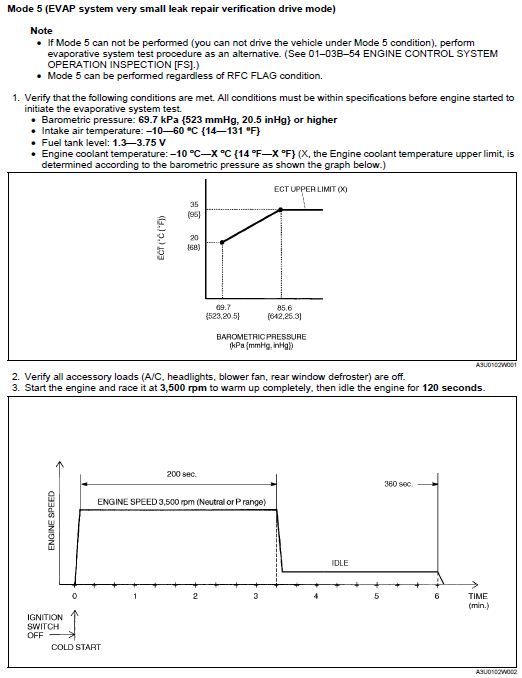

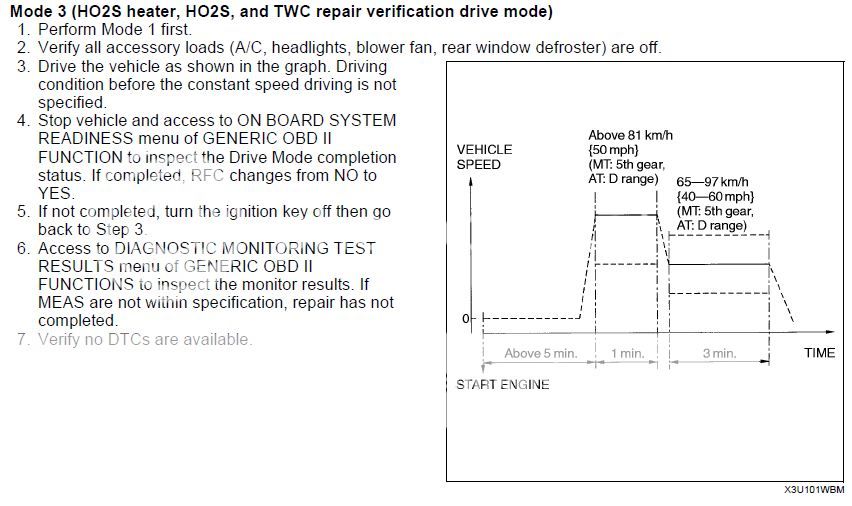

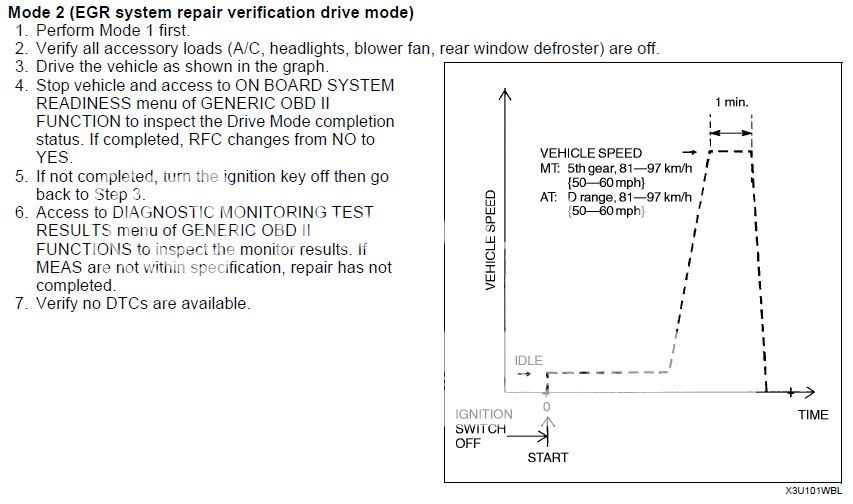

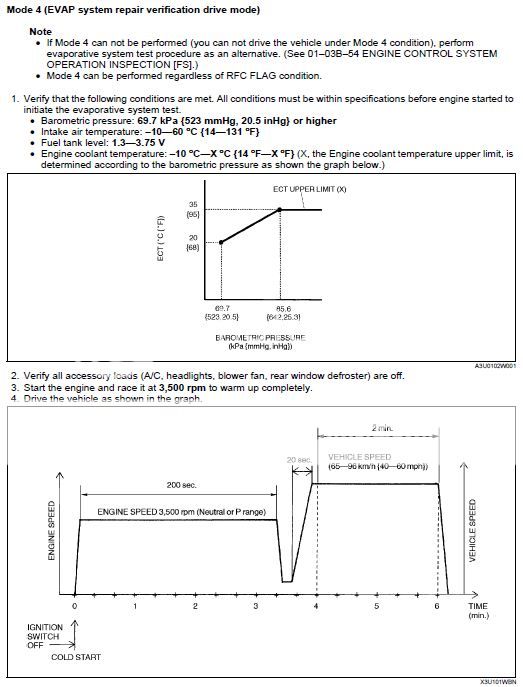

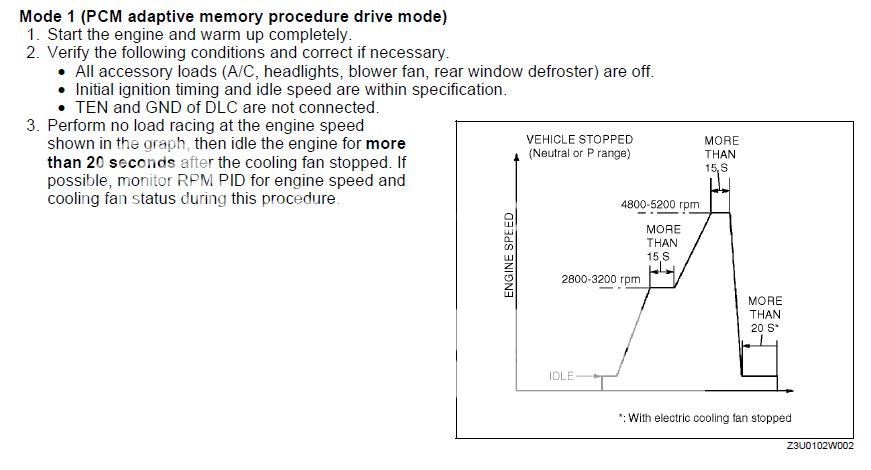

actually, i found some specifics for you.






have fun.

Hey, Thanks for the info. During that time I made 2 trips to philly (about 40 miles each way) and at least 7 cold starts to fully warm. I probably drove about 200 miles altogether. I have a scan tool but I can't see system readiness with it. I can see codes, pending codes, sensor values, and open/closed loop status. I will try performing those tests. Will autozone's scan tool be able to determine readiness?

No good. I tried running these procedures blind without the proper scan tool and it still didn't pass. I must not have ran them properly, but I have no way of seeing if I did or didn't. What is available besides the dealers scan tool that I can buy or use that will allow me to see this information?

No good. I tried running these procedures blind without the proper scan tool and it still didn't pass. I must not have ran them properly, but I have no way of seeing if I did or didn't. What is available besides the dealers scan tool that I can buy or use that will allow me to see this information?
To be fair, these procedures are for my 2003 2.0L, but the logic should be similar or identical, so I posted them anyway. Ididn't use a dealer scan tool. Autozone's scan tool works just fine. I ended up buying one, and took it with me. It allows to check readiness codes. Cost $120 in 2008. Dunno what it goes for now. Ask a mazda dealer for the test procedures for your 1.8. Thhey should just print it out for you free of charge. I drove the patterns on the interstate at 2am with emergency flashers on so I didn't have to deal with stop lights and turns.

Wow. So long story short my mazda dealer is completely useless and I wasted an hour there trying to get info to no avail. Rather than calling or going to a different dealer and risking the same results; i did manage to obtain just enough info to perform better googling and came up with this insanely convoluted version of that you provided me:

http://www.obdclearinghouse.com/documents/newdocuments/mazda/OBDII_single_drive_cycle_96-03.pdf

They decided to combine every vehicle into one graph. It's nuts - but most important i found the drive cycle procedure for my engine and sure enough it varies slightly. Hopefully I can wade through all this s*** and perform the drive cycle.

Wow. So long story short my mazda dealer is completely useless and I wasted an hour there trying to get info to no avail. Rather than calling or going to a different dealer and risking the same results; i did manage to obtain just enough info to perform better googling and came up with this insanely convoluted version of that you provided me:

http://www.obdclearinghouse.com/documents/newdocuments/mazda/OBDII_single_drive_cycle_96-03.pdf

They decided to combine every vehicle into one graph. It's nuts - but most important i found the drive cycle procedure for my engine and sure enough it varies slightly. Hopefully I can wade through all this s*** and perform the drive cycle.

In case you have an android phone, i mentioned last time that the $120 code reader I bought can ready readiness test statuses but there's a much cheaper solution if you have an android phone. you can buy an inexpensive OBD-to-bluetooth transmitter and use an app called Torque by Ian Hawkins on the play store ($4.95) and get a real-time solution for approximately $25 total. just in case you're interested.
