What have you done to your P5 today?

[evilmonkeyMSP]

lol some of you guys are engineers, help me!

http://www.mazdas247.com/forum/showthread.php?t=123741441

lol



[fishdonotbounce]

done



[Rockin03mp5]

damn mahk, that bay cleans up nice!



[01bluemp3]

Just ordered a Precision T3 T04e, here are the specs

Part No. - SC-5031E

Compressor Wheel Diameter 54mm

Compressor Wheel Inducer - 2.123

Compressor Wheel Exducer 3.000

Wheel Trim 50 Trim

Compressor Cover Inlet 3

Outlet Size 2

Bearing System PTE Race 360 Center Section

5 Bolt Turbine Housing

Turbine Wheel Style - T31 (Stage III)

Turbine Wheel Inducer 2.559"

Turbine Wheel Exducer 2.229"

Turbine Wheel Trim - 76



[ScratchNSniff]



[rygar8dung]

My Latest MOD...

Replaced the last of my OEM engine wires. The Alternator Power Wire. The Transmission Ground Wire. The Starter Power Wire. Then re-wrapped them with the other ground and signal wires and ran them back thru the engine bay.
Today I used Knukonceptz 4ga Flex wire, Red for power and trans-Black for ground. Also used Stinger 4ga wire terminals. Wrapped the trans ground in wirecare techFlex and shrinkwrap, Wrapped the Alternator/Starter wires in electTape, wire loom then TechFlex. Lots of fun! Looks Clean. See before and after pics.

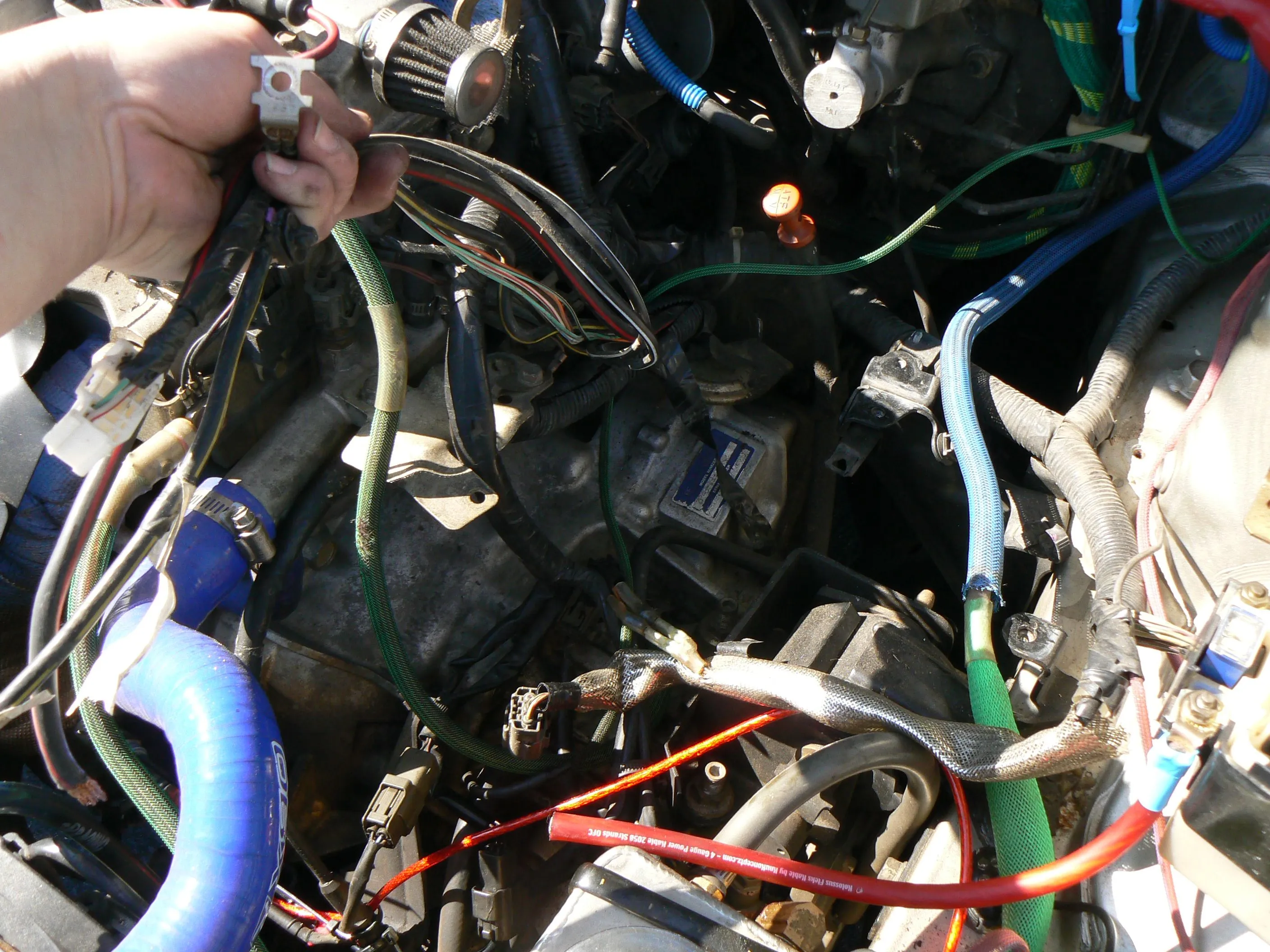

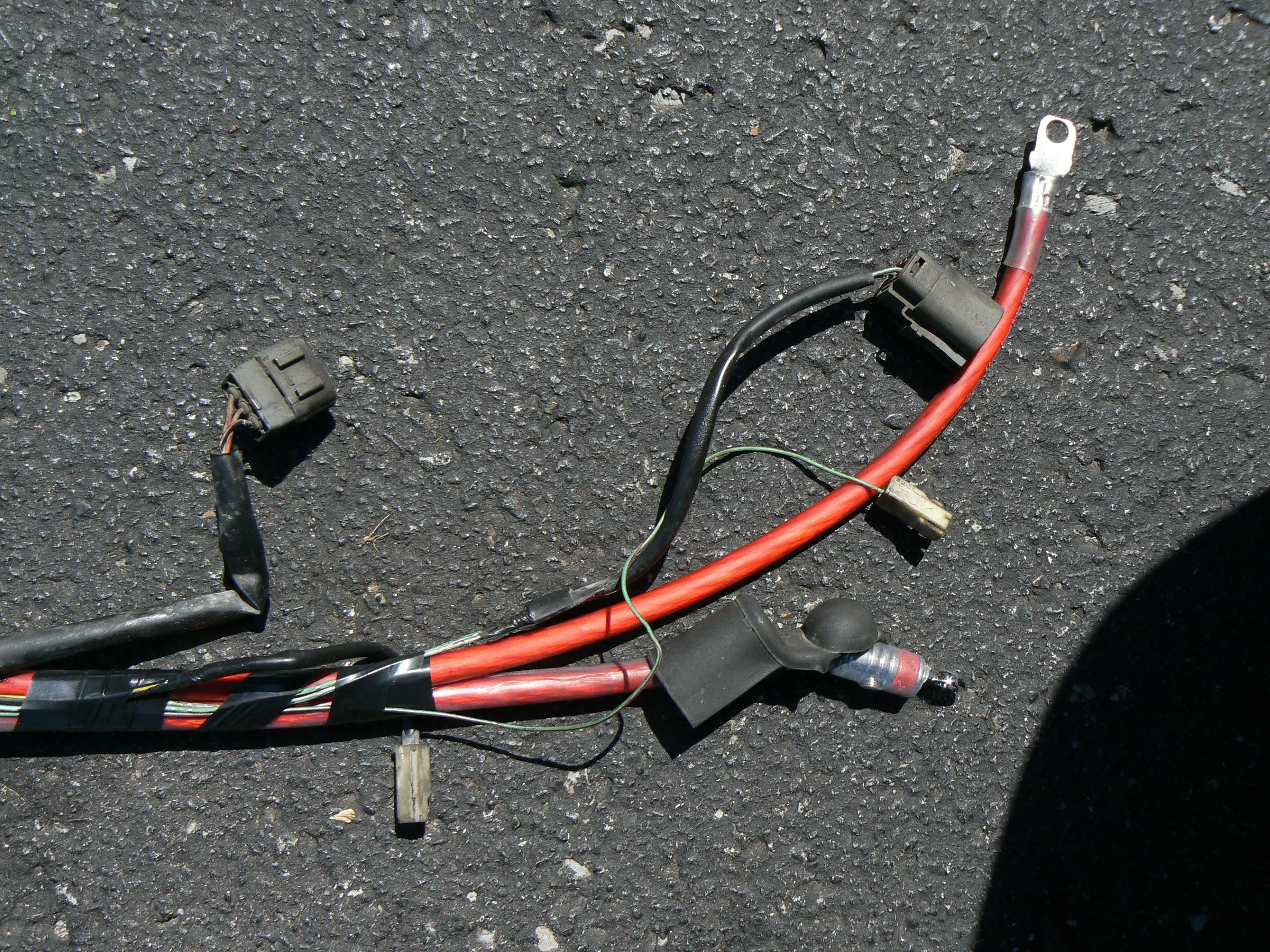

Pic#1 is the wires to be replaced
Pic#2 alternator power side, stinger terminal, before

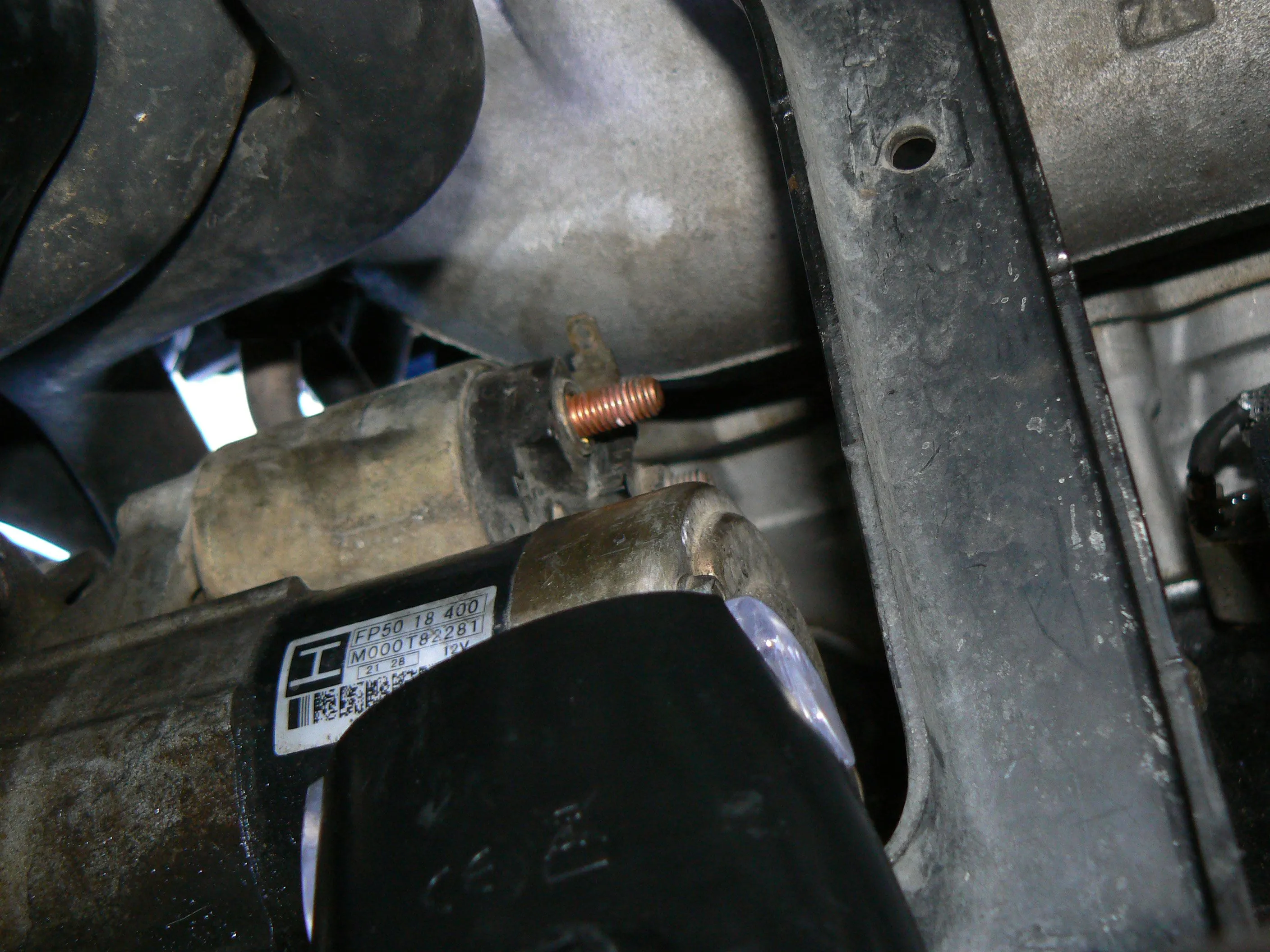

Pic#3 the starter, before install

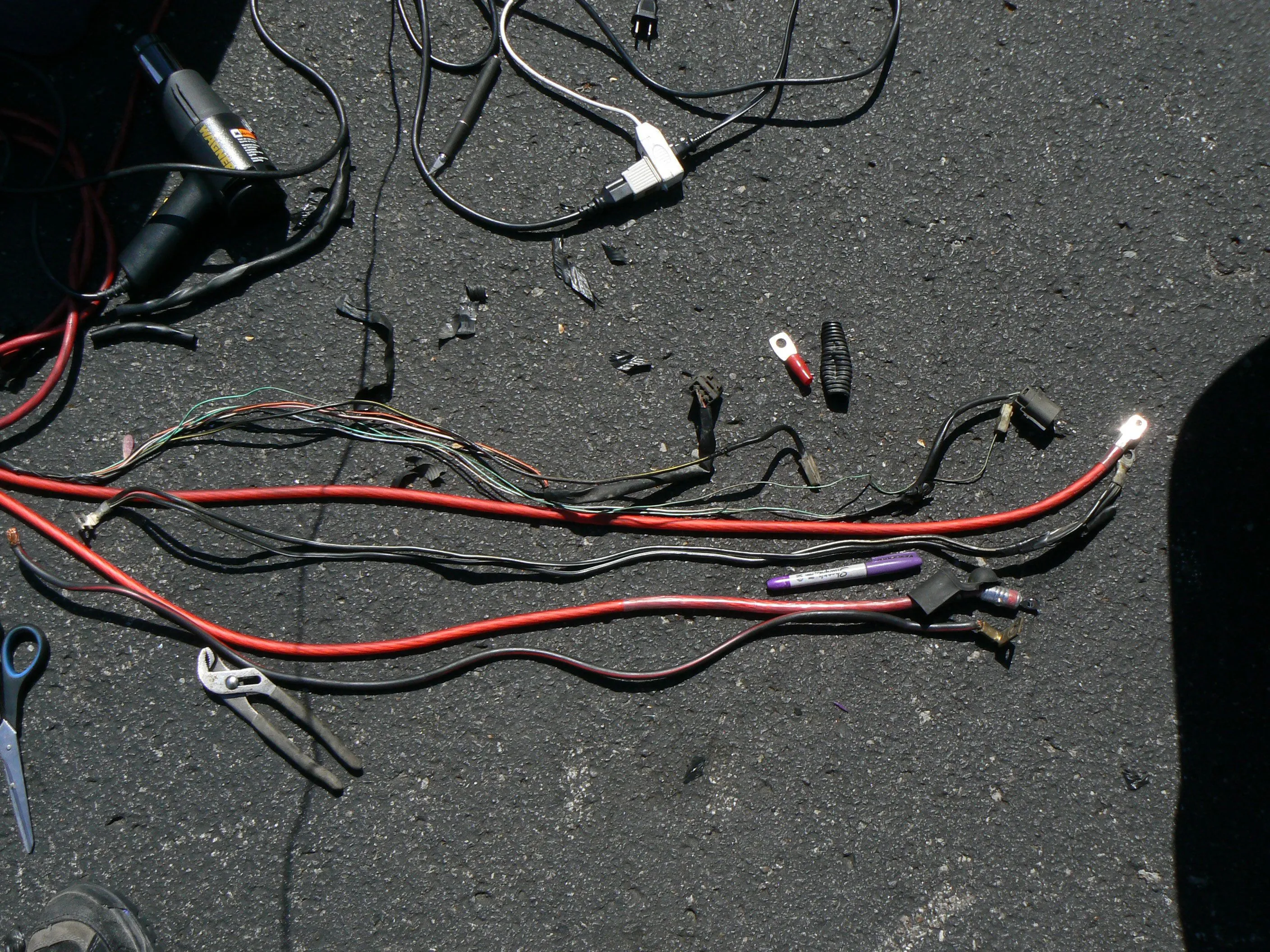

Pic#4 wire comparison new vs. OEM
Pic#5 Trans ground, after, installed



[rygar8dung]

cont..

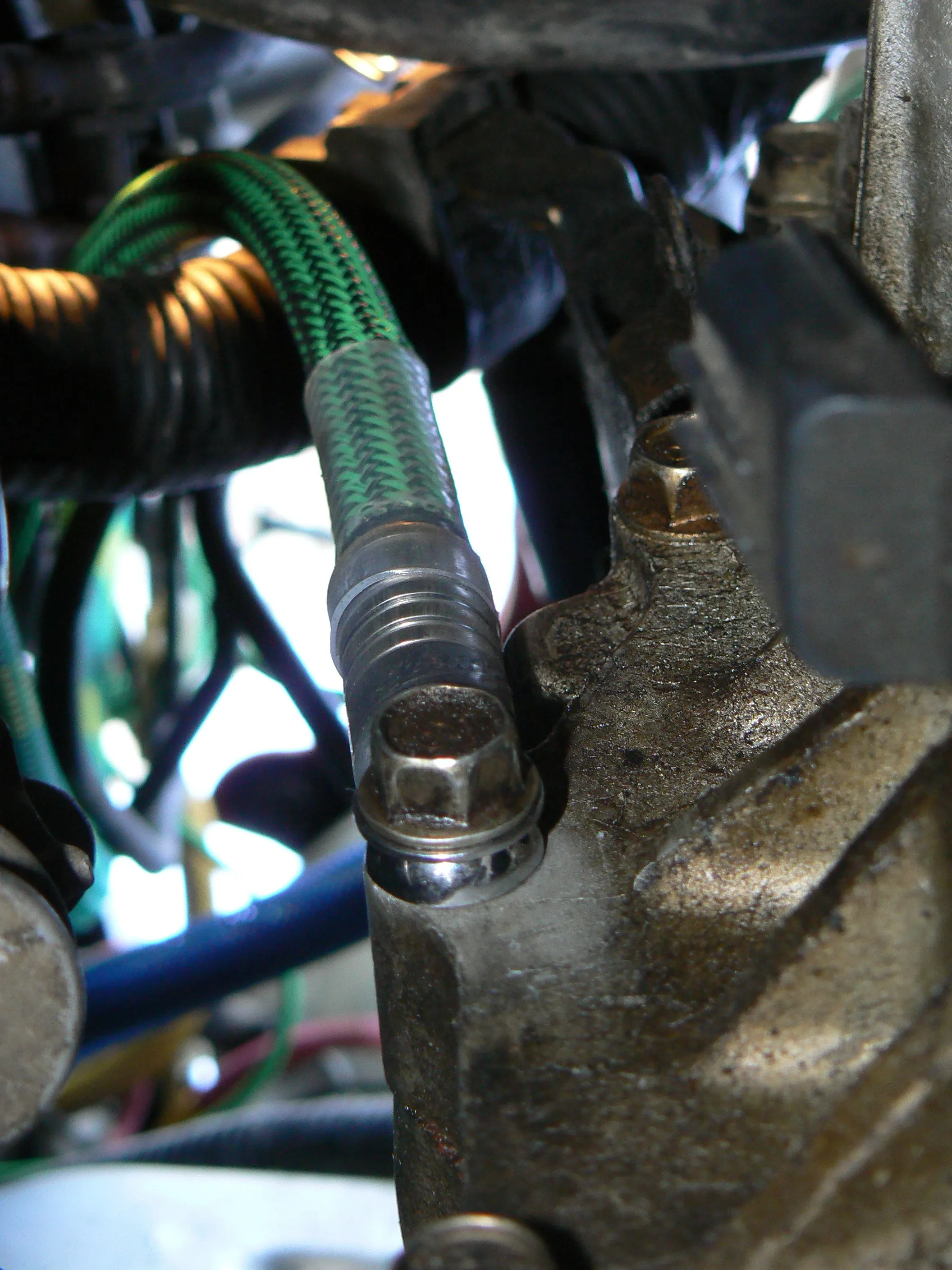

Pic#1 Up-close of New Trans ground
Pic#2 New wires wrapped

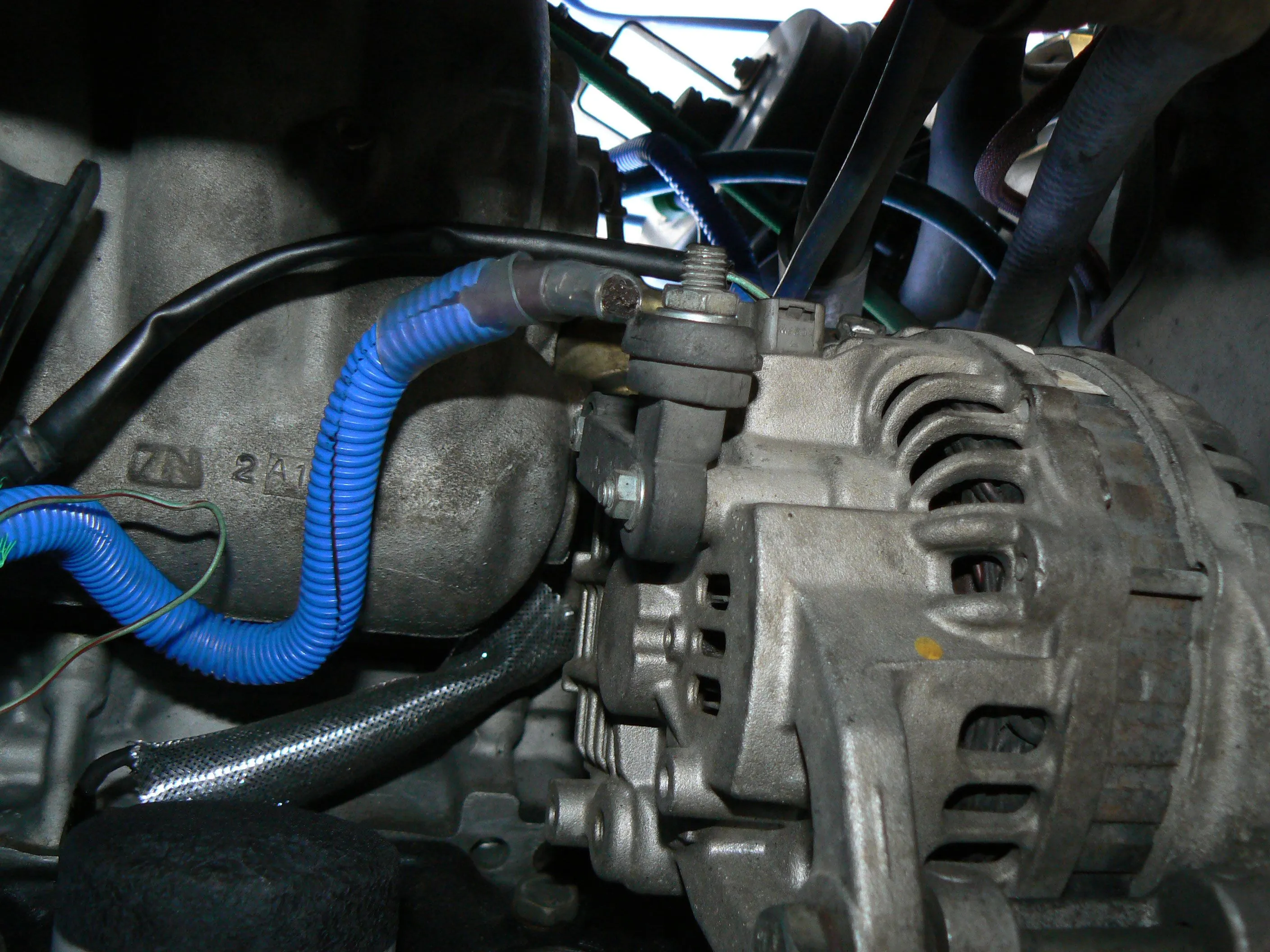

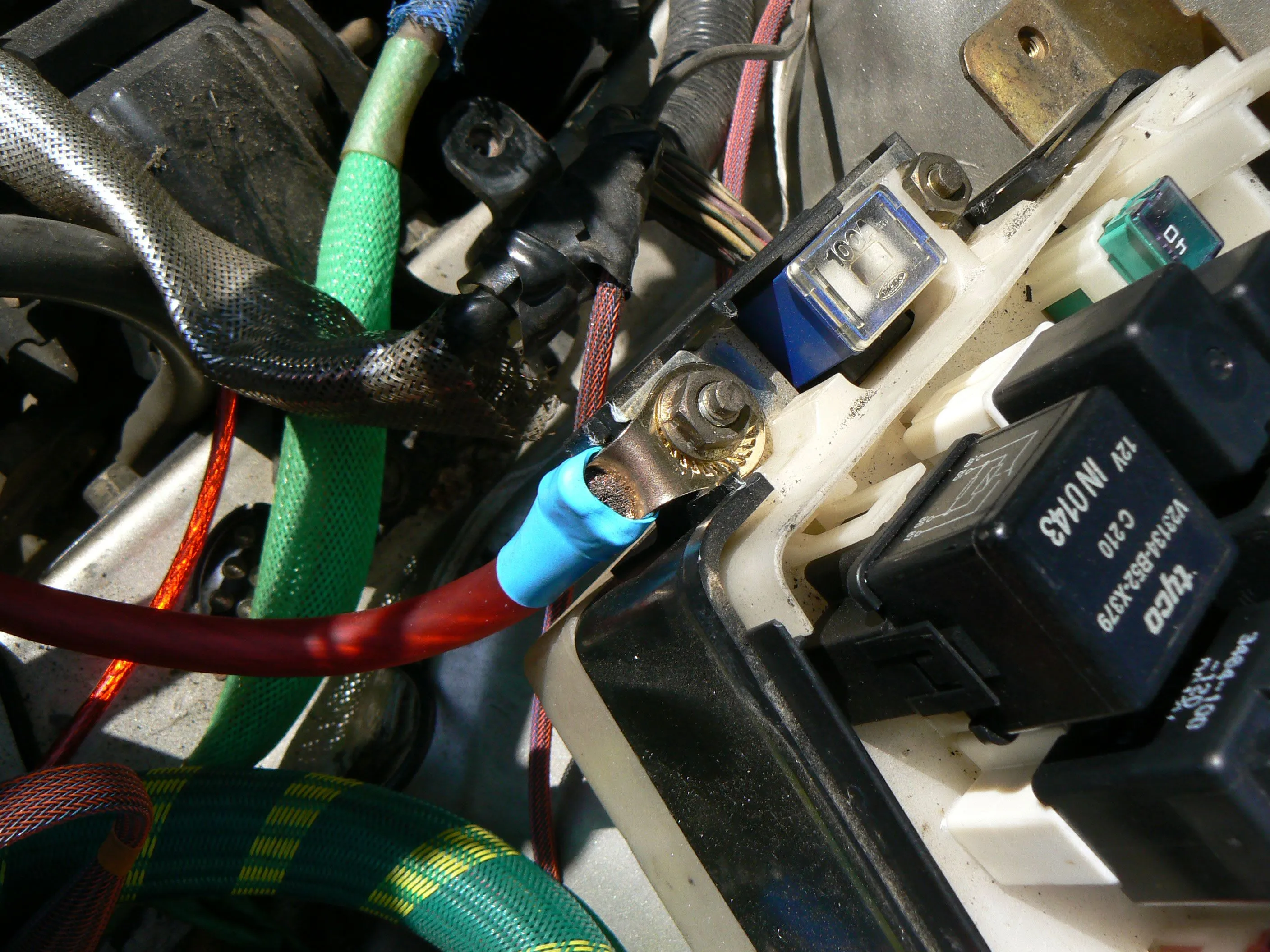

Pic#3 Alternator wire installed

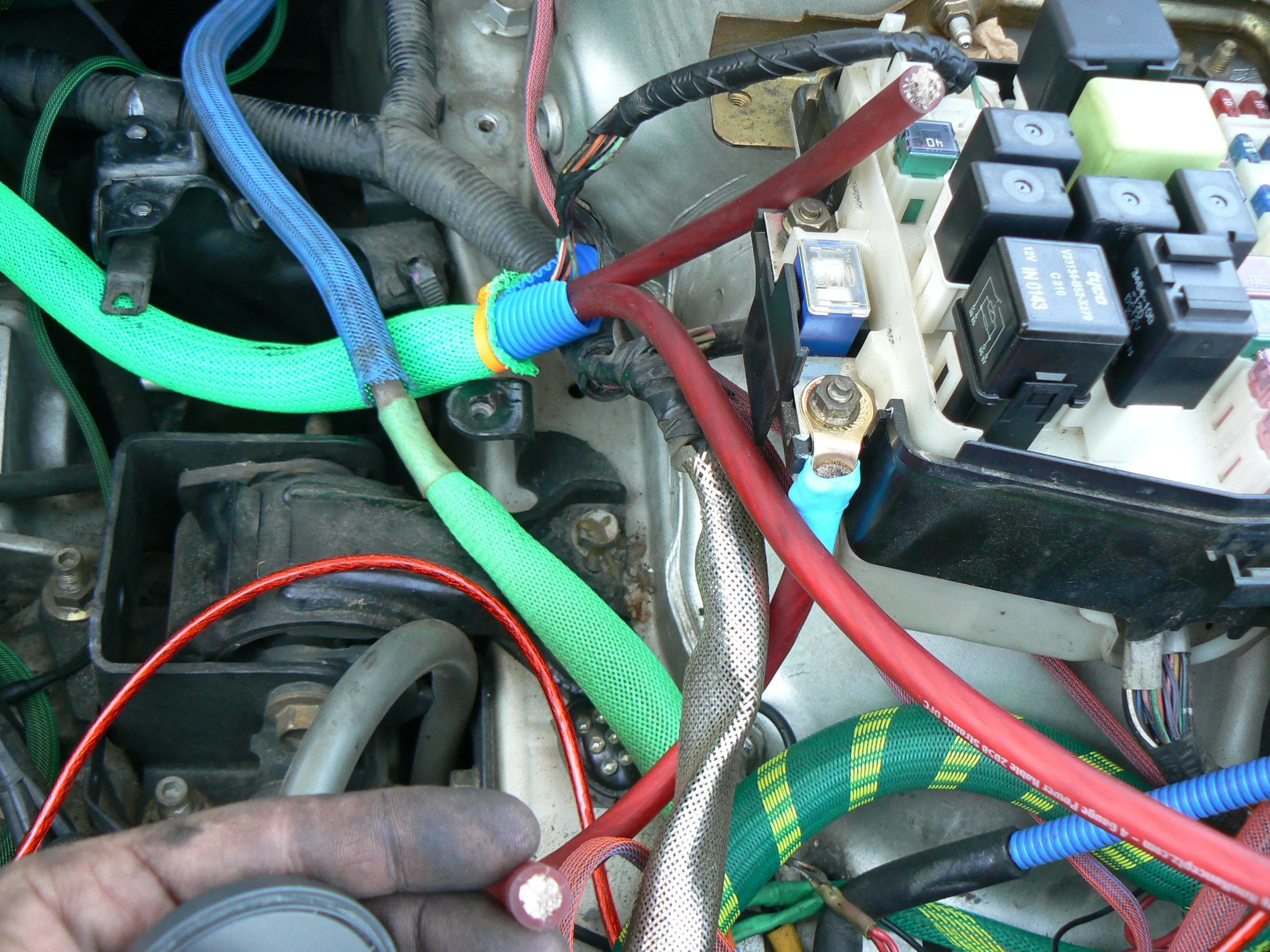

Pic#4 Alternator from fuse box to Batt. installed
Pic#5 New wires fully wrapped & installed



[mx-p5]

hover mode activated (flash)



[rygar8dung]

New Look...

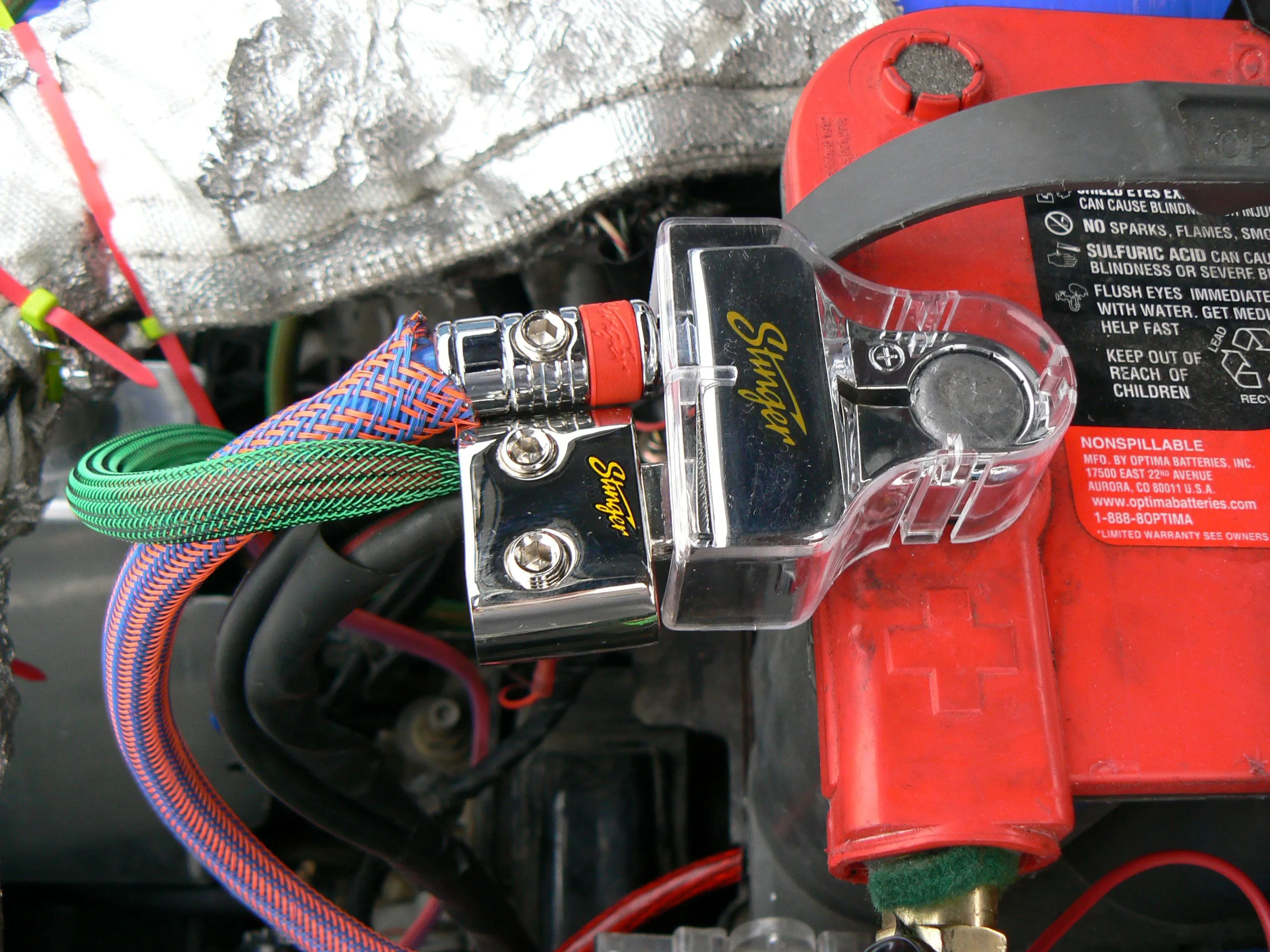

Pic#1 Old battery Positive arrangement

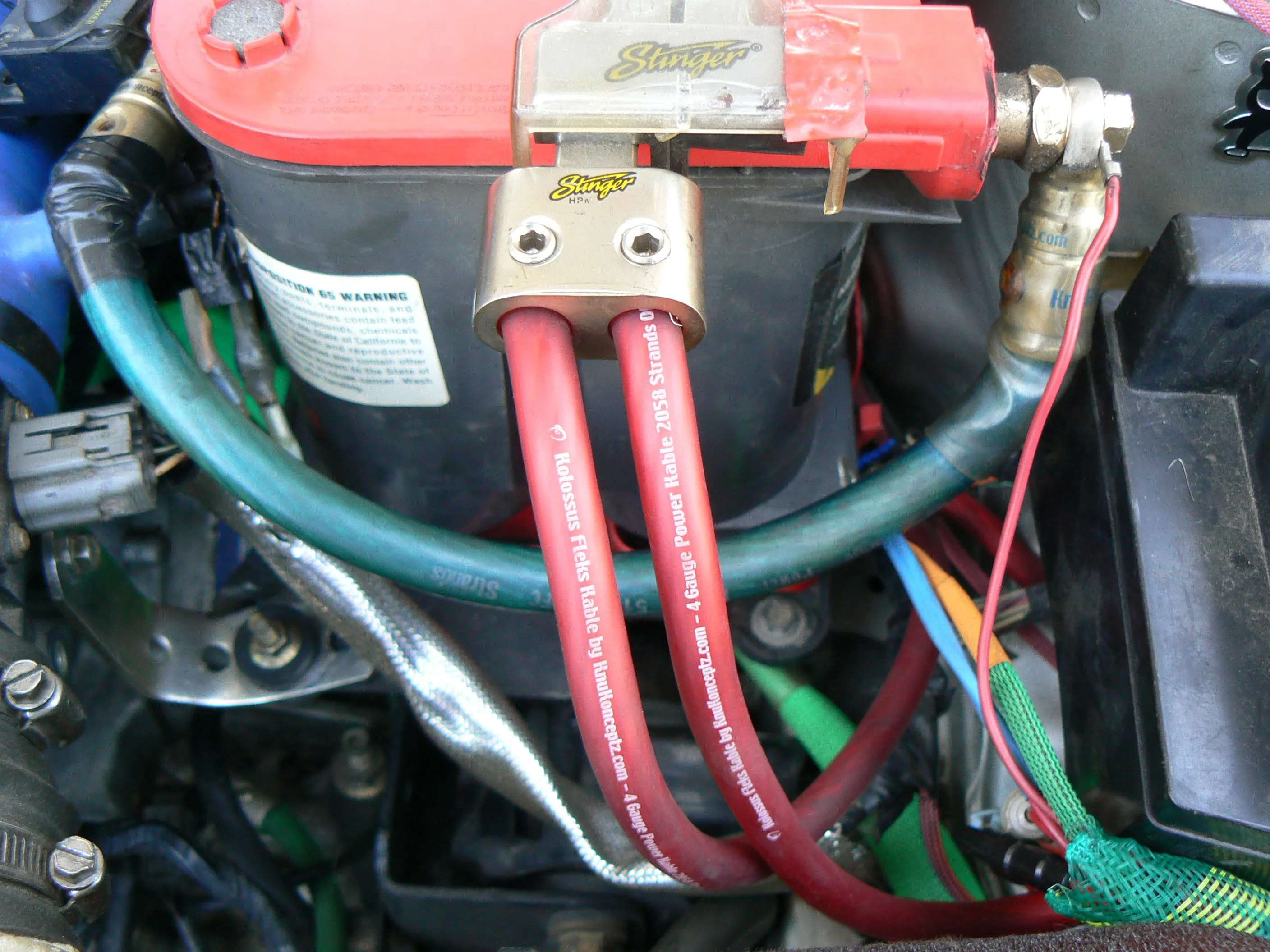

Pic#2 New Clean wires



[shadowncs]

ry, replacing wires is cool indeed, but why did you take this step?



[bgibb68]

hover mode activated (flash)

flux capacitor FTW



[poison]

I need to change my manual tranny fluid, something better. It's decent as is, but 3rd sometimes has some weirdness to it that the other gears don't have. I don't think it's ever been changed at 67k, anyway.

Seems like the synchromesh/lucas combo is the most popular. I thought about redline shockproof. I am not convinced the synchromesh is the best for protection, but then again, if it stops the minor gear weirdness or contact I am feeling, that should override any possible long term wear, I assume.

Anyone got any better ideas than the syncro/lucas?



[rygar8dung]

ry, replacing wires is cool indeed, but why did you take this step?

I washed my whole engine bay in 55 degree weather so it never completely dried before i took off and my starter wire corroded, also I have large system and acc. and it would be nice to have all the juice I can pump to my batt that I can w/o doing any serious upgrades, see my sig.



[pureliquidhw]

TURBO SHIPPED W00T. And it's Friday baby.



[Dpwhitehead1]

TURBO SHIPPED W00T. And it's Friday baby.

it hurts...



[pureliquidhw]

Friday never hurts. Tell you what. If it works perhaps a road trip to DC will include a free drink for you?



[Dpwhitehead1]

lol. money hurts.. but.. thanks for the offer. i dont drink though!!



[dxaveP5]

Got the Car back from the shop today. FINALLY thank God and the red valve cover looks hella sexy



[slideshow240]

think i should get this grill? supposedly rare...



[Circuit]

Is it meant for the P5 or the 99 sedans? Doesn't look like it is the right shape...

So what happened to your flooding issue? is that all cleared up? I need to order some spacers and go hella flush haha
