Wagonbacker9
Member
- :
- 2004 'Hoe
soak the crap out of it with PB blaster and give a vice grips a shot. if that doesn't do it you may need to bust out a torch.
What have you done to your MSP today?
- Thread starter baconbitz
- Start date
mazdaspeed41
Member
the Piston needs to be screwed in with a special adapter the attaches to a ratch wrench. Did u try to squeeze it in with Channel locks and that's how u broke it?
Ricktalife
Member
- :
- 2012 Subaru WRX
how hard are the shifter bushings to put in? cake? everybody says they are the s*** so I'm kind of curious.

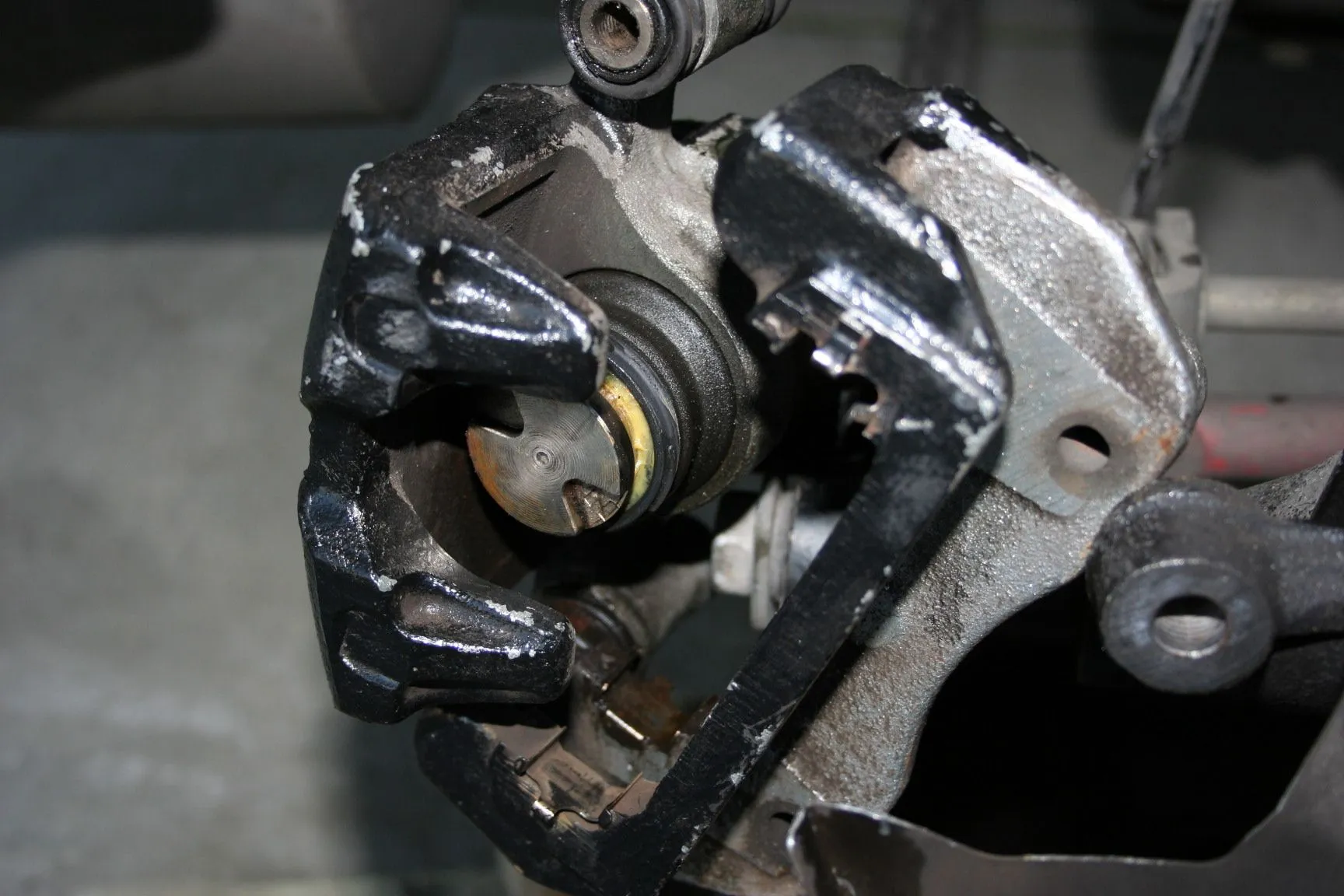

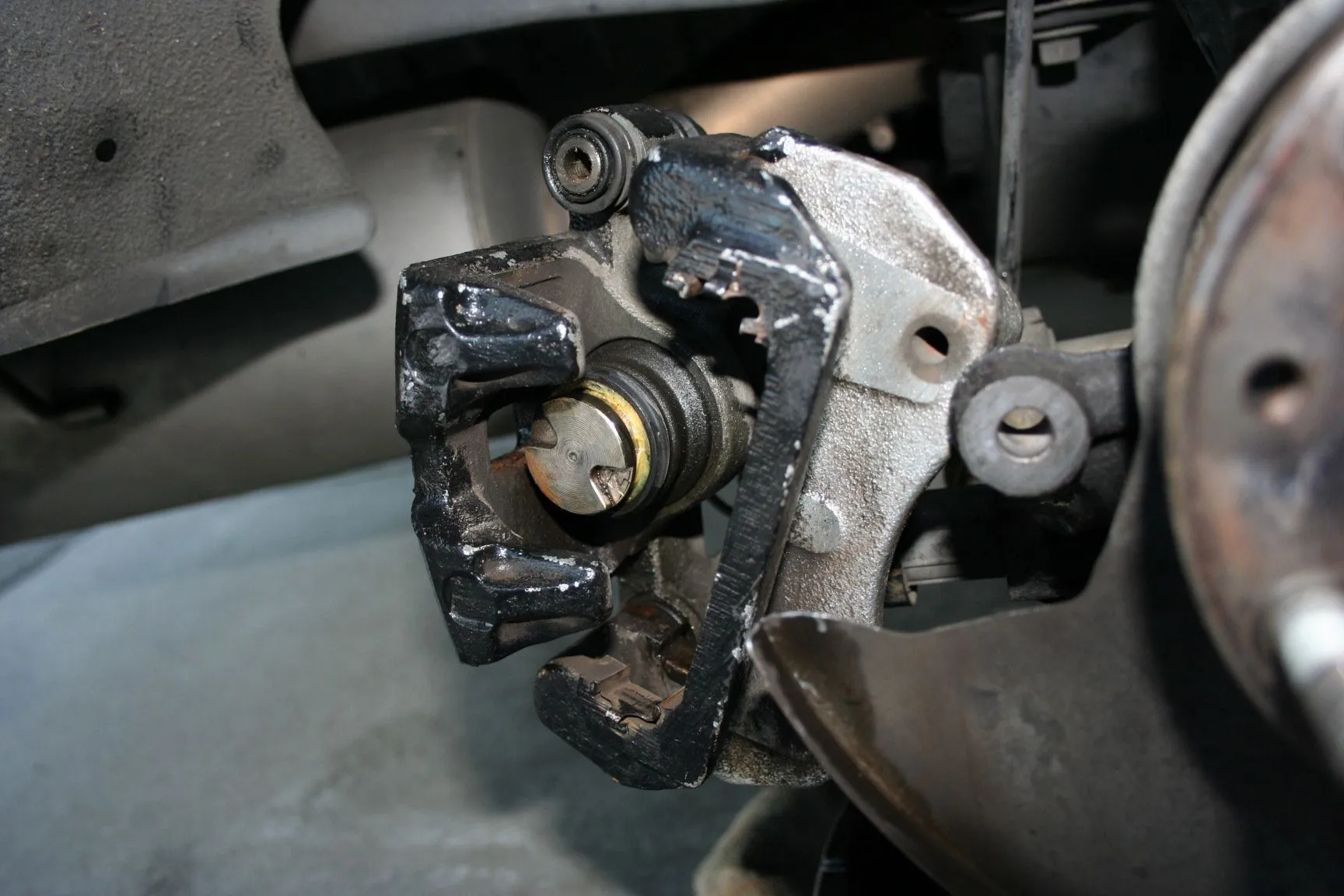

I was trying to use a c clamp to push the piston back and i guess i did too much and it turned a tad bit. Afterwards i couldnt get the pads over the rotor kinda felt like the brakes were being applied. So i didnt put the pads in and tried driving it and my brake pedal went straight to ground when i pulled out the driveway. Checked the back and brake fluid was everywhere. So i need to screw it back in? Where can i get this adapter? man if this works u saved my ass buddy.
Its pretty easy. Just remove one screw. Pop the old rubber bushing out and replace with twm bushings. The only thing that'll stall u is getting the bushing out. Take ur time itll come out. Its a bit better than stock. Not much difference imo.
Velocifero
Wham Bam thank you Ma'am
- :
- VRM MS6, Sunlight Silver MSP
Most any auto parts store. It's a square cube with a bunch of different prongs on most of the sides of it. It fits a 3/8 ratchet and is still a pain to work with at first. I just did mine on Monday. It sucks to get it to start turning but then it turns freely once it starts retracting. Hopefully it didn't push the piston out of the cylinder when you tried driving without the pads, then I believe you will need to replace. Not sure if you take the cap off the brake fluid resevoir when you do thisd but I do it to relieve the pressure when pushing the piston back into the caliper. Heads up, anytime you have a brake piston with groves in it means to usde a tool most likely to spin it back in. VWs are the worst to work on.
Thanks for the reply. Since all the brake fluid is out now ill try pushing the piston back in. See if that'll do anything. If not, ill go get that adapter. I found a replacement for the caliper just wanna see if its fixable before replacing it. Thanks again. Why were u repairing yours?
Wagonbacker9
Member
- :
- 2004 'Hoe
THE PISTON NEEDS TO BE TURNED BACK... NOT PUSHED.
ok... hopefully you'll catch it now.
SeR_Cyclops
Member
- :
- Mazdaspeed Protege
Dont they just collapse back in with vise grips? It has been forever since I done the brakes on my mazda and I have done prolly 10 sets on other vehicles since then so i just forget.
Wagonbacker9
Member
- :
- 2004 'Hoe
this is as opposed to any piston that is just a cylinder... which can simply be pressed back with a C clamp or channel locks etc.
Velocifero
Wham Bam thank you Ma'am
- :
- VRM MS6, Sunlight Silver MSP
I was just putting on new rotors and pads. I didn't mess up the caliper at all, just know from past experiences with other makes/ models, I've helped several locals do there pros as well. The regular pros are even different still. They have a nut on teh back you have to turn to retract the piston. We didn't know that the first time we did that and it was a nightmare.
Velocifero
Wham Bam thank you Ma'am
- :
- VRM MS6, Sunlight Silver MSP
The fronts can be just pressed back in.
Yes, like our front brakes is an open cup cylinder, no traction groves. I use another brake tool for that, just a threaded press that I can extend against the front of the caliper and simply pushes the cylinder back in. I use the old pad as the pushing surface so the pressure on the open cup design on the cylinder is even. Otherwise I have small "slight" concern about pushing it back katywompus if I use like a vise or c-clamp. But if you use a flat surface it should be pretty equal.
I got one last question. The calipers have this V clip. I have no idea where it goes. Im thinking its for seperating pads??
SeR_Cyclops
Member
- :
- Mazdaspeed Protege
oh on the back is where i used that square tool. that thing sucks lol
Wagonbacker9
Member
- :
- 2004 'Hoe
its really not that bad. use of the tool is just a pain in the ass because you have to press the tool and the caliper together, while turning. and since both parts are free-standing its a pain in the ass.
