VTCS Removal
- Thread starter Protegebuddy
- Start date
Protegebuddy
Member
- :
- 2003 Spicy
Not too bad took about 3 hrs to do.
Protegebuddy
Member
- :
- 2003 Spicy
jeg0024 said:
No negative results all positve. More Power. Hardest part was removing the intake with egr still attached. I left it all as one piece (didn't seperate the intake).
1
16902
Protegebuddy
Member
- :
- 2003 Spicy
Dim said:
I will post a rough outline later tonight at work now.
Protegebuddy
Member
- :
- 2003 Spicy
These are the steps that i did when removing everything.
*Always mark stuff if you're not going to remember where it went.
** This is a rough outline!!
1. Remove after-market/stock intake system.
2. Remove wiring harness clips enough so you can set it all out of the way.
3. Disconnect fuel fittings and remove fuel rail.
4. Disconnect the front EGR fitting on Exhaust manifold/header.
5. Remove the 2 bolts the support the intake on the backside of the mainfold. Helps if the car is raised up.
6. Remove the any tubbing attached to the manifold. VTCS and VICS can stay attached along with PCV system.
7. Disconnect coolant hoses and accelerator cable from the throttle body.
8. Remove the 7 bolts where the manifold is attached to the Cyl. head. The bottom left one and bottom right one will be tricky to remove.

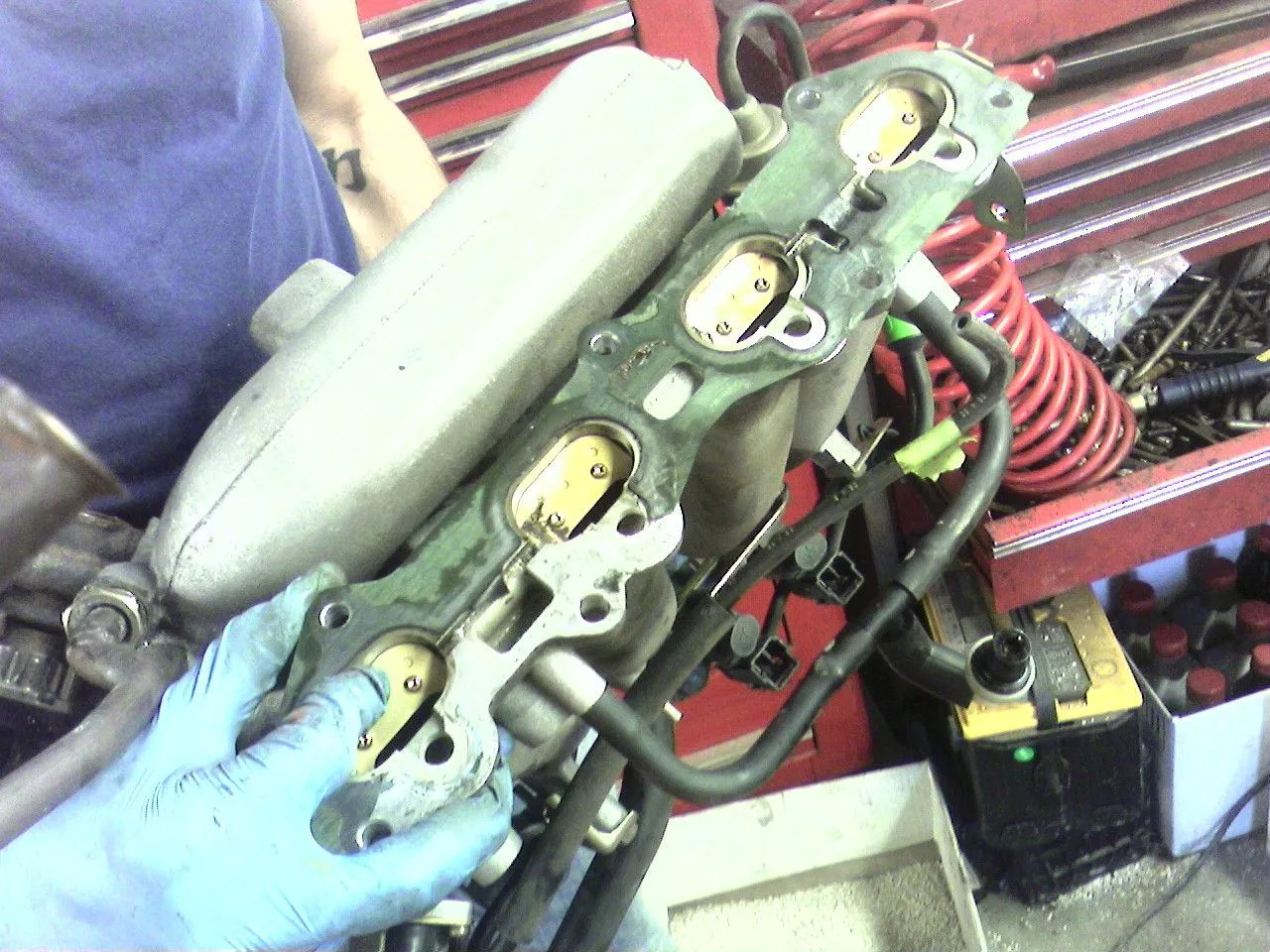

9. At this point the manifold should be able to remove, CAREFULLY lift it up and make sure that the only thing attached is the EGR tube.
10. Remove the intake manifold.

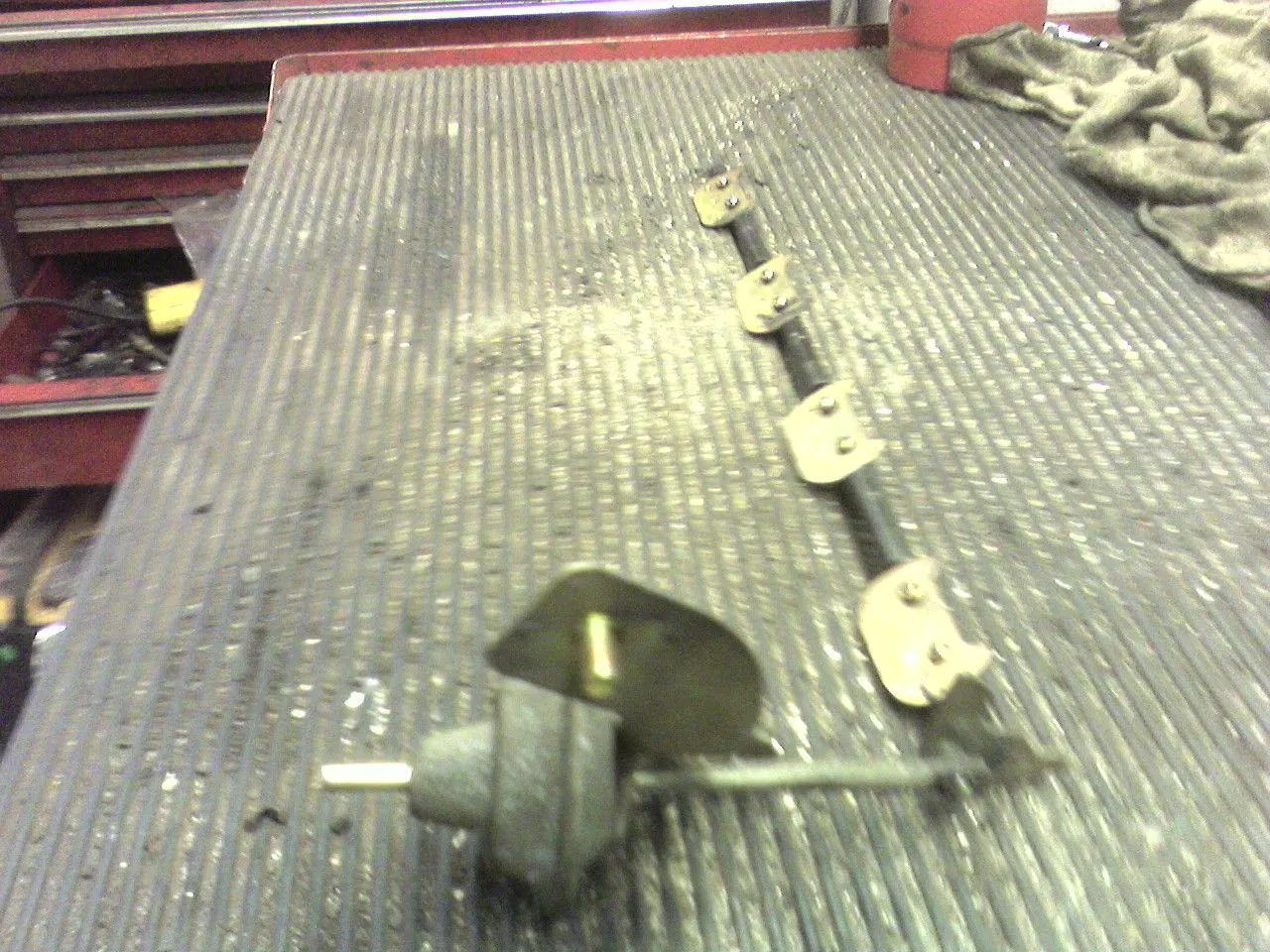

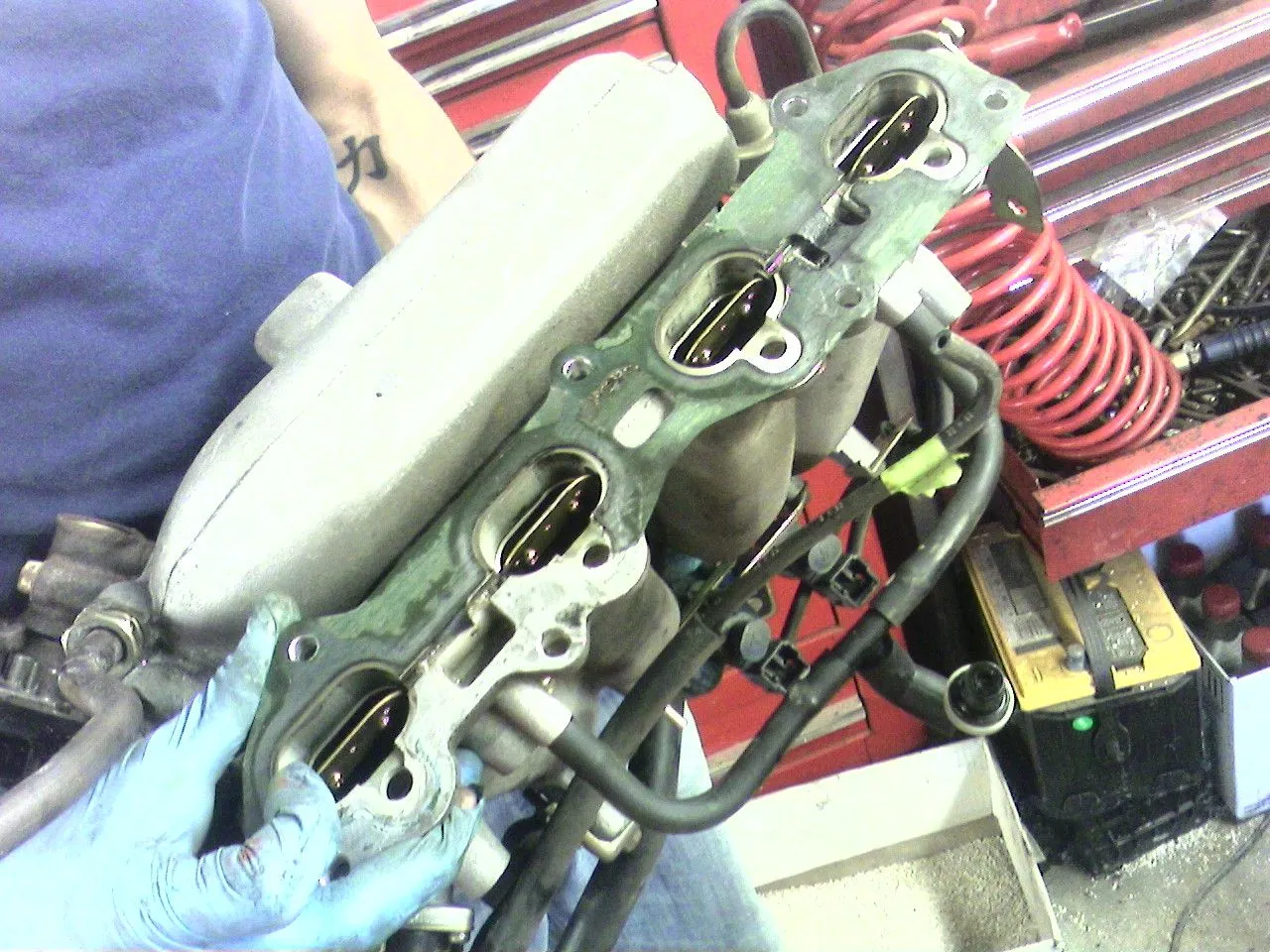

11. http://flatblack.somethingsomething.org/p5/porting/vtcs.html Used this to remove the butterflies. 5/16 tappe works great for the treads where the VTCS modulator was.
12. Make sure that the Manifold and the cylinder head are clean of debris and old gasket material.
13. Reinstall in reverse order.
14. Manifold should be torqued to 14 ft. lbs.
Pretty sure thats all i had to do. Make sure to top off coolant cause you will lose some. I left the holes in the runners open.
*Always mark stuff if you're not going to remember where it went.
** This is a rough outline!!
1. Remove after-market/stock intake system.
2. Remove wiring harness clips enough so you can set it all out of the way.
3. Disconnect fuel fittings and remove fuel rail.
4. Disconnect the front EGR fitting on Exhaust manifold/header.
5. Remove the 2 bolts the support the intake on the backside of the mainfold. Helps if the car is raised up.
6. Remove the any tubbing attached to the manifold. VTCS and VICS can stay attached along with PCV system.
7. Disconnect coolant hoses and accelerator cable from the throttle body.
8. Remove the 7 bolts where the manifold is attached to the Cyl. head. The bottom left one and bottom right one will be tricky to remove.
9. At this point the manifold should be able to remove, CAREFULLY lift it up and make sure that the only thing attached is the EGR tube.
10. Remove the intake manifold.

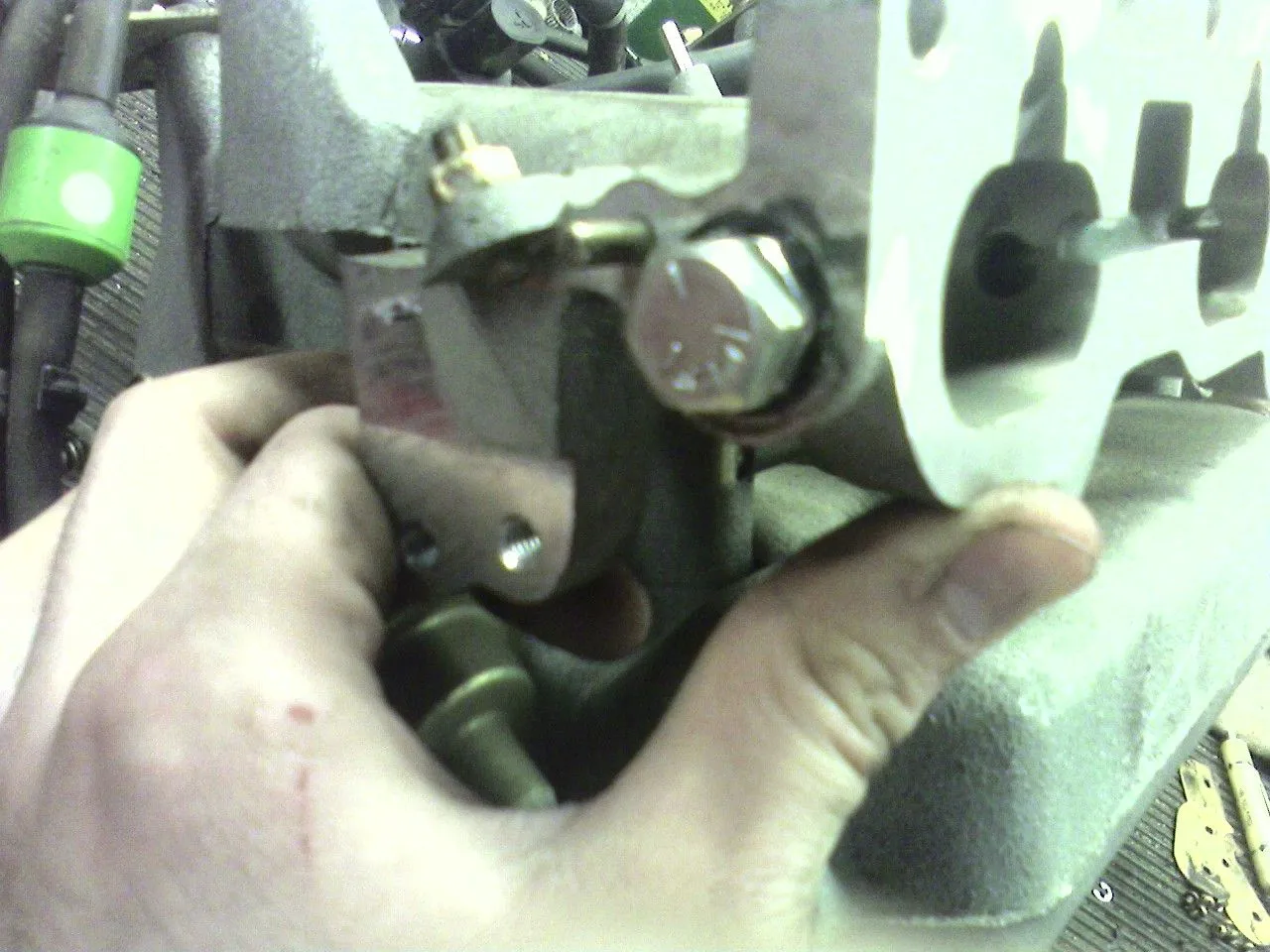

11. http://flatblack.somethingsomething.org/p5/porting/vtcs.html Used this to remove the butterflies. 5/16 tappe works great for the treads where the VTCS modulator was.
12. Make sure that the Manifold and the cylinder head are clean of debris and old gasket material.
13. Reinstall in reverse order.
14. Manifold should be torqued to 14 ft. lbs.
Pretty sure thats all i had to do. Make sure to top off coolant cause you will lose some. I left the holes in the runners open.
protege buddy.....nice nice. i heard your car at the stop sign acouple of days ago. i thought you were gonna get rid of your protege last summer. or you said something about getting a different car? oh by the way im your neighbor the one with the black zoom. hows the pro doing? aights catch you on the road sometimes.
Protegebuddy
Member
- :
- 2003 Spicy
MZ ZOOM said:
I thought that was you, your car looks familiar. I was going to get rid of it for An FD Rx-7, but i ended up buying the Fc rx-7 that is now sitting in my driveway for $100. Bought it from a guy i work with, needs new motor but body in in great shape. Protege is doing well, waiting for tax money to pull the Cylinder head and have some fun with that. I'm buring oil, pretty and i'm sure it's through the valve stem guide seals. Oh well.
Protegebuddy
Member
- :
- 2003 Spicy
I had a CEL come on today, but it was from an arching plug wire. No codes reguarding what i've done to the intake.
