Rim Offset, rubbing

SilverSpd · May 10, 2004

I got adr msport wheels with a 48 mm offset on my 03.5 speed and they sometimes rub if I hit a bump and more often with passengers. What wheel sizes have people got on their speeds without rubbing? Also my friend suggested stiffer springs in the rear to stop the rubbing but im not sure if I want to mess with the killer handling on my speed. Any suggestions?

slamdp5 · May 10, 2004

what size tires are you running?? are you lowered?? you should have no probs with that high of an offset, unless you are running big tires.

Matthew · May 10, 2004

my guess would be either 45s or 50s the way hes talkin.

SilverSpd · May 10, 2004

Stock

slamdp5 said:
what size tires are you running?? are you lowered?? you should have no probs with that high of an offset, unless you are running big tires.

Huh, the rims are 17's and the tires are stock tires from the factory, But I have no problems with the stock rims which I use for my winter tires. Stock height, no lowering kit. What do you think?

slamdp5 · May 10, 2004

What size is on an msp?? 215/45? Think if you were running 205/40s' you would not rub and be fine. You are sure the wheels are +48?? I am running +45 19s and lowered 2.25" and don't rub. You got me baffled!!(huh)

Matthew · May 10, 2004

yea me too.

SilverSpd · May 10, 2004

slamdp5 said:
What size is on an msp?? 215/45? Think if you were running 205/40s' you would not rub and be fine. You are sure the wheels are +48?? I am running +45 19s and lowered 2.25" and don't rub. You got me baffled!!(huh)

What size tires are you running? I was hoping not to have to go to thinner tires. They better be 48's that is what they said when i had them put on the car! I had them special ordered from town fair tire(never again will I go there) I gotta do something, can't ride 4 people in the car without worrying that i will rub over every bump. What about stiffer springs, different wheels, the car sits really low when I put 2 people in the back

slamdp5 · May 10, 2004

I am running 215/35/19s but if i was running 17s I would use a 205/40. I just prefer a smaller sidewall on my wheels. One way to check offset is to look on the inside of the wheel. Somewhere on one of the spokes it might have an ET #. It should say ET48 Other than that I think you just have too big of tires. As far as a stiffer spring, mazdaspeed springs are pretty stiff and only have a slight drop. Can you get a side pic, like standing beside the fender looking down the car?? At least that would give an idea of how they are sitting.

SilverSpd · May 11, 2004

slamdp5 said:
I am running 215/35/19s but if i was running 17s I would use a 205/40. I just prefer a smaller sidewall on my wheels. One way to check offset is to look on the inside of the wheel. Somewhere on one of the spokes it might have an ET #. It should say ET48 Other than that I think you just have too big of tires. As far as a stiffer spring, mazdaspeed springs are pretty stiff and only have a slight drop. Can you get a side pic, like standing beside the fender looking down the car?? At least that would give an idea of how they are sitting.

thanks for your help, I will try to locate a camera and get a pic

tonkabui · May 11, 2004

the sedans have up to 3mm more clearance than the protege5, so i'm guessing someone lied to you and you're now running with +40 offsets. there's no way +48 will rub with 215's, especially on a sedan. it mght be 17x8... and in which case, you're skrewed.

SilverSpd · May 11, 2004

tonkabui said:
the sedans have up to 3mm more clearance than the protege5, so i'm guessing someone lied to you and you're now running with +40 offsets. there's no way +48 will rub with 215's, especially on a sedan. it mght be 17x8... and in which case, you're skrewed.

The wheels are deffinately 17x7. They dont make the wheel I got in 17x7.5 or 17x8. I am gonna take the wheels off this weekend to seeif they lied to me and sold me the wrong offset. That is what I am beggining to think by all the responses that i've been getting. They messed up like 3 times already.

Matthew · May 11, 2004

i have a feeling you bought these wheels from wheelmax

03P5 · May 11, 2004

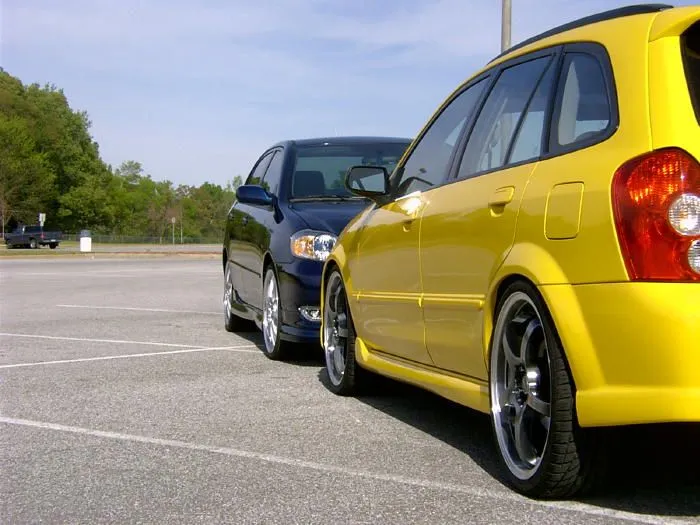

My 18x8's fit fine on my P5. Just trim your fenders! I didn't really need mine rolled, I did it for safety, in a Sedan you can't be hitting by much. Just break out the grinder and shave a hair off the rears.

Matthew · May 11, 2004

nevermind i found the problem... i looked on www.whalentire.com for the ADR msport and they come in a +40mm offset. WAY WAY WAY off.

SilverSpd · May 11, 2004

Matthew said:
i have a feeling you bought these wheels from wheelmax

Town Fair Tire in Springfield, MA

SilverSpd · May 11, 2004

Matthew said:
nevermind i found the problem... i looked on www.whalentire.com for the ADR msport and they come in a +40mm offset. WAY WAY WAY off.

They make 48 and 40 them bastards must have sold me the wrong offset again

vindication · May 11, 2004

take off one of the rims and look at the back on one of the spokes. it should say the size and offset of the wheel.

SilverSpd · May 11, 2004

03P5 said:
My 18x8's fit fine on my P5. Just trim your fenders! I didn't really need mine rolled, I did it for safety, in a Sedan you can't be hitting by much. Just break out the grinder and shave a hair off the rears.

What size offset you running?

Matthew · May 11, 2004

you need at least a 42mm to cut it close, 45 optimal.

SilverSpd · May 11, 2004

vindication said:
take off one of the rims and look at the back on one of the spokes. it should say the size and offset of the wheel.

I'm gonna have to do it this weekend
