Requesting Pics 4 under-axel design Exhaust

[alexB]

I currently have the GHL TB exhaust on my car. I am going to customize it. I am wanting to do the under-axel design. I have searched on here for the past couple of days for pictures. Havent came up with much. Any pics would be greatly appreciated. Thanks guys.(yippy)



[nate0123]

for looks?



[alexB]

for looks?

Well I know how it looks for the most part. But I am really wanting to see more of the design. So I can better understand what bends and all that I am gonna need. Also Im kinda just wanting to get some good pics to help persuade me to do this. Just a little push.



[nate0123]

I meant, do you want to modify it for looks? or does it not fit over the "axle"?



[alexB]

I meant, do you want to modify it for looks? or does it not fit over the "axle"?

Both. I like the look of the under axle design and I havent been able to get it to fit correctly. I have had the exhaust for about 2 years now. The 1st year I had no problems with fitment. But hear the past few months it seems to be rattling like a mofo. I readjusted it and spot welded the clamps to keep them from slidding out. I have kartboy hangers. I just want to redesign it.

Anybody have any pics????

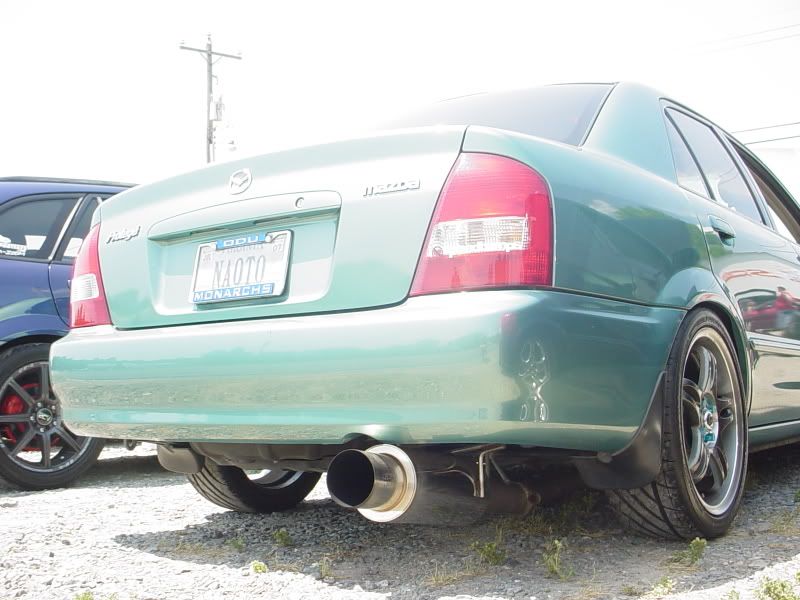

[J_Naoto]



[evilmonkeyMSP]

careful going over speed bumps



[evilmonkeyMSP]

links no workie



[2.0t03speed]

i have some ill post them up tonight when i get home from work



[alexB]

careful going over speed bumps

Ok so I have heard mixed opions on that also. I guess maybe it just depends on the setup for clearance issues.(dunno)

links no workie

Alot of the links in the mega exhaust post dont work anymore. I found a few photos elsewhere. I was hoping for more though.



[alexB]

i have some ill post them up tonight when i get home from work

Thanks man.

Thanks J_Naoto



[2.0t03speed]

i actually have my apexr1 exhaust off of the car so i can show you what they use



[CantCMe]

My apexr1 2.5" scrapes



[2.0t03speed]

because your rear is slammed. jason has coilovers and can adjust the shock stiffness where as you cant.



[2.0t03speed]

my 3" apexr1 rear section has never scraped once.



[J_Naoto]

my link didnt work? hmm. yeah mine didnt scrape as much after i got coilovers.



[alexB]

(bump)



[2.0t03speed]

Wing

No wing



[2.0t03speed]

ill take some pictures of the setup off the car tommorow



[03 Pro ES]

hmm... interested. More pics please.
