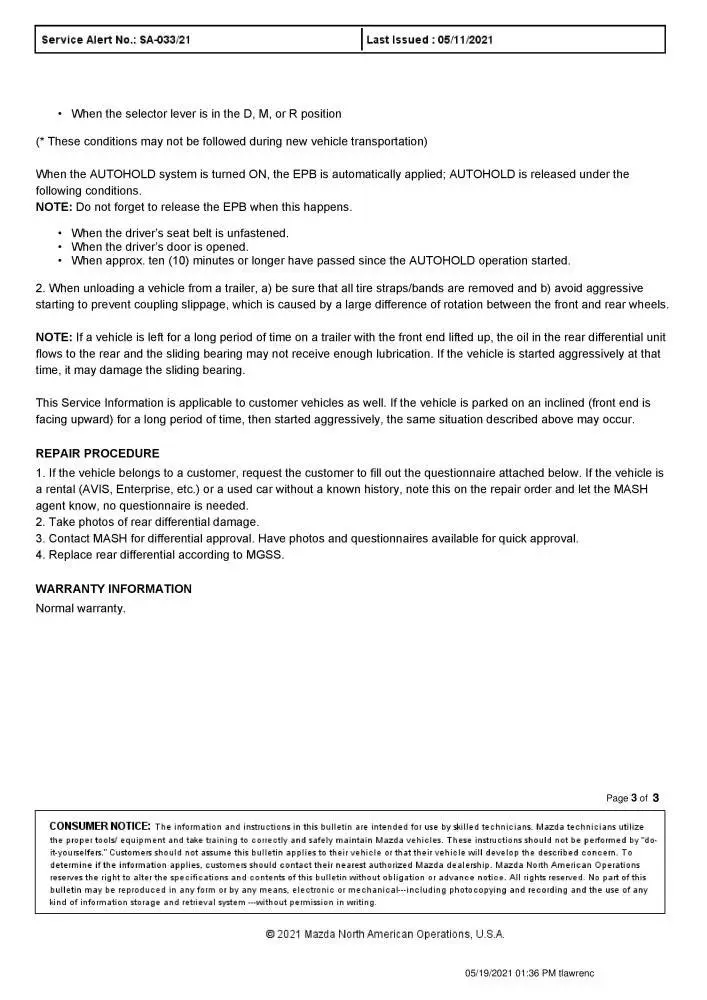

I wonder if anybody here has had that cracked rear differential issue. They appear to be recommending that you start the engine with the emergency parking brake off, which is contrary to what the owner manual states.

I wonder if anybody here has had that cracked rear differential issue. They appear to be recommending that you start the engine with the emergency parking brake off, which is contrary to what the owner manual states.
So are you disabling the EPB before starting? Or just follow owners manual?

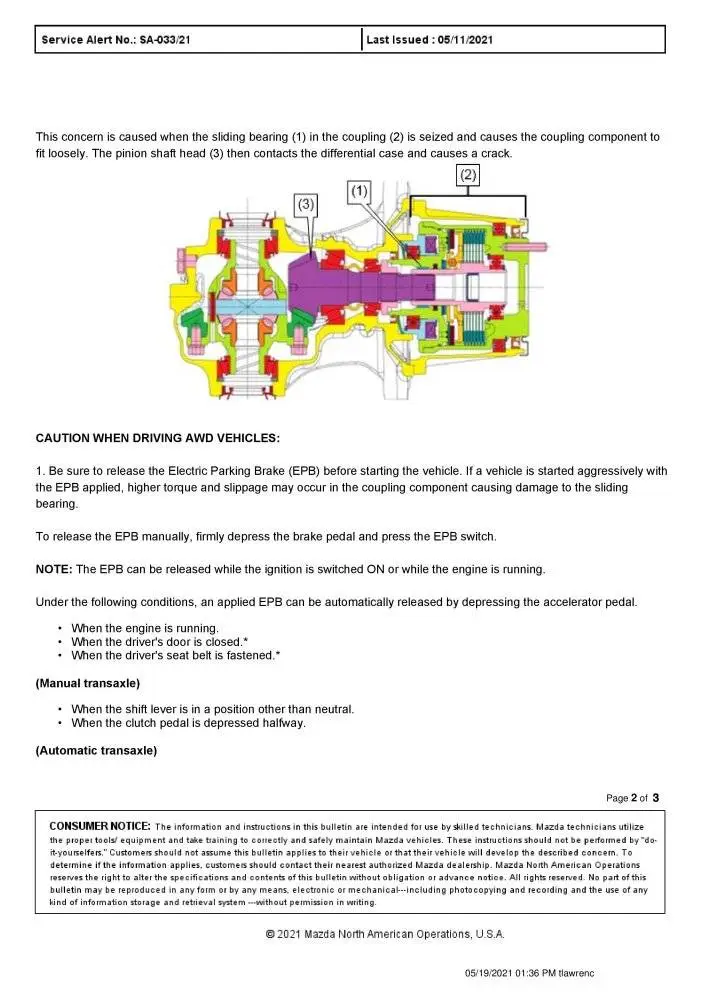

Looking at the colored cutaway view of the differential components, it's not apparent to me that pinion shaft can contact the case when it's supported by 2 tapered roller bearings (the 2 orange components on the purple shaft. Anybody else think that the cause of failure sounds strange.

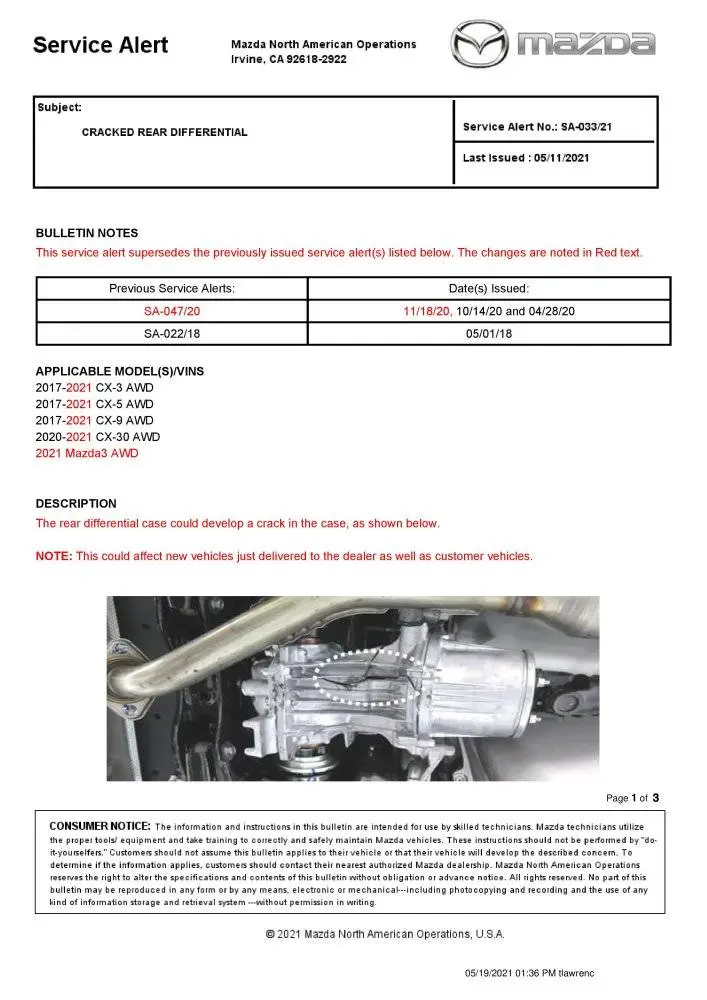

The cracked rear diff was updated in May to include the 2021 models.
