Maleskimp3 Build Thread

MALESKIMP3

Member
:
mazda protege mp3
So I think it's time to share some stuff Ive been doing with my car and hopefully we can get some good conversation going on. I'm mostly into drag Racing so most of the things I do are focused on that sort of thing. As some of you know I work at a machine shop during the day and JayRacing at night so Ive been able to come up with different things to aid me in my builds. Most of the things on my car are thing that I have fabricated myself so if you see something that you have questions about about ill be happy to show and tell. This winter I'm doing an overhaul on the engine so ill try an update this as much as I can. Enjoy!
My Current best ET is a 12.5@114
PB 60' is a 1.8
I don't have any dyno numbers at the moment

Some of the more essential parts list:
Paulter Rods
Wiseco 83.5
Clevite Bearings
Super tech dual springs
Super tech ti retainers
Super tech Valves
PTE 6262
AEM EMS4
Tial MVS waste gate
Tial Q BOV
Eat Sleep Race Intercooler
M&H Slicks on 15" Rota slipstreams
Act 6puck sprung
Fidanza fly wheel

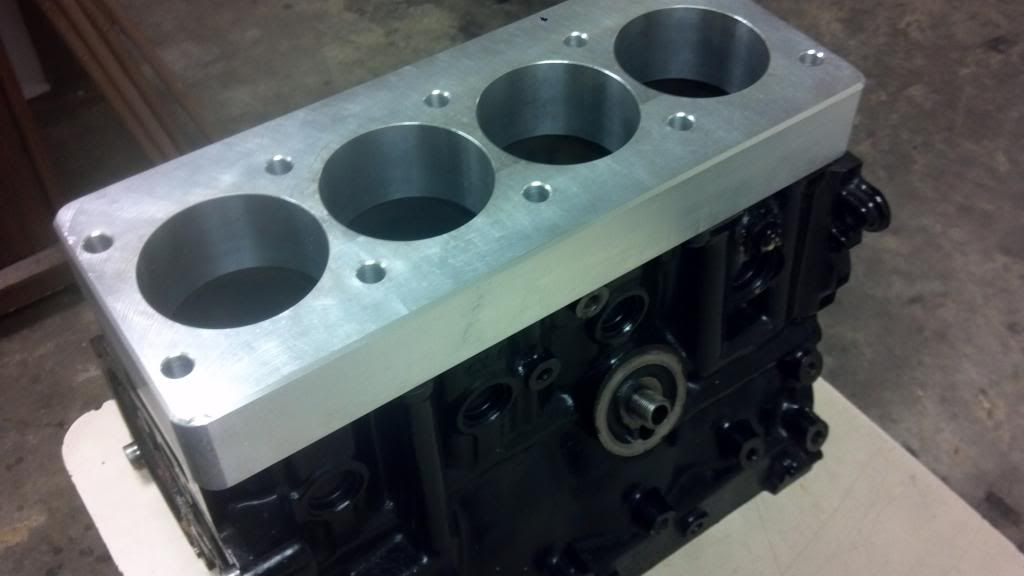

Torque plate I made.

Swain Tech coated pistons, notice on the intake valve relief I notched them to aid in removing heat in that area.

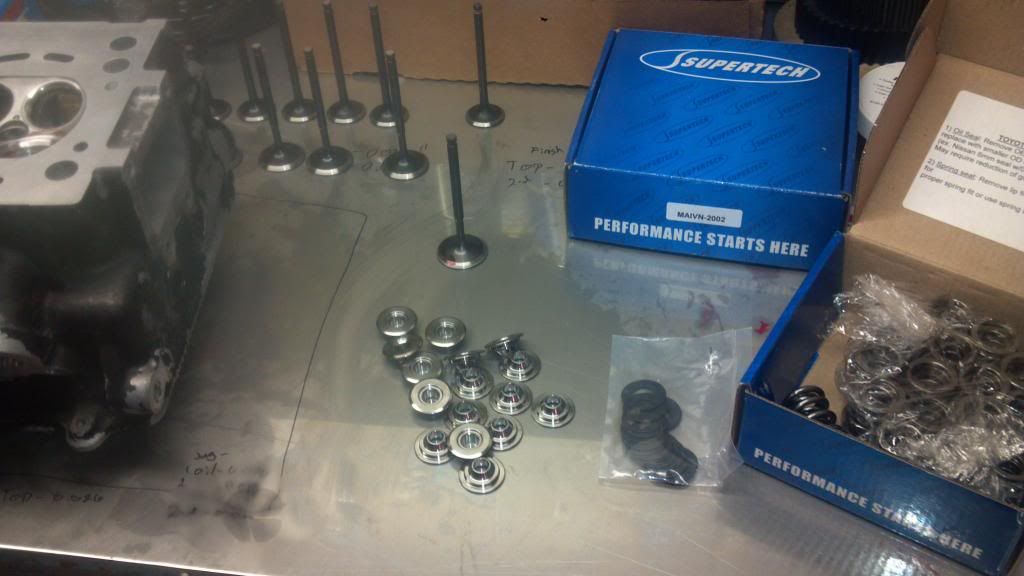

SuperTech Goodies

This an old picture but it does show the intake I made, I'm currently revising it.

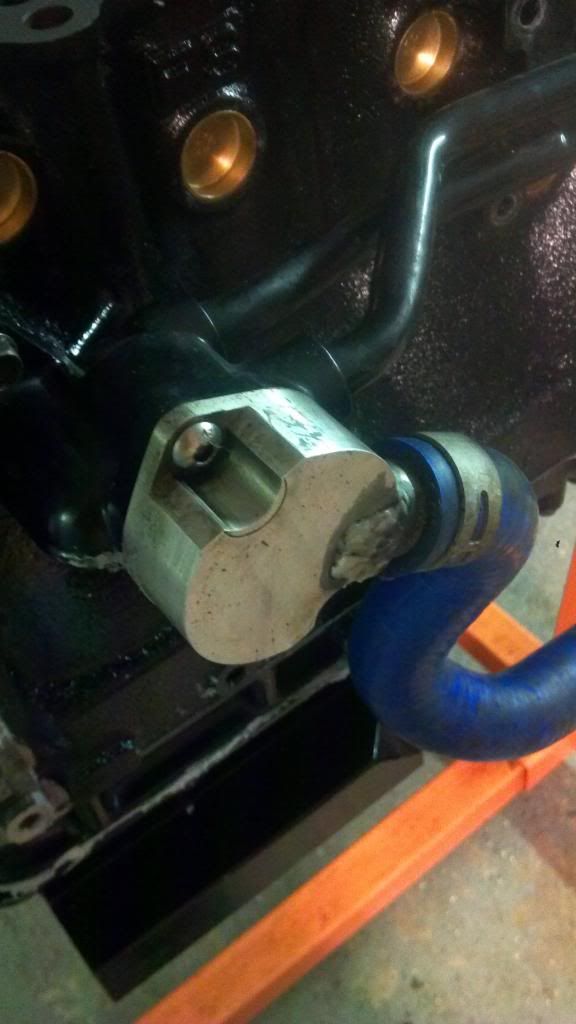

Made this little guy



Turbo set up wouldn't fit with the stock one so this rerouted things around.

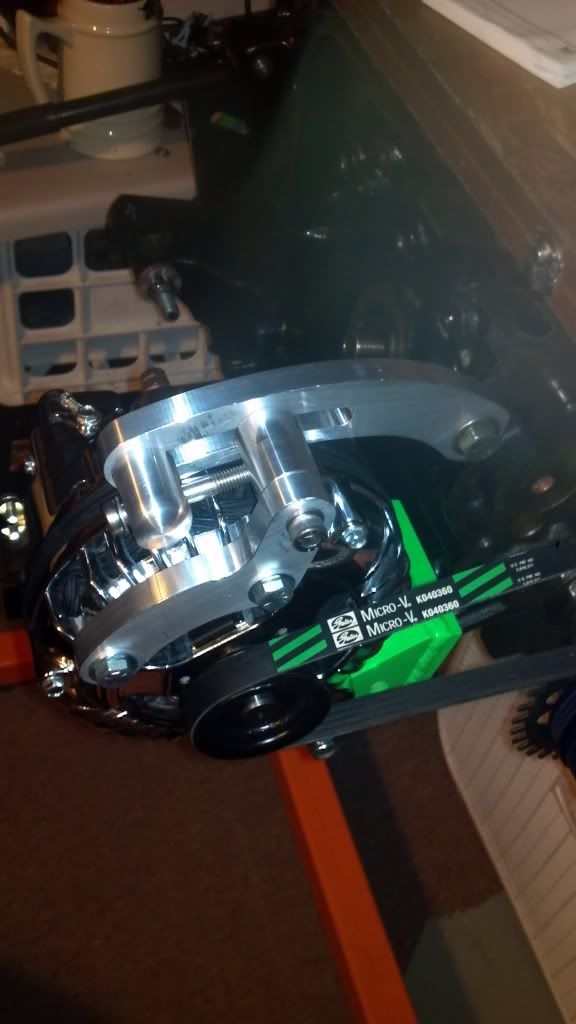

One wire alternator and brackets

Last edited:

tweety2300

Member
:
2001 mazda protege mp3
Excuse my ignorance, but what is a tourque plate?

What rods are you using, and what is your average 60' time?

You gotta give more info than this, turbo, exhaust, the ram air setup in the fig light, etc, what you did was give a partial blow job and then walk away.

:
2002 323 Protege
Torque plates prevent distortion the bore undergoes when the head + gasket are torqued onto the block :)

Torque plates simulate the distortion allowing for a better hone. Prolly some finer points I don't know but essentially thats it.


bikingpro5

Member
:
03 Protege5
Looking good so far Nate, can't wait to see the rest of the pics and info. Its nice to see big builds getting used for what they were built for


MALESKIMP3

Member
:
mazda protege mp3
Thanks guys!

Excuse my ignorance, but what is a tourque plate?

What rods are you using, and what is your average 60' time?

You gotta give more info than this, turbo, exhaust, the ram air setup in the fig light, etc, what you did was give a partial blow job and then walk away.

My bad man, just think of it like pausing to add drama.Any way I'm adding more pics and info now. The ram air is just a velocity stack that replaced the fog light, my intake routes down to right in front of it just like the cold air intakes do. Ill take some pics of it later my car is out at the shop.


Torque plates prevent distortion the bore undergoes when the head + gasket are torqued onto the block :)

Torque plates simulate the distortion allowing for a better hone. Prolly some finer points I don't know but essentially thats it.

Yup, that pretty much sums it up thanks!

Last edited:

mazdaspeedp

Member
Contributor
:
2003.5 Mazdaspeed Protege
Sub. I need to do my fuel setup like that. what size lines and fittings did you use?


bikingpro5

Member
:
03 Protege5
Sub. I need to do my fuel setup like that. what size lines and fittings did you use?


http://www.mazdas247.com/forum/showthread.php?123821537-GB-Fuel-Rails-Round-2&highlight=

The rail
Mounting brackets and screws
x2 fittings that connect directly to the stock lines
x1 Aeromotive Fuel Pressure Regulator
x2 -06 45 deg Male AN
x1 -06 90 deg Male AN
x2 SS lines
x2 -06 Male unions
x1 _06 straight Male AN
x1 -06 Plug
x1 fuel pressure gauge that screws into the regulator
x1 SS Regulator mounting bracket

right from his website..


MALESKIMP3

Member
:
mazda protege mp3
Something I thought was intresting was that these togas bearing i used to run were stamped with the king bearing logo. Which after measuring that oil pump I had is are these even a " preformance" bearing or just an oem replacement? Ill be running clevites this next season and hopefully these hold up better. I wish Acl would make some bearings for this platform.


MALESKIMP3

Member
:
mazda protege mp3
One wire alternator and brackets pictures added. Currently wrapping up on the electrical system and will post pics when finished.
