HKPRO5's Supercharger Build Thread

[HKPRO5]

I wrapped the top half of the header, Im welding in the o2 bung in today after work. Then im going to wrap the rest of the header. Ill post up some pics later.



[HKPRO5]

More set backs =(

Mig welder broke..... Not sure when i can get the o2 bung in.

Monday is a holiday so the boss (my wife..) is going to be home.....

So probably my next day off after that. =( Almost there, so close but so far.


good news is that the SSAFC is working great while in N/A mode.



[LinuxRacr]

Set backs always happen... Always plan for double the time...



[HKPRO5]

Yea I was just getting too excited. haha. Anyways now that I have time, my friend is going to help me put it in. I was going to do it myself but 2 is always better than 1. lol



[HKPRO5]

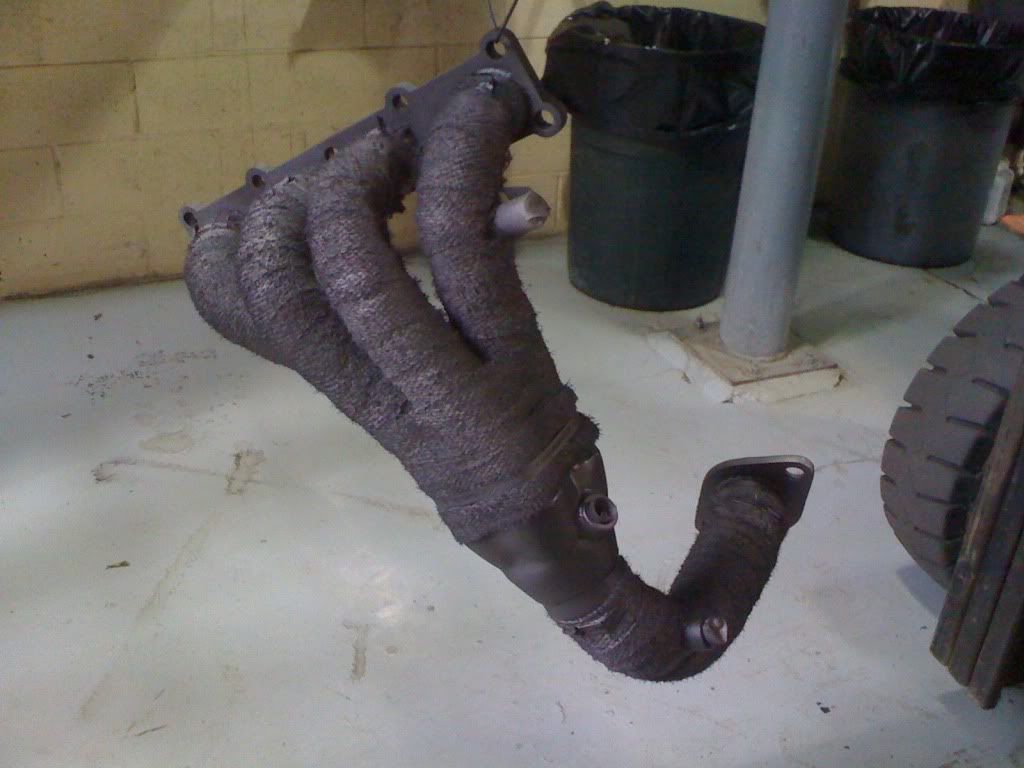

got the o2 bung in and wrapped the header.

Painted it Cast Iron grey...



[justanothermp5]

dam nice! that should help keep in a good amount of heat



[Lewis7789]

That header looks so cute and fuzzy, I want to cuddle with it. heh-heh. Looks really good, man. Did you use hose clamps to keep the wrap on tightly? Are you going to silicone seal it?



[Sleezer1533]

Nice man, glad it worked out for ya



[HKPRO5]

That header looks so cute and fuzzy, I want to cuddle with it. heh-heh. Looks really good, man. Did you use hose clamps to keep the wrap on tightly? Are you going to silicone seal it?

I used these stanless straps (kinda looks like hose clamps..lol)Im applying the silicone tomorrow.

Nice man, glad it worked out for ya

yep!

dam nice! that should help keep in a good amount of heat

Thanks!

Im doing a bunch of heat retention and cooling items in the engine bay.

Water Wetter, Oil cooler, reflective tape, header wraps/ also sealing up the space between the radiator and the frame.



[EVADE]

you got to a vented hood for sure to help cooling quicker but all of the above helps too=)



[HKPRO5]

Completed the Headers still need to install.

Upgraded the cooling system

-300zx rad cap (1.3 Bar) only $8 (Mazdaspeed 1.3 cap is $65)
-Redline Water Wetter
-Distilled Water
-Outlaw Engineering IM and Throttle body spacers
-Both Slim fans wired up to come on together.

Planning for friday to put in the SC...=)



[azuelke]

Planning for friday to put in the SC...=)

Can't wait to see this bad boy done. (2thumbs)



[fishdonotbounce]

You're not going to be running distilled water alone are you????



[HKPRO5]

Of course not! lol probably going to run 65/35 coolant water



[fishdonotbounce]

oh lol I thought for a sec you were. I was like HUH???



[JDMJNKY]

you got to a vented hood for sure to help cooling quicker but all of the above helps too=)

I have one just don't know what to do with it yet

Completed the Headers still need to install.

Upgraded the cooling system

-300zx rad cap (1.3 Bar) only $8 (Mazdaspeed 1.3 cap is $65)
-Redline Water Wetter
-Distilled Water
-Outlaw Engineering IM and Throttle body spacers
-Both Slim fans wired up to come on together.

Planning for friday to put in the SC...=)

Gonna do the same with my slim fans over the weekend

Goodluck and have fun with the install!!



[justanothermp5]

you may need a relay for wiring both fans together....when they both start up thats gonna pull quite a bit of power



[HKPRO5]

Thats what I heard.....How would I wire it up with a relay?



[wildo]

Everything you need to know about that is here: http://www.bcae1.com/relays.htm



[justanothermp5]

ehh, that website makes it a bit difficult to understand
here is how i understand it easier, with pictures lol
http://www.jegs.com/InstallationInstructions/500/555/555-10559.pdf
