I want to add a subwoofer to this car but I want to tap into the wires before the Bose Amp. Does anyone know the colors or wiring diagram on what wires are what before the Bose Amp? I have heard that tapping into the wires after the Bose Amp like the door speakers is not the best way to go as the signal is being processed by the Bose Amp.
2020 CX-5 With Bose Subwoofer Install
- Thread starter Jpaetz
- Start date
Guide: - 2017~2020 CX-5 Add an Amp Adapter
I originally posted on Mazda6 forum but thought you guys can use this guide too. This is for the 2017+ TAU with the new small 20 pin connection. This will allow for adding an amp without cutting of any of the stock wiring and completely removable. Parts used: SCOSCHE NN04RB Reverse Stereo...
@Jpaetz Have a quick look at this in the cx5 forums it will help you and you can use the plugs as shown as plug and play on input side of amp to save having to splice into factory wiring I believe - just check input wiring same as shown in diagrams - Phil
Upvote
0
Ps - to some degree there will be some bass roll off even wiring in before Bose amp ( cuts around 45hz approx from head unit) I am afraid the only way around this is either use a DSP or drastically change head unit !!) I opted to fit an Helix DSP and set up via their software supplied. Just depends how low you want your bass - 30 - 35hz this probably the options available - there are loads of discussions on the forums per the use of DSP,s and there is also a video review of the Helix DSP on YouTube
My DSP has been used to trim my rear door speakers , tweeters and sub and really opens up the possibilities of trimming to your own taste as well as the adjustability of the sound stage ( vital for centre stage when sitting in driver position - wifey doesn’t get a look or hear in haha
Cheers Phil UK
My DSP has been used to trim my rear door speakers , tweeters and sub and really opens up the possibilities of trimming to your own taste as well as the adjustability of the sound stage ( vital for centre stage when sitting in driver position - wifey doesn’t get a look or hear in haha
Cheers Phil UK
Upvote
0
'21 CX-5 w/ bose here. Have you measured the signal coming out of the head unit? I pig-tailed off the sub wires in the trunk for adding an aftermarket sub, signal was definitely rolled off. I then used a GM Bose harness and T'd off right before the bose amp, signal was still rolled off/processed. I'm trying to find someone who's used an RTA on the wires before the TAU to definitively answer if the head unit is putting out a flat signal or not, and whether or not the signal is being processed by the TAU and/or Bose amp. At this point my next step is to make a cheap RTA and probe prior to the TAU and hope that it's coming out the head unit flat.Ps - to some degree there will be some bass roll off even wiring in before Bose amp ( cuts around 45hz approx from head unit) I am afraid the only way around this is either use a DSP or drastically change head unit !!) I opted to fit an Helix DSP and set up via their software supplied. Just depends how low you want your bass - 30 - 35hz this probably the options available - there are loads of discussions on the forums per the use of DSP,s and there is also a video review of the Helix DSP on YouTube
My DSP has been used to trim my rear door speakers , tweeters and sub and really opens up the possibilities of trimming to your own taste as well as the adjustability of the sound stage ( vital for centre stage when sitting in driver position - wifey doesn’t get a look or hear in haha
Cheers Phil UK
Upvote
0
They do an RTA on the sub output from the amp on this video from the KE cx5, advertising the Kicker Key auto-DSP adjustment.
www.youtube.com
the lowest frequency on the graph is 31.5hz, so at least on the older CX-5's there is a bit of a roll-off. I assume that they didn't change much on the KF models.
Installing the Kicker KEY500.1 Amplifier
Watch the Kicker Tech Force walks you through a complete KEY bass amp setup, connecting it to a CompRT Loaded Enclosure in a 21 Mazda CX 5. #KickerAudio #Am...
www.youtube.com
the lowest frequency on the graph is 31.5hz, so at least on the older CX-5's there is a bit of a roll-off. I assume that they didn't change much on the KF models.
Upvote
0
Just watched the entire video. Looks like the lowest frequency the factory Bose amp will do is 25htz BUT it runs at -48db. Very interesting.They do an RTA on the sub output from the amp on this video from the KE cx5, advertising the Kicker Key auto-DSP adjustment.
Installing the Kicker KEY500.1 Amplifier
Watch the Kicker Tech Force walks you through a complete KEY bass amp setup, connecting it to a CompRT Loaded Enclosure in a 21 Mazda CX 5. #KickerAudio #Am...

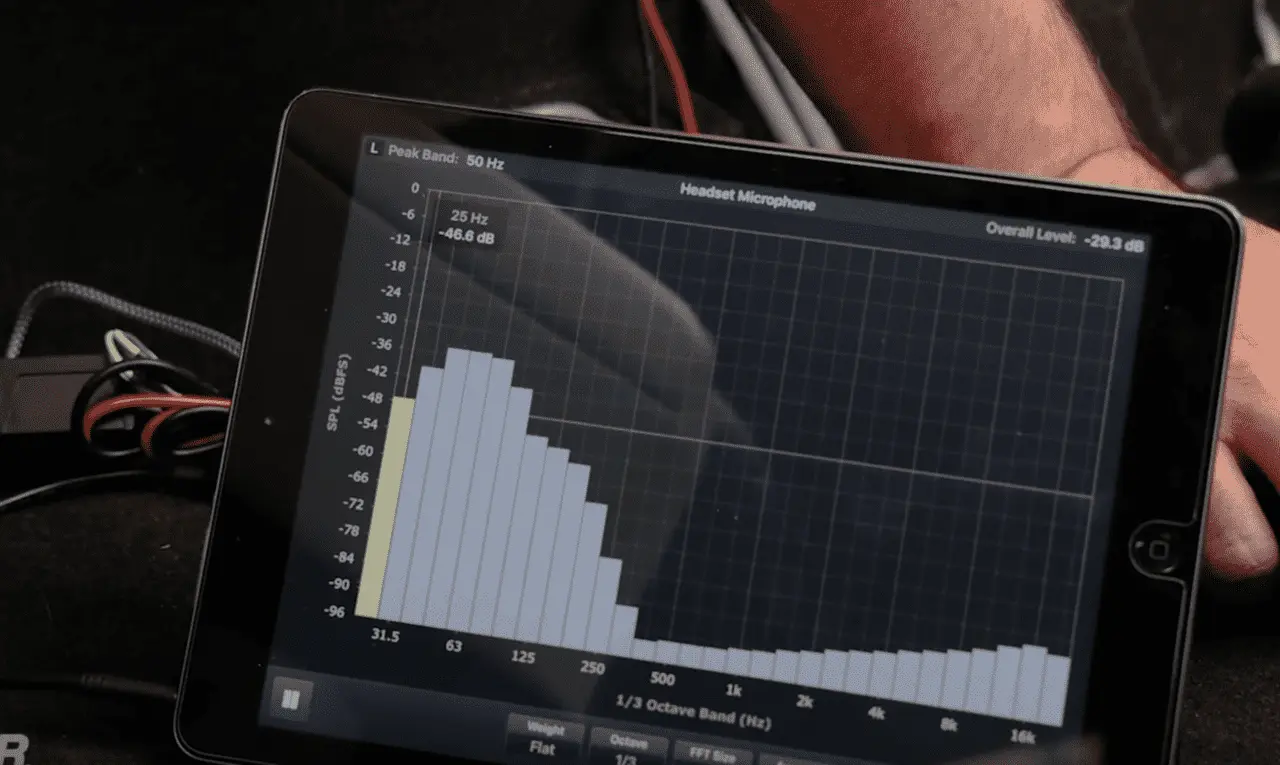

View attachment 318785
the lowest frequency on the graph is 31.5hz, so at least on the older CX-5's there is a bit of a roll-off. I assume that they didn't change much on the KF models.
