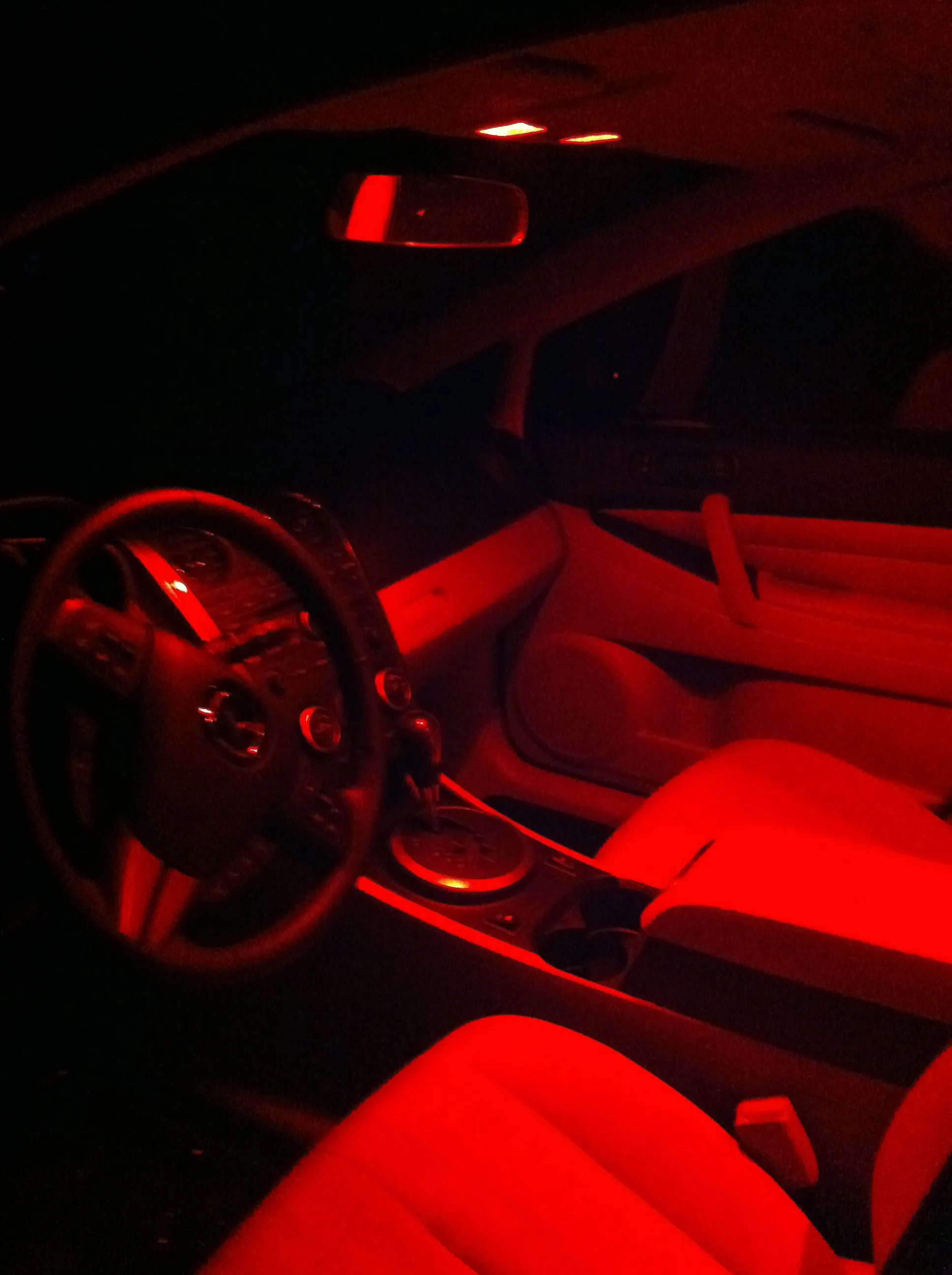

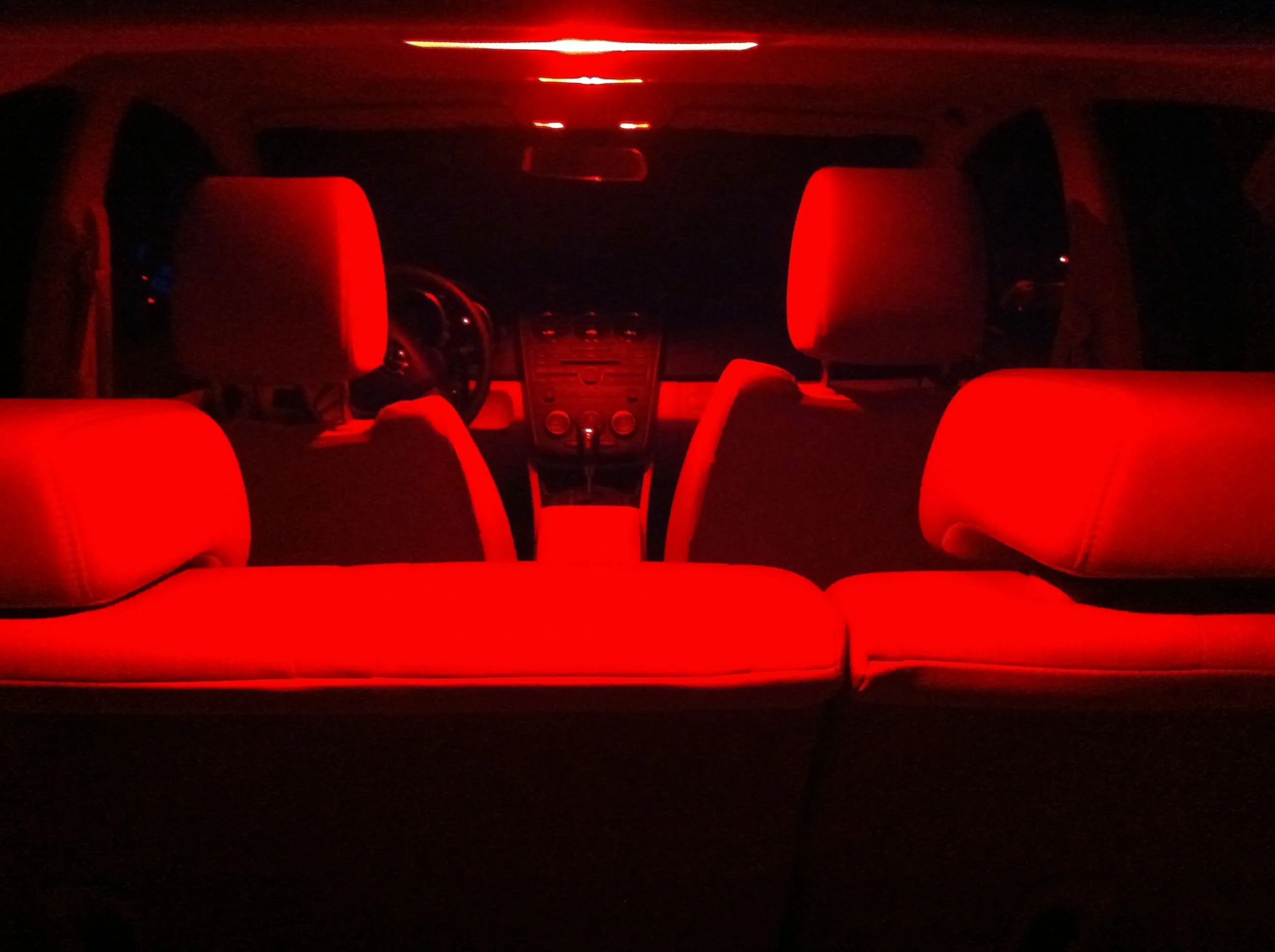

I have been playing with the idea of changing out the stock interior lights to LED's. The flip down DVD player that i bought from the dealership for my kid replaced the lights above the driver and passenger seat and came with LED lighting built into the player. So it bugs the crap out of me when i open the door at night and have two different color lights illuminating the interior ... and honestly the LED's are brighter and look far better than the yellowish stock bulbs.
Edit on 04-05-2012
I am going to start updating thread with bulb sizes given in this thread. The list can be for any light on the vehicle. So post up the size of the light/bulb and location of the light and we will start making a list of all sizes.
Light Sizes for CX-5
***Note differences in bulb sizes between Xenon/tech package and Halogen models***
Front headlights/fog lights: H11
Front turning signal : 1157NA
Front drl (HALOGEN): hb3u 9005
Front drl (XENON/Tech Package): p13w
License Plate Bulb: 168/194/T10/W5W Wedge bulb
Cargo lights: 28mm F[FONT=Arial, Helvetica, sans-serif]estoon bulb, labeled 10D
[/FONT]Front Map lights: 28mm F[FONT=Arial, Helvetica, sans-serif]estoon bulbs, labeled 10D
[/FONT]Rear Map lights: 28mm F[FONT=Arial, Helvetica, sans-serif]estoon bulbs, labeled 11B
[/FONT]Vanity Lights: 29mm bulbs w/ flat end caps (looks like old style fuses)
[FONT=Arial, Helvetica, sans-serif]
[/FONT]
Edit on 04-05-2012
I am going to start updating thread with bulb sizes given in this thread. The list can be for any light on the vehicle. So post up the size of the light/bulb and location of the light and we will start making a list of all sizes.
Light Sizes for CX-5
***Note differences in bulb sizes between Xenon/tech package and Halogen models***
Front headlights/fog lights: H11
Front turning signal : 1157NA
Front drl (HALOGEN): hb3u 9005
Front drl (XENON/Tech Package): p13w
License Plate Bulb: 168/194/T10/W5W Wedge bulb
Cargo lights: 28mm F[FONT=Arial, Helvetica, sans-serif]estoon bulb, labeled 10D
[/FONT]Front Map lights: 28mm F[FONT=Arial, Helvetica, sans-serif]estoon bulbs, labeled 10D
[/FONT]Rear Map lights: 28mm F[FONT=Arial, Helvetica, sans-serif]estoon bulbs, labeled 11B
[/FONT]Vanity Lights: 29mm bulbs w/ flat end caps (looks like old style fuses)
[FONT=Arial, Helvetica, sans-serif]
[/FONT]
