Infotainment Screen cracking (spider cracks)

I bit the bullet and found a supplier that sends the whole glass (touch panel) and frame unit. Cost just over $200USD plus deliver. Have installed it and replaced the old and it looks like new.

The Best OEM Touch Screen Car Navigation drive loader Factory Radio Spare Parts | Opuradio

We provide the best original LCD touch screen car radio navIgation and spare replacements for whom were looking for professional car monitor navigation radio.
www.opuradio.com www.opuradio.com

just googled how to remove the unit and all in all took about an hour to casually take it apart. Just needed a screw driver and a star key

caredes said:
I bit the bullet and found a supplier that sends the whole glass (touch panel) and frame unit. Cost just over $200USD plus deliver. Have installed it and replaced the old and it looks like new.

The Best OEM Touch Screen Car Navigation drive loader Factory Radio Spare Parts | Opuradio

We provide the best original LCD touch screen car radio navIgation and spare replacements for whom were looking for professional car monitor navigation radio.
www.opuradio.com www.opuradio.com

just googled how to remove the unit and all in all took about an hour to casually take it apart. Just needed a screw driver and a star key
Click to expand...
Hi @caredes, would you happen to have any photos or video of it working in your car? Is the new unit compatible with the existing infotainment software, or does it use it's own? All touch functionality still works?

they supply simply the touch glass and outer casing at the front, not the actual screen which is inside and was unaffected. The issue is the glue and quality of the glass used by Mazda, not the actual infotainment unit.

all touch functionality was as per the original casing

caredes said:
they supply simply the touch glass and outer casing at the front, not the actual screen which is inside and was unaffected. The issue is the glue and quality of the glass used by Mazda, not the actual infotainment unit.

all touch functionality was as per the original casing
Click to expand...

Ah, so you disassembled the original unit. By chance, do you have pictures of the old casing? I would like to see what it looks like from the inside, and understand why the cracks always start from the corners. I believe I read somewhere that it was because the screws were overtorqued during the manufacturing process.

Didn’t keep it sorry. No screws near the corners. I think it I simply where the expansion and contraction occurs most as it’s near the edge then causes the cracking (hence coming away and moving at the weakest point- the corners).

caredes said:
I bit the bullet and found a supplier that sends the whole glass (touch panel) and frame unit. Cost just over $200USD plus deliver. Have installed it and replaced the old and it looks like new.

The Best OEM Touch Screen Car Navigation drive loader Factory Radio Spare Parts | Opuradio

We provide the best original LCD touch screen car radio navIgation and spare replacements for whom were looking for professional car monitor navigation radio.
www.opuradio.com www.opuradio.com

just googled how to remove the unit and all in all took about an hour to casually take it apart. Just needed a screw driver and a star key
Click to expand...

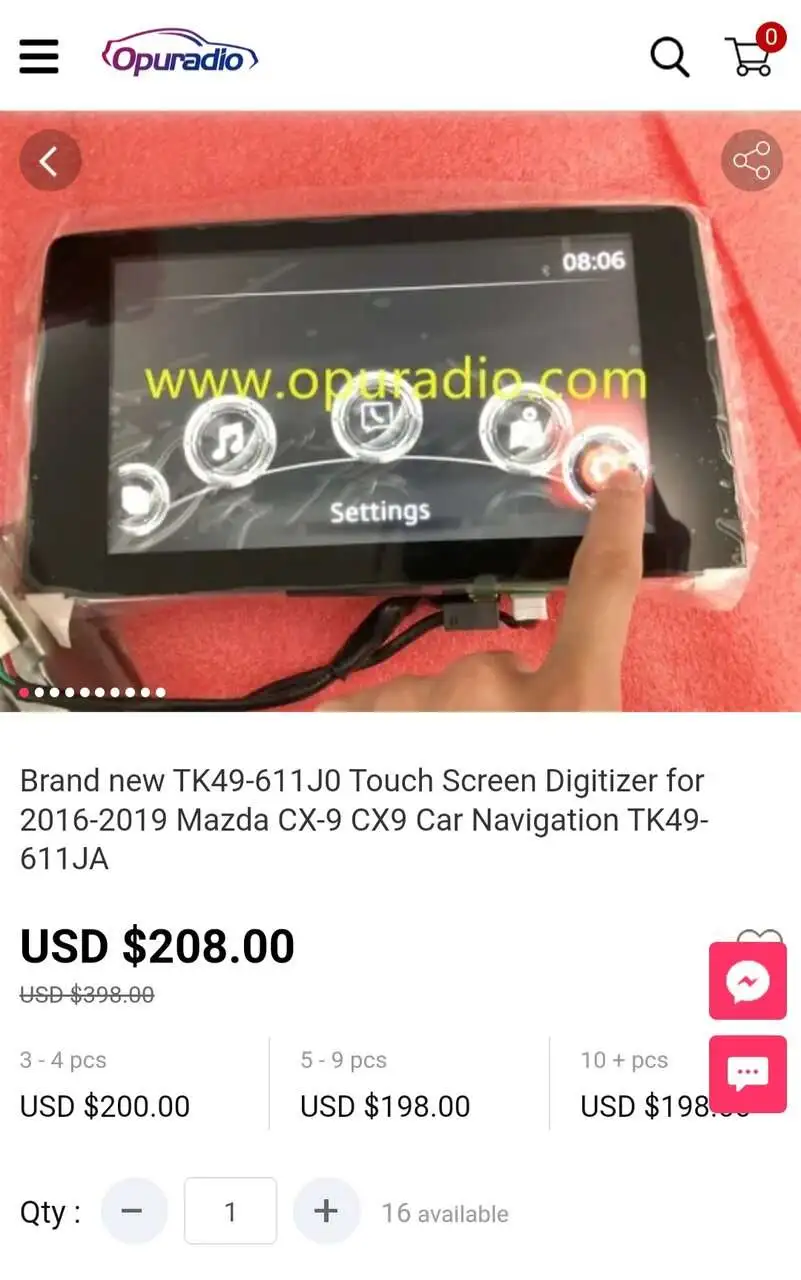

Is this the one you've ordered?


Attachments

  • Screenshot_20230409_194208_Chrome.jpg
    73.1 KB · Views: 124
I wish I had seen this sooner. I just paid $1100 to replace my screen that had the spiderweb cracking. Mazda corp. kicked in $850 towards the repair, but it was almost $2k. I'm pretty irritated to see that we could have done it ourselves for $200.

LAM314 said:
I wish I had seen this sooner. I just paid $1100 to replace my screen that had the spiderweb cracking. Mazda corp. kicked in $850 towards the repair, but it was almost $2k. I'm pretty irritated to see that we could have done it ourselves for $200.
Click to expand...
Replacement screen could be bought on ebay.

Anealz said:
Good news to mazda cx-9 spider screen. Replacement screen could be bought on eBay for 300.
Click to expand...

I've seen another member mention this, have you ordered one and installed it?

If my screen wasn't covered by my extended warranty, I would definitely look into this option, especially since the actual screen replacement seems very easy to do.

Mine had the same issue. I contacted Mazda and they offered me a "good will" $1000 for the fix. It costs $2000. It is a known issue and there is a service alert on 2016-2017 models #SSPB9 and a service alert on 2016-2018 models #SA-008/18

I am planning on trying to get enough people to register the complaint to possibly move the complaint up the ladder at Mazda. They know about the issue and are refusing to cover it.

LAM314 said:
I wish I had seen this sooner. I just paid $1100 to replace my screen that had the spiderweb cracking. Mazda corp. kicked in $850 towards the repair, but it was almost $2k. I'm pretty irritated to see that we could have done it ourselves for $200.
Click to expand...
Go back to them with the service alerts and they should refund you the money.

btal said:
Mine had the same issue. I contacted Mazda and they offered me a "good will" $1000 for the fix. It costs $2000. It is a known issue and there is a service alert on 2016-2017 models #SSPB9 and a service alert on 2016-2018 models #SA-008/18

I am planning on trying to get enough people to register the complaint to possibly move the complaint up the ladder at Mazda. They know about the issue and are refusing to cover it.
Click to expand...
hollandog said:
BBB AUTOLINE just concluded my case as ineligible due to mileage...?

2019 cx-9 at 63000 miles now....
Click to expand...

Look at the following service alerts:



PhillyMike said:
Has anyone heard any reason why they are only giving "Warranty Extension" 2016 - 2017 models to fix the screens & not the 2018-2019 models? I asked my dealer, where I've been getting all service done, & basically told me I'm out of warranty & gave me a price to replace the screen. (which i can't remember, but i know it was over $1800 - 2K).
Click to expand...
Here are all of the service programs I could find. One is for the 2018 models:



Boler Tower said:
I asked my Dealer about the spider cracking on my 2018 CX9 Signature infotainment screen at my last service, and that's when i found out i was just a few weeks past my warranty. They said they would try to submit it to Mazda Canada for coverage under good will, to no avail. I reached out to Mazda Canada and got the following response:

"Thank you for contacting Mazda Canada. As you are aware of the SSPB9 details, you know that it was only released to cover vehicles built before April 29th, 2017. Unfortunately your vehicle was built after that date which is why it was not covered for repair. As more people report this issue there will be more possibility that this will be extended to include vehicles built after that date.
Should you choose to repair this out of pocket now and they should extend the coverage to include your vehicle, you can apply for a reimbursement at that time. Be sure to save all of your paperwork and receipts as you will need the for the reimbursement application. Sorry I could not bring you better news at this time."

My two take home messages from this experience are. 1. If you have any signs of spider cracking get it fixed immediately under warranty if you're still covered. 2. If you're no longer covered reach out to Mazda Canada and hopefully enough people complain to make them extend warranty coverage to the 2018 and newer models.
Click to expand...
They extended the Service Repair to 2018 models:
