HELP!!! PROSPORT Gauges

[djza2u1]

I have 3 prosport guages hooked up to amber only, and cannot see them during the day. I will hook up the white, but does that show up during to day?



[souper]

Yes



[djza2u1]

any pics of them?



[souper]

I'll take one with my phone when I get in my car. If it comes out any good i'll post it here.



[STRICK-]

tint your windows darker



[souper]

The glare in the picture looks worst than it actually is. I have no problem seeing it.



[KH06]

what wire did you guys tap into to make it white? I only have it amber when my headlights are on, but want it white during the day



[djza2u1]

the guys at PG helped me wire it up. If it is amber always then you are not using the white wire. You should switch the white wire with the orange wire. So the white is on the constant power. Then attach the orange wire to the headlight fuse on the fuse box



[djza2u1]

This is what they look like when they are white...Alot better
These were both taken at the same time

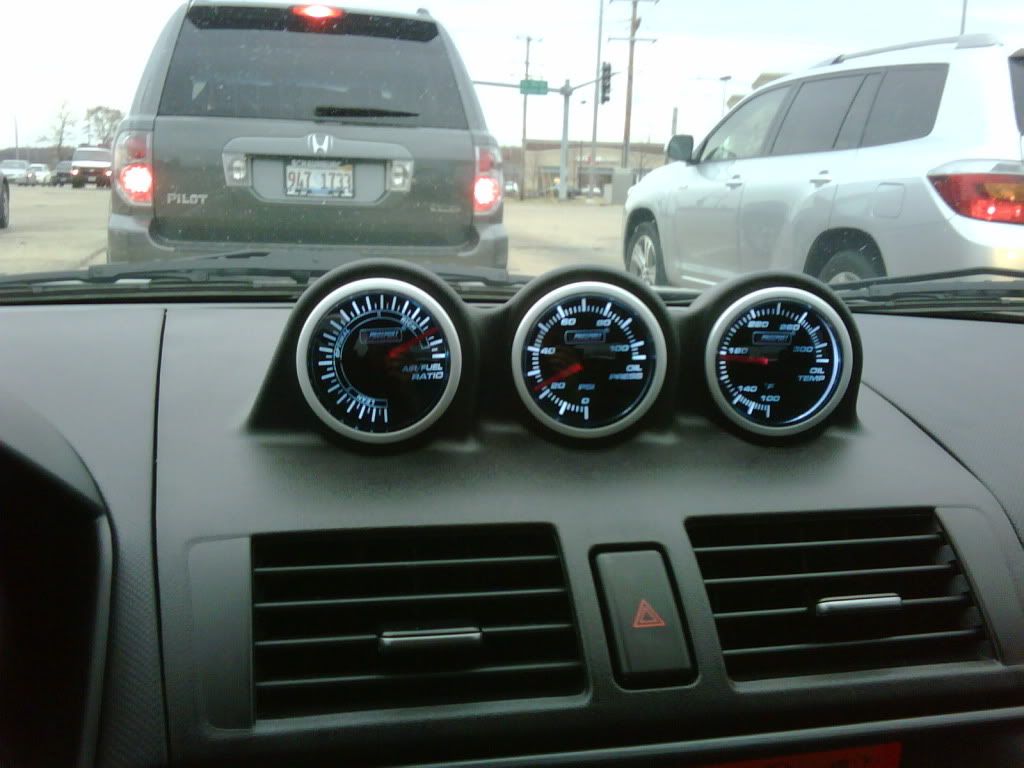

White

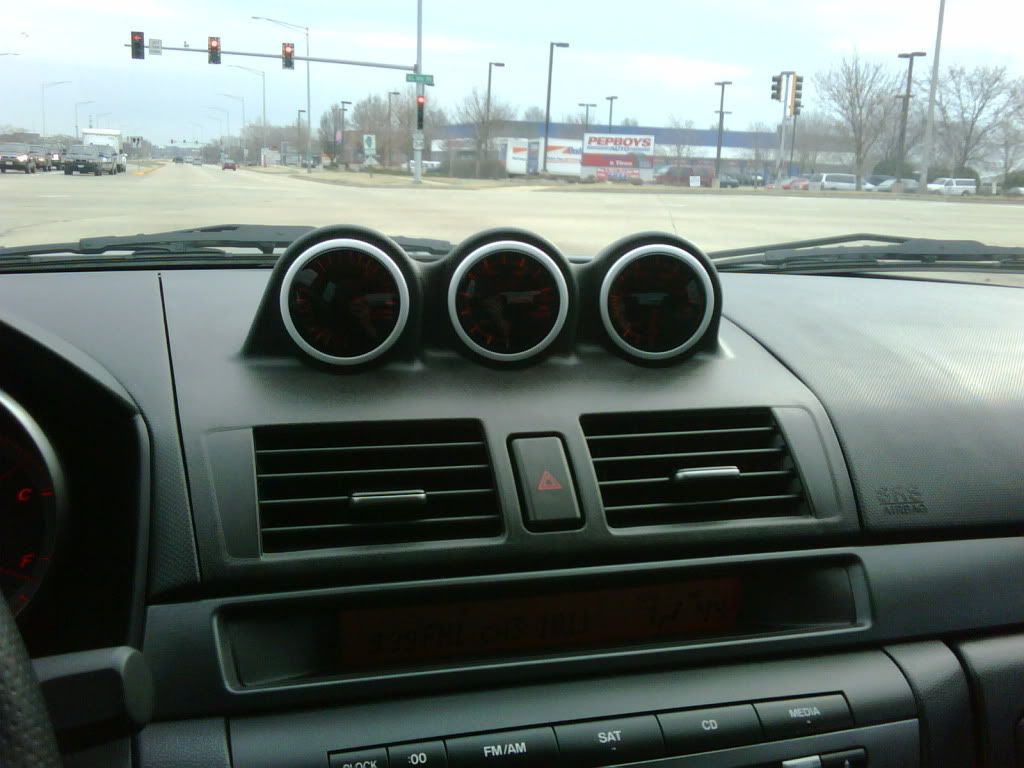

Amber



[KH06]

yes that is exactly what I want



[djza2u1]

If you are confused about the wires here should be a diagram that came with the gauge



[logik816]

i tapped mine w/add a fuse to the fuses under my glove compartment.

i have a speed3

red =f44 (radio)
blk = ground
wht = f70 (ig sig)
orange = f82 (illumi)

this worked for me. it'll light up white during the day, and red during the night.



[KH06]

i tapped mine w/add a fuse to the fuses under my glove compartment.

i have a speed3

red =f44 (radio)
blk = ground
wht = f70 (ig sig)
orange = f82 (illumi)

this worked for me. it'll light up white during the day, and red during the night.

k cool thanks
