Hammo's Build

Hammo

GJ 6/ATENZA Wagon, BJ 323 SP20 (PRO5)
:
Brisbane QLD AUS
Hey guys, starting a build thread here, I have progressed with the build in the past few years with the Turbo conversion / build but time, money and life seem to get in the way so...

JUST A HEADS UP THIS THREAD WILL BE SLOW TO UPDATE

Mod List so far. Anything crossed out is either not fitted or sold.

Body/Styling
  1. AAC - Aggressive Auto Culture - Protégé Bumper Brackets

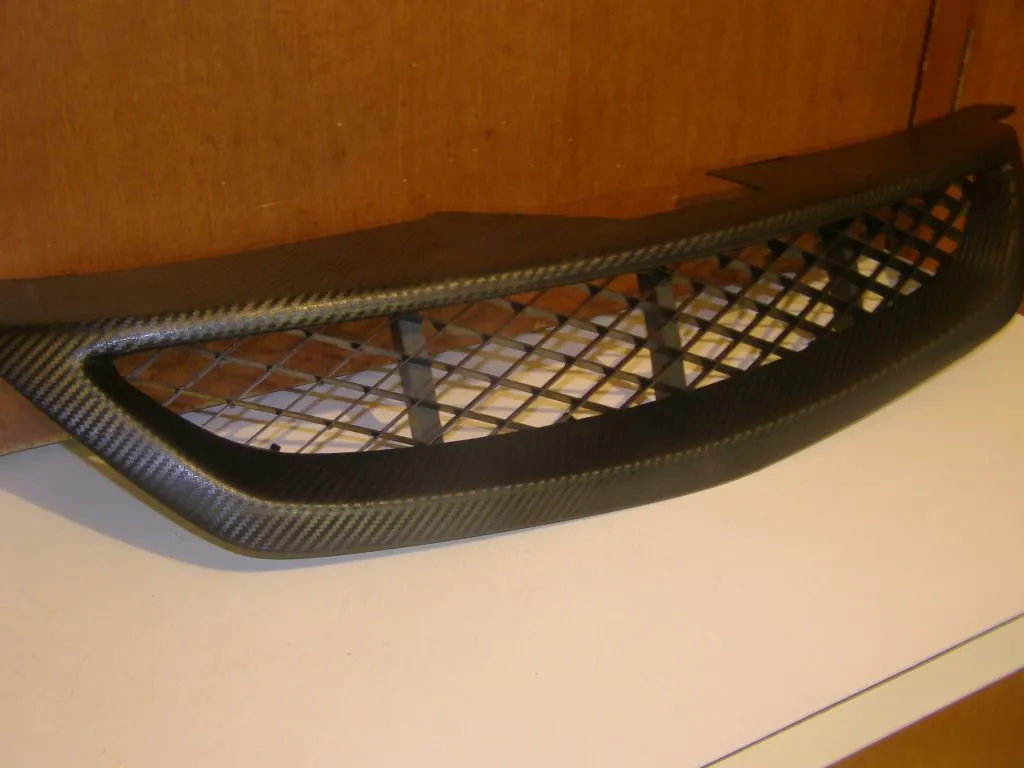

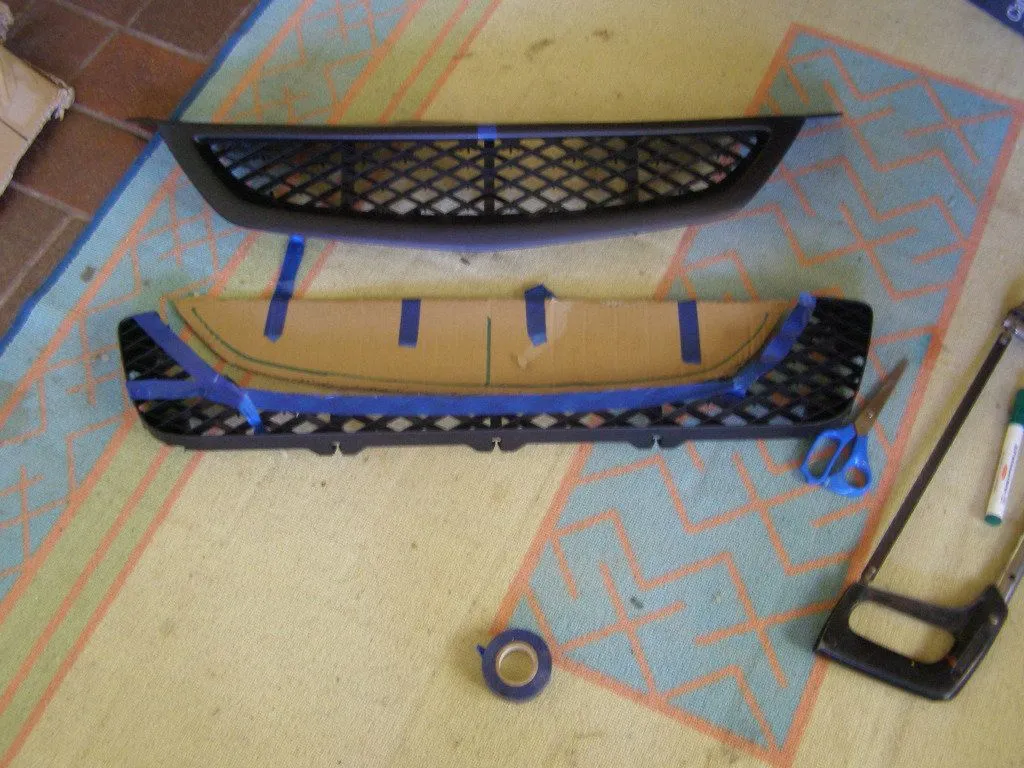

  2. Autoexe Grill

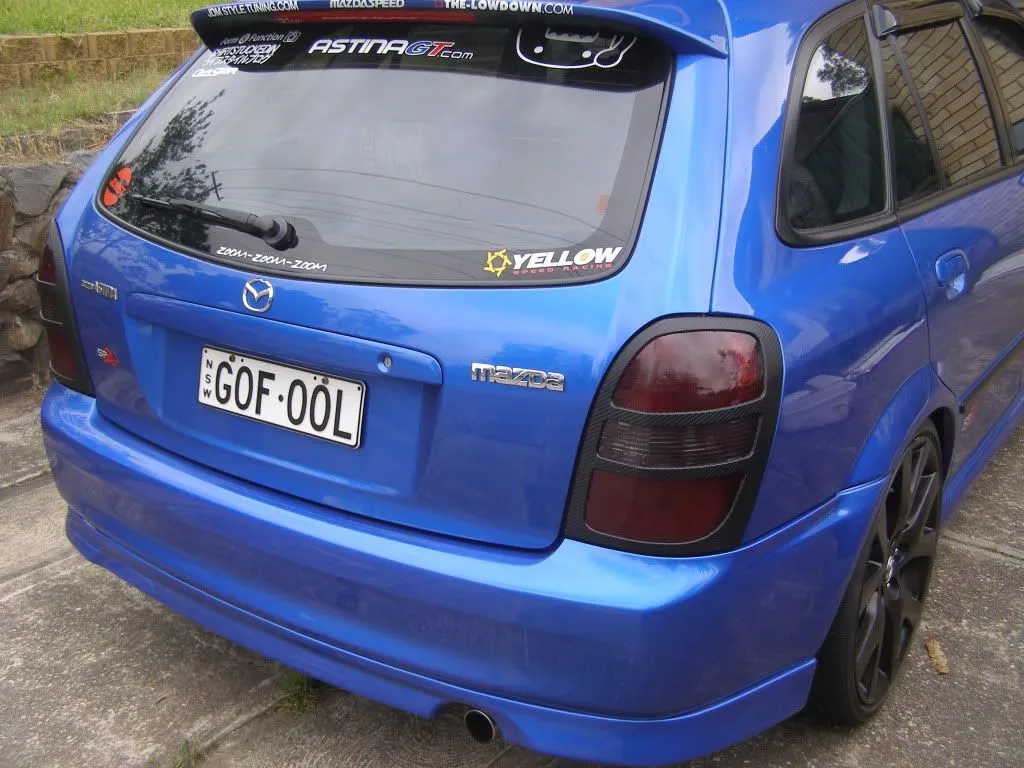

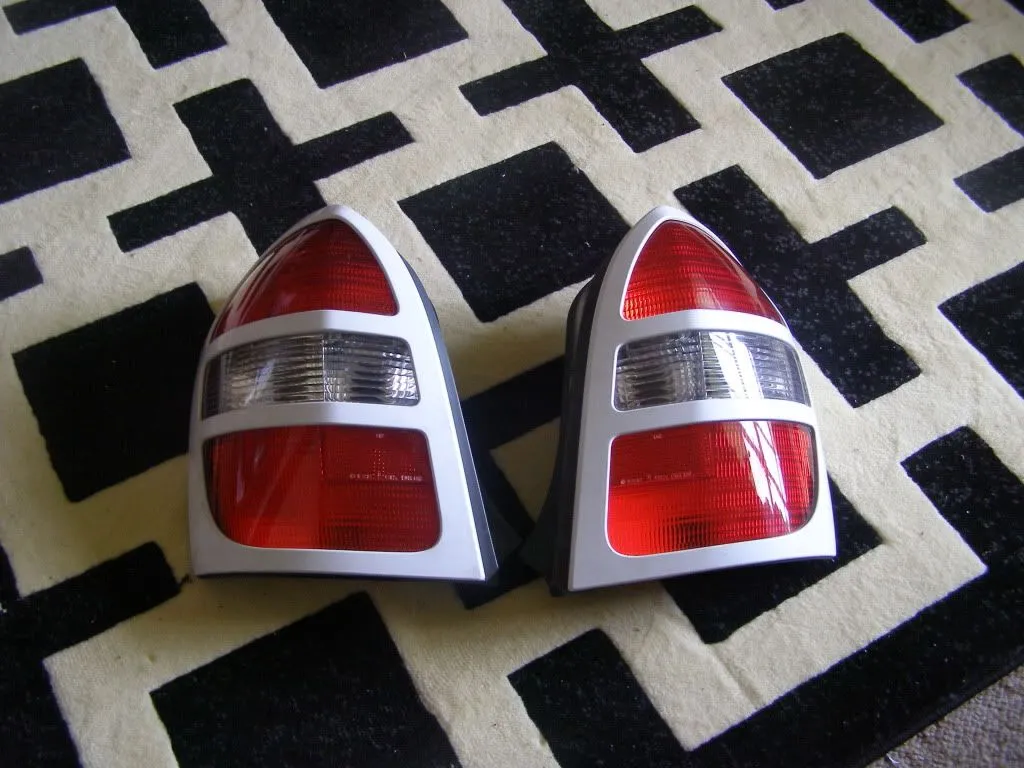

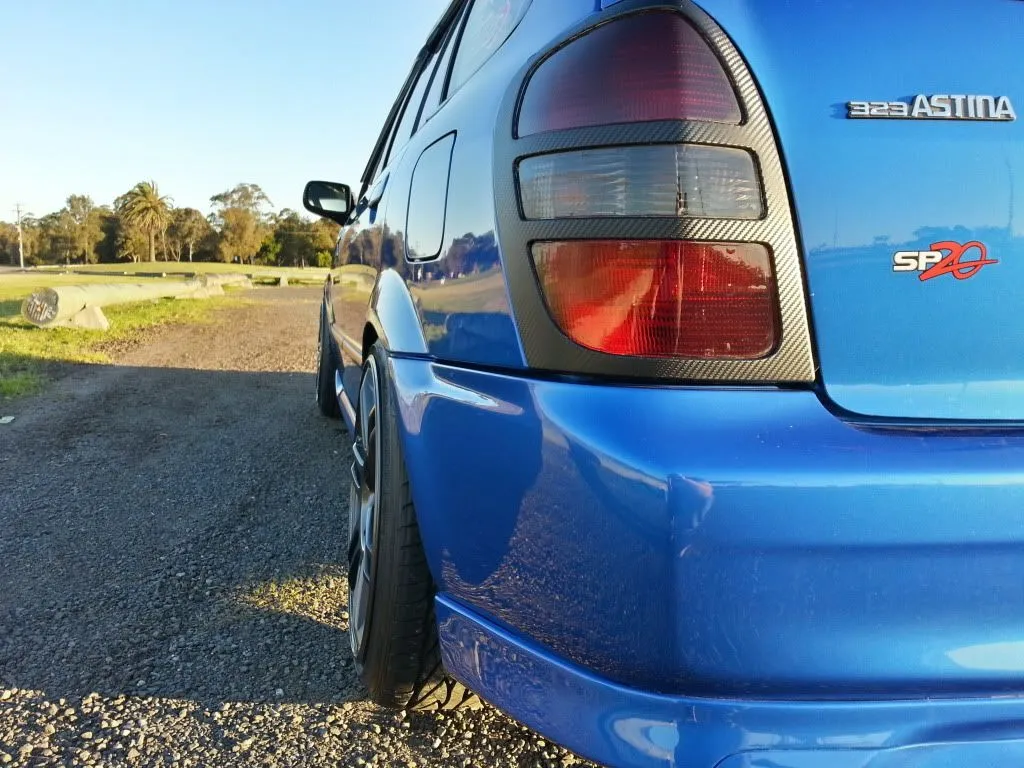

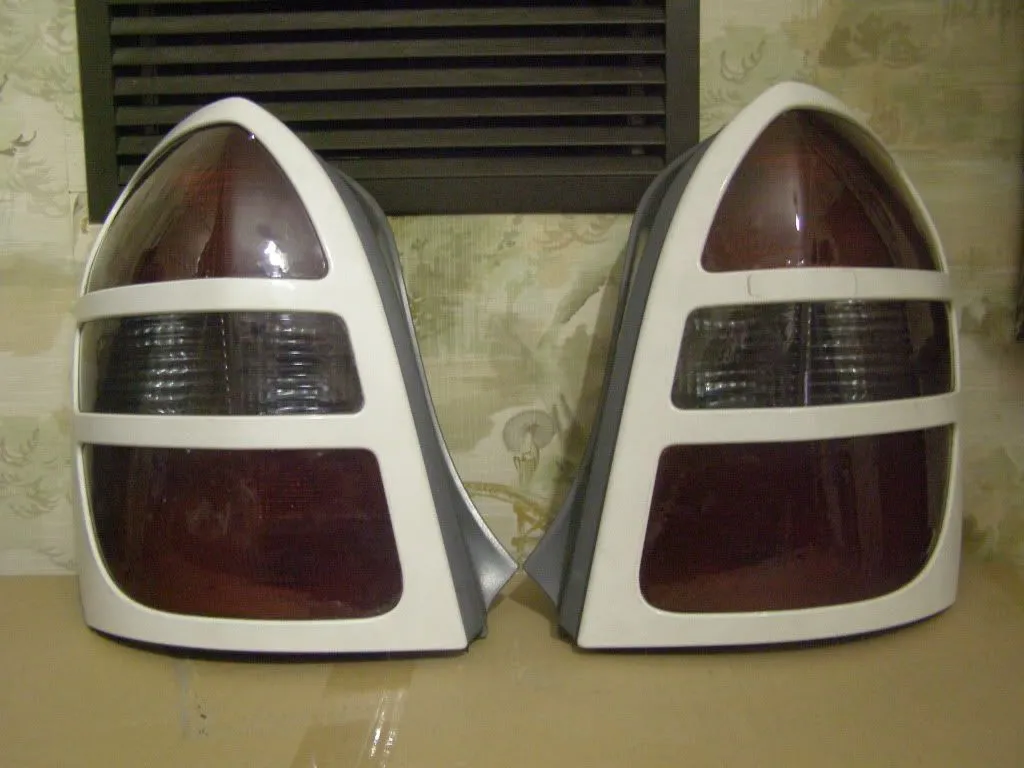

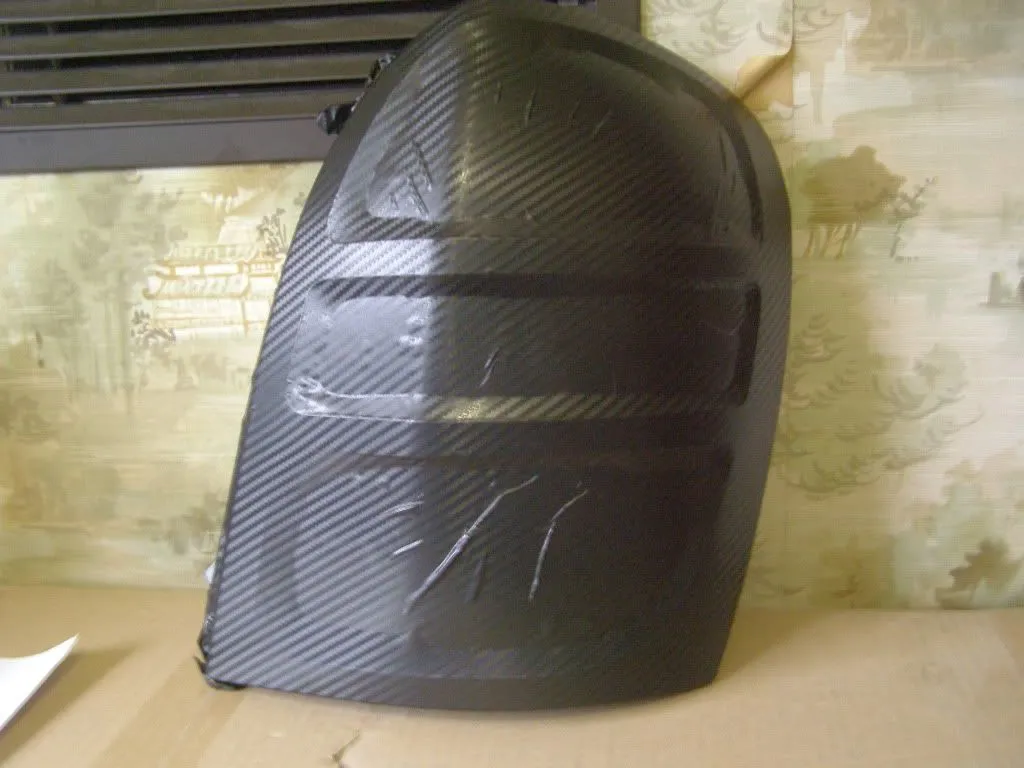

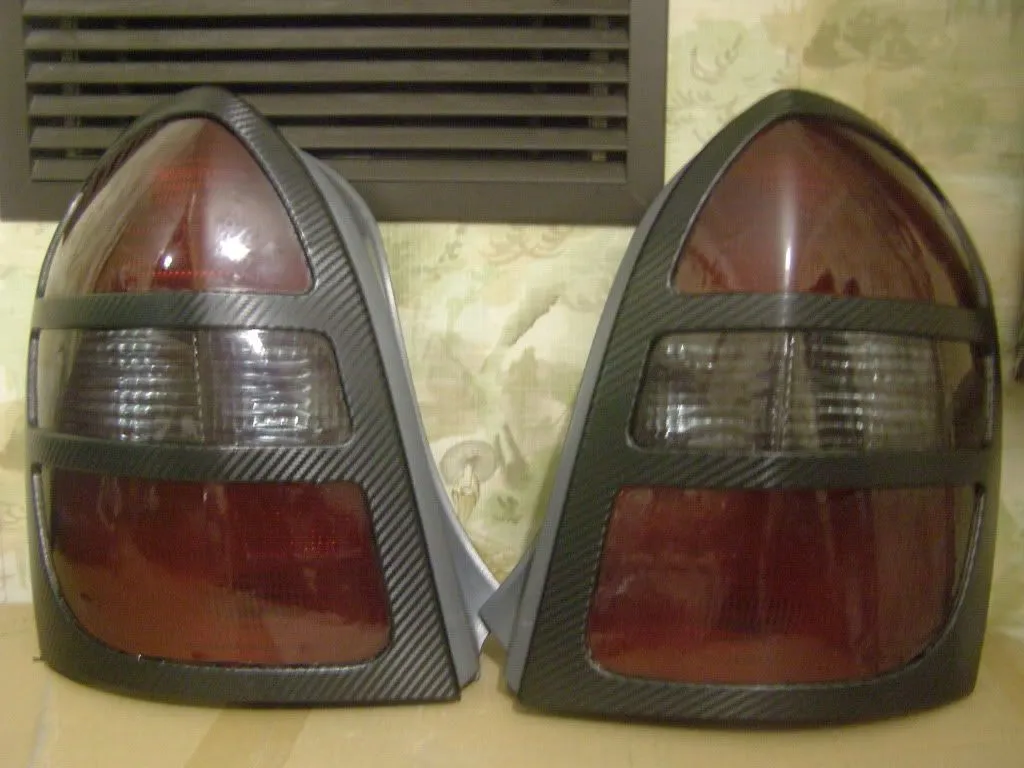

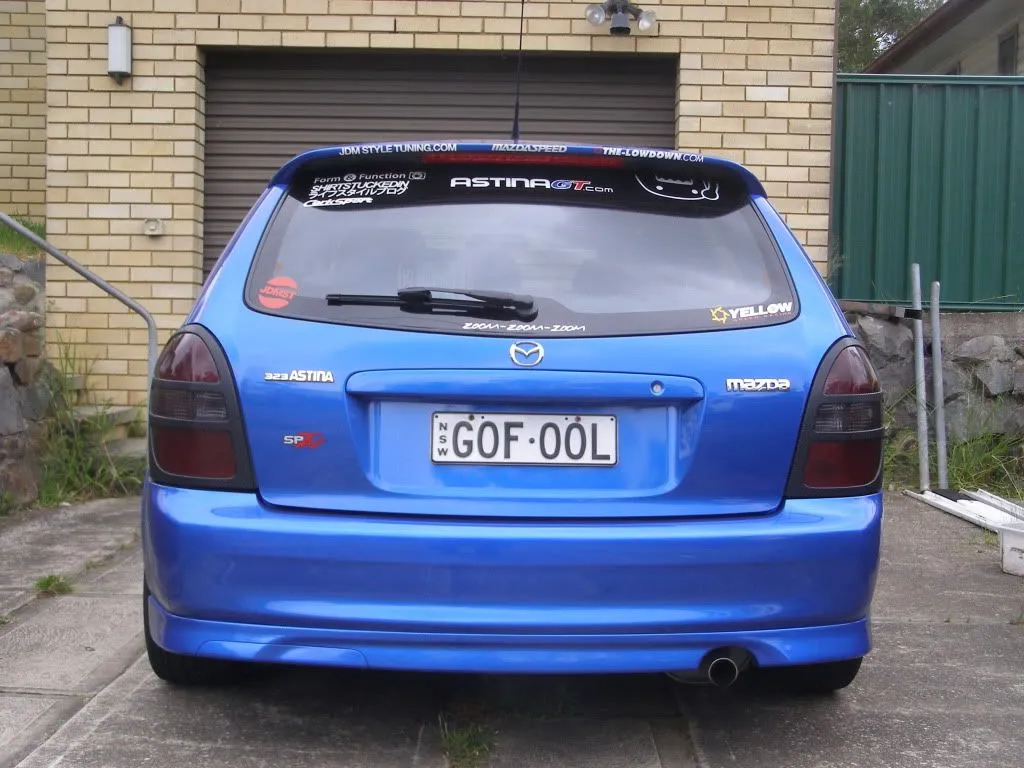

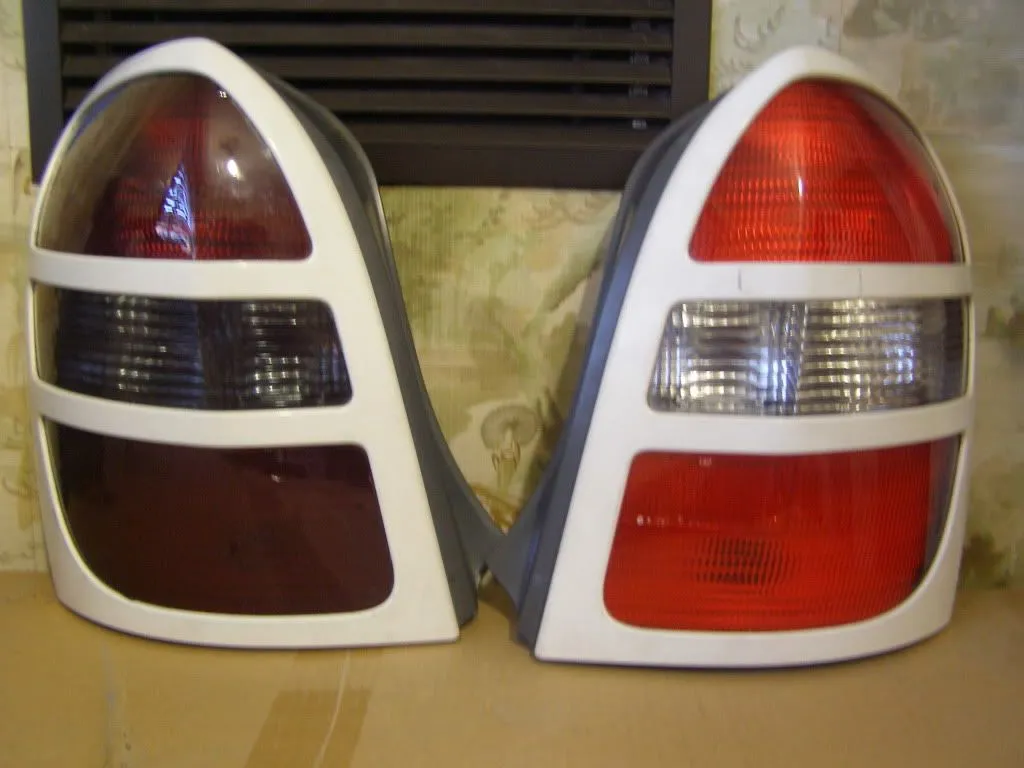

  3. JDM Tail lights with Autoexe/MintBlue covers

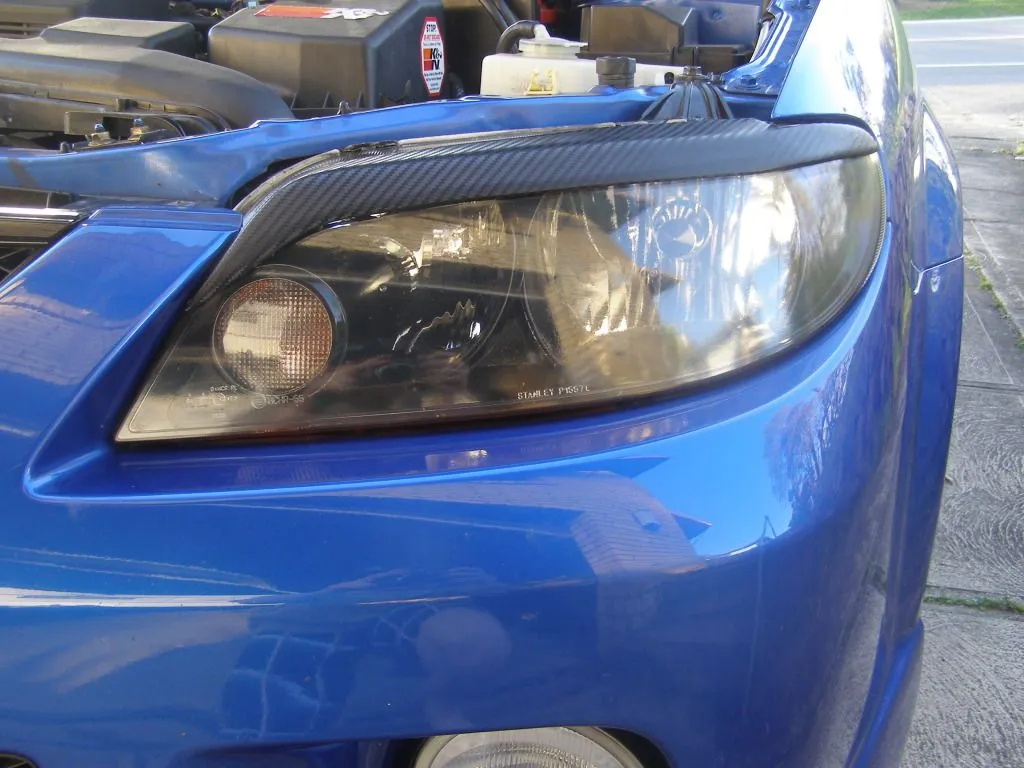

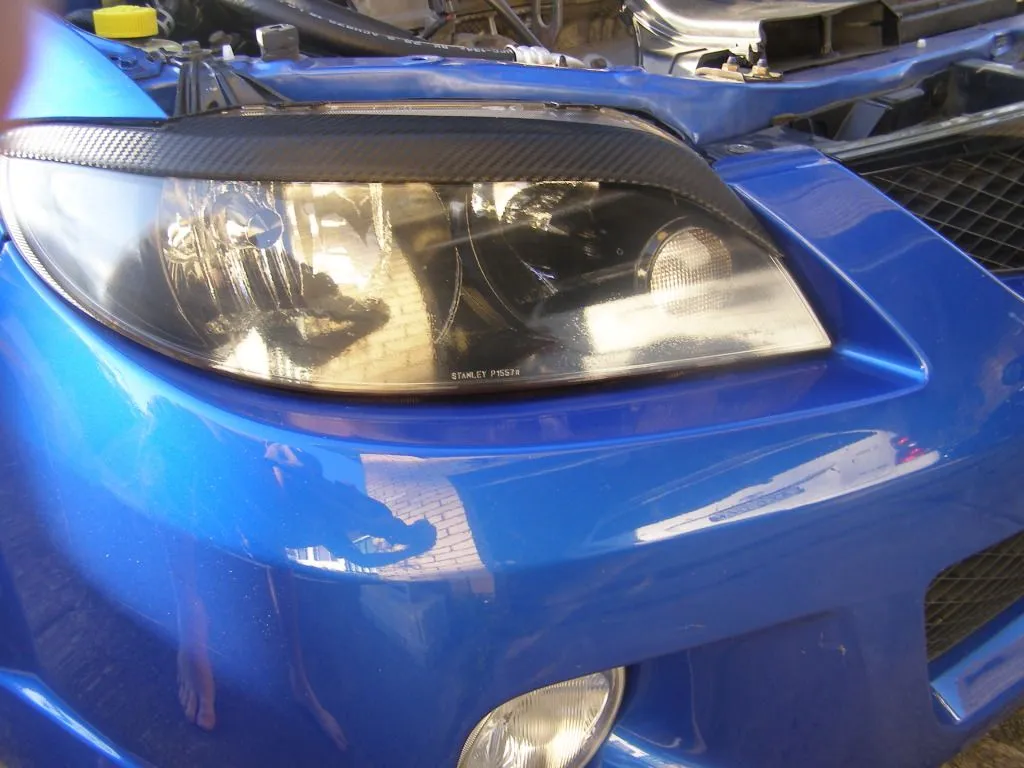

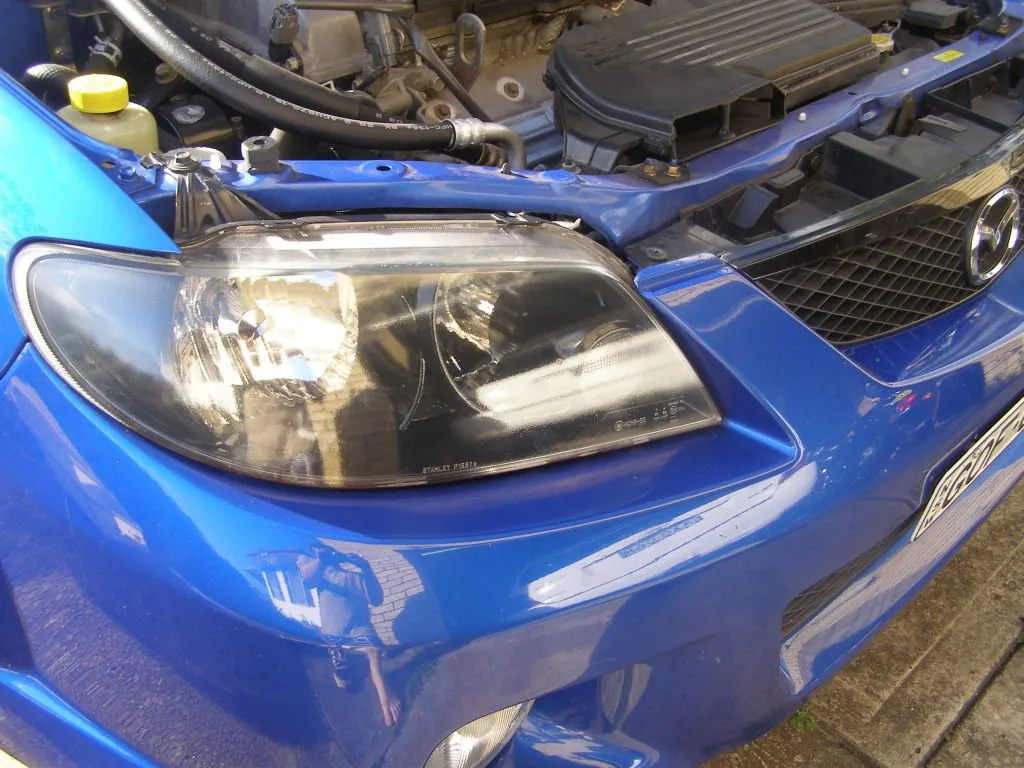

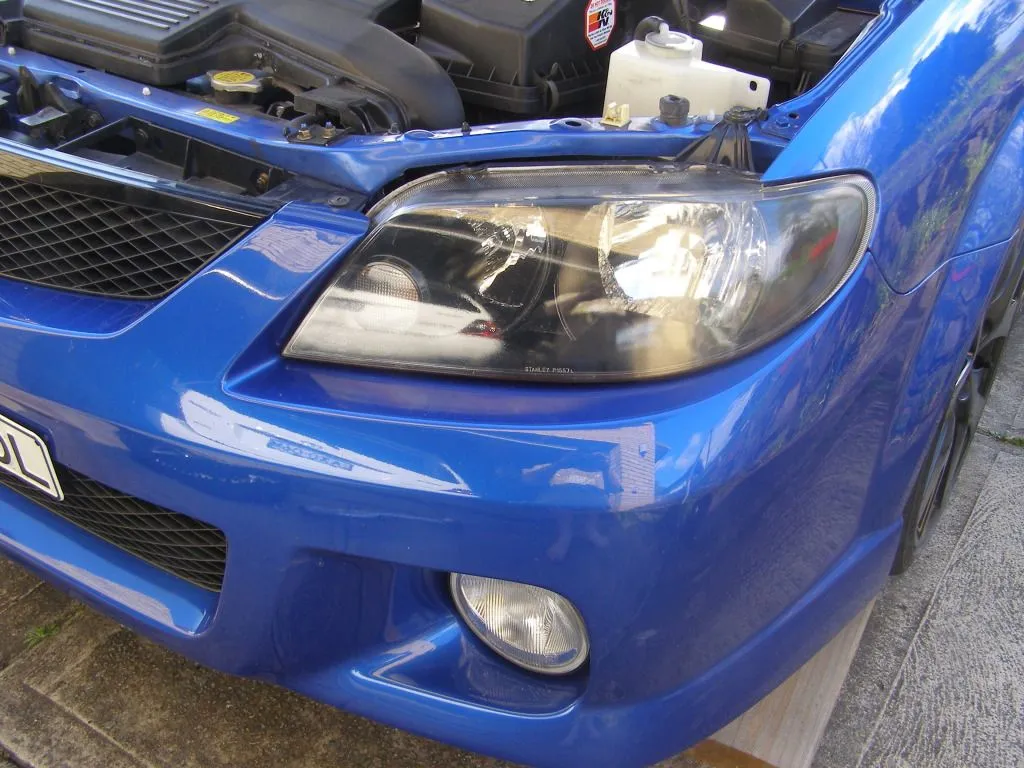

  4. MORIMOTO Mini V2 Bixenon Projector retrofit, Blacked out headlights (Matte Black)

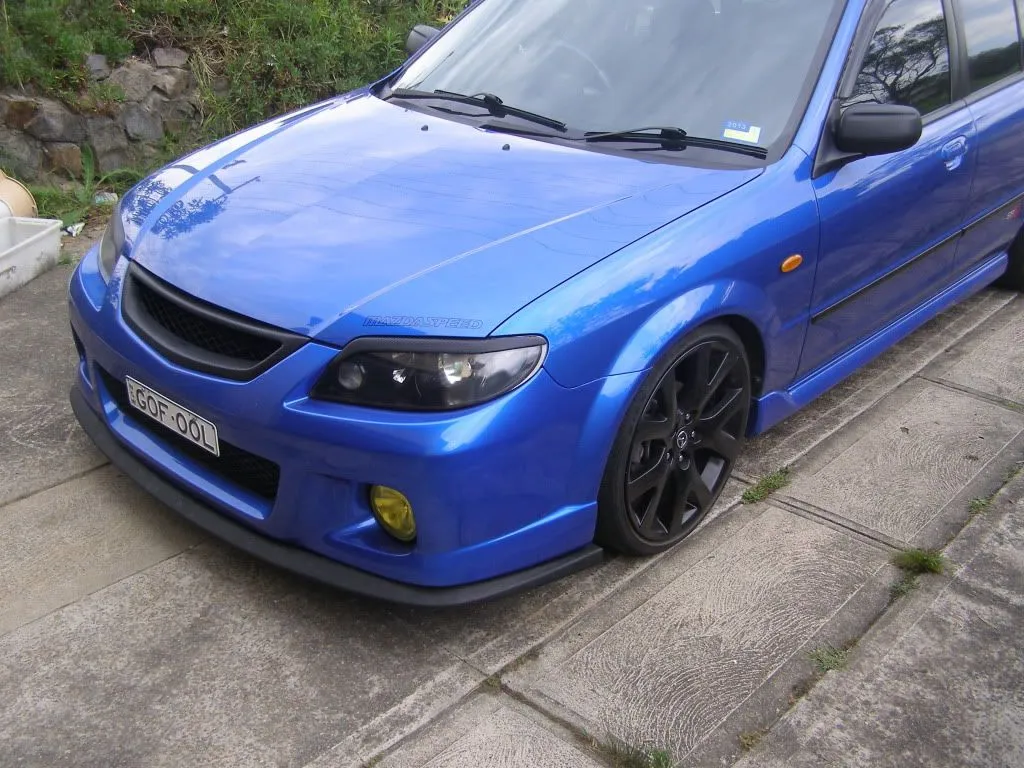

  5. Mazda MSP Front lip

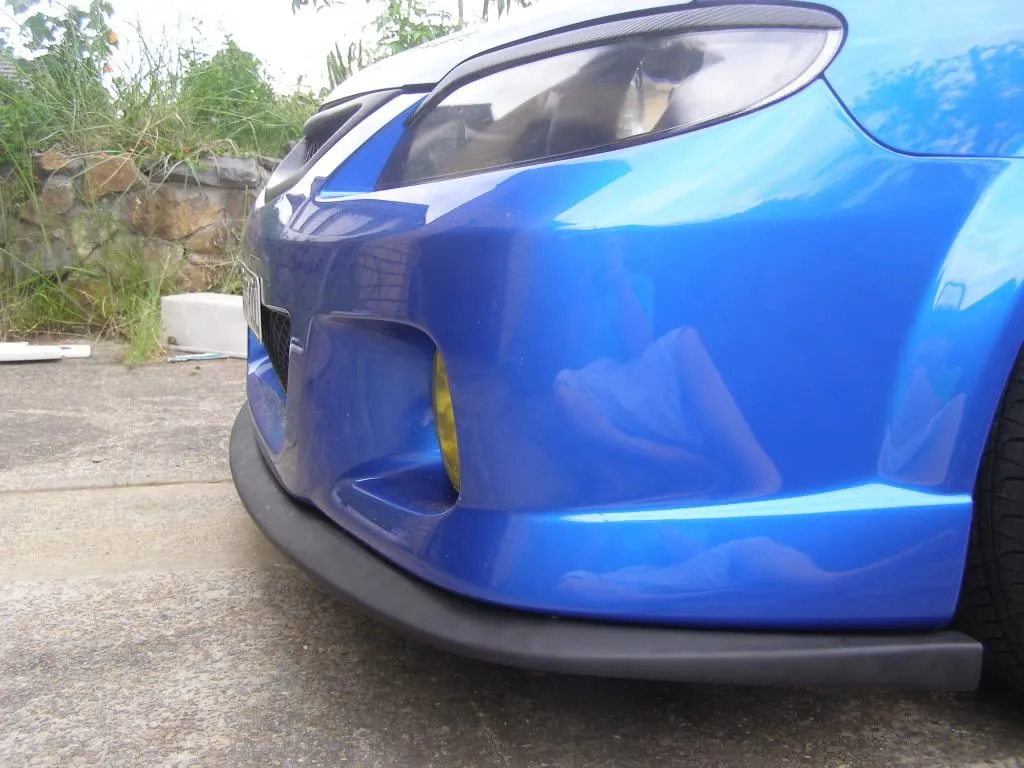

  6. Subaru 06-07 Chargespeed lip
  7. Mazda 3 Side skirt Extensions
  8. AutoExe Front Lip (sold)
  9. Lamin-x Yellow foglight tint (foglights not fitted)
  10. Isport Carbon wing extension (Not fitted)
Wheels/Tyres

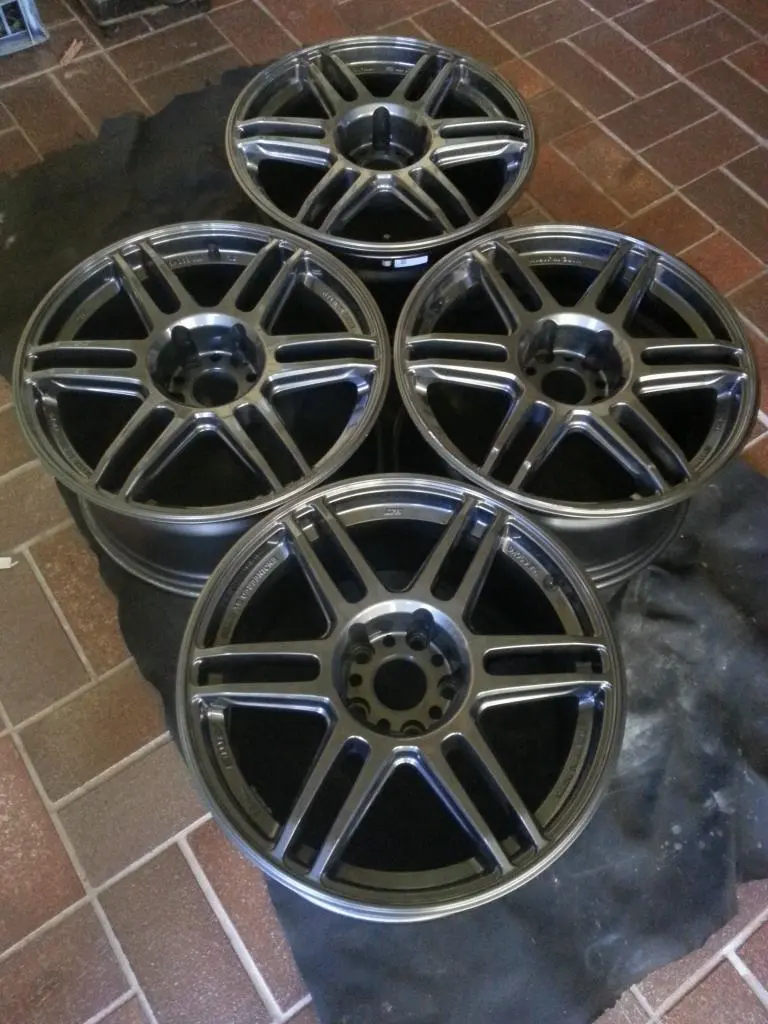

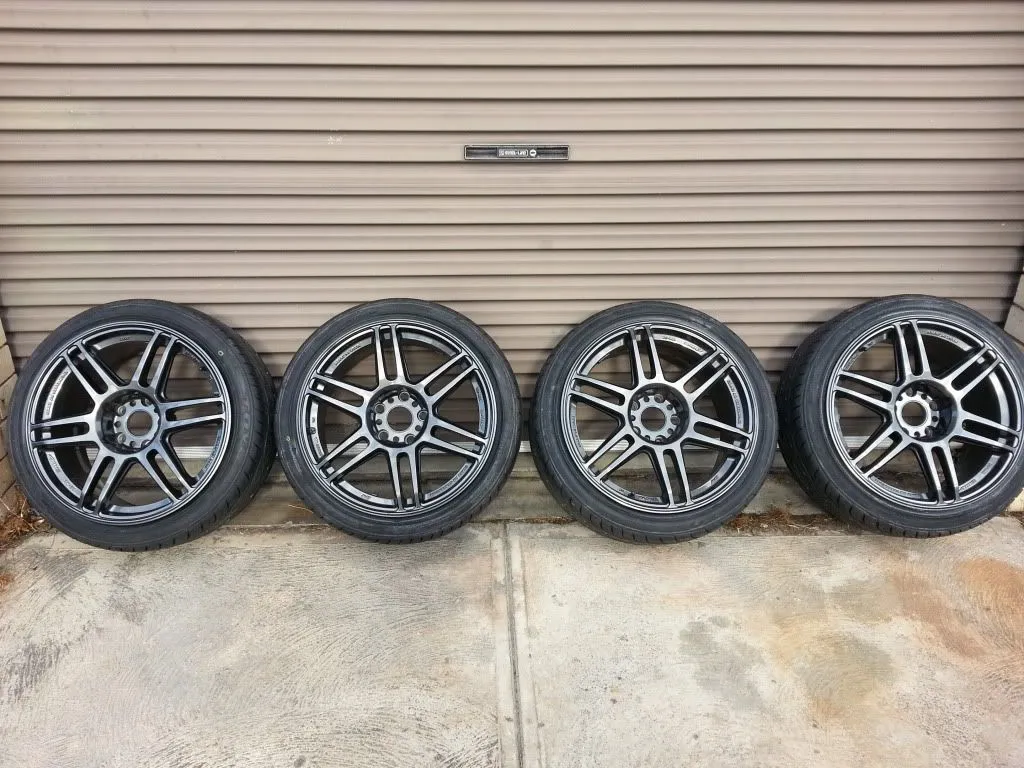

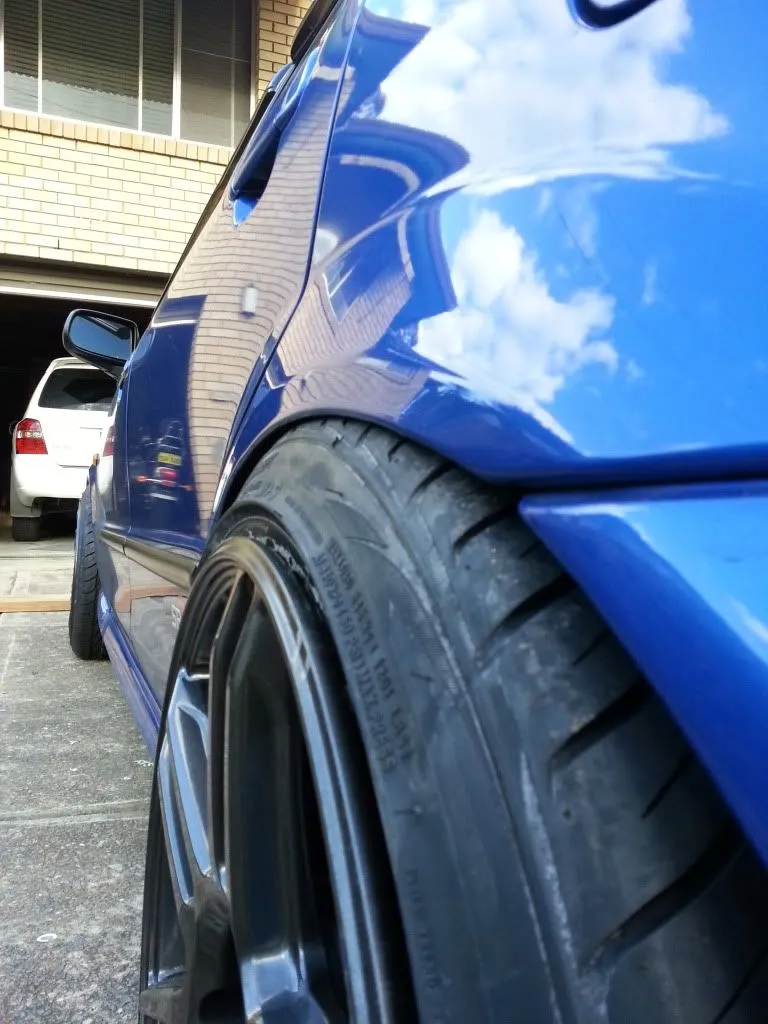

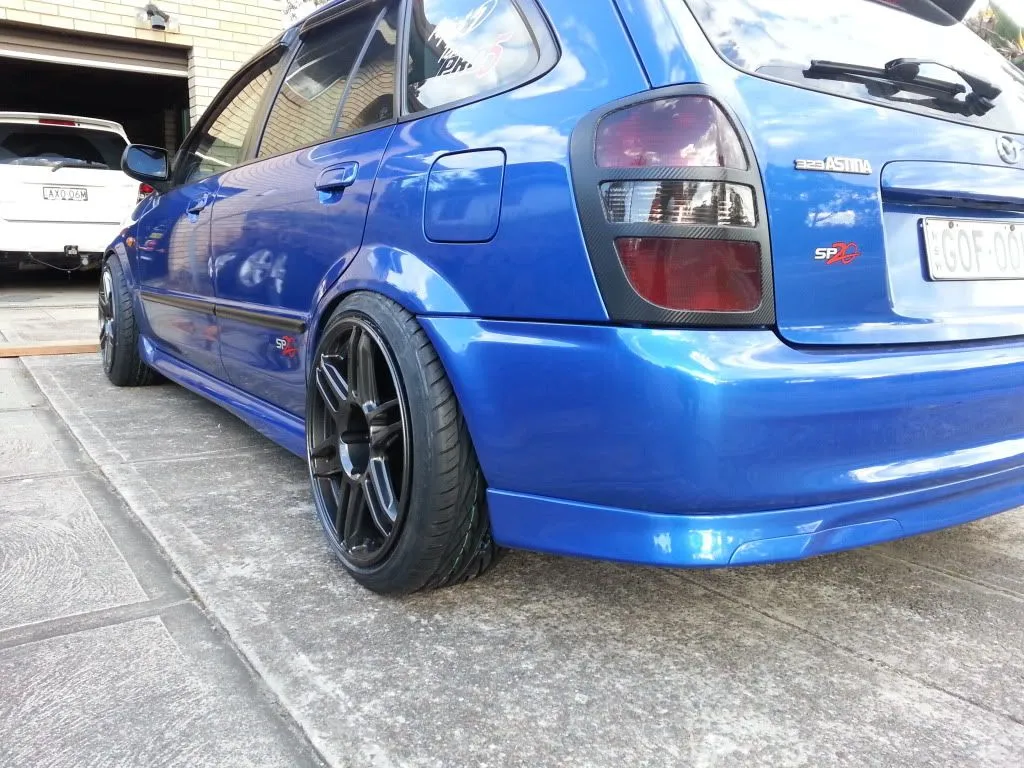

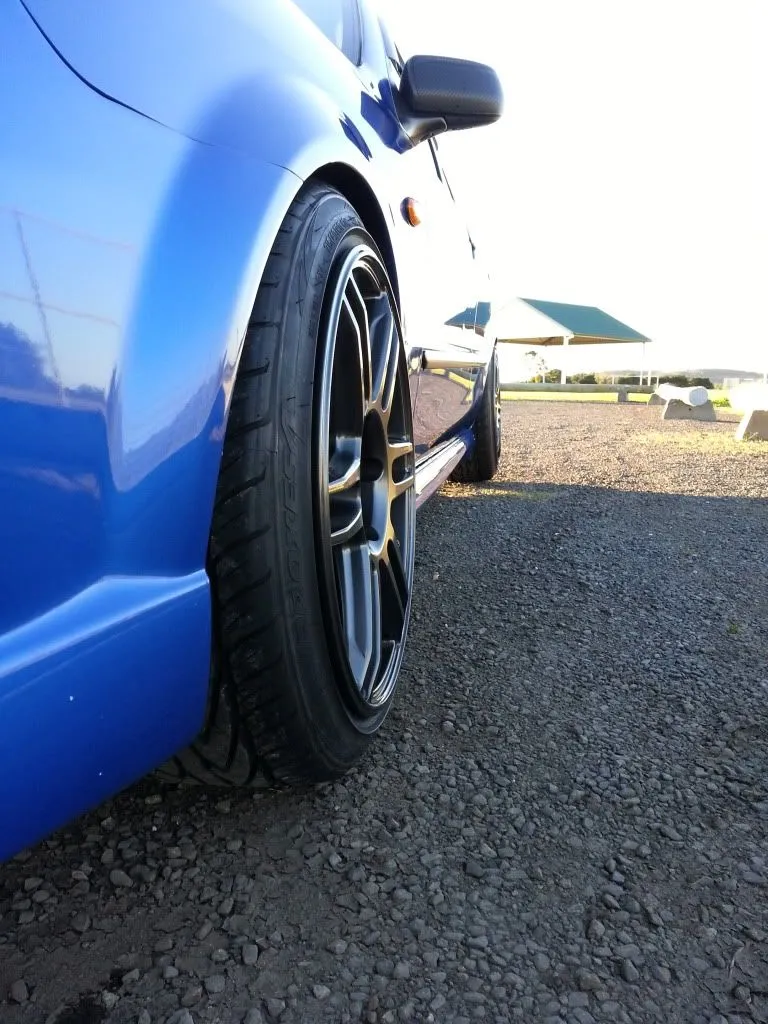

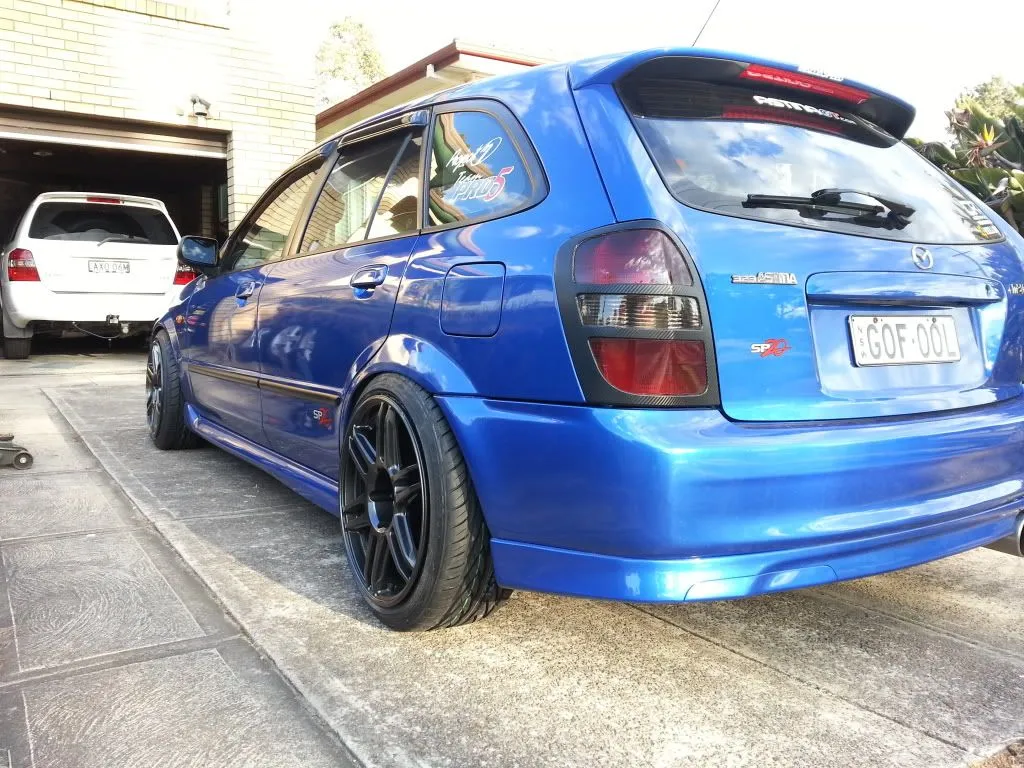

  1. Mazdaspeed MS-01S 17x8.5 +40 made by Rays with 225 45 17 Michelins
  2. Mazda SP20 J48 16 X 6 +50 with 195 50 (sold)
  3. Mitsubishi EVO 8 17X8 +38, 215 45 Kumoh Ecsta ku31. (sold)

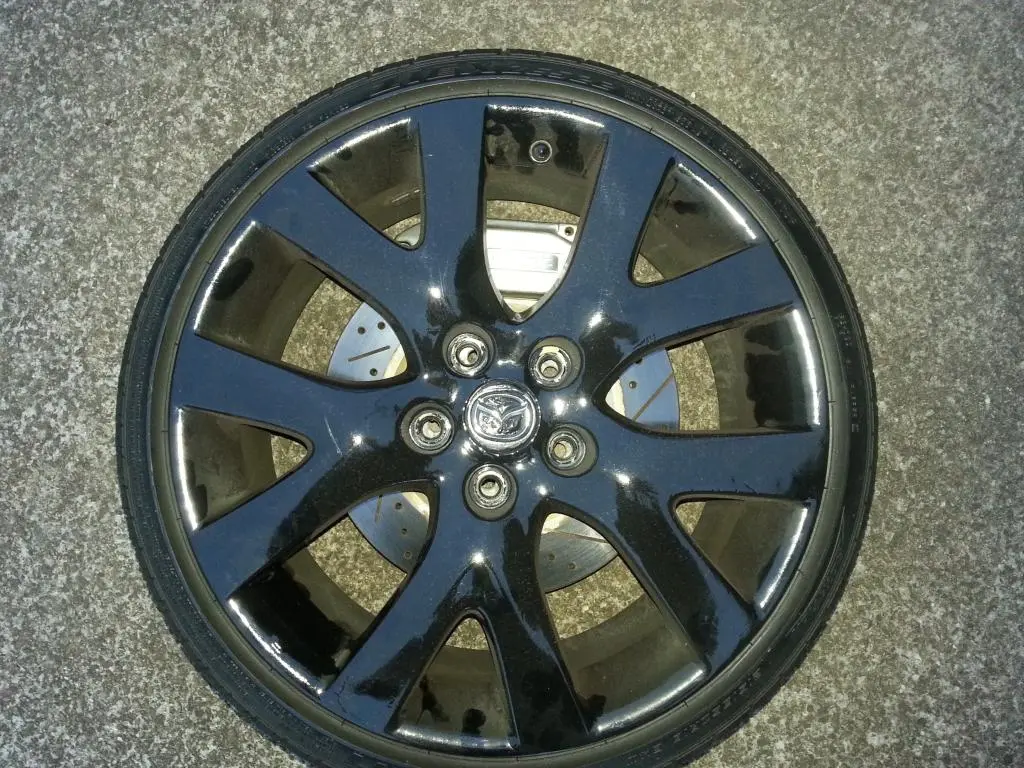

  4. Mazda CX-7 Wheels 18 X 7.5 +50 with Falken 215 35 tyres (sold)

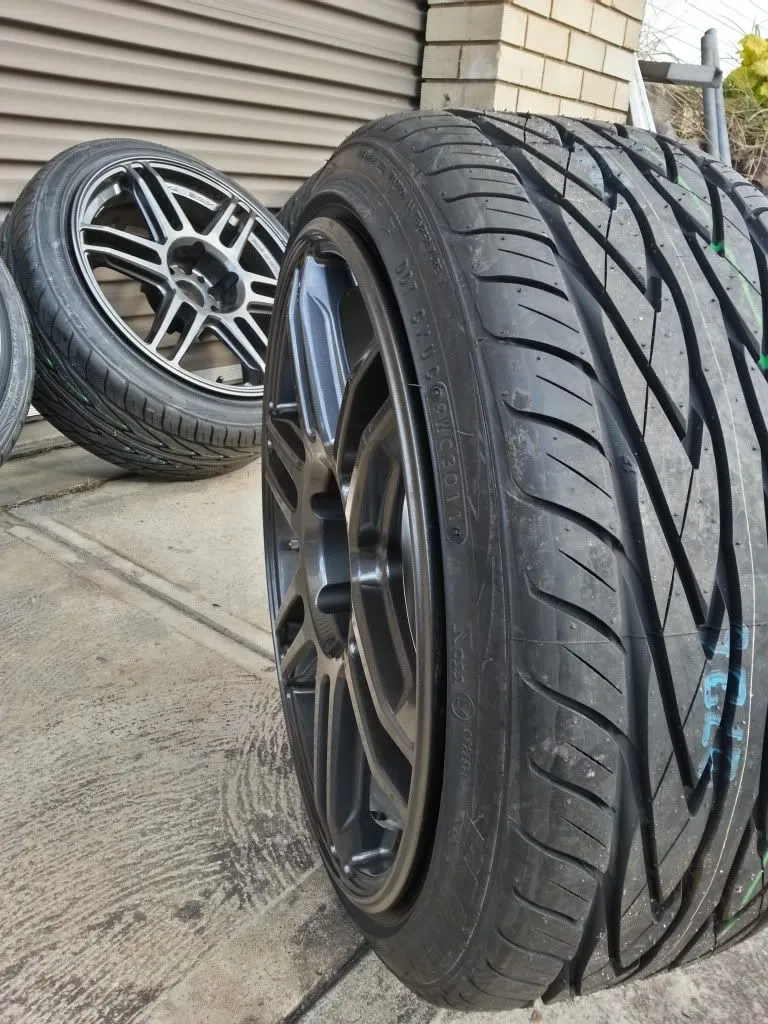

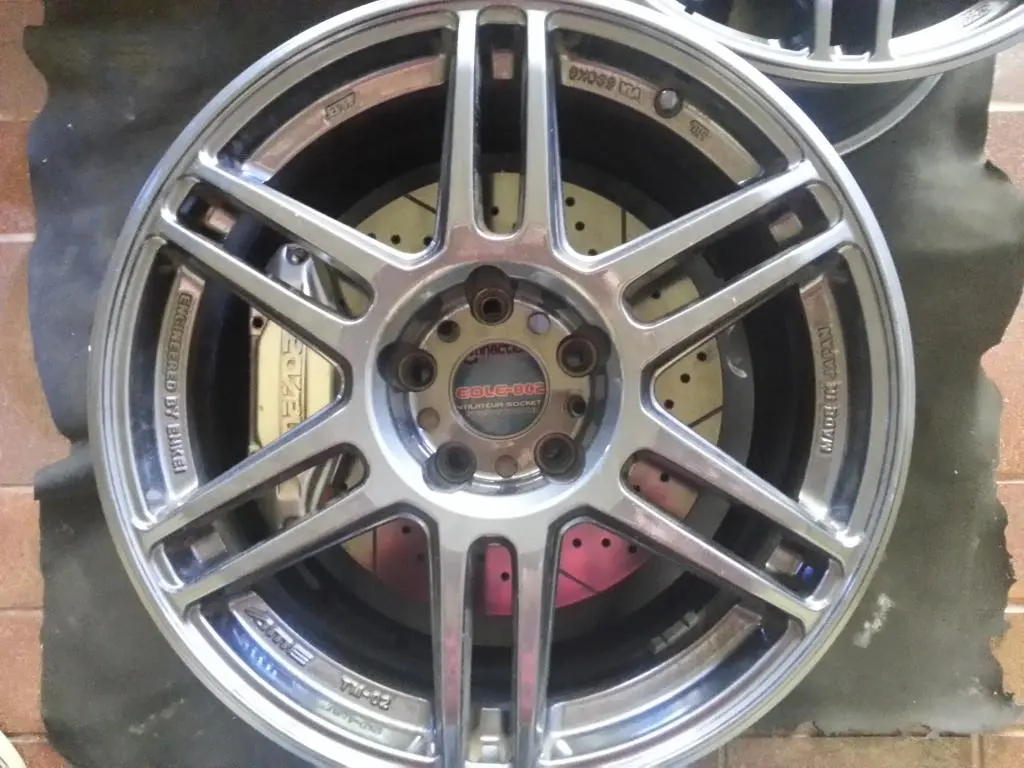

  5. AME Tracers 17X9 + 22 with Toyo Proxes 4 215 40 17 tyres (sold)

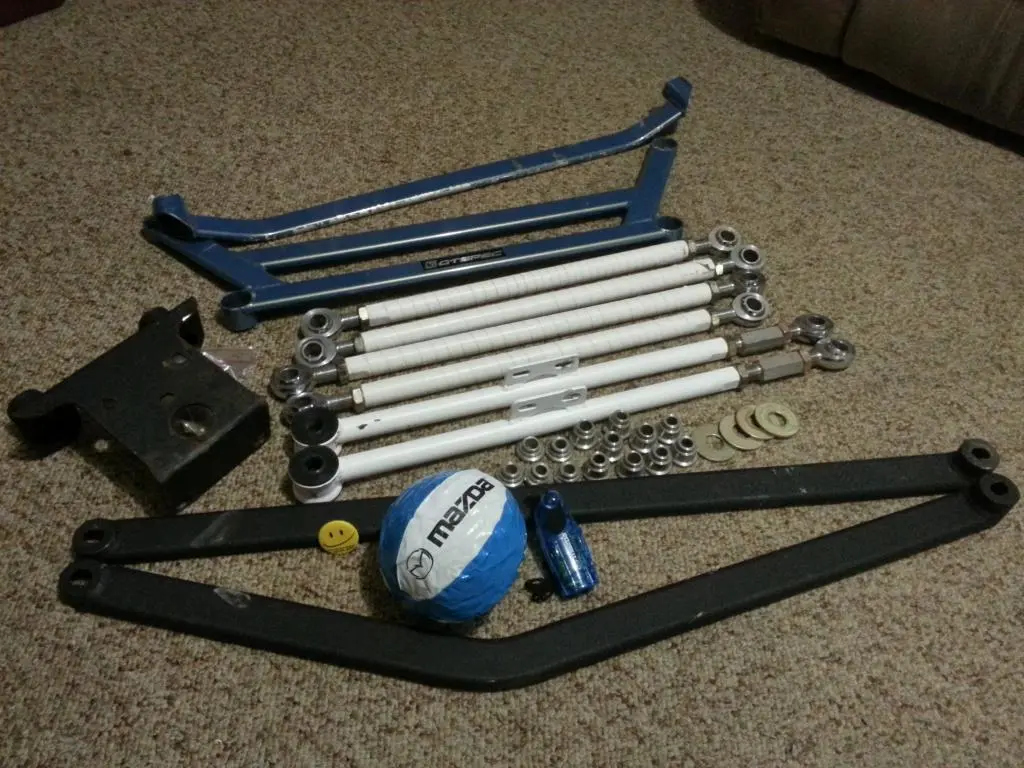

Suspension & Brakes

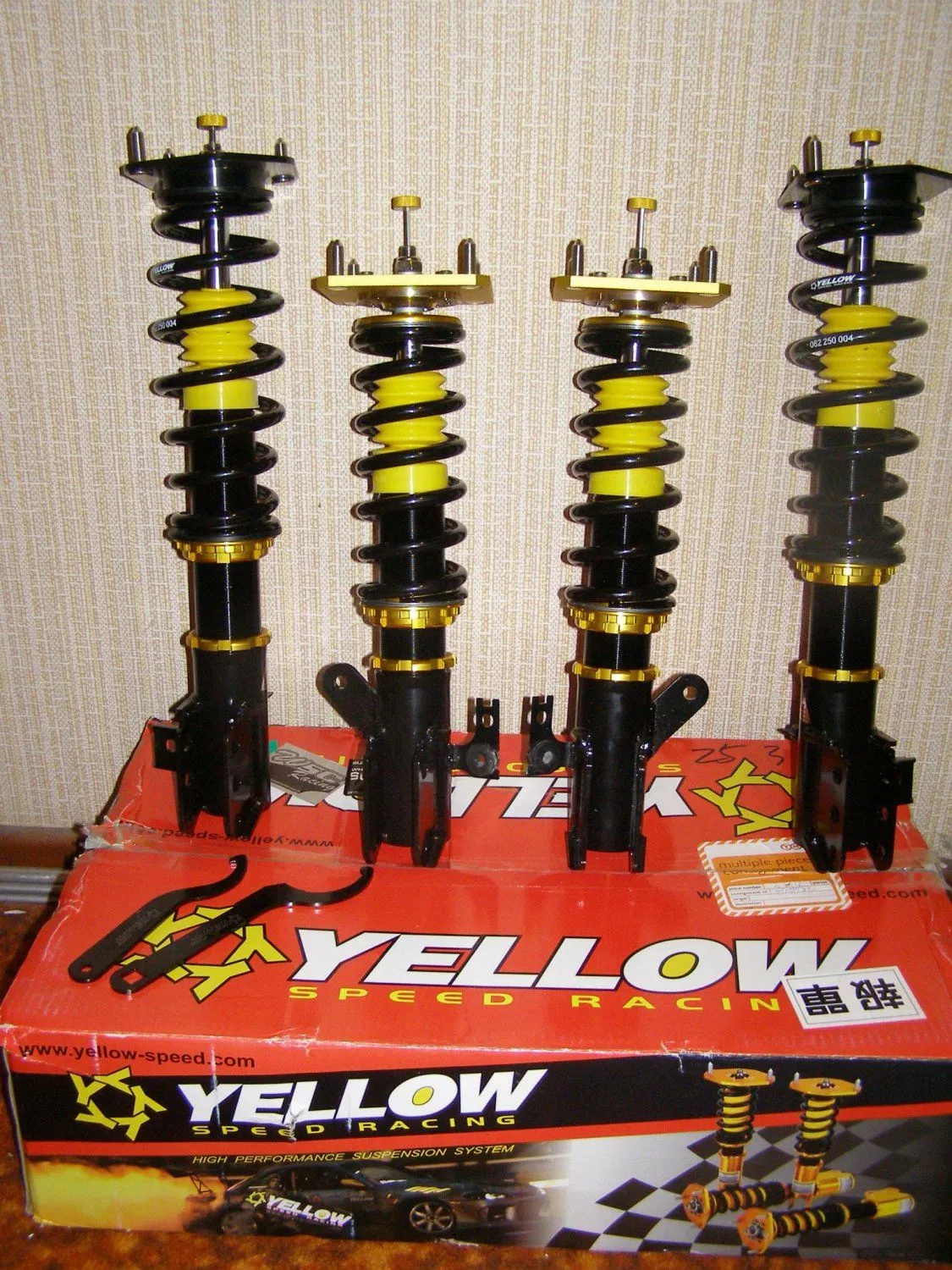

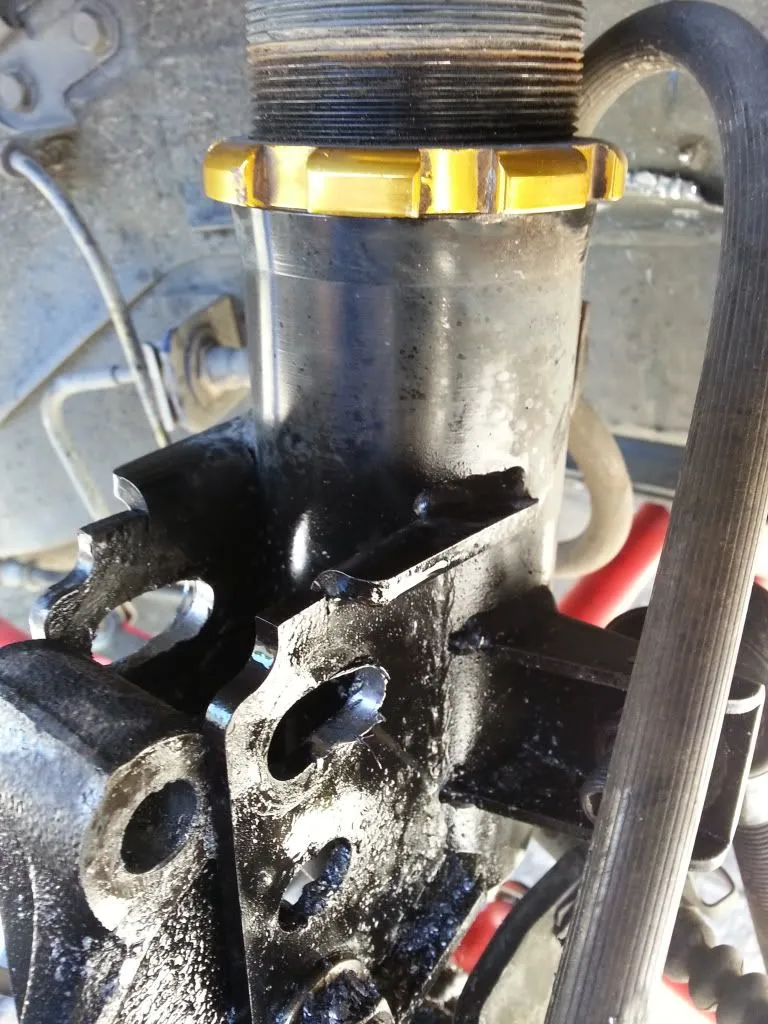

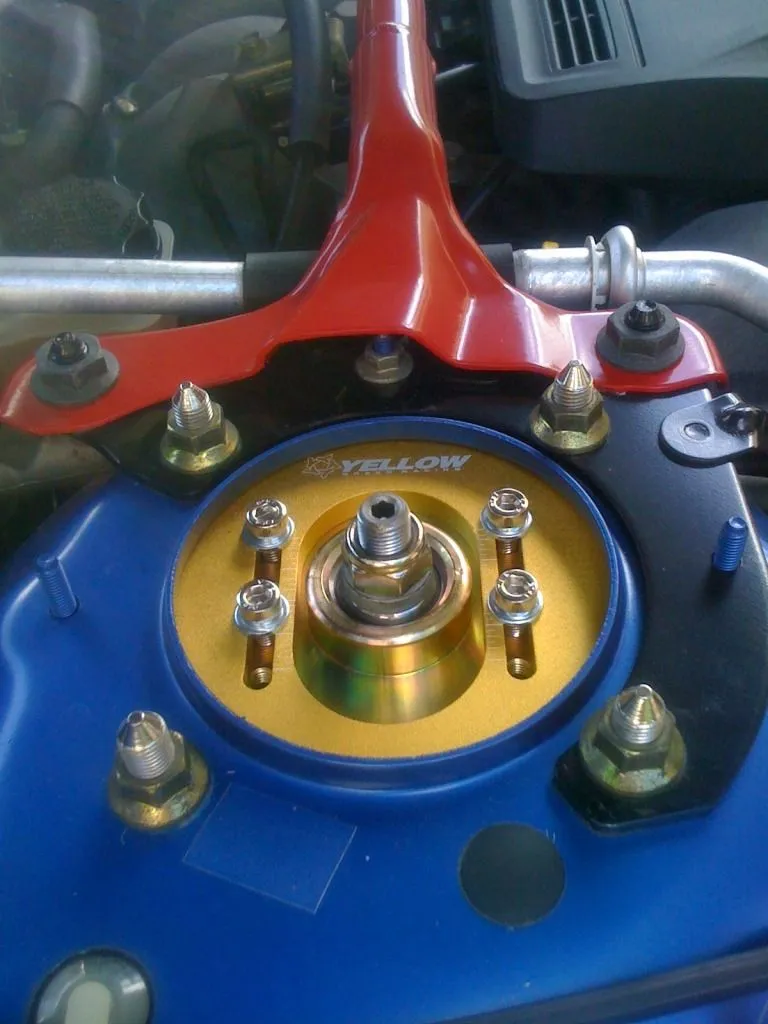

  1. Yellow Speed Racing Coilovers

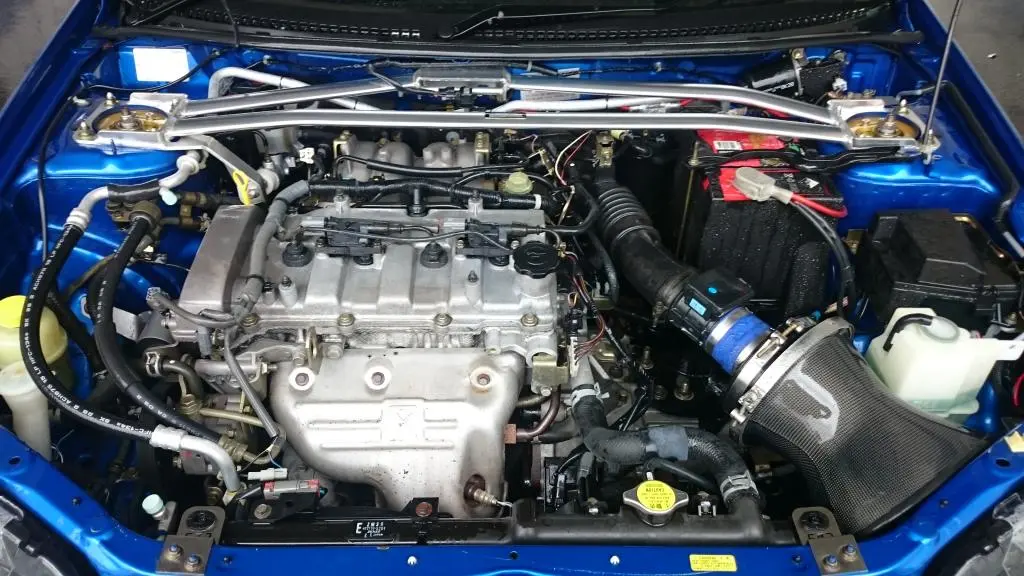

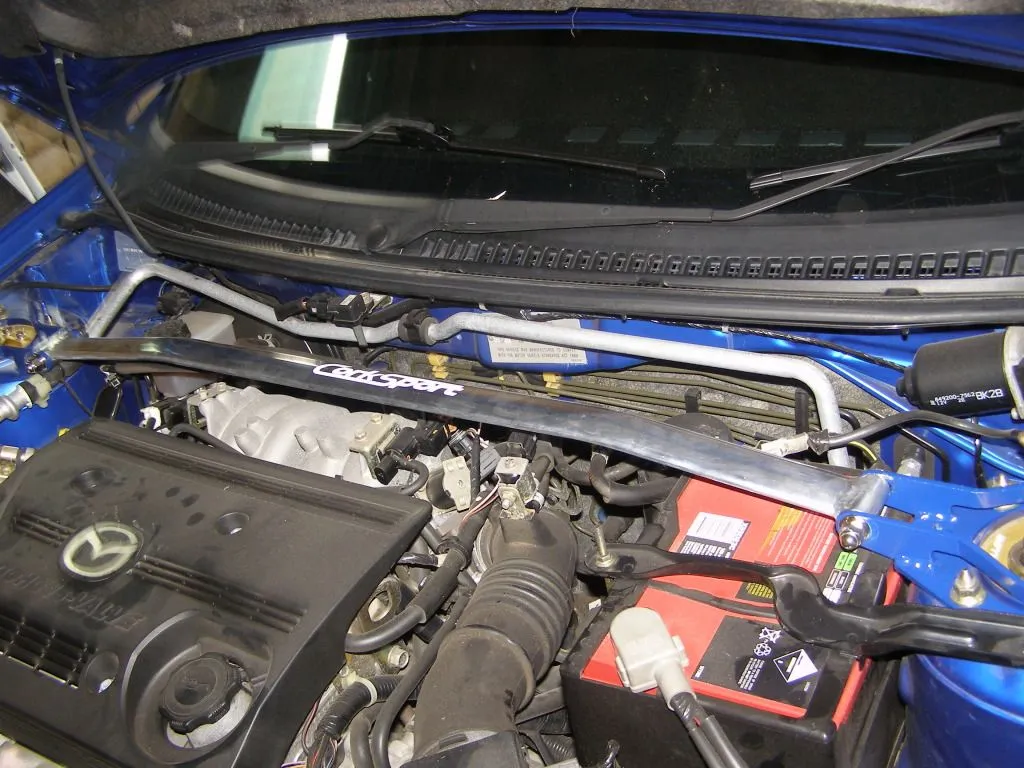

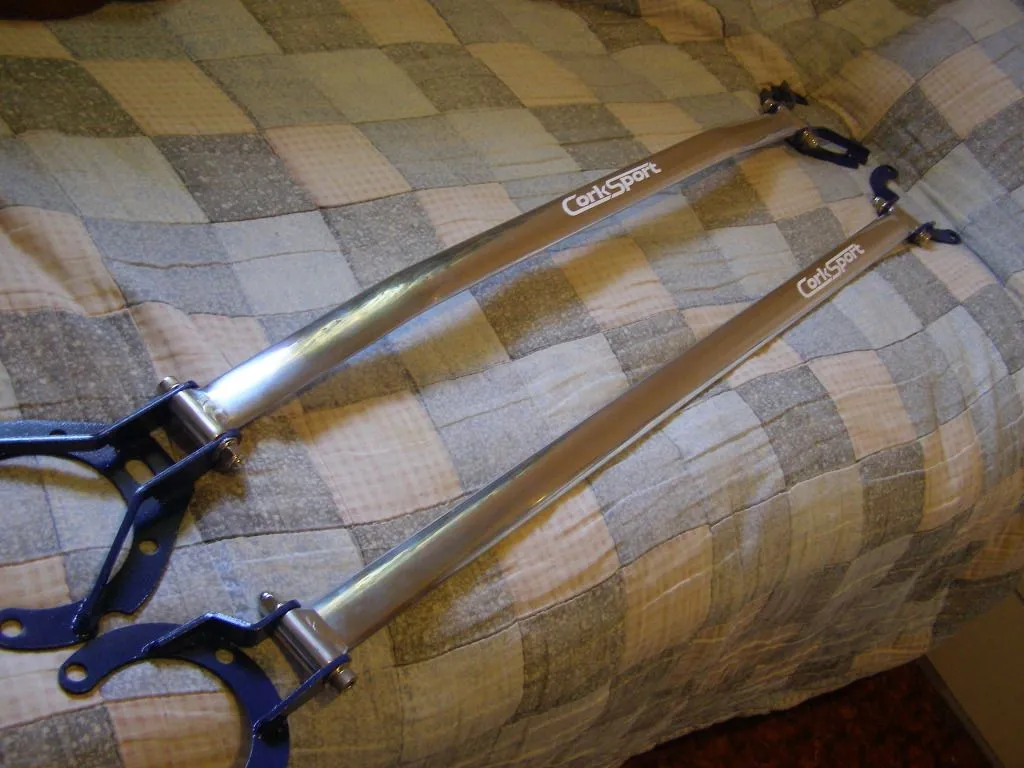

  2. Autoexe 3 point front strut brace

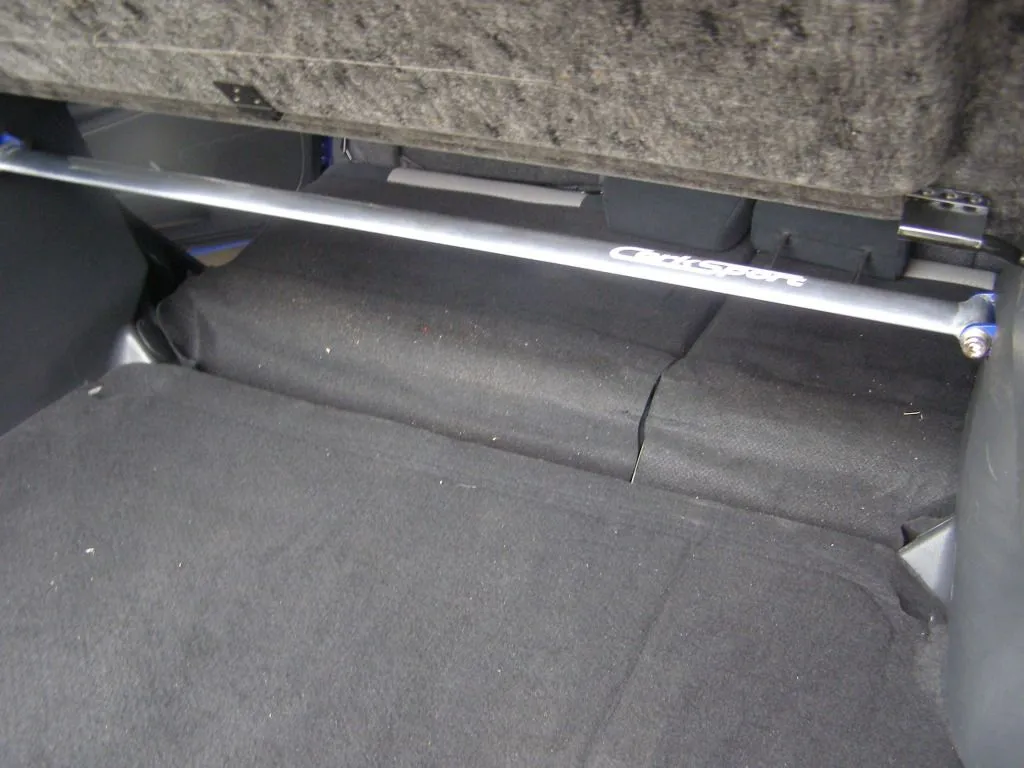

  3. Autoexe rear strut brace

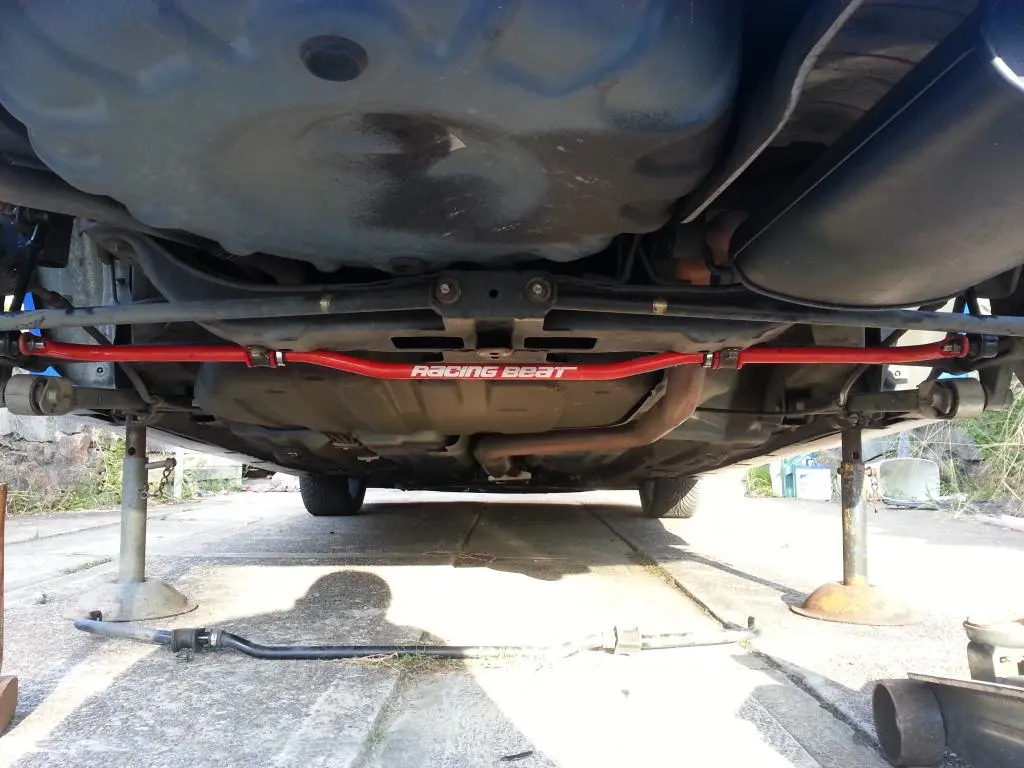

  4. Mazda Racingbeat 20mm Rear Sway Bar
  5. Pedders cut to lenght Rear endlinks.

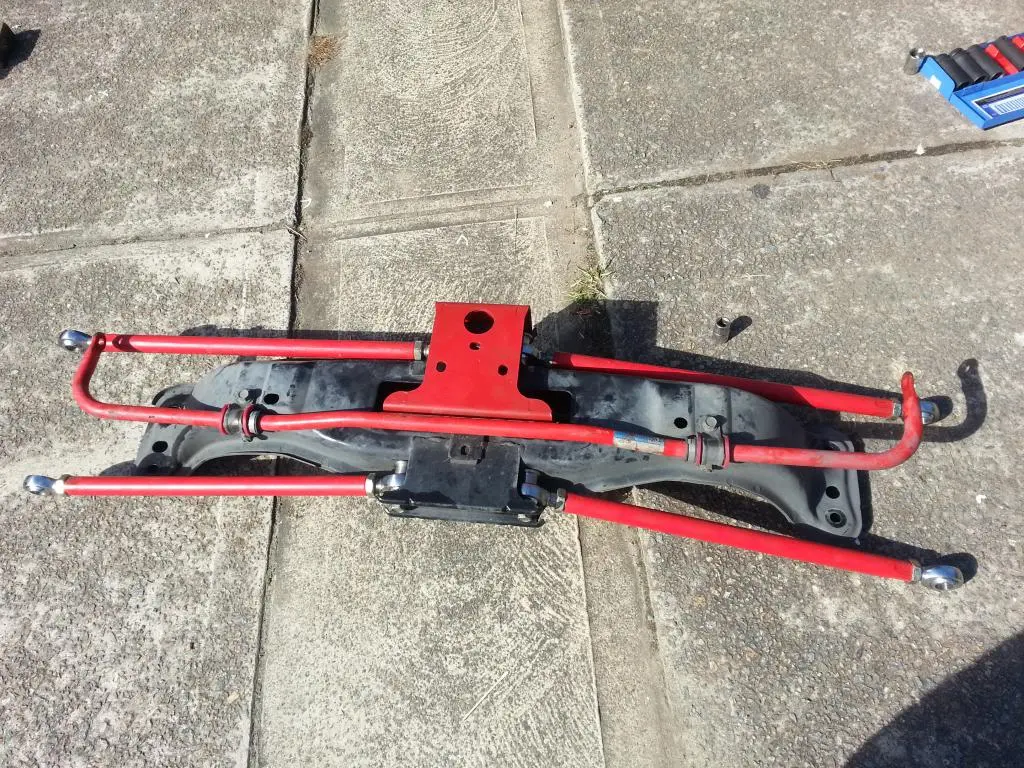

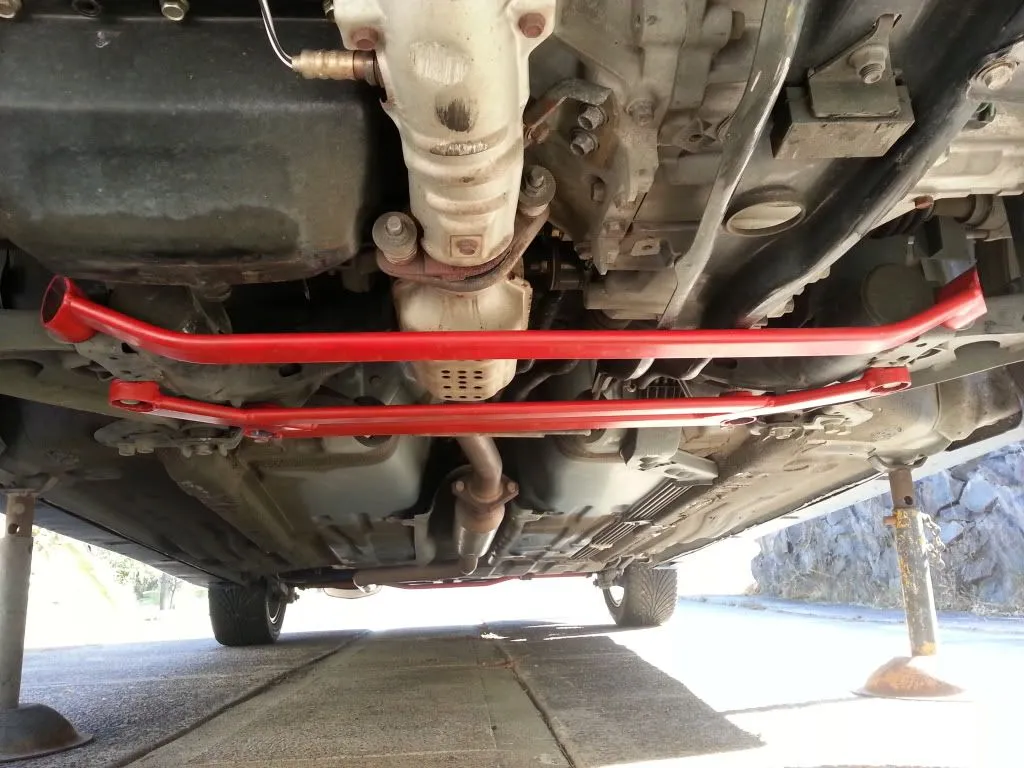

  6. GT SPEC Lower controll arm brace
  7. GT SPEC V brace
  8. GT SPEC Ladder brace
  9. GT SPEC Reinforcement panel

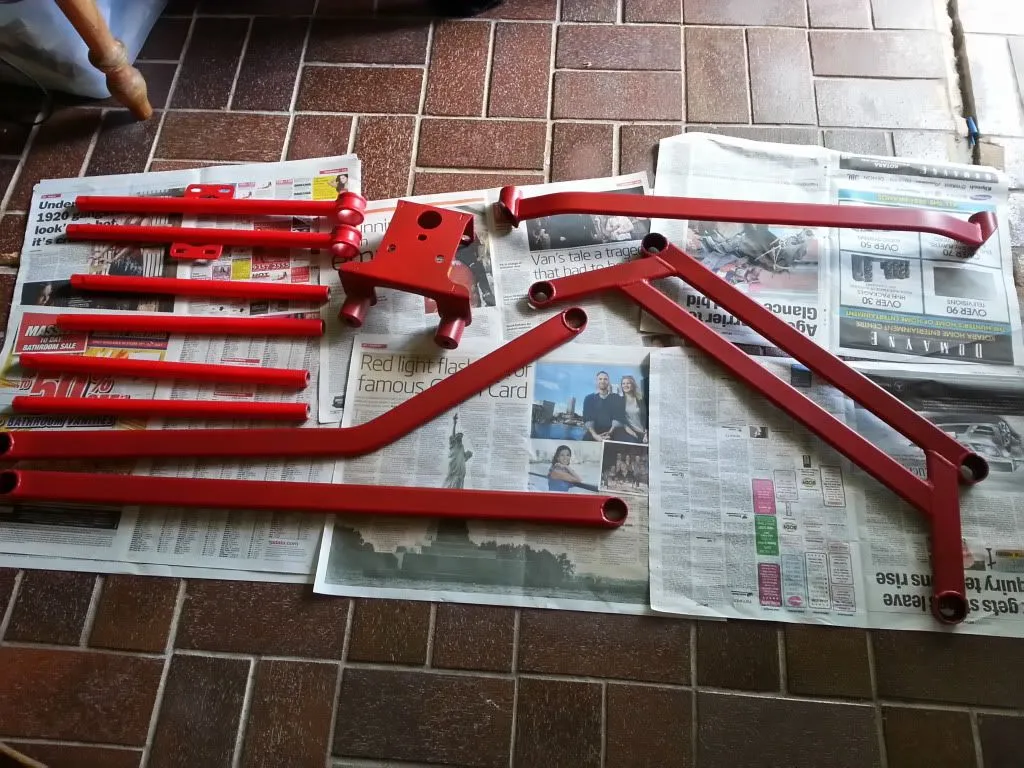

  10. AutoExe 5 piece brace set

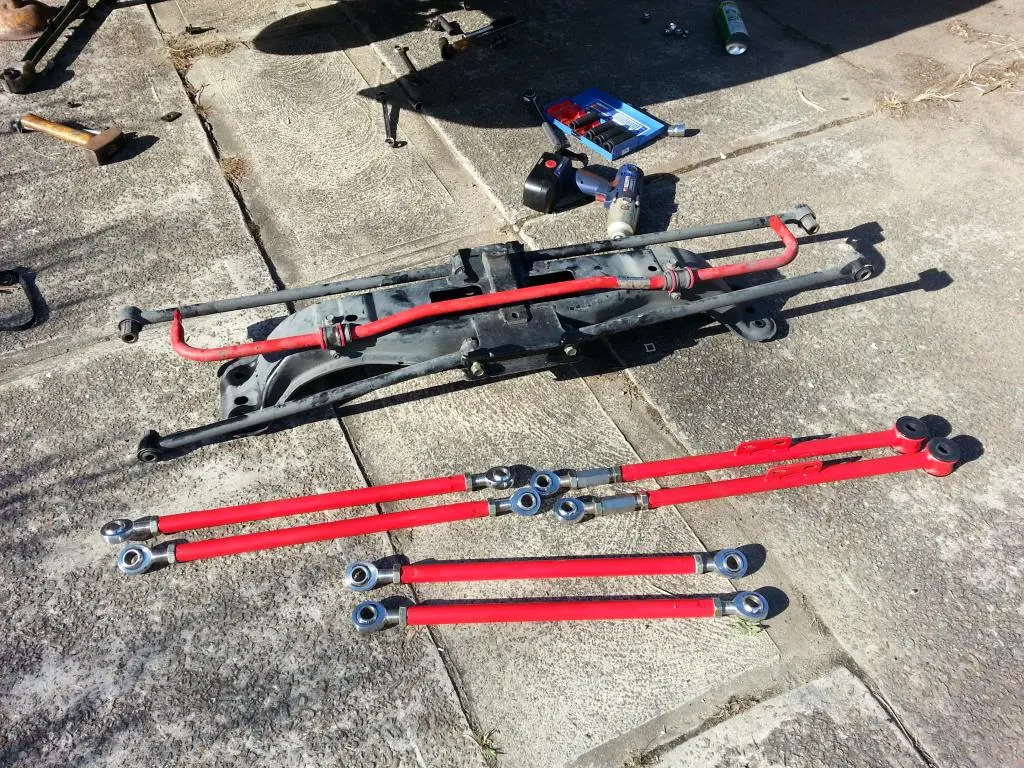

  11. AAC Lateral Link Kit

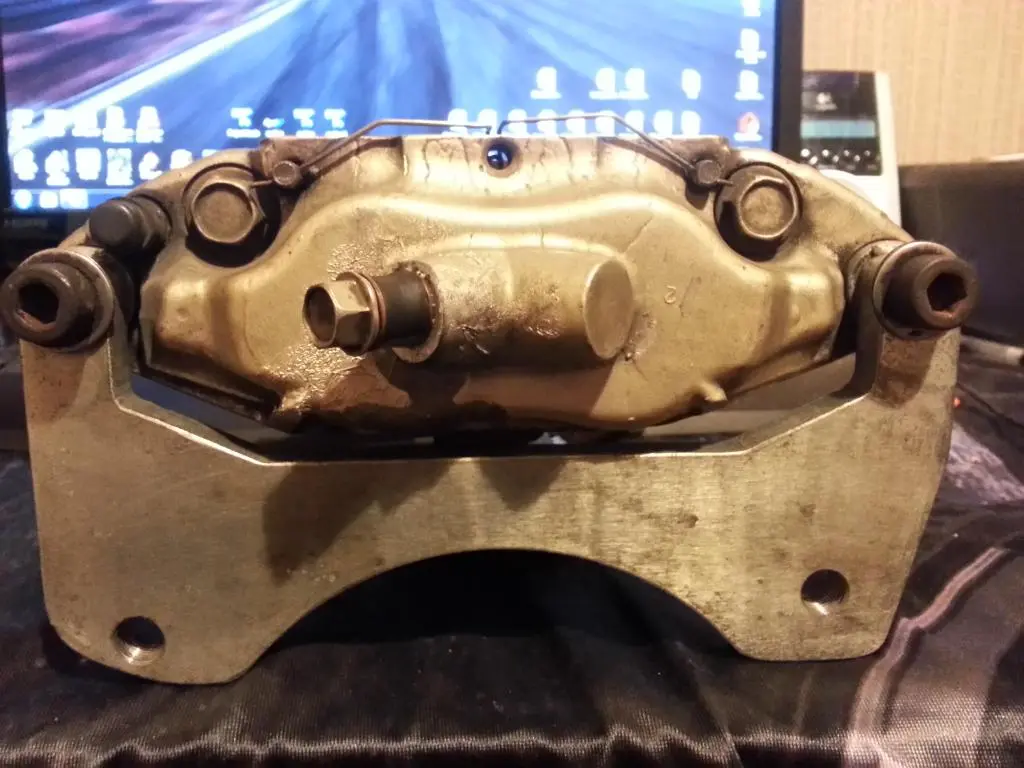

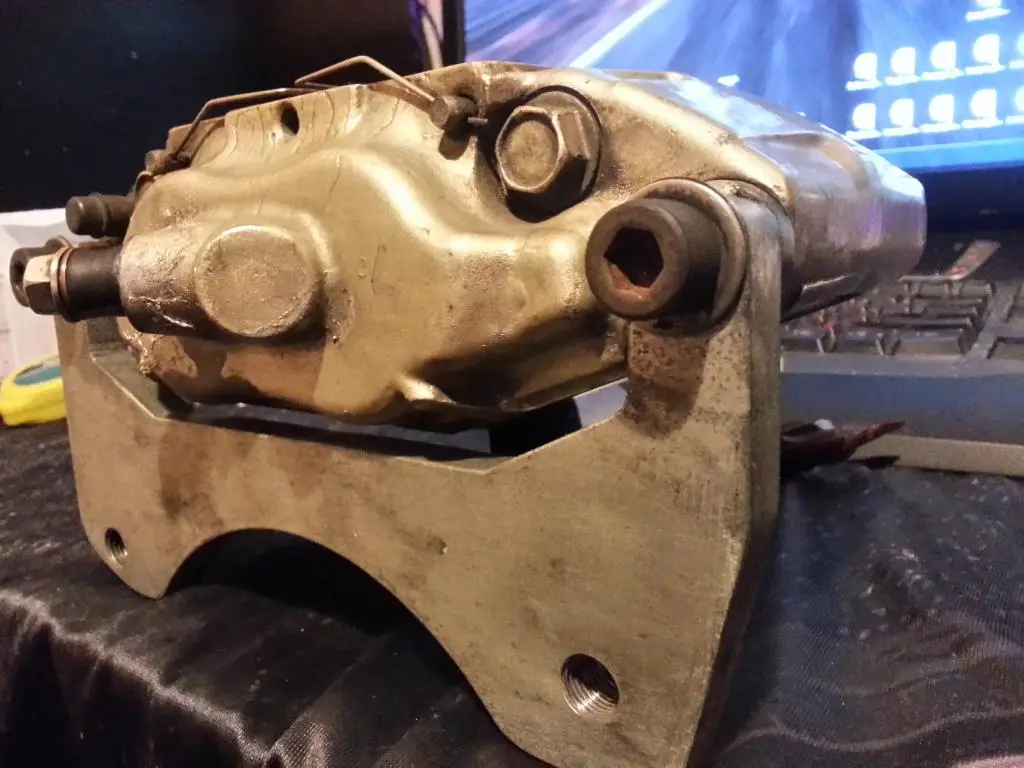

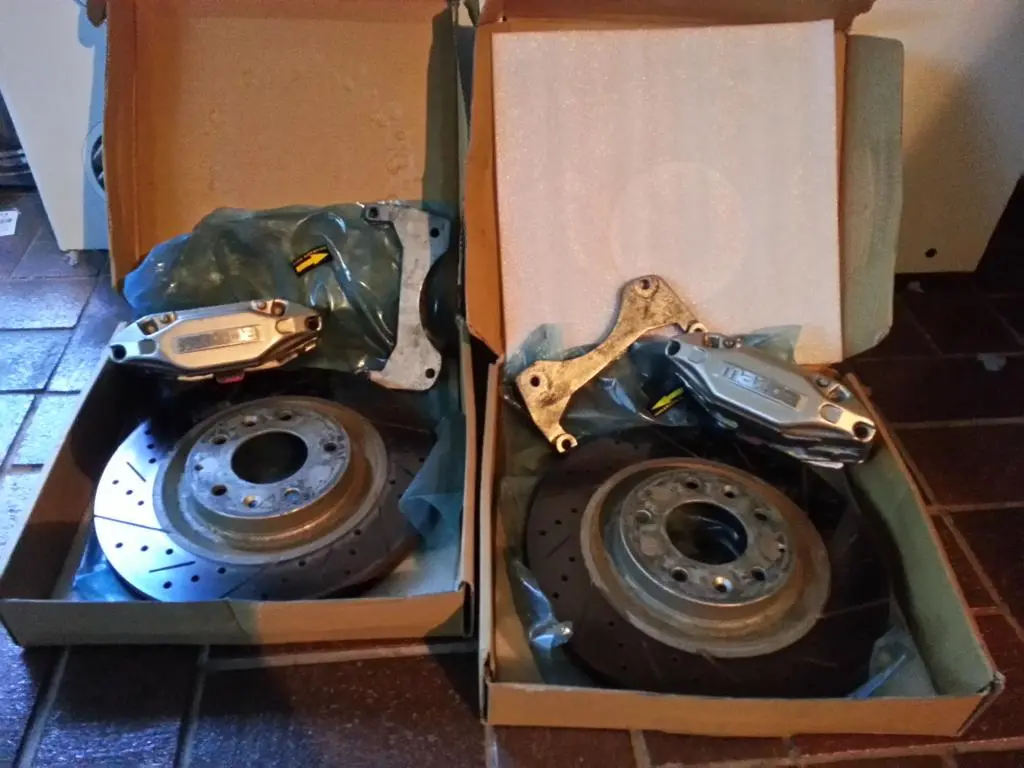

  12. Mazda RX7 FD3S 4 pot Front Calipers (custom brackets)
  13. 320mm Slotted Rotors

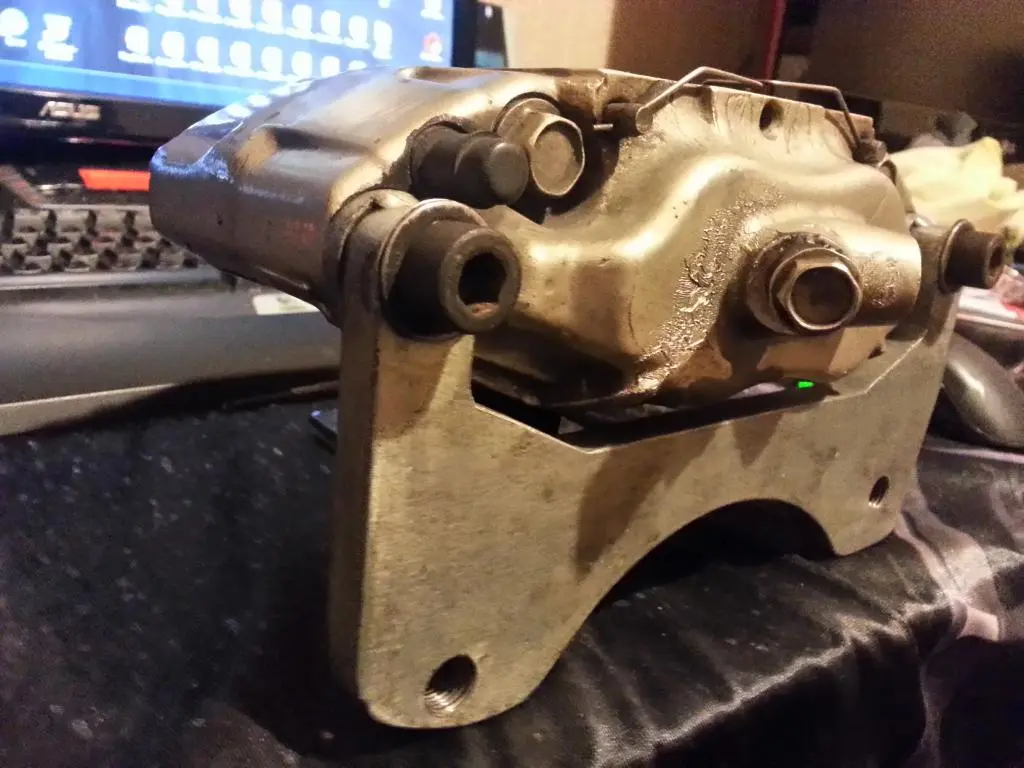

  14. Mazda MPS 6 Rear Callipers
  15. Mazda MPS 6 Rear Rotors 314mm
  16. Extended Handbrake cables by 210mm over standard.
  17. SuperPro Polyurethane Front LCA Bushes Front/Rear
  18. Mazda 626 (97) Front LCA Ball Joints
Interior/Entertainment
  1. Dash Mat
  2. Genuine SP20 Floor Mats
  3. Mazdaspeed Seat covers

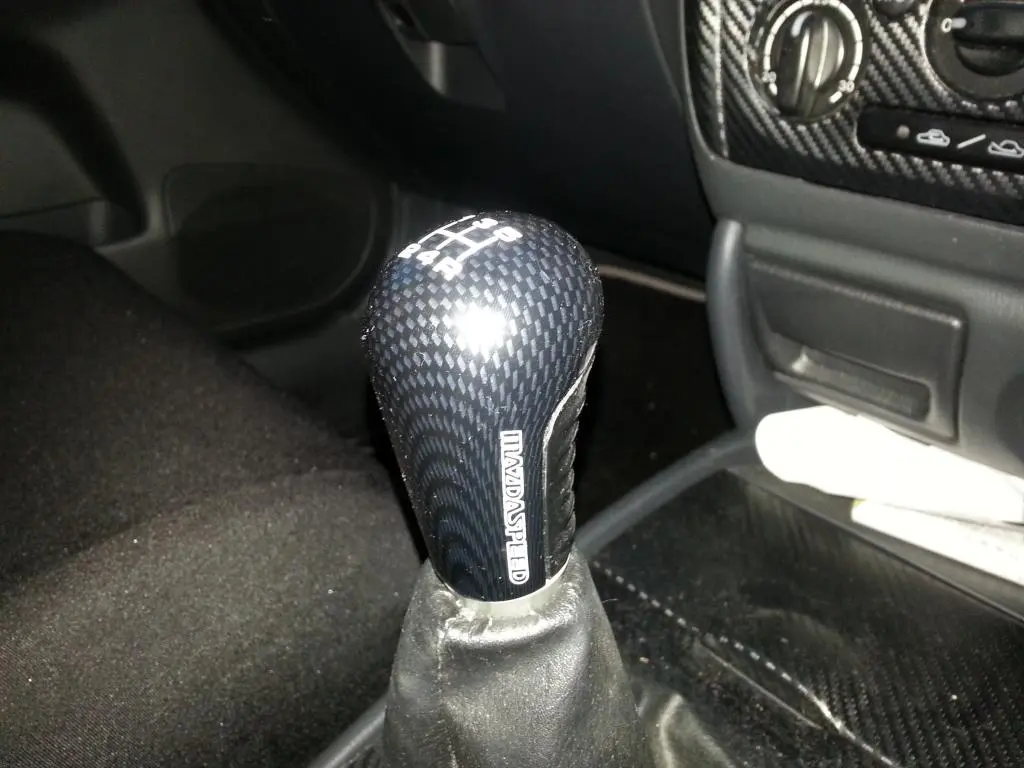

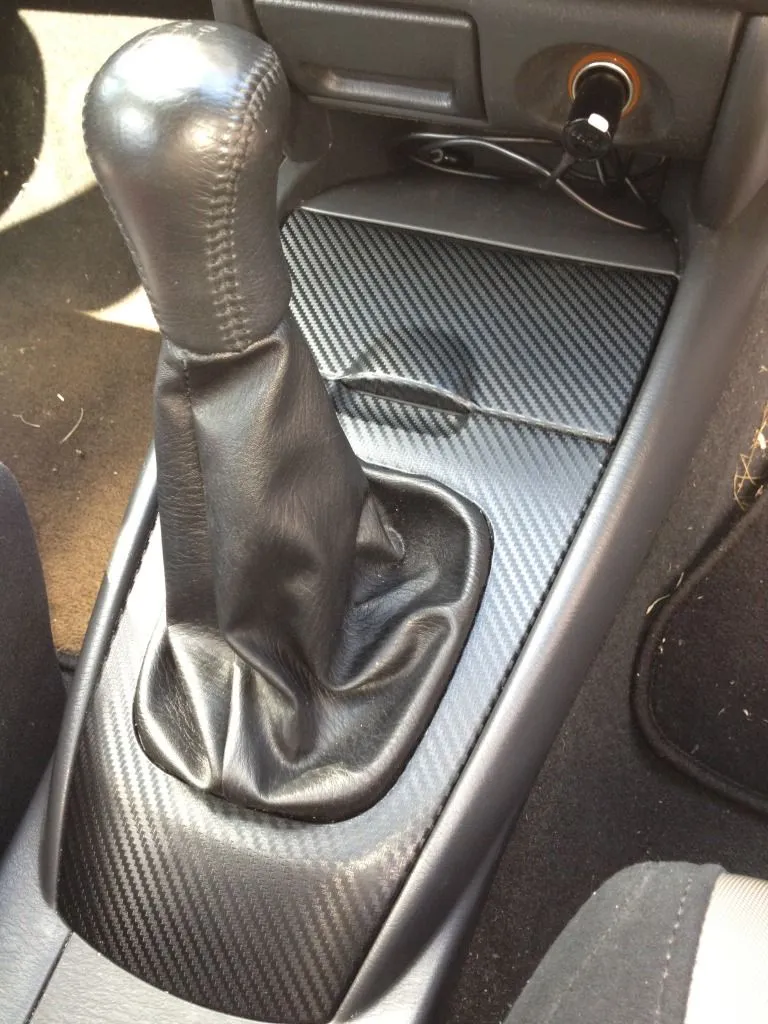

  4. Mazdaspeed Carbon fiber gear knob

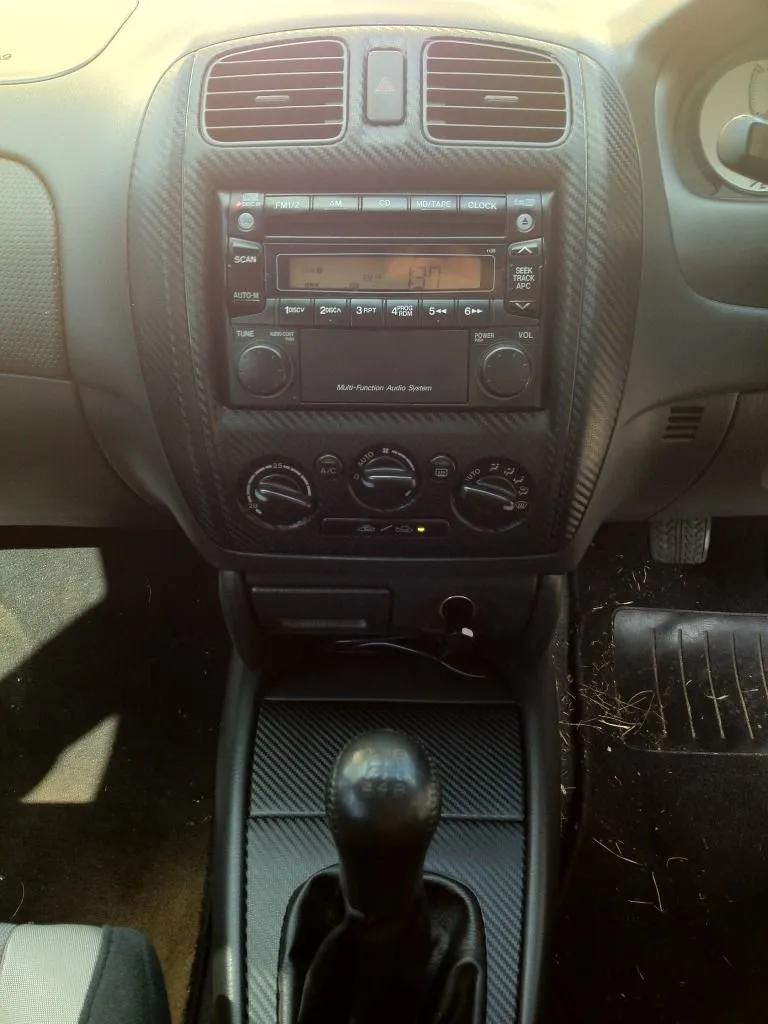

  5. Pioneer single din head unit
  6. Instrument Cluster Gauge Rings
  7. Dual Gauge Instrument Cluster shroud (Gauges to be fitted)
  8. Samsung Galaxy Note 8.0
  9. Kenwood 12" Sub in box
  10. Pioneer Amp
Engine

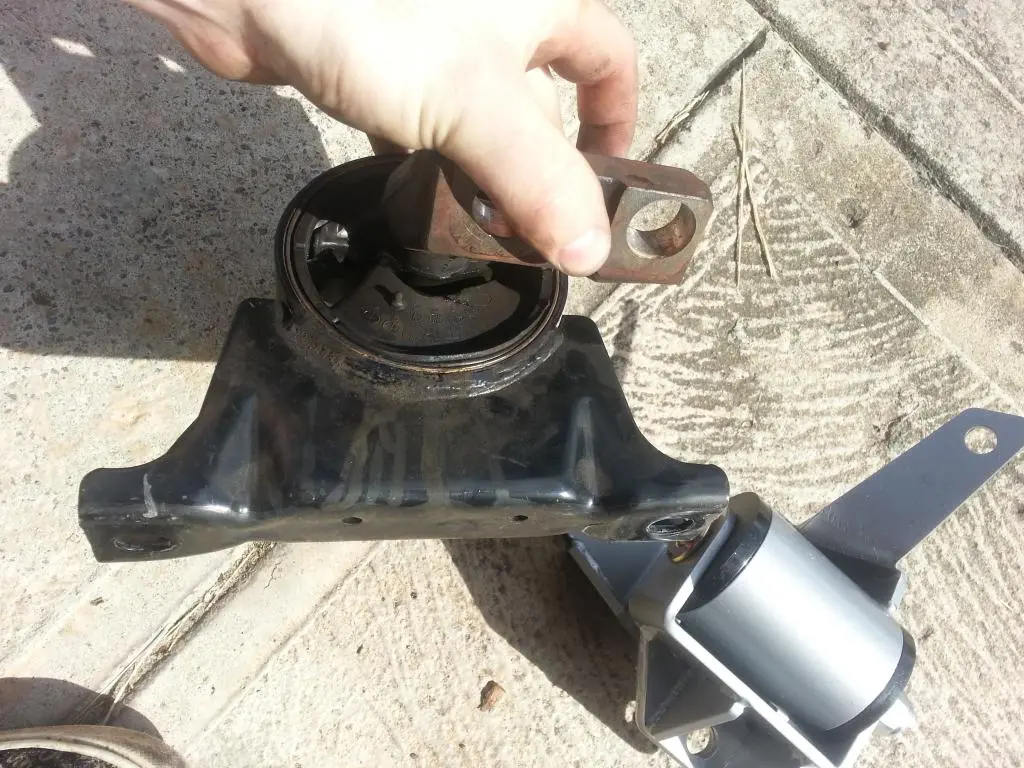

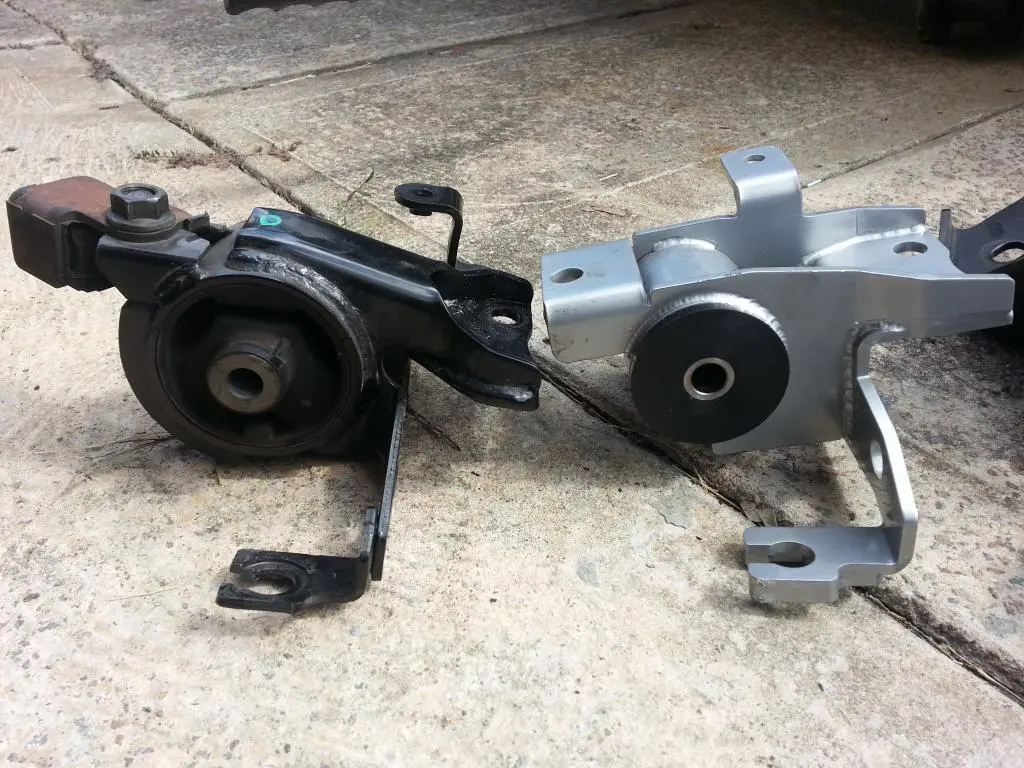

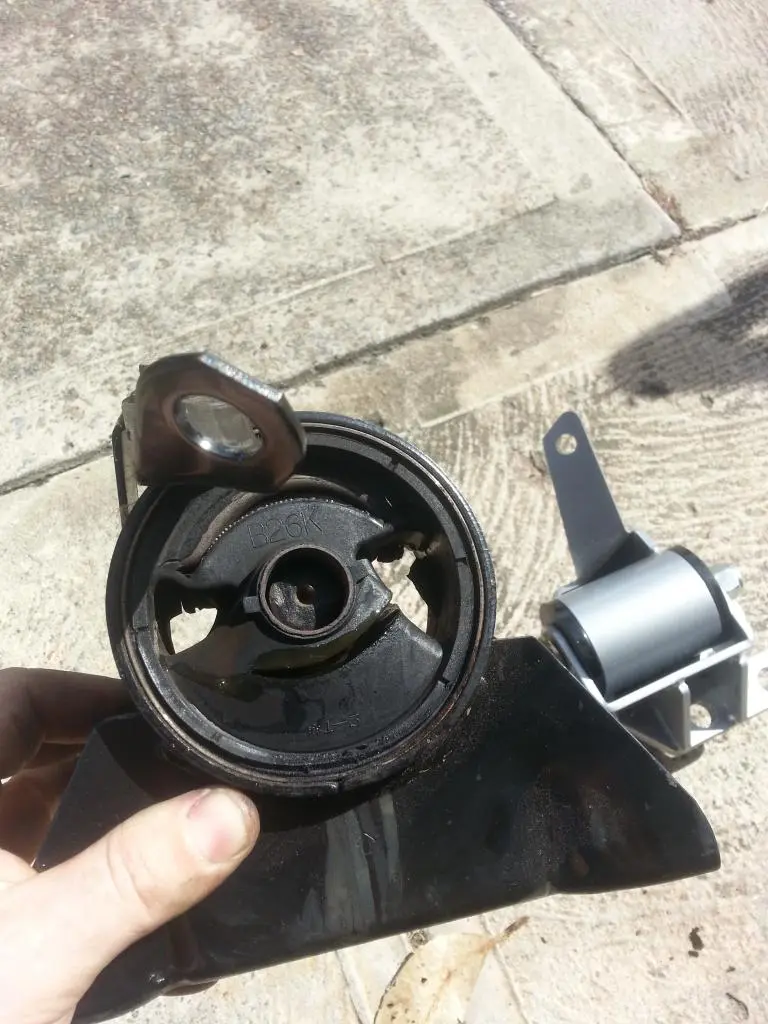

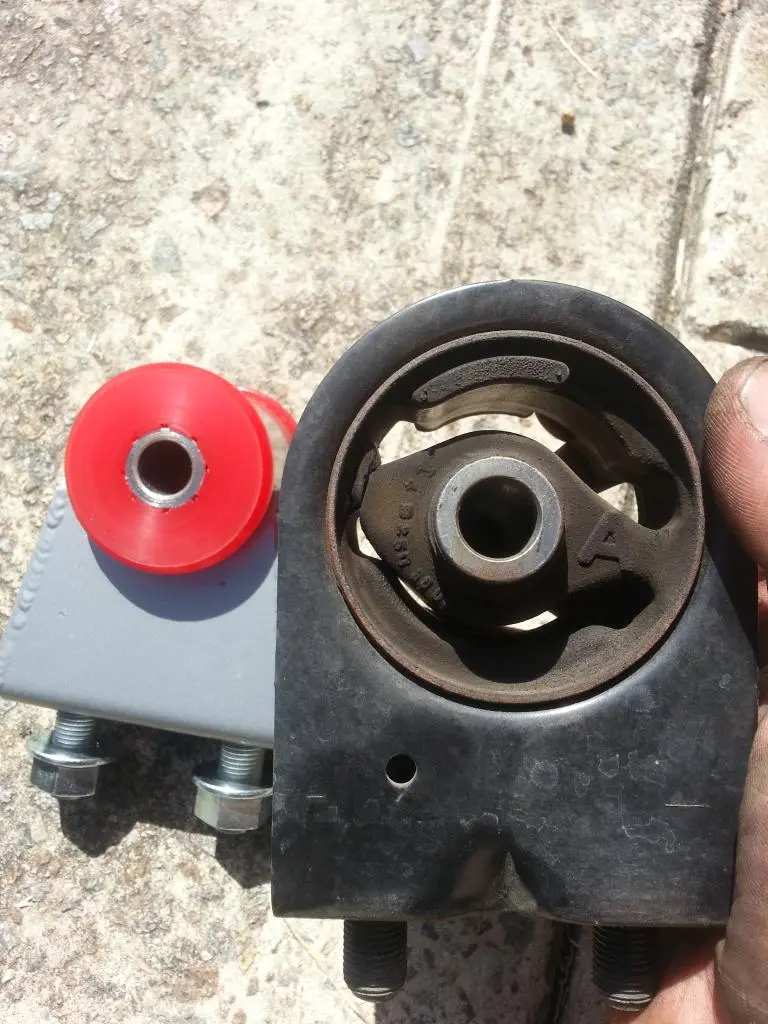

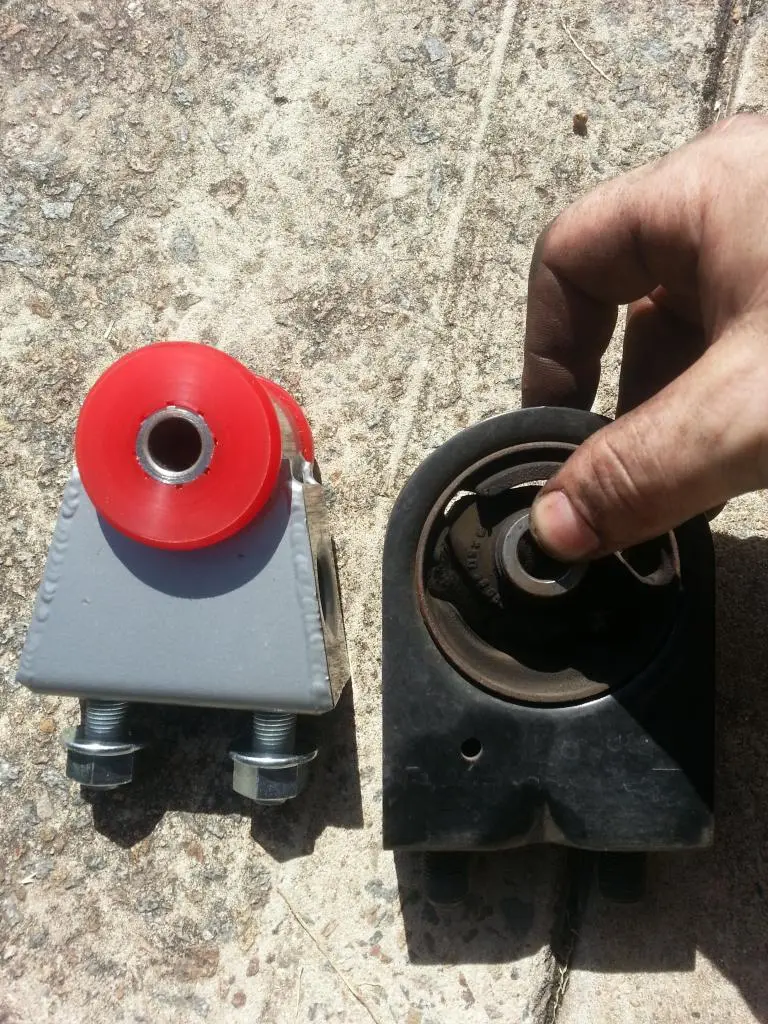

  1. AWR Engine Mounts 70 Duro

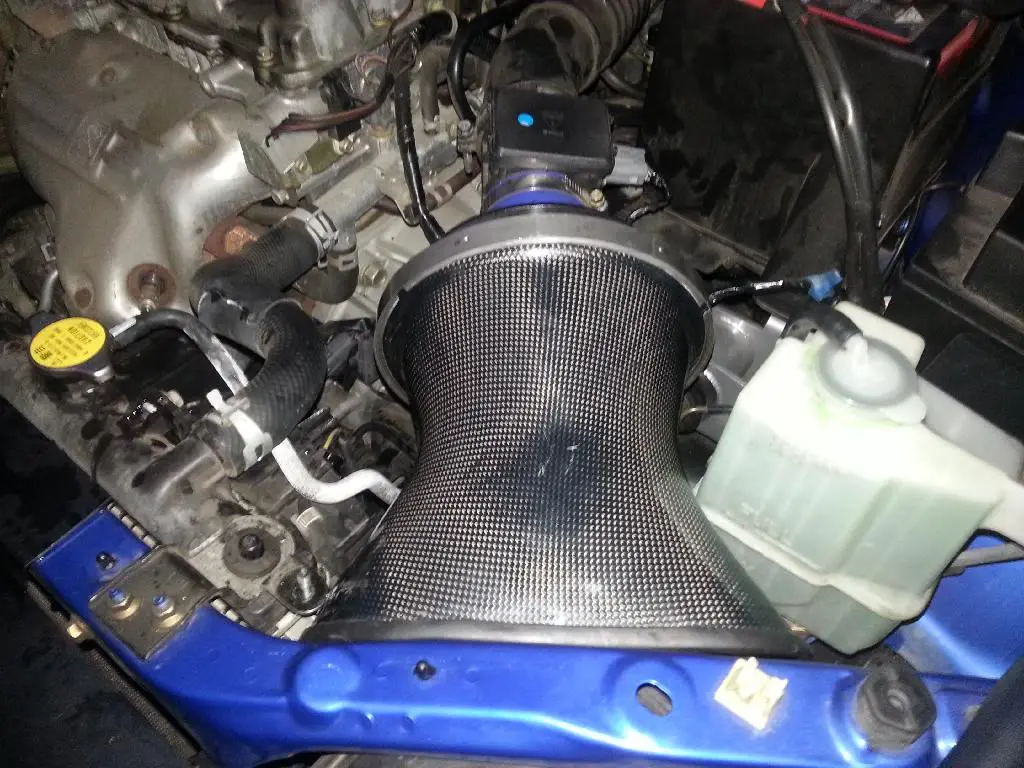

  2. Autoexe Carbon Cold Air Intake
  3. CR3 Motorsports Radiator Brackets
  4. CP PISTONS .20thou over
  5. K1 RODS
  6. Custom Stage 3 Integral cams with my own personal touch made from fresh core (no regrind)

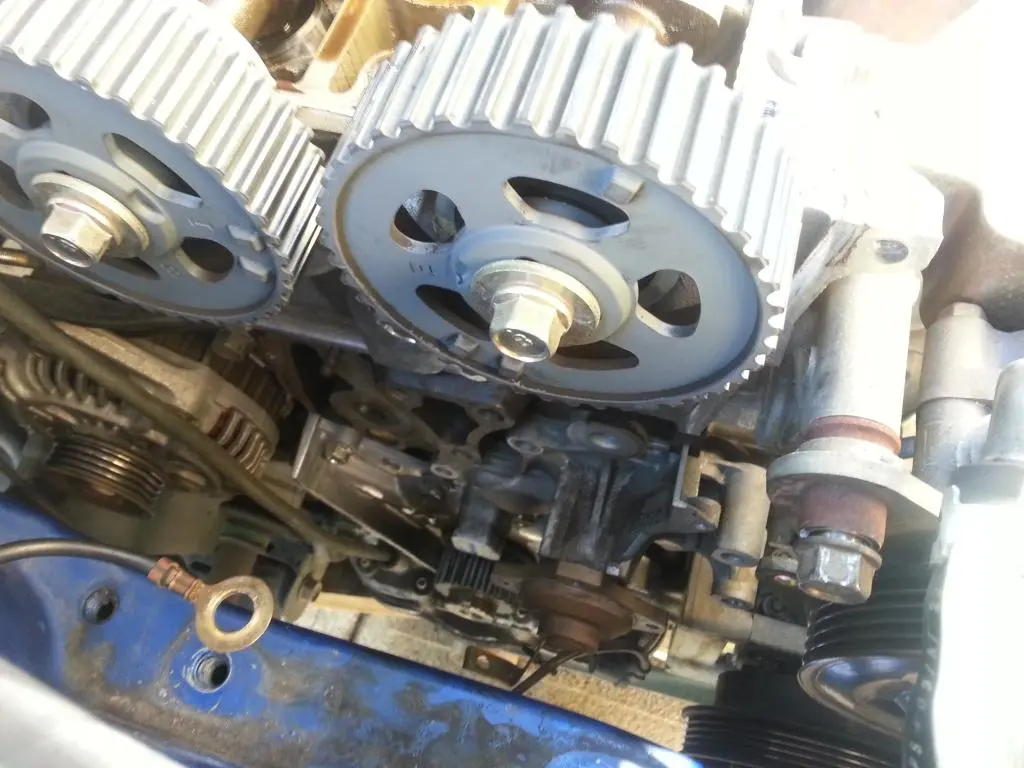

  7. Focus Adjustable Cam Gears
  8. Supertech 1mm oversize Intake/Exhaust Valves
  9. Supertech Dual valve springs
  10. Ported Head
  11. 505 Crank Pulley
  12. 505V3 Intake Manifold
  13. 505V2 Airbox with 4 inch inlet
  14. JaysRacing Intake Thermo Spacer
  15. JaysRacing Throttle Body Thermo Spacer
  16. JaysRacing Fuel Rail
  17. Raceworks 1200cc injectors
  18. SteedSpeed T3 Exhaust Manifold
  19. Garret GTX3076 0.68 Twinscroll Turbo
  20. PWR Radiator
  21. PWR Intercooler
  22. ARP Headstuds
  23. ARP Mainstuds
  24. ARP Exhauststuds
  25. AWR Sump
  26. Doc B bypassed Oil Pump
Gearbox/Clutch/Diff
  1. PAR Straightcut Gearset 1-4
  2. Mazda GTX 5th gear
  3. Ferdi Trans Brace
  4. M-Factory LSD
  5. Xedey Twin Plate Clutch and Flywheel
  6. ARP Flywheel bolts
  7. Corksport Bronze shifter Bushes

Last edited:

Hammo

GJ 6/ATENZA Wagon, BJ 323 SP20 (PRO5)
:
Brisbane QLD AUS

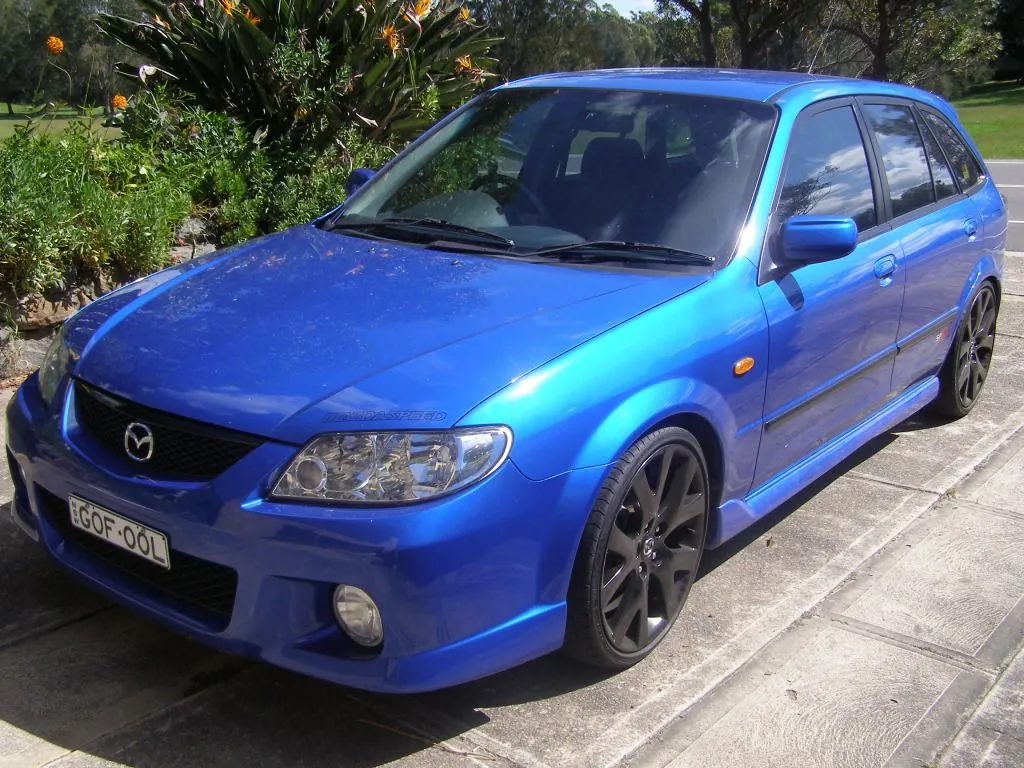

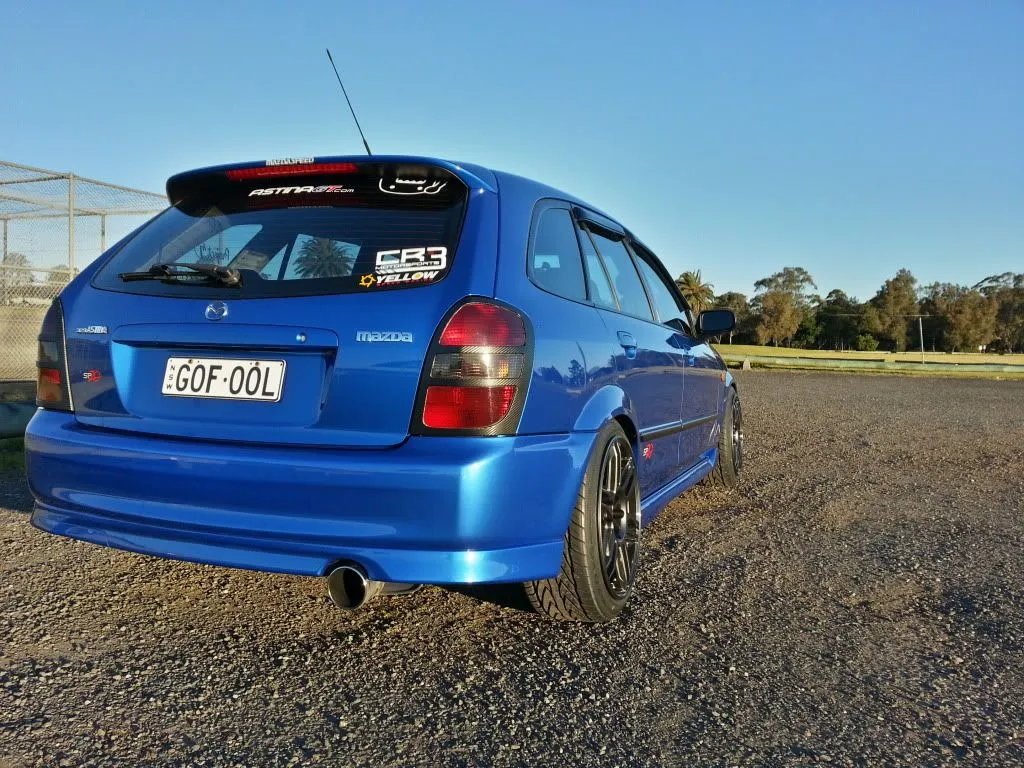

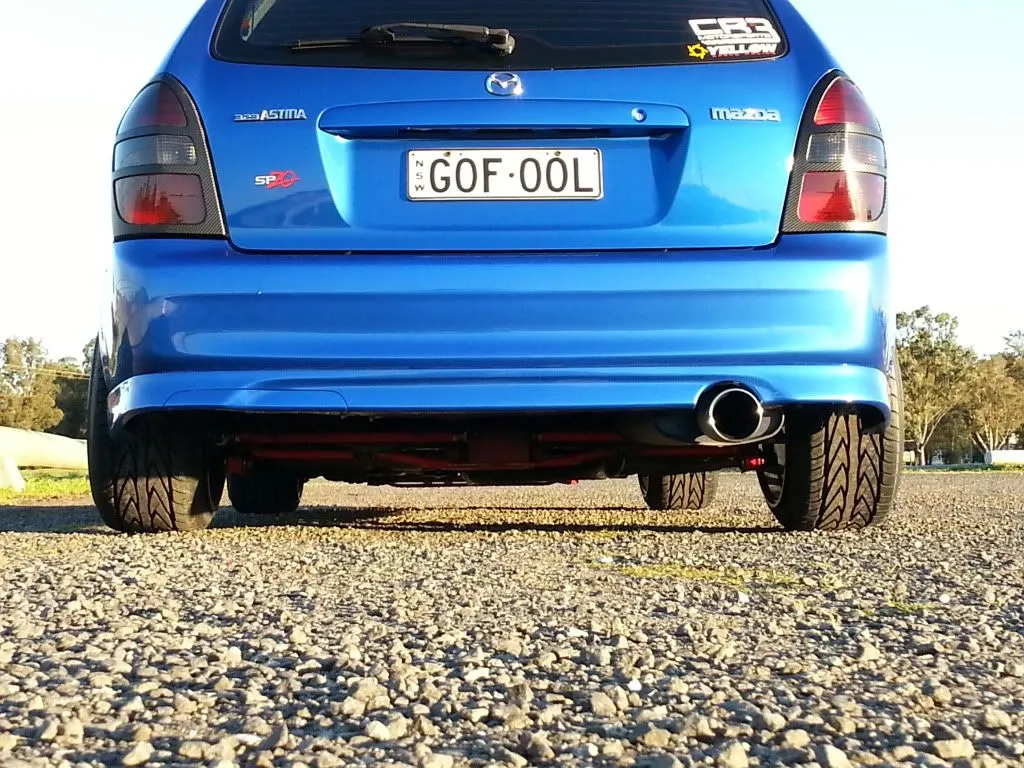

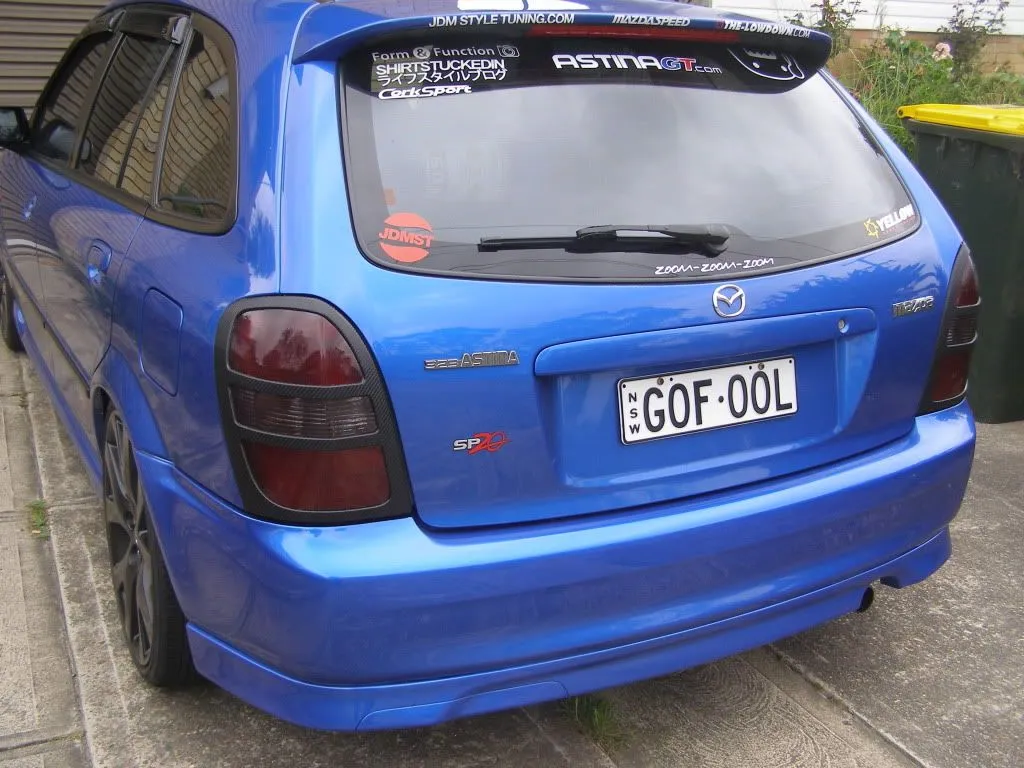

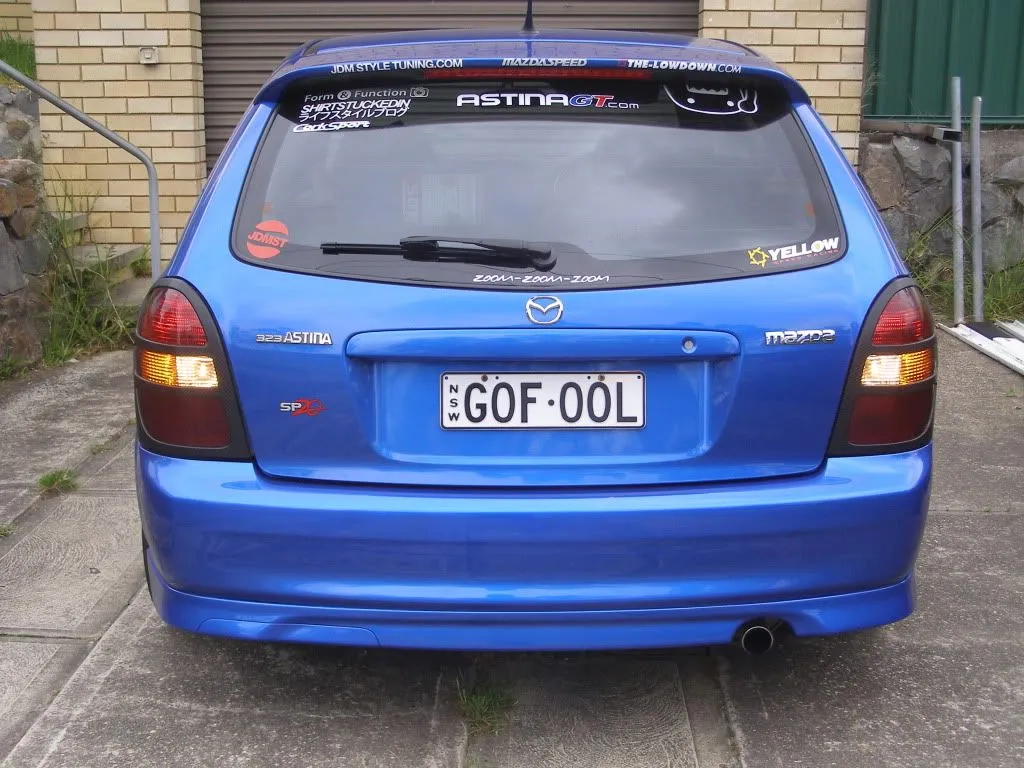

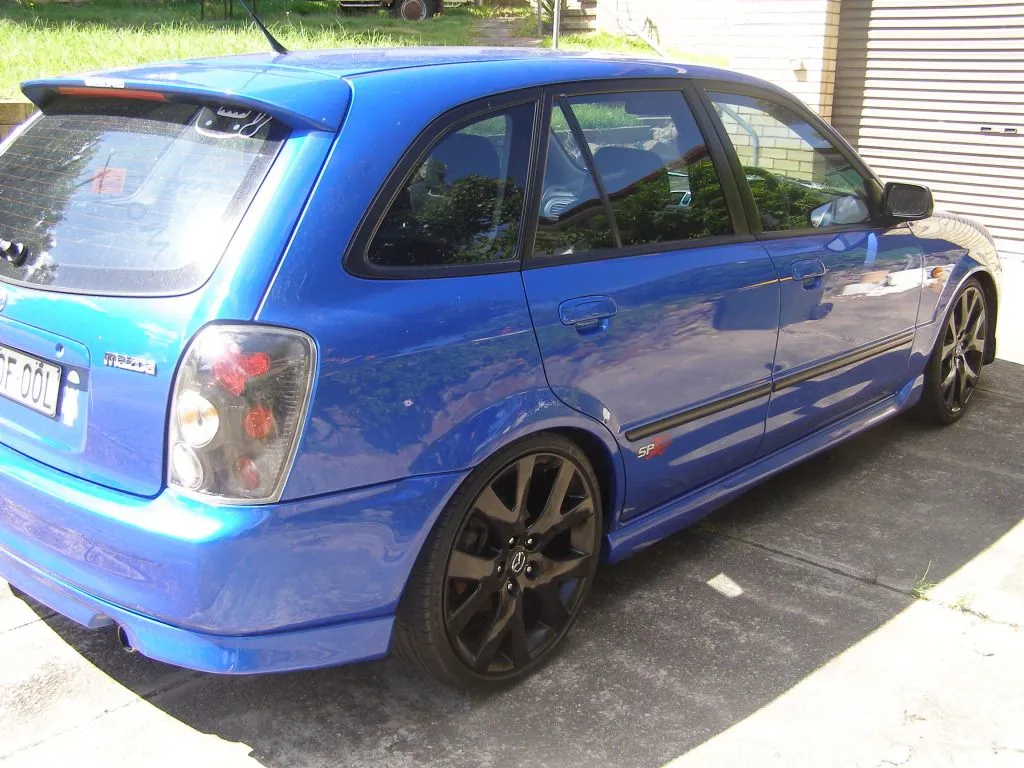

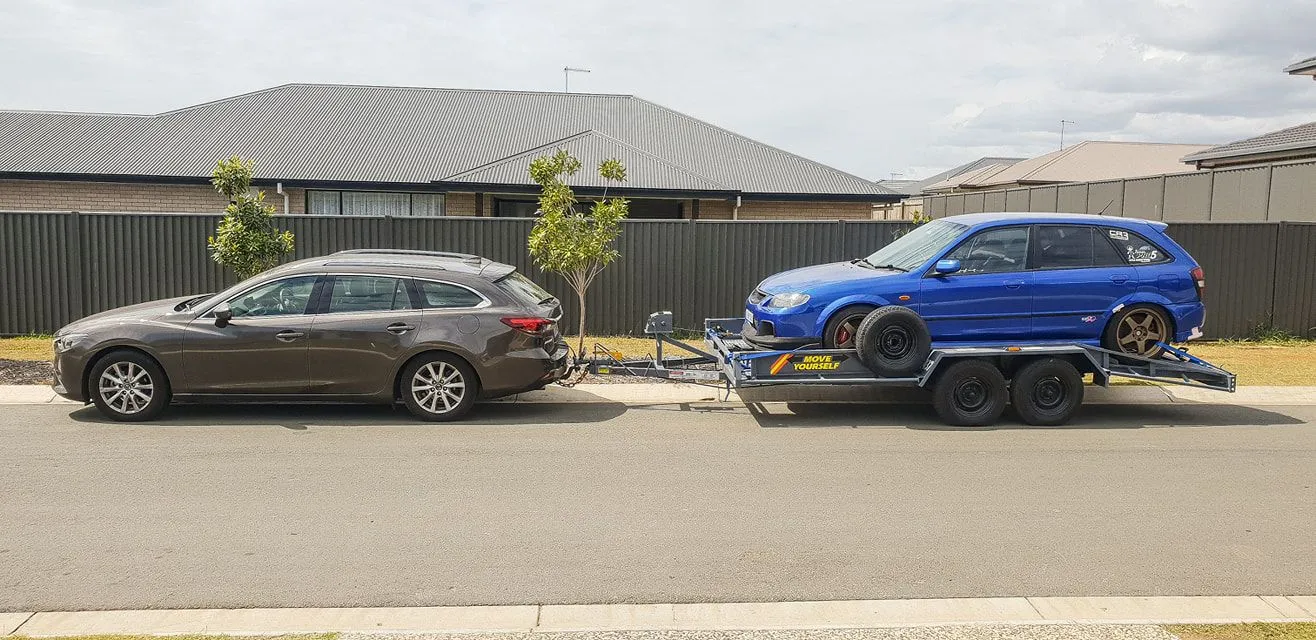

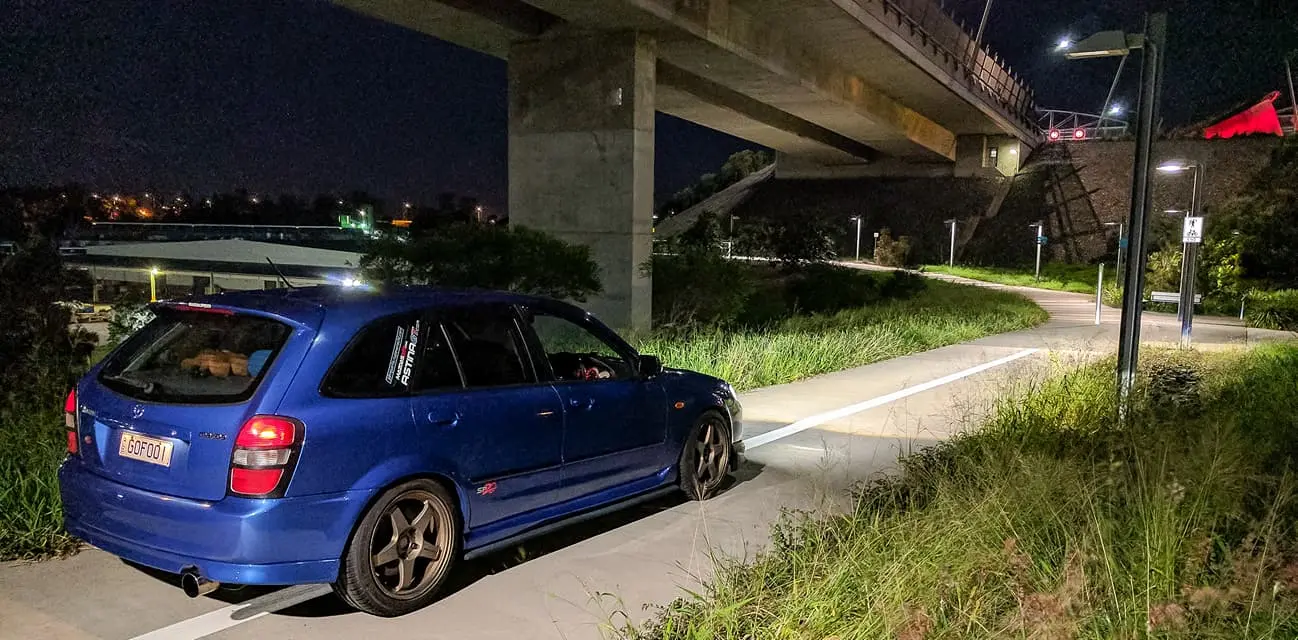

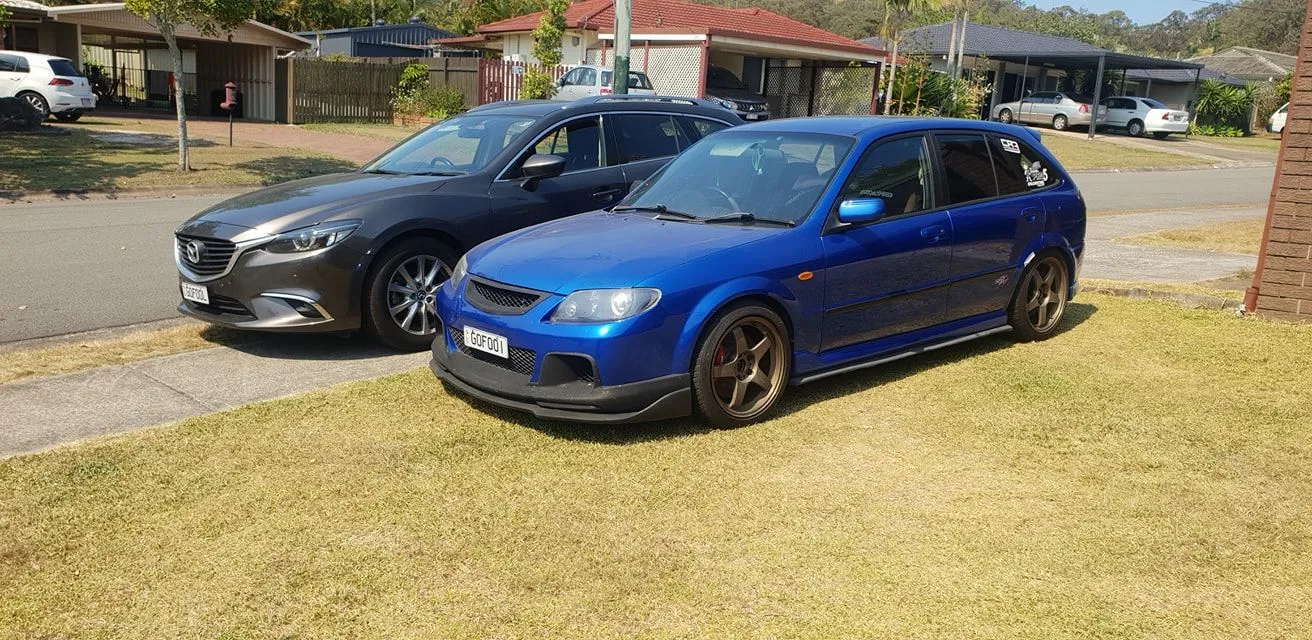

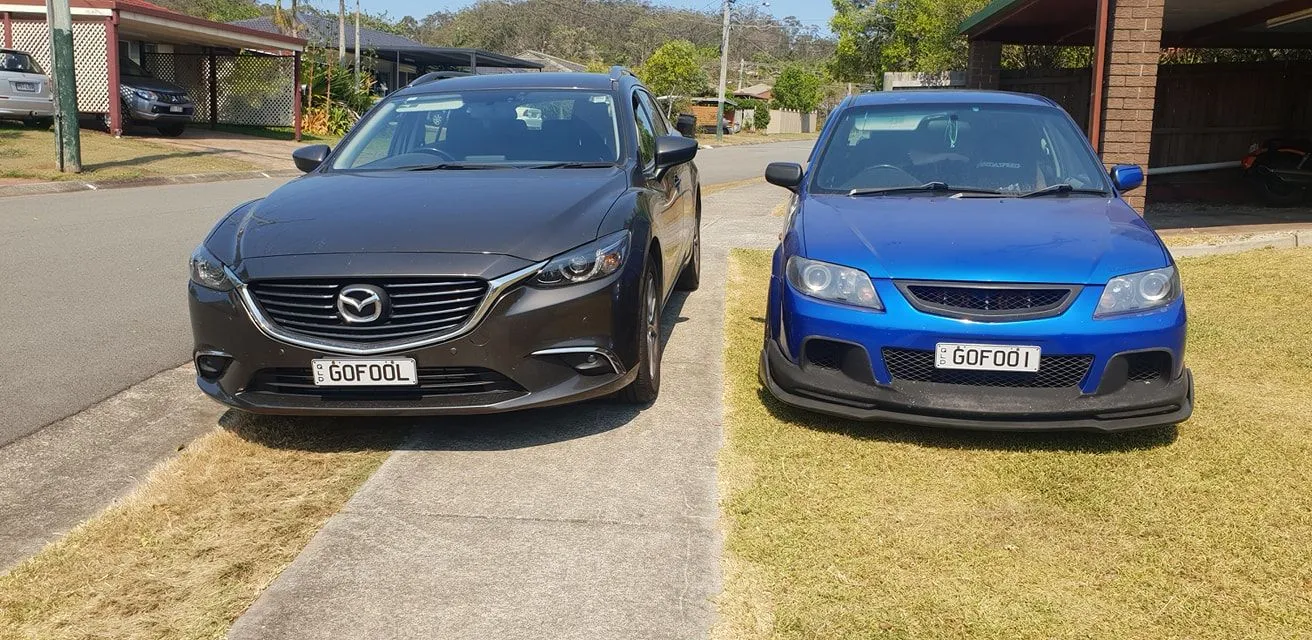

Few Pics 💁‍♂️


:
2x 2001 SP20 323's
Gidday! I remember this build from lurking on the astina gt forums, so clean!

Any big future plans other than the turbo?


Antoine

Administrator
Always great to see a build thread started, thanks for posting and I'm looking forward to your updates! 😁


Hammo

GJ 6/ATENZA Wagon, BJ 323 SP20 (PRO5)
:
Brisbane QLD AUS
Gidday! I remember this build from lurking on the astina gt forums, so clean!

Any big future plans other than the turbo?

Turbos literally the last thing it needed. Will be a street car that goes to a track every now and then. I haven't driven it for almost 3 years because I blew a headgasket.

Hence finally building engine/gearbox and slapping a snail on.

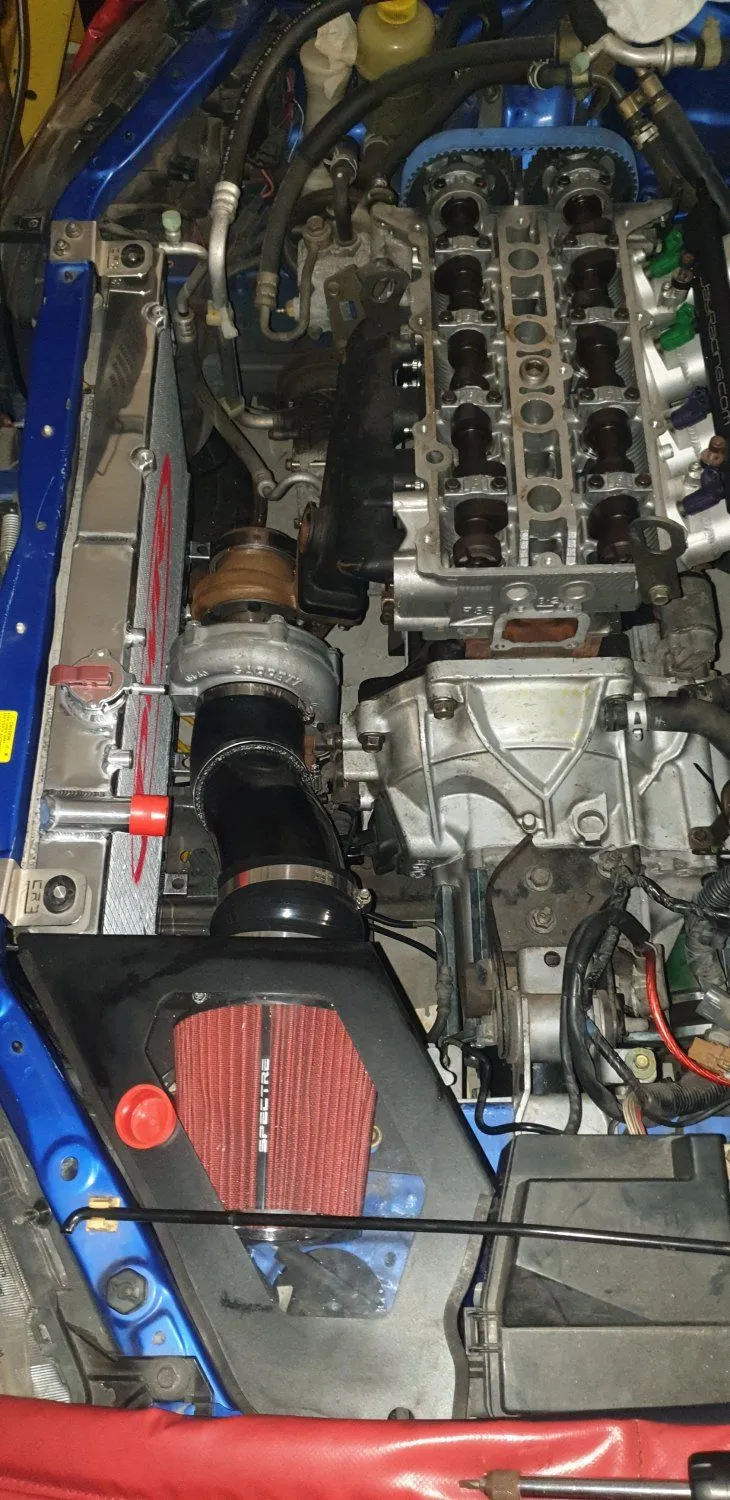

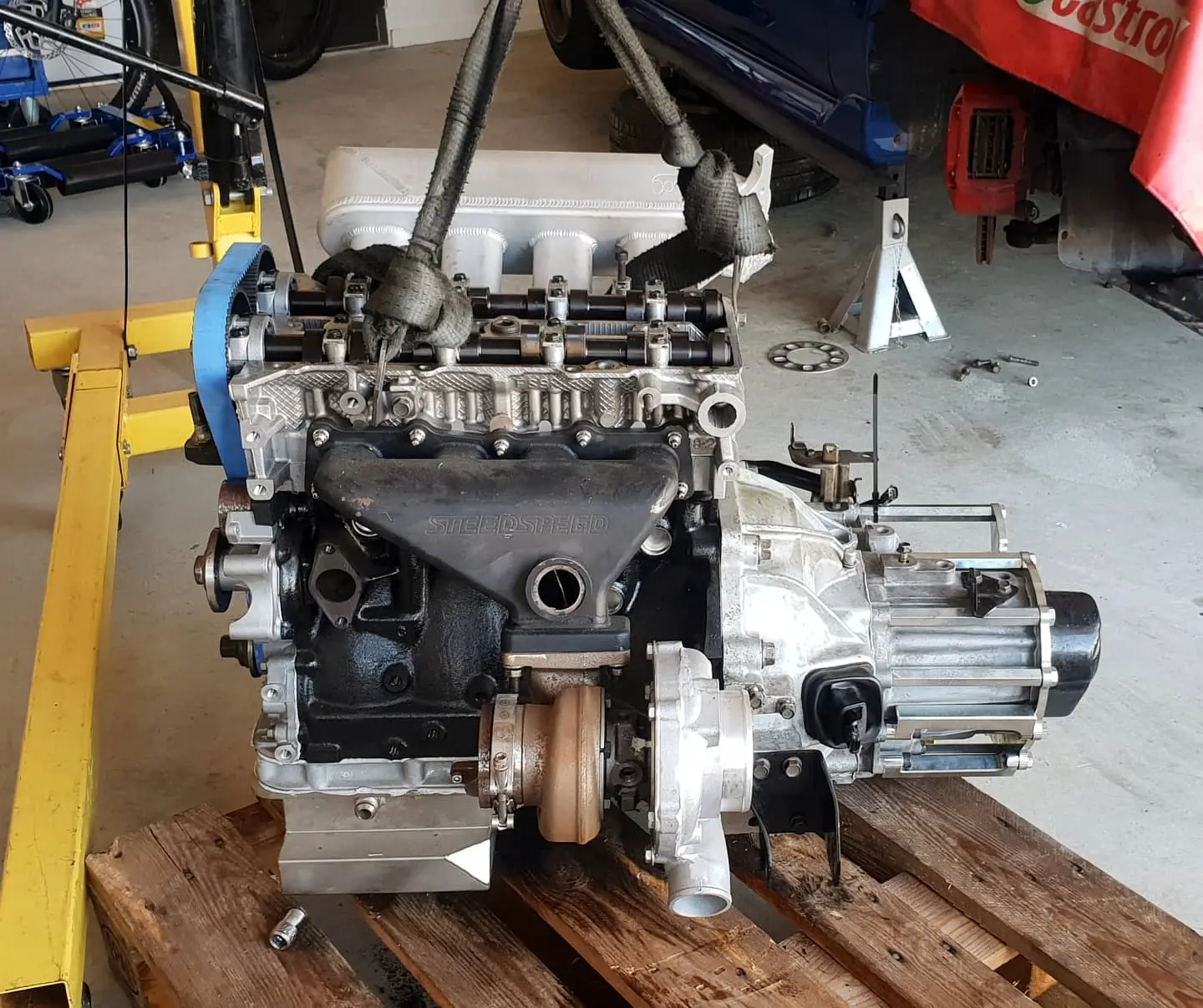

Here's the current state...

Last edited:
:
2x 2001 SP20 323's
Reckon that intercooler is big enough? :D

Was that radiator custom made or an off the shelf piece?, I'm looking for a mishimoto alternative that might be easier to get here


JazzySP20

Madaz
:
AUSTRALIA
:
BJII Astina SP20
(y)(y)

Why the 626 ball joints over 323?
And is it '97 specific or is it all GF 626... '97-/02 is ok?


Hammo

GJ 6/ATENZA Wagon, BJ 323 SP20 (PRO5)
:
Brisbane QLD AUS
Reckon that intercooler is big enough? :D

Was that radiator custom made or an off the shelf piece?, I'm looking for a mishimoto alternative that might be easier to get here

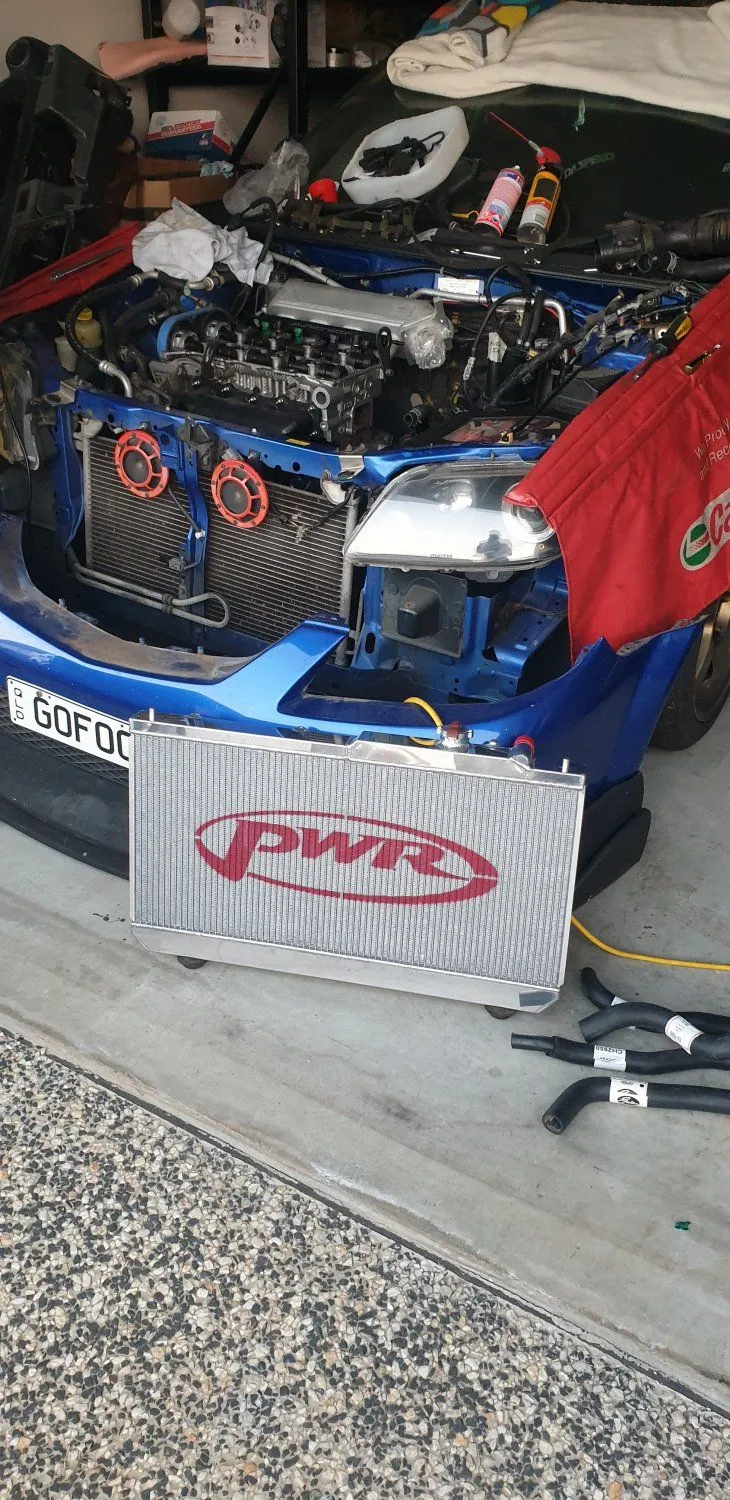

Pwr off the shelf. Had to be made though which took 3 weeks. Was contemplating Mishimoto, would have been more expensive though. Best I was quoted was $600 USD that includes fans and shipping. We had a sale here recently so PWR was cheaper. Yet to work out fan placement yet as room is tight with the turbo/manifold combo.

Intercooler come from a skyline. Needs a bit of modification to fit how i want it. It was cheap since it was used

(y)(y)

Why the 626 ball joints over 323?
And is it '97 specific or is it all GF 626... '97-/02 is ok?

GF 626, Can buy them separate from the control arm. Otherwise would have had to buy new control arms.


Hammo

GJ 6/ATENZA Wagon, BJ 323 SP20 (PRO5)
:
Brisbane QLD AUS

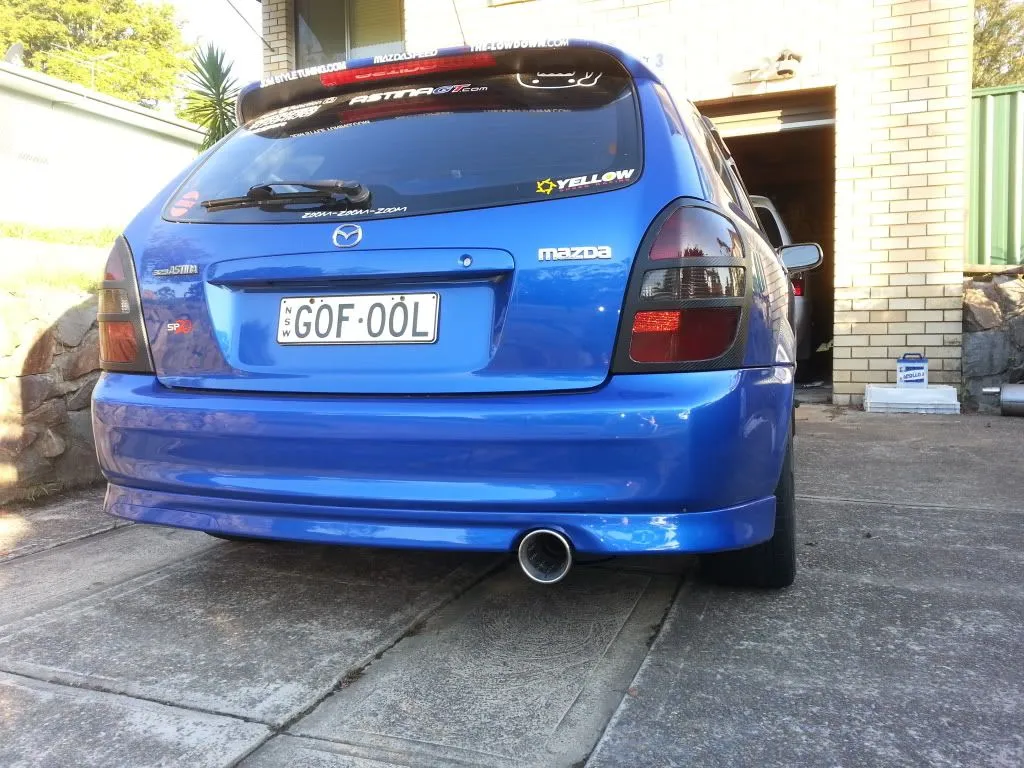

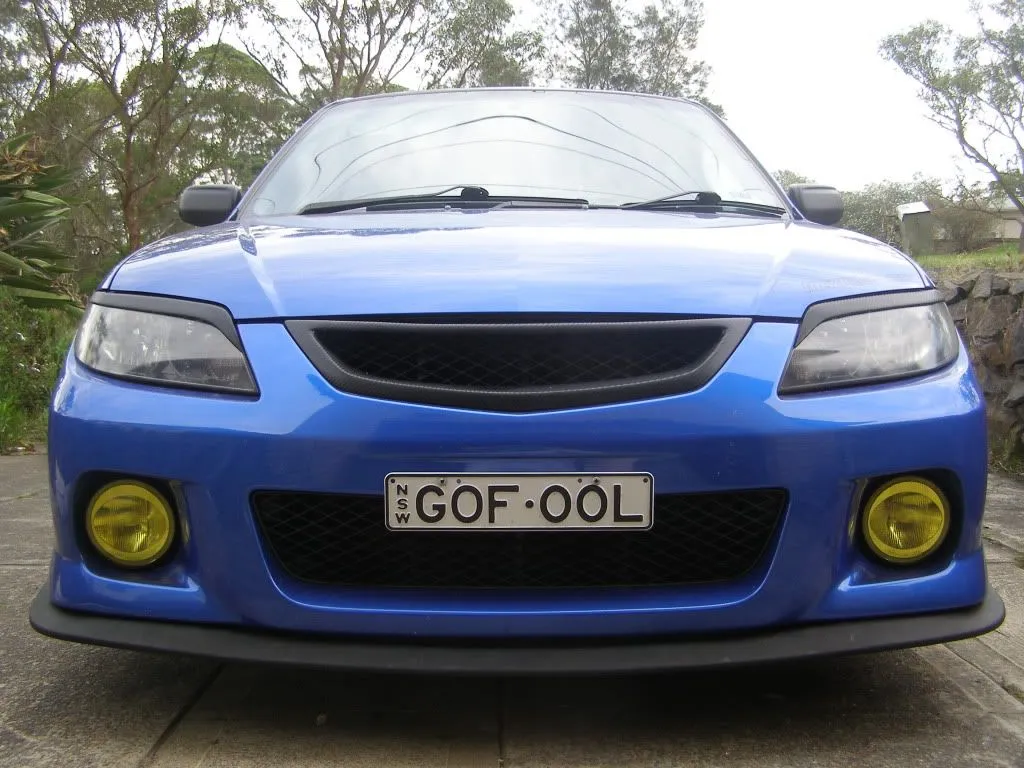

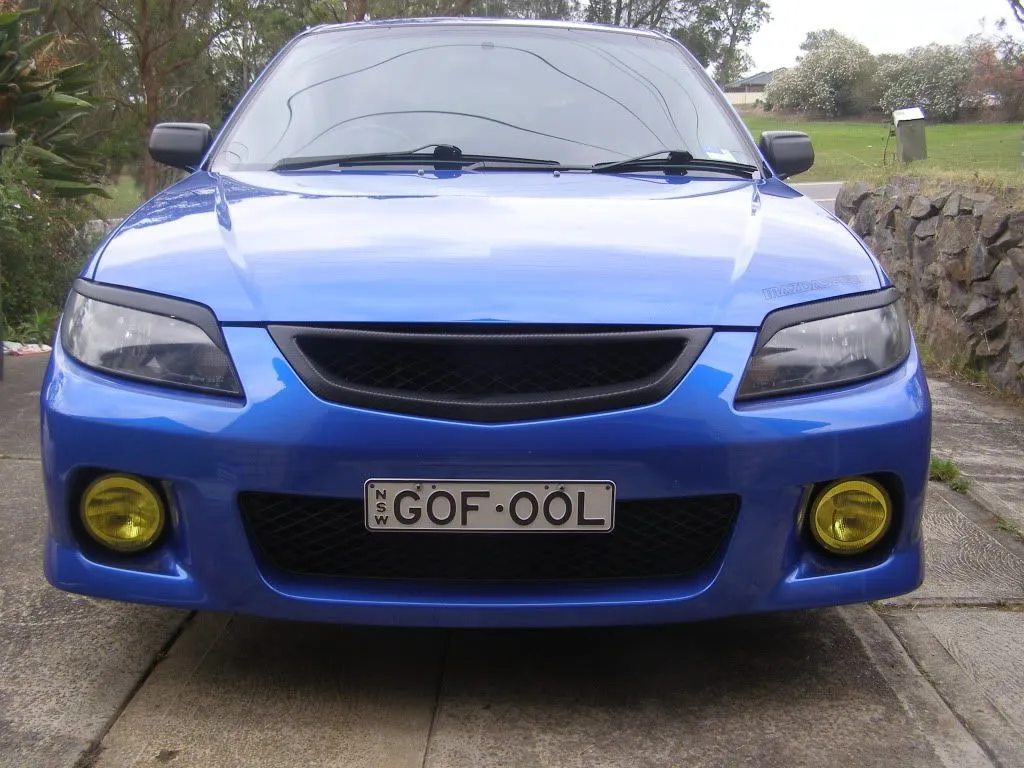

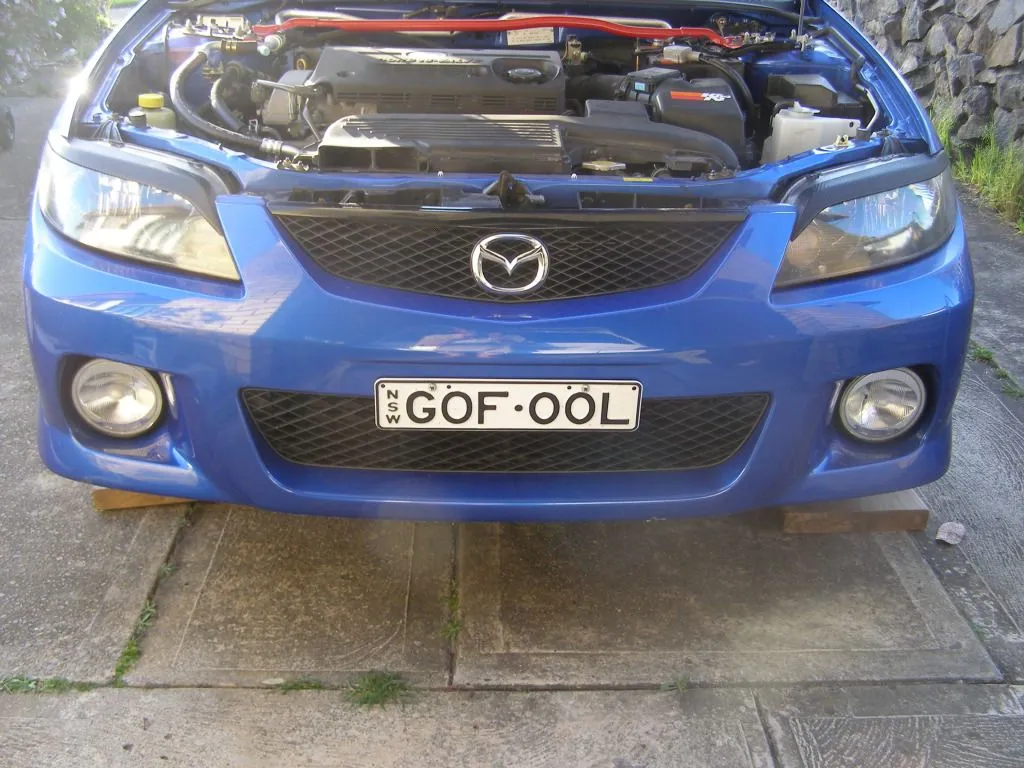

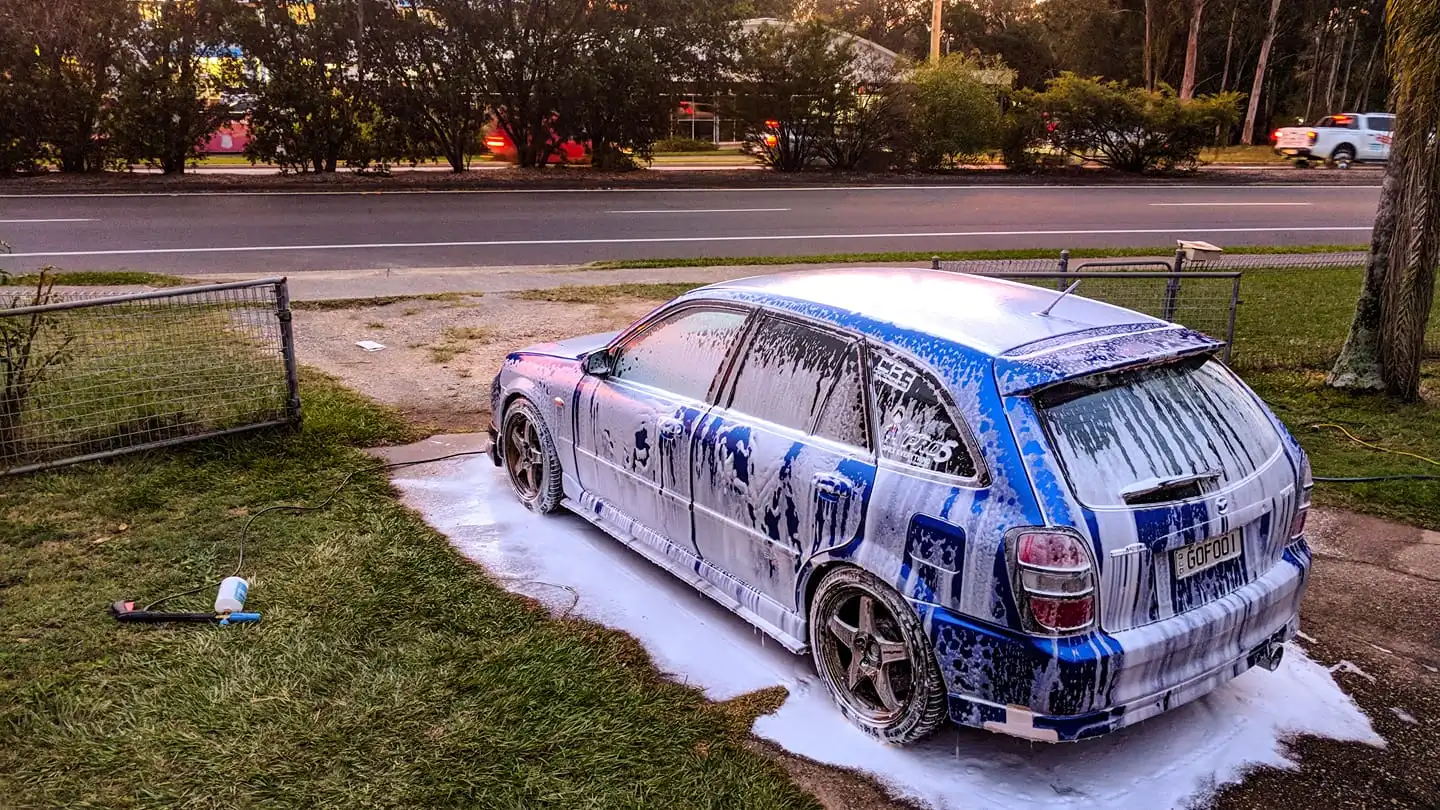

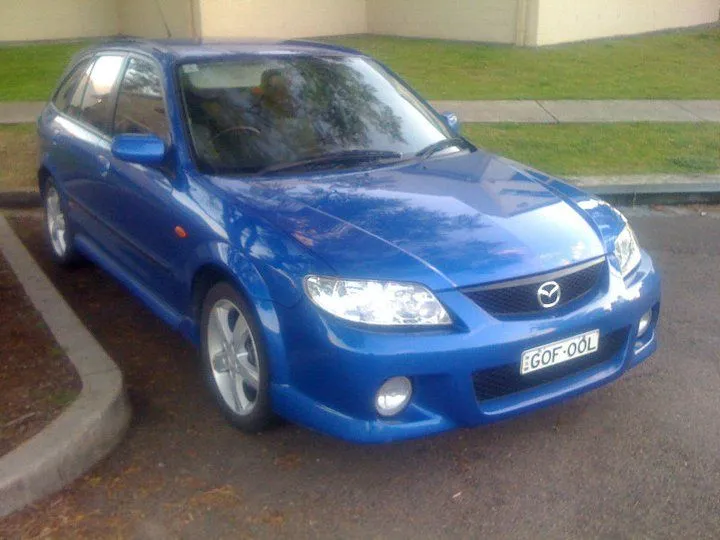

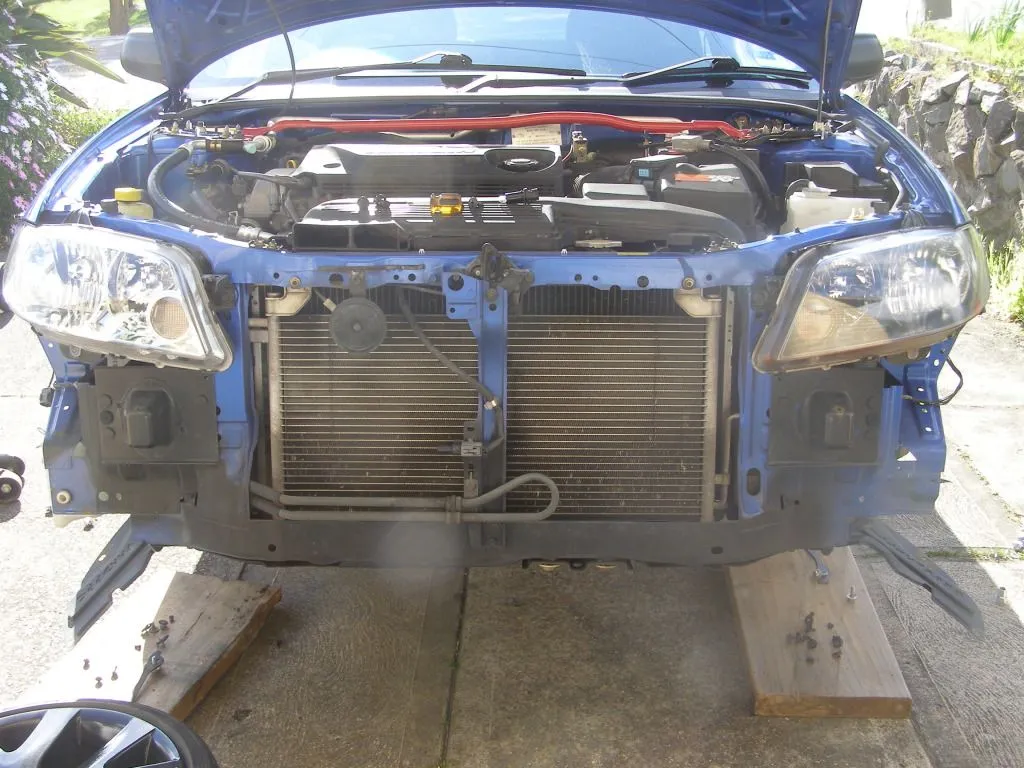

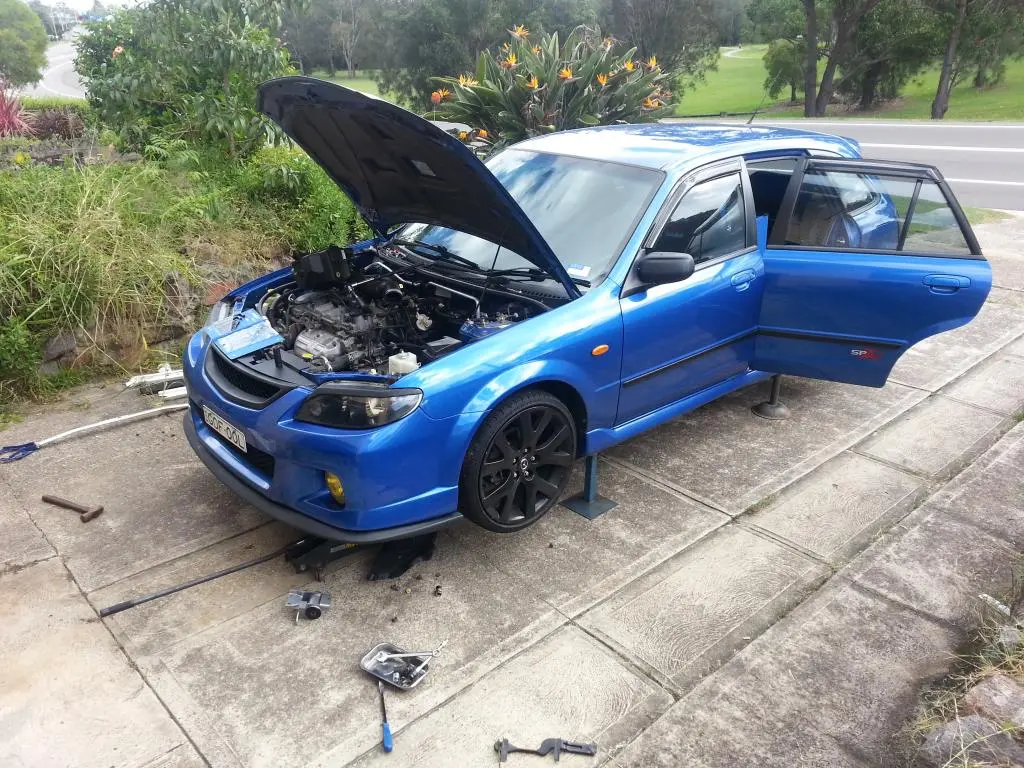

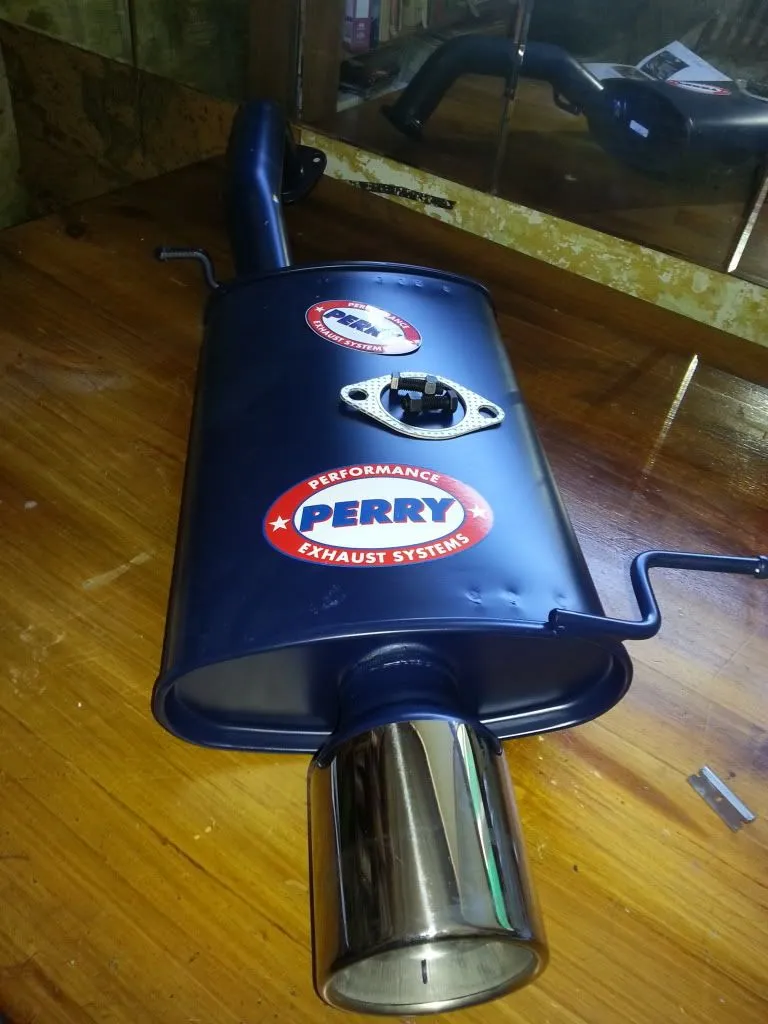

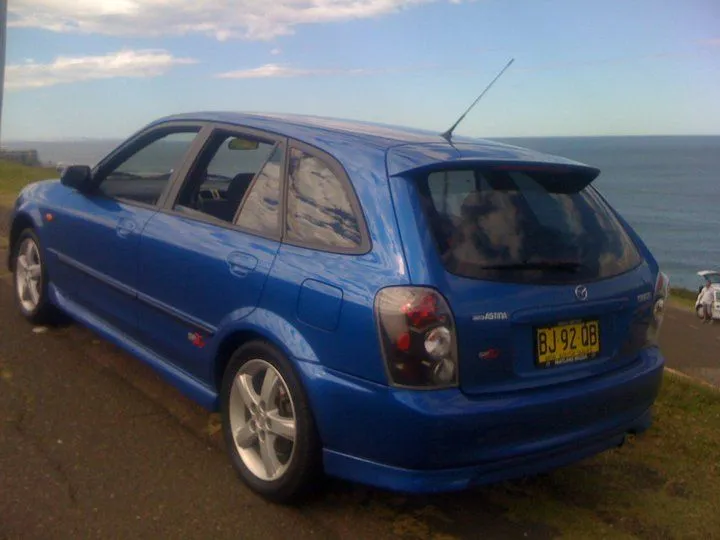

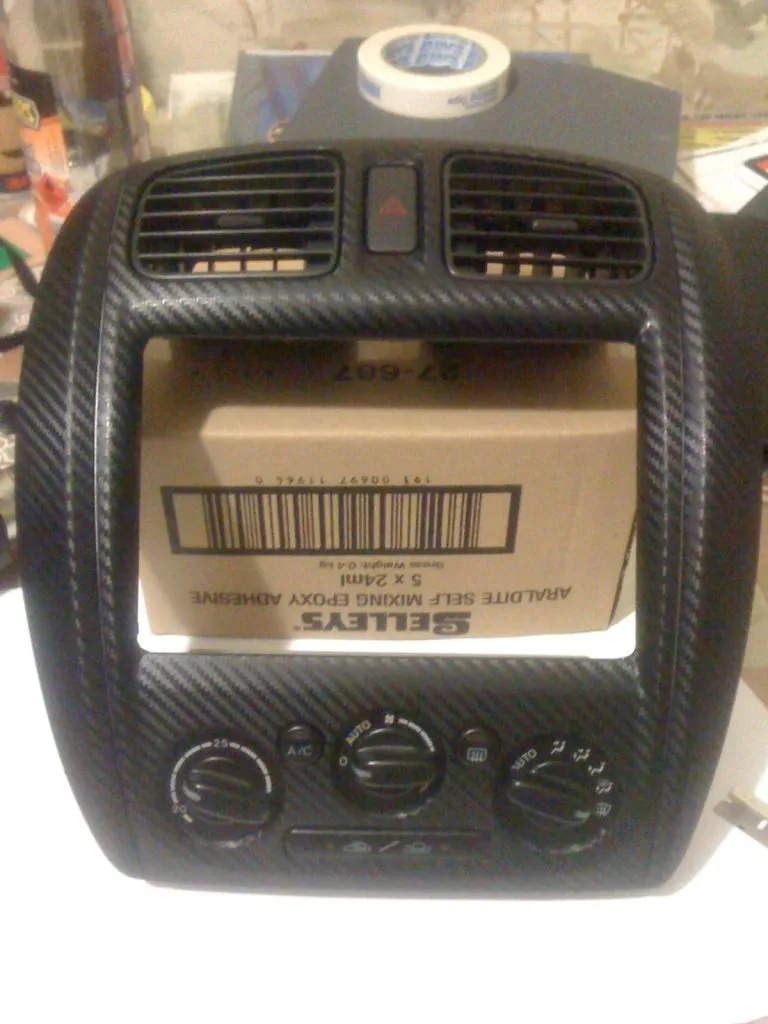

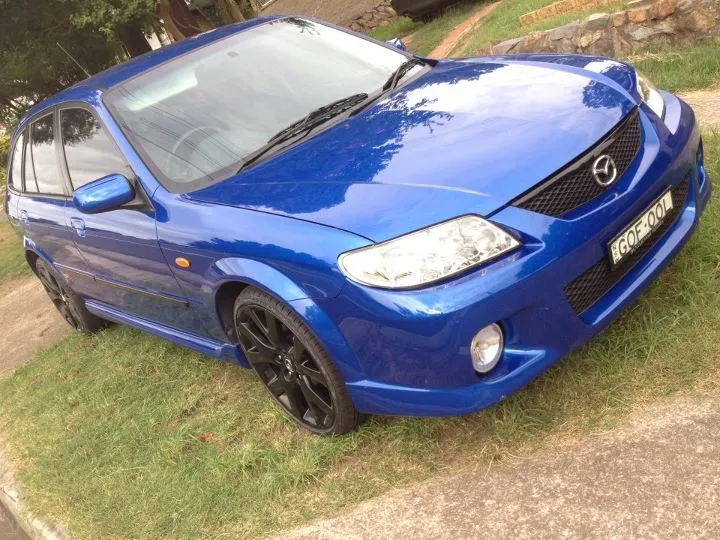

Just bulk uploading some pics showing prgress over the years as in my astina gt page in first post, starting from 2011 when I bought the car, pardon the quality of images. 2011 remember hahaha
