Factory Trans Cooler
- Thread starter CX9 SportOwner
- Start date
CX9 SportOwner
Member
If it has the towing package it will have a hitch on it. Unless you're in Canada, which, I understand, all CX9s were set up for adding the hitch.
To tell if you have the extra cooling, look at the two radiator fans. If they both have the silver control module on the fan frame, like in vike's center photo, you have it. Non towing like mine only has one on the drivers side fan.
Also, take the rear cargo bins out and see if the trailer light connector is there. It taps into the left side taillight harness, I believe, and will be a square connector.
To tell if you have the extra cooling, look at the two radiator fans. If they both have the silver control module on the fan frame, like in vike's center photo, you have it. Non towing like mine only has one on the drivers side fan.
Also, take the rear cargo bins out and see if the trailer light connector is there. It taps into the left side taillight harness, I believe, and will be a square connector.
CX9 SportOwner
Member
You have the heavy duty cooling. Just need to add the receiver and harness.
There should be a connector under the left rear cargo bin. Otherwise, you just have to tap the lights yourself, which is really all the factory plug does, and run power to the battery.
A awl type 12v test light works well to ID the wires, if you don't get a schematic from anyone.
There should be a connector under the left rear cargo bin. Otherwise, you just have to tap the lights yourself, which is really all the factory plug does, and run power to the battery.
A awl type 12v test light works well to ID the wires, if you don't get a schematic from anyone.

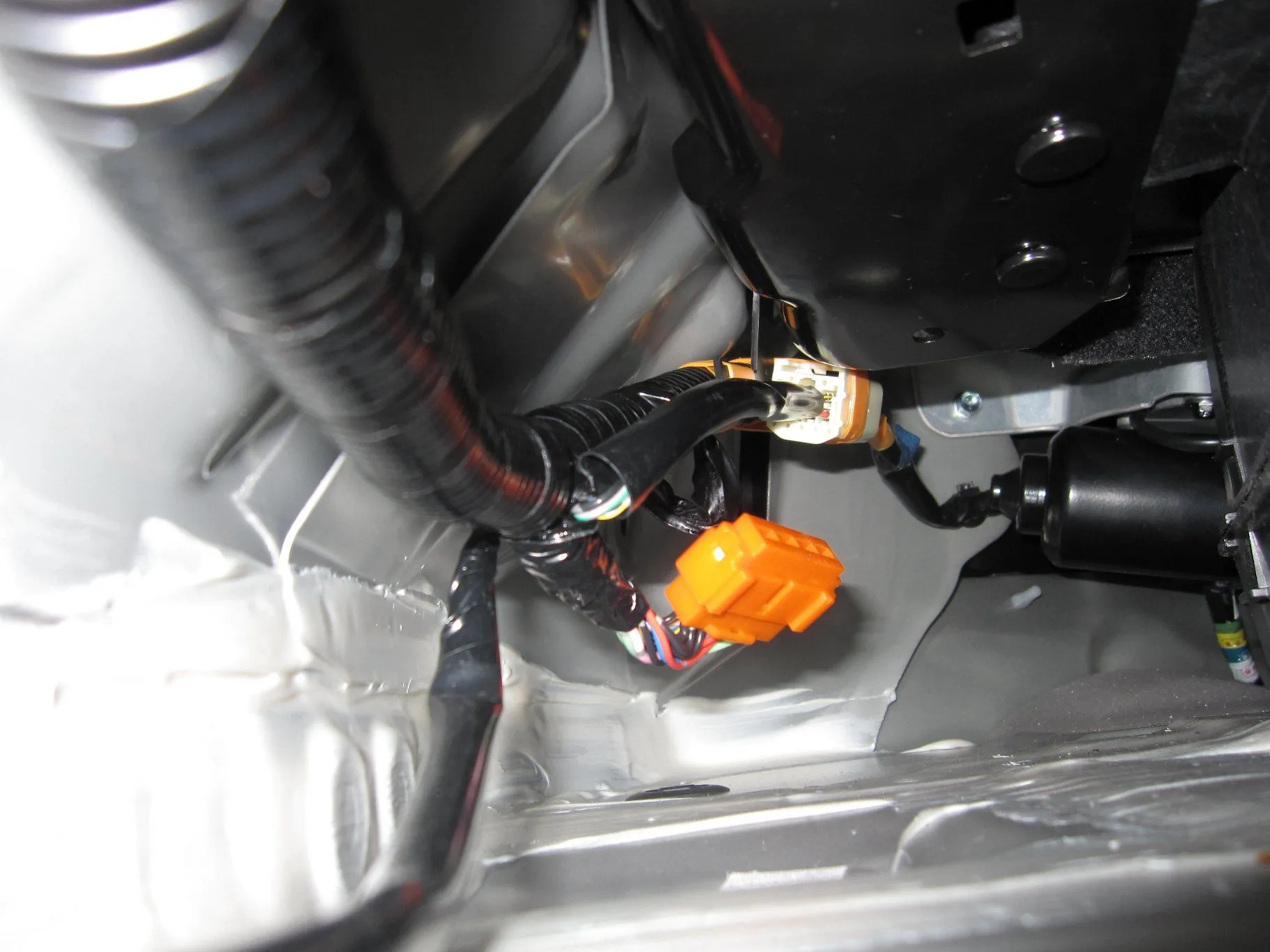

On the left rear cargo bin of my CX-9 there's a Bose subwoofer, when I open the compartment for the jack and look thru I can see a white connector I don't know if that's what you are pertaining here. Is there a way I can remove the cover of the subwoofer without damaging it or voiding the warranty?
My question is.... If I have no intention of ever towing, but always have people in my CX-9 IS it worth it, for the extra $500.00 to get the Tow Package for the extra cooling??
- :
- 2022 CX-5 Turbo
The thing is that you want the transmission to operate at the "set" temperature. The temperature was calibrated by Mazda to function properly in terms of MPG, longivity, etc.
Transmission operating at a lower temp could cost you MPG and may cause rough shifting. Towing and heavy load cause the transmission to work hard, therefore, raise temperature behind set degree. W/o better cooling, the transmission will shut down into limp mode (see TSB - loss power while climbing hills...).
I am not expert on this. Just to contribute what I have learned while researching into adding transmission cooler.
In short, people have reported loss of MPG by adding excessive cooling to the transmission. What is "excessive"? I don't know.
Maybe that is one more reason why GT AWD w/ Tow package could have the worst MPG among all models.
Transmission operating at a lower temp could cost you MPG and may cause rough shifting. Towing and heavy load cause the transmission to work hard, therefore, raise temperature behind set degree. W/o better cooling, the transmission will shut down into limp mode (see TSB - loss power while climbing hills...).
I am not expert on this. Just to contribute what I have learned while researching into adding transmission cooler.
In short, people have reported loss of MPG by adding excessive cooling to the transmission. What is "excessive"? I don't know.
Maybe that is one more reason why GT AWD w/ Tow package could have the worst MPG among all models.
CX9 SportOwner
Member
If it's a square connector not hooked up, that's probably the one the trailer converter will connect to. Use a test light to conform brakes and turn signals on it. I honestly don't know how the subwoofer comes out. Maybe someone with the Bose can help on that. Probably not much to it. The connector, and a couple of retainers, I'd guess.
The CX9 does have standard transmission cooling. The tow package just changes the fan control modules to keep more air across the radiator sooner.
Passengers and gear alone are fine without adding cooling. Just like the engine itself, you don't want to overcool the trans.
The CX9 does have standard transmission cooling. The tow package just changes the fan control modules to keep more air across the radiator sooner.
Passengers and gear alone are fine without adding cooling. Just like the engine itself, you don't want to overcool the trans.

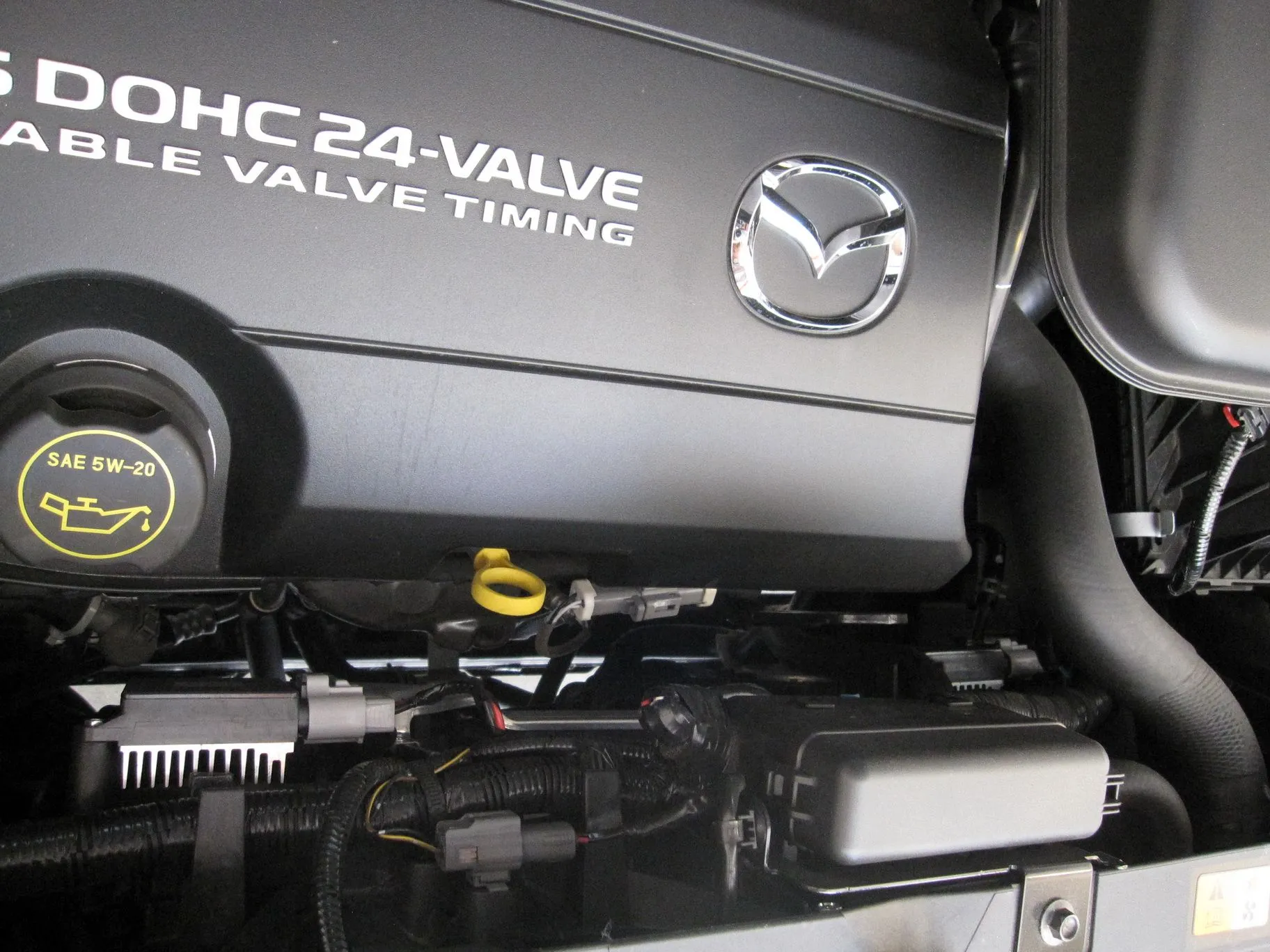

If this is the way to tell (truly) then my CX9 AWD GT without towing has the heavy duty cooling. I have two fan controls, one on each fan with heatsink.
The controls are black the heatsink is silver (aluminum)
I will have to check out the factory manual on this.
So basically... ALL 2009+s GT AWDs will have the added cooling feature, with OUT having to purchase the tow package?
nazgul350r
Member
- :
- 03 MSP & 08 CX-9 GT
Just checked my 08 GT FWD and it only has the one hint sink
CX9 SportOwner
Member
US 07 and 08 didn't have the tow prep. If you had the towing, you got the whole package.
- :
- 2022 CX-5 Turbo
Any AWD models of 2009 (Sports, Touring or Grand Touring) has tow prep as standard.
Last edited:
Well hot damn. I for one always like getting a tow prep package because of the better cooling features.

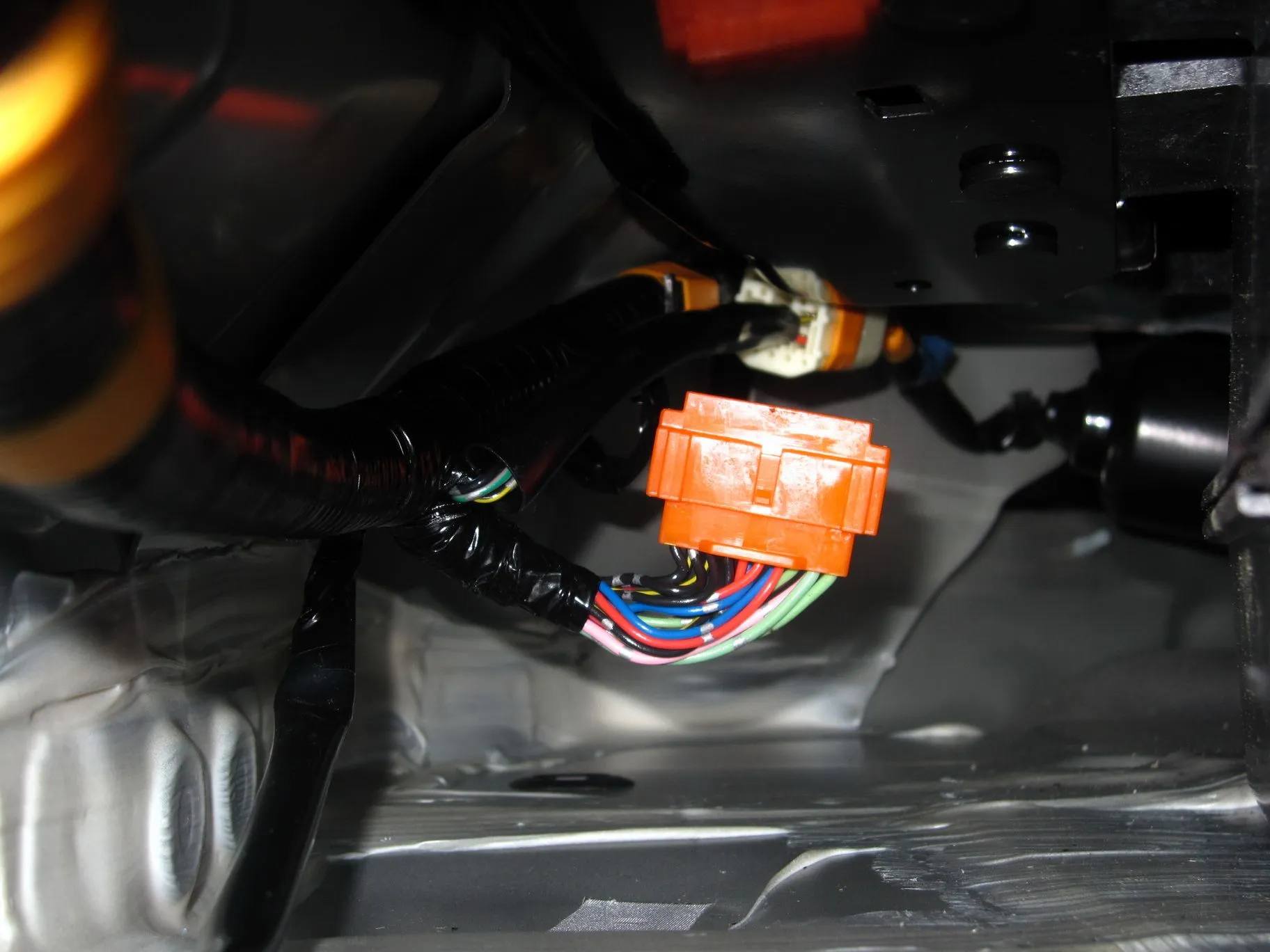

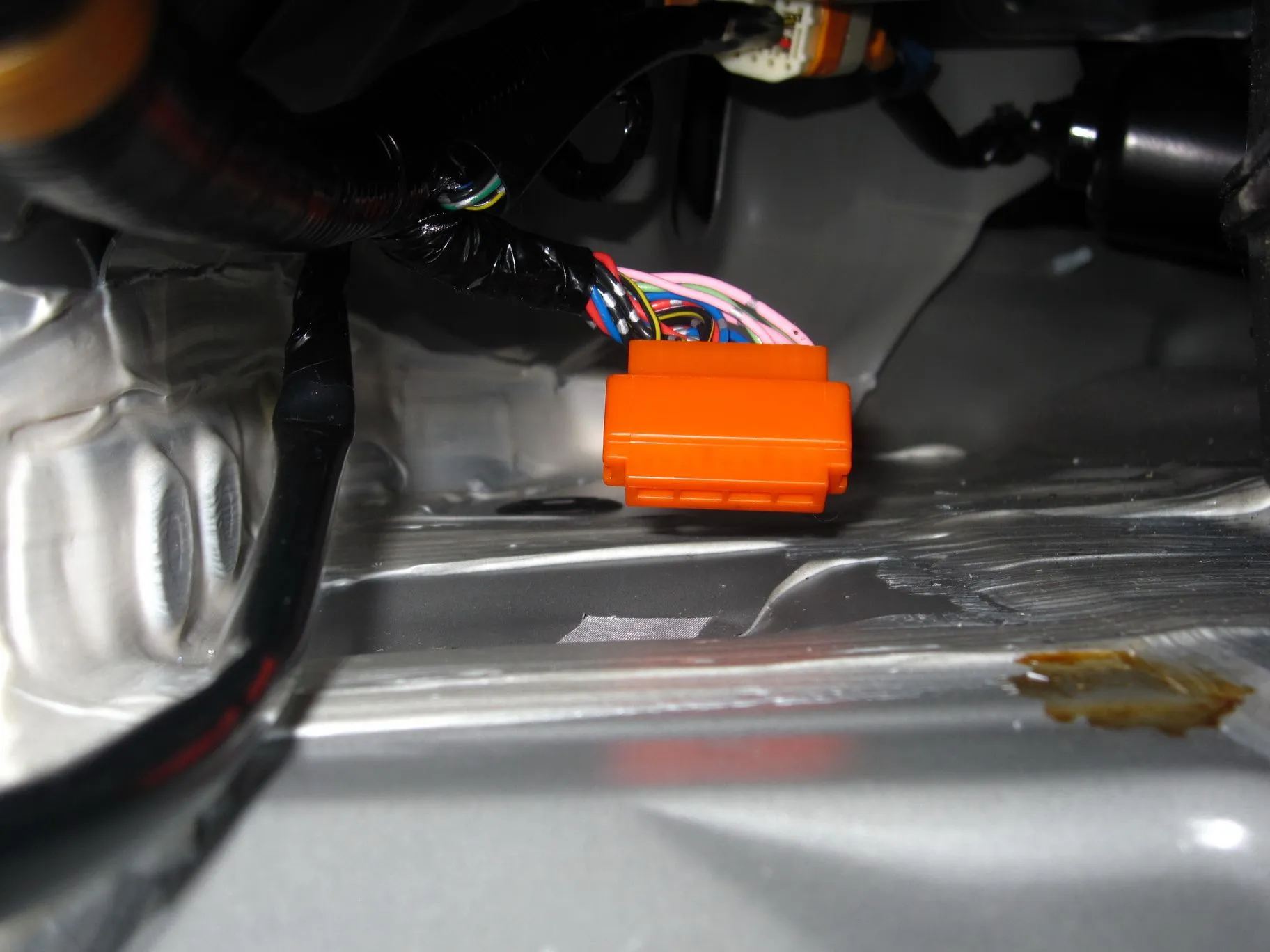

Are there any CX-9 owners with towing package on their 08 can you please take a picture of the OEM hitch wiring connector, located in the left side tail of the car under the cargo bin? I want to confirm why the connector just like the one I posted here got so many wires, please see the attached pictures. Is this the correct connector for hitch wiring? Why it got so many wires?
