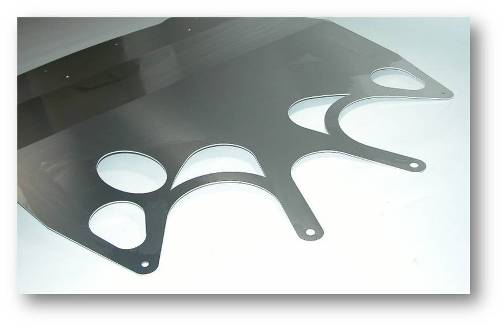

CorkSport Mazdaspeed Protege Skid Tray

[CorkSport]

Did I scare everyone off with my last post?

-Derrick



[BRIAN_MP5T]

Is it available without any holes drilled into it?

As in Ref the Picture... None of the interior holes?

I am looking for maximum under coverage



[o0n8]

The final fitment verdict is as follows


Bad News:
The skid tray will not fit with an aftermarket ladder brace which bolts to the back of the subframe.

-Derrick

Did you happen to take any pics of this?



[YELLOWMAZDAPR5]

lol at your sig^



[repthemazdas]

Did I scare everyone off with my last post?

-Derrick

na bro thats perfect! cuz the ladder brace dont fit my protege anyways! ill be giving yall a call here soon!

thanks! Joseph



[o0n8]

lol at your sig^

Thanks, you're the first to catch it, or at least comment on it



[YELLOWMAZDAPR5]

I have a wife and 4 kids, oldest 14 youngest 2 1/2. So I know what you are talking about!



[BRIAN_MP5T]

Bump for information I asked above...



[JReichle1]

Will this fit the 99-00 subframe? The earlier protge did not come with a two peice subframe and will not work the gt spec ladder brace. I ordered one and can verify this first hand...



[CorkSport]

Is it available without any holes drilled into it?

As in Ref the Picture... None of the interior holes?

I am looking for maximum under coverage

We have all of the trays done at one time so a no-hole version is not available.

-Derrick



[CorkSport]

Will this fit the 99-00 subframe? The earlier protge did not come with a two peice subframe and will not work the gt spec ladder brace. I ordered one and can verify this first hand...

It does not work with the 99-00 subframe. None of the rear mounting holes will line up.



[repthemazdas]

damn that sucks! i can make it work!



[CorkSport]

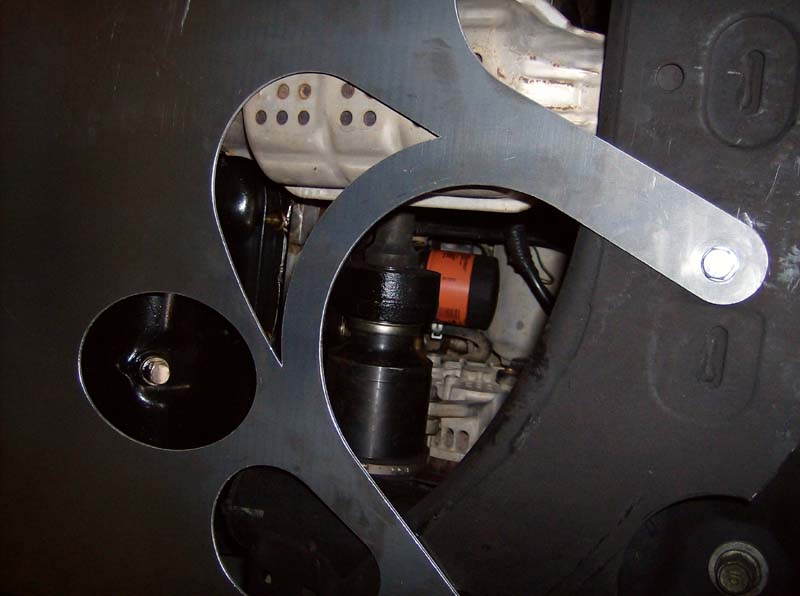

Some of the holes in the tray are there to get the oil drained and be able to clean up the drips from pulling the oil filter.

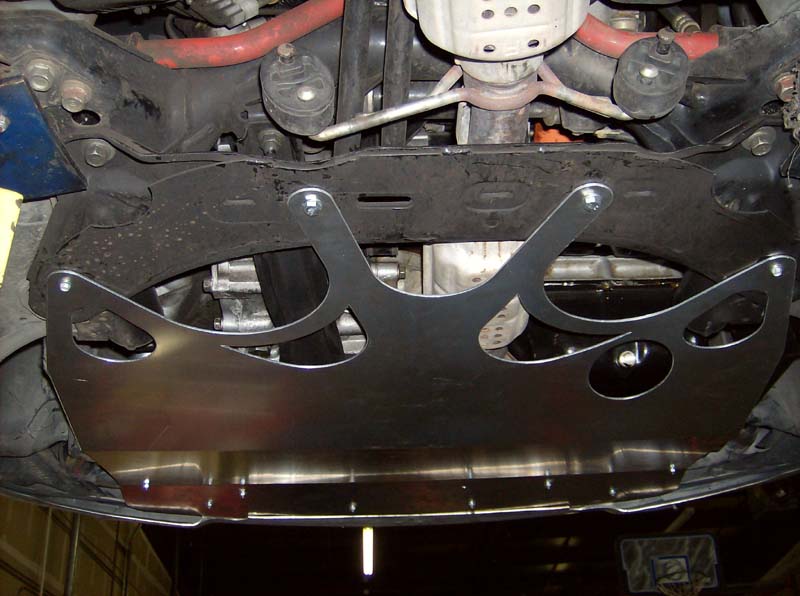

This picture gives a good look at the rear where the bolts attach to the cross member.

-Derrick



[repthemazdas]

sweet! i can see how ill make it work! thanks!



[o0n8]

Thank you for the pics.



[CorkSport]

First person to shoot me a PM with the order gets a discount on the skid tray.

-Derrick



[BRIAN_MP5T]

I am interested, I have the GT Spec lower tie bar which replaces the stock one.....and I am worried it will not bolt on witout drilling and effing up the GT Spec bar.



[o0n8]

First person to shoot me a PM with the order gets a discount on the skid tray.

-Derrick

I can't order till I get my tax return

I am interested, I have the GT Spec lower tie bar which replaces the stock one.....and I am worried it will not bolt on witout drilling and effing up the GT Spec bar.

Do you mean the 4-point ladder bar?



[BRIAN_MP5T]

yes



[repthemazdas]

yes

it looks like the outer ones will work if you put it under the bar! but the middle ones? idk?
