I'll try to take a picture tonight
There's this picture I took:
http://www.mazdas247.com/forum/attachment.php?attachmentid=155289&d=1251125195

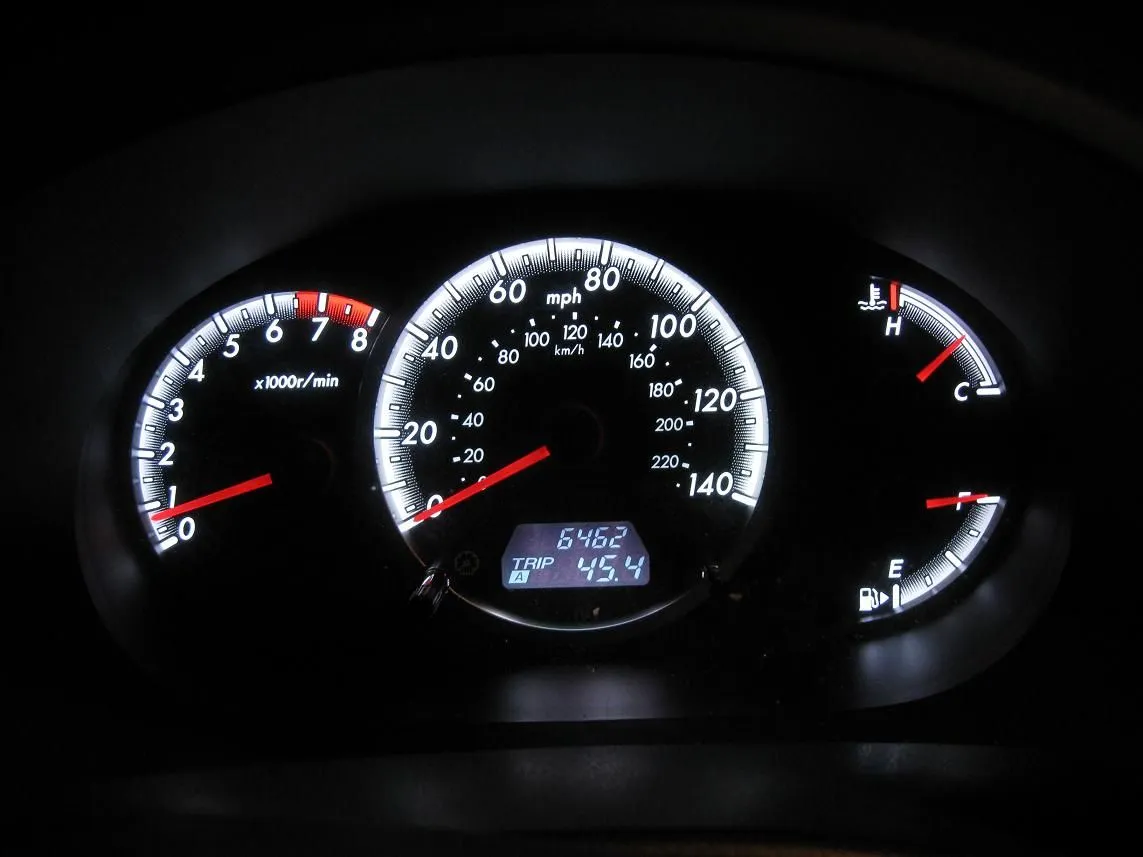

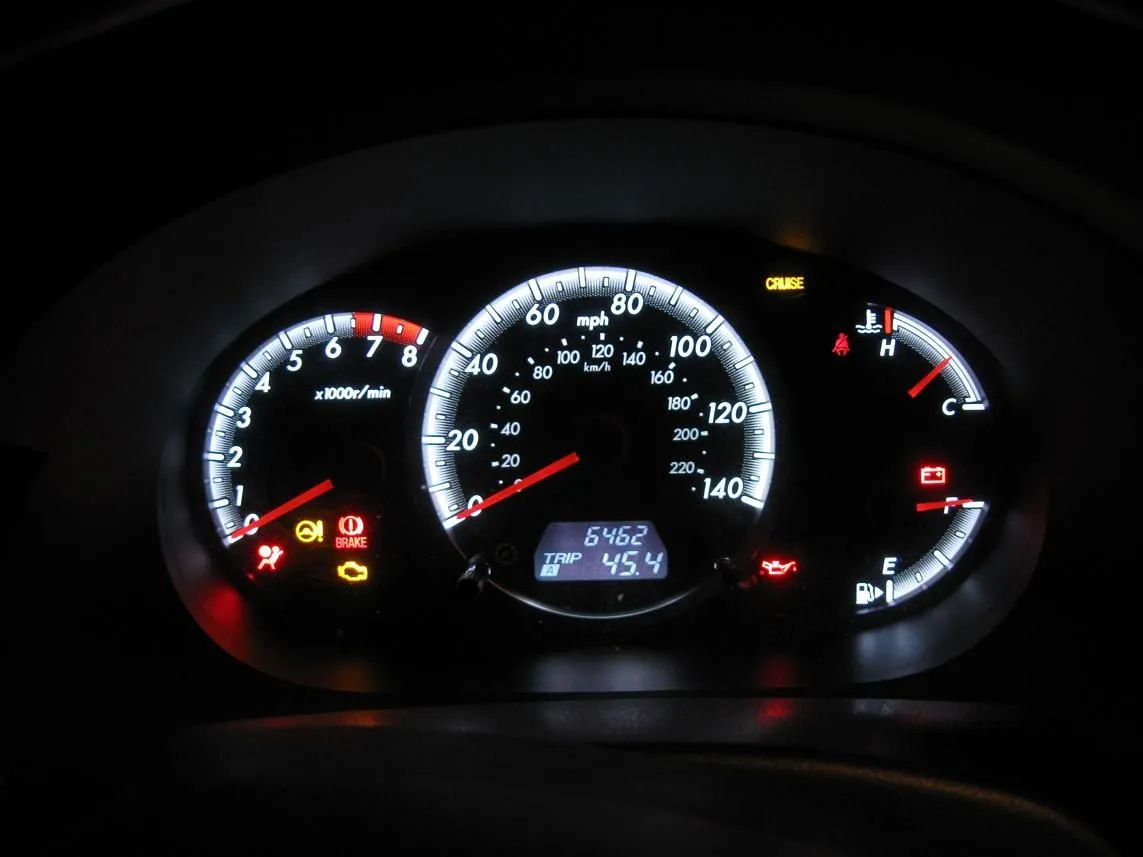

Not quite what you are looking for but it shows how the guage cluster works. The kit I am holding is an aftermarket kit. '09 Sport.
Attached.

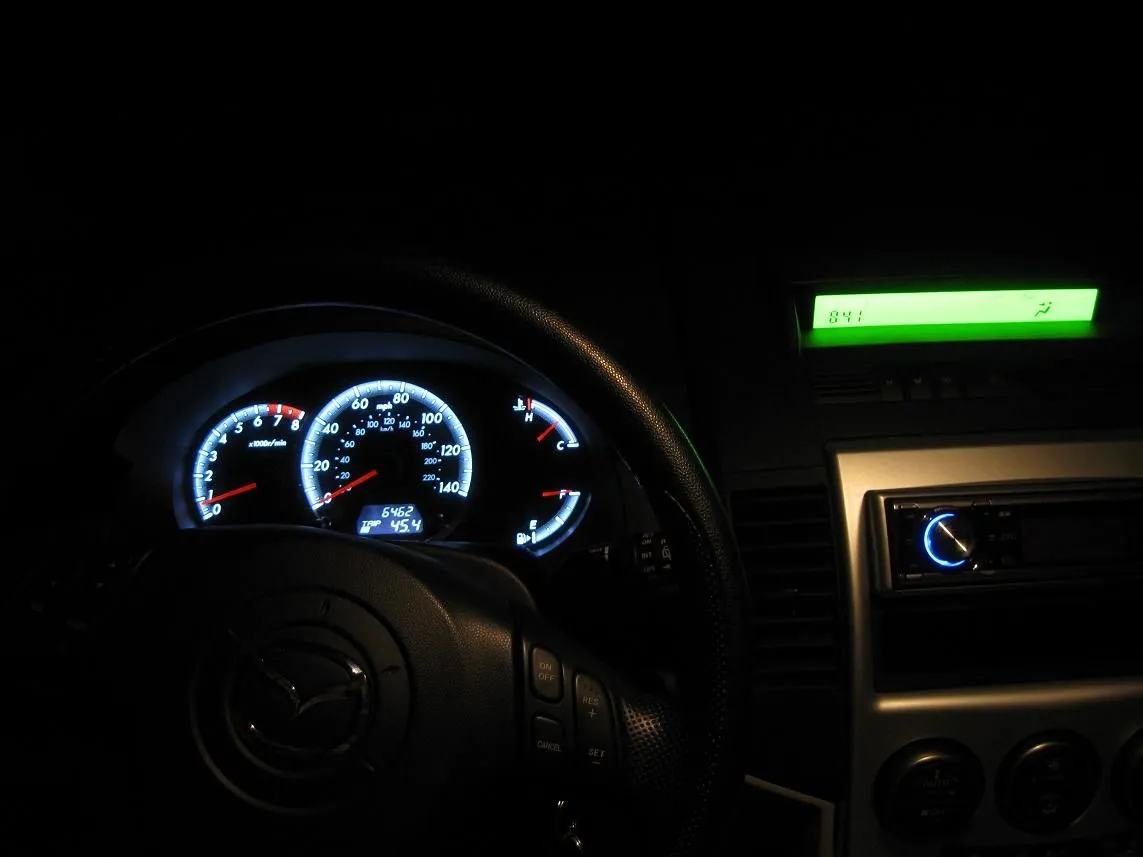

I personally like this instrument panel, prefer it over the glowing green of the '06/'07.
The radio is aftermarket and I have a manual transmission thus no gear indicator on the instrument panel.
Doesnt your HVAC light up?

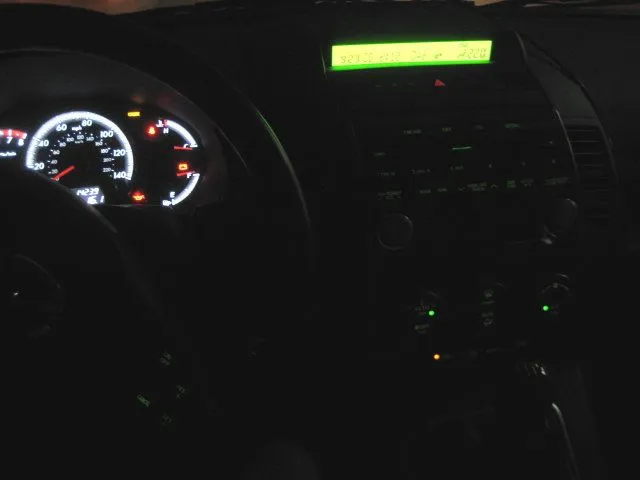

Here you go, they should light in the same way as the 06s and 07s. Just the left and right knobs are swapped in the 08s+ for some reason (they are also a little bit different if I'm not mistaken)
Question:
Can a guy buy a 08-09 instrument cluster and pop it into an 06 with no problem?
Thanks,
Peace!(rei)
That is a negative, I just bought one and it wouldnt start the car the car immobilzer light kept flashing and when I went to turn the lights on it turned them off. (notcool)
