Can anyone supply pics of grill area on CX-7 for me?

Emgee

Member
Hi Guys

My CX-7 was in an accident back in January, was t-boned by a guy running a stop sign. My front passenger side got shmucked up quite a lot. The front passenger fender was replaced as part of the work and they had to remove the front bumper and refinish it.

Anyways, after the accident I noticed a whistling noise from the CX-7 when travelling at speeds over 70 km/h (~40 mph). I've finally tracked it down to an area of the front grill work on the passenger side to the left of the large air intake. I've covered the area with tape and whistling goes away.

I'm just curious to see if something is missing from that area when the repairs were done or if it is misaligned. I've had the car at both the dealership and the body shop the dealership uses for body work. Car has been gone for weeks on end and I finally told them to forget about it, I'll look for it myself (my vehicle was also damaged while they had it in their care - bumper was scratched and the front tire got a gash in it; looks like someone clipped a curb real hard). So I didn't want to leave it with them for any extended periods of time any longer. The dealership agreed to repair the scratch but I had to argue with them about the tire. But all was settled to my satisfaction.

I'd like to ask if any one here would mind taking a few photos of that area of their CX-7 (some close ups would be great) or if anyone has a workshop manual and could forward me the pages that show the parts of that area of the vehicle so I could see if something is missing. Anything would be helpful.


Thanks for your time and any photos/info you can provide.

Emgee

Description Year MSRP Price Core Price Your Price Bumper cover 2007 $436.45 $349.16


Here's a photo with the area in question circled in red. If someone wouldn't mind posting a close-up shot of that area for me that'd be great. Then I can combine that with what Shaz provided and see if something is missing.

The photo is from someone's gallery sorry I didn't make a note of whose it is, but it's one of the few I found with an inside engine shot.


Thanks for your help!

Emgee


Attachments

  • cx7-grill-shot.webp
    27.3 KB · Views: 297
Will these do the trick? From my black GT

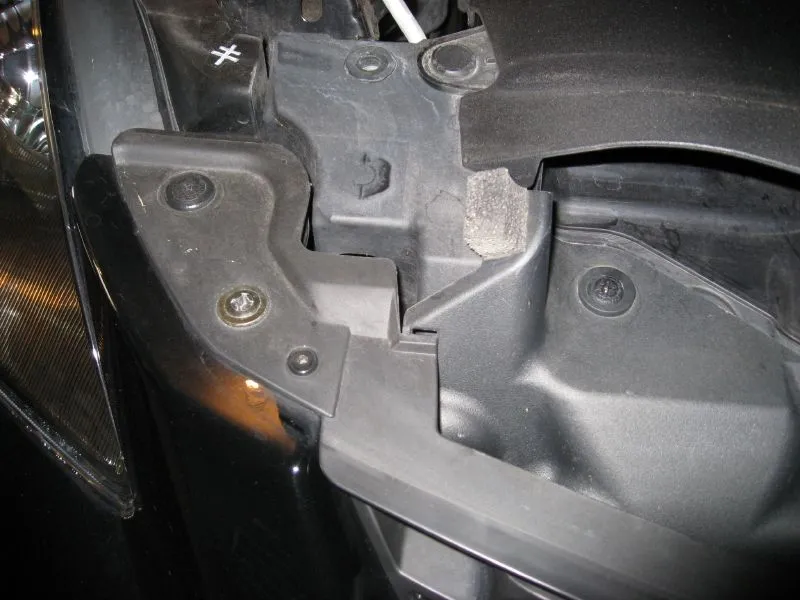

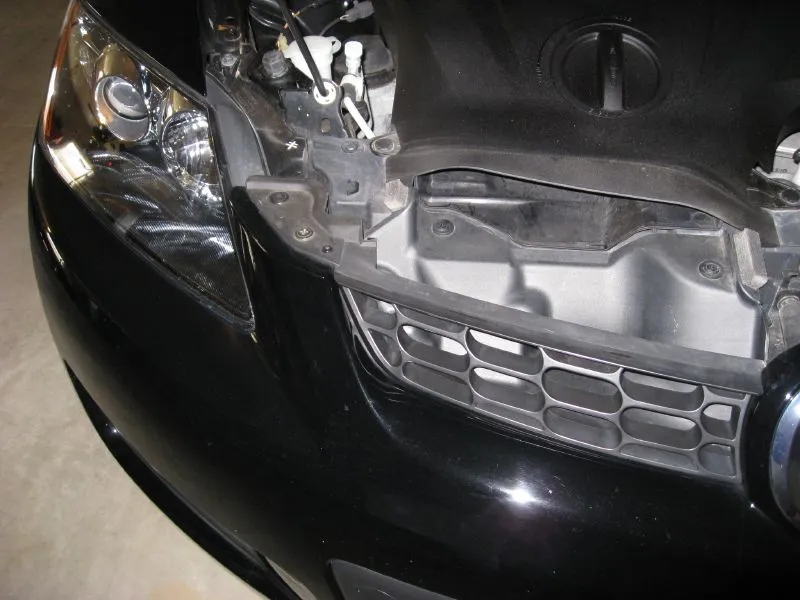

Took these photos of that area on my black GT...do these cover it?


Attachments

  • Pass Front 1.webp
    Pass Front 1.webp
    45.3 KB · Views: 267
  • Pass Front 2.webp
    Pass Front 2.webp
    44.9 KB · Views: 255
  • Pass Front 3.webp
    Pass Front 3.webp
    46.6 KB · Views: 246
  • Pass Front 4.webp
    Pass Front 4.webp
    47.7 KB · Views: 253
(yippy)

Those are perfect, thank you!

Looks like all is in place on my CX7. The grille/moulding must be slightly out of alignment in that area. I'll have to try adjusting and readjusting.

Thanks for your help!

Mark
