Aftermarket Backup Camera with Mazda OEM Screen

[damanloox]

@ikerg: do you have more info on this one? is it actually installed in cx-5?



[ikerg]

@ikerg: do you have more info on this one? is it actually installed in cx-5?

Yes...it is installed on cx5
11,235.81 MXN$ | Dasaita 1 Din Android 9,0 coche navegacin GPS para Mazda CX5 CX-5 2013 de 2014, 2015 DSP 64 GB ROM 10,2 "IPS pantalla tctil
https://s.click.aliexpress.com/e/QA5U4pix



[damanloox]

Do you know if it will fit and work with 2016 cx-5 (facelift - with the new infotainment unit)?



[Mrc_z1]

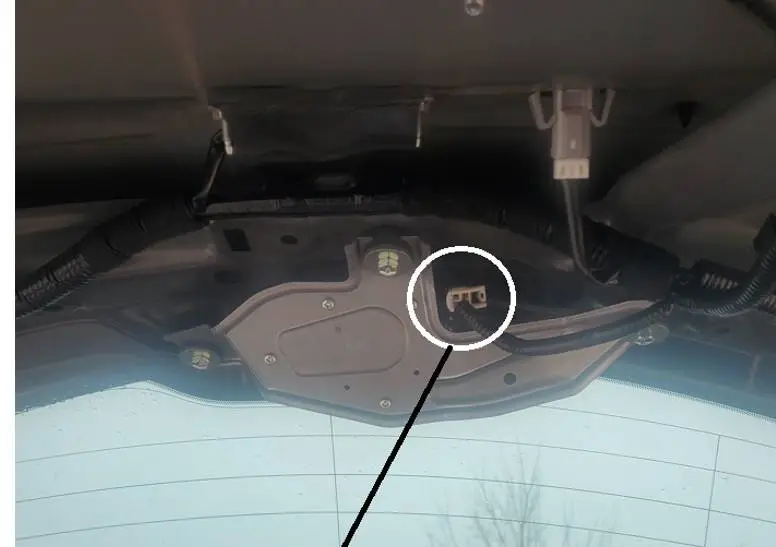

here are pictures of the exact and only 12v constant wire that works with the aftermarket camera when car is on. it is the gray wire that you see spliced open with the red camera wire soldered to it.

i bought adapter from here http://www.ebay.com/itm/28185585536...=0&customid=link&campid=&toolid=20001&mkevt=1

and bought this camera; which is by far the best i've ever used, only camera i've used that has clear vision with color at night time http://www.ebay.com/itm/27149849584...=0&customid=link&campid=&toolid=20001&mkevt=1

I saw 3 people have success wiring it to rear wiper 12v wire? which I thought was this? I tried and the camera didn't even power on? (Had previously tapped to reverse light wire, diagnostics camera powered on)



[Mrc_z1]

Nevermind everyone. It did work. Was using wrong bolt to ground.
