How to remove the door panel

[epharmacist]

This is a Mazda3 door panel removal, but I assume the Mazda5 is the same.

http://dagieu.dasavet.com/mazda/doorpanel/door.html



[was98strat]

basically yes the procedure is the same. 1 screw is in the door latch, the other is in the pocket in the bottom of the arm rest. But be careful, those little white plastic anchors break really easily!! When I removed my front drivers door I discovered that a couple of the fasteners weren't correctly fastened from the factory!



[dommo_g]

What's the point of posting a link to a how-to that's not even specific to the 5?



[starlightmica]

I'm working on replacing the door speakers and found there's also a large cavity underneath the door pull. Looks like enough room to mount a sizeable crossover. I think the speaker mount is plastic with room to force a 6.5" with some work - I purchased the Infinity Kappa 680.7cs which has 6x8's barely larger than OEM, as well as crossovers the size of a small paperback. I'll post a pic later this week once it's done.

Who needs tools? I pulled off the door panel with my fingers - in the dark! Oops, missed a couple of little white plastic grommets, will have to go after them in the daytime with a pair of pliers.



[starlightmica]

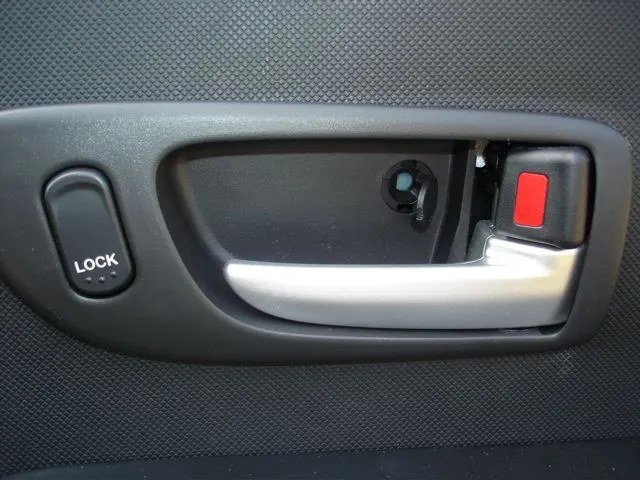

door latch: cap flipped back and screw removed

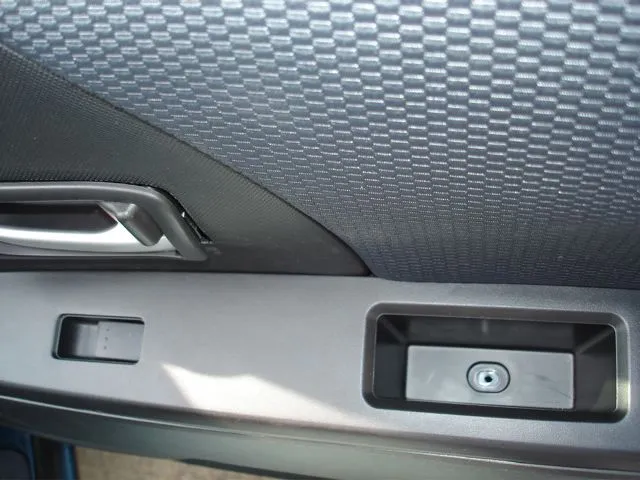

door pull: cover & screw removed

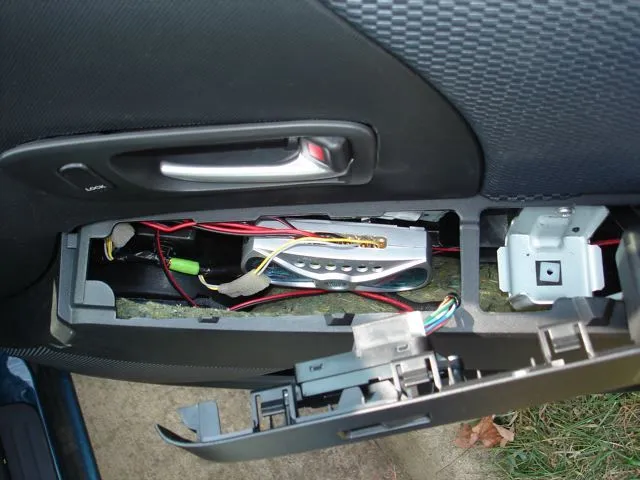

door pull detached and pulled upwards to reveal space taken up by Infinity Kappa crossover

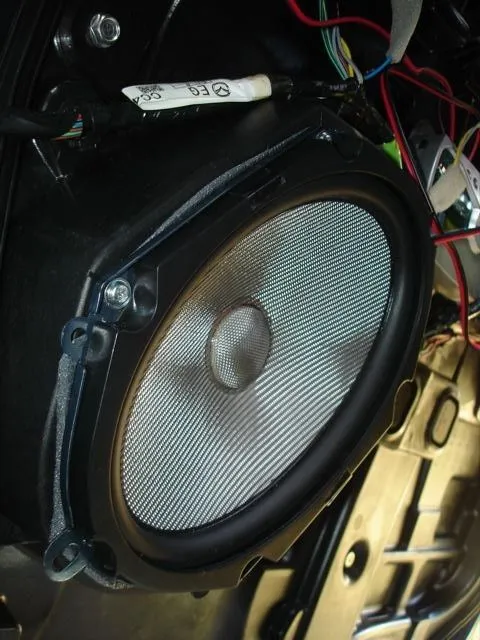

Infinity Kappa woofer in factory speaker position



[slvrsleeper]

Noice!! How does it sound? Now you've got me thinking about modding my window switches so they all light up at night, bastard!



[starlightmica]

Thanks, they sound great! Thinking about where to get/put an amp. More install details in this post:

http://www.mazdas247.com/forum/showthread.php?p=3445866#post3445866

Interior LED's galore - I saw that the Lexus LS430 has little lights that come on with the interior lights in the door pull recess.



[slvrsleeper]

Once I found out how easy LEDs are to wire and deal with I was hooked! I want to put an amp in mine also, I just keep spending my amp project money on other projects ( I really should cut back a little, Naaahhhh) I figure on using a 400 watt four channel amp and running the OE speakers to a messy end and then installing something better.
