Turpro's t-bird/vj11 upgrade

[turpro]

I need to do more work but this is what's done so far. More pics and progress as time goes on. Should be installed in about a month

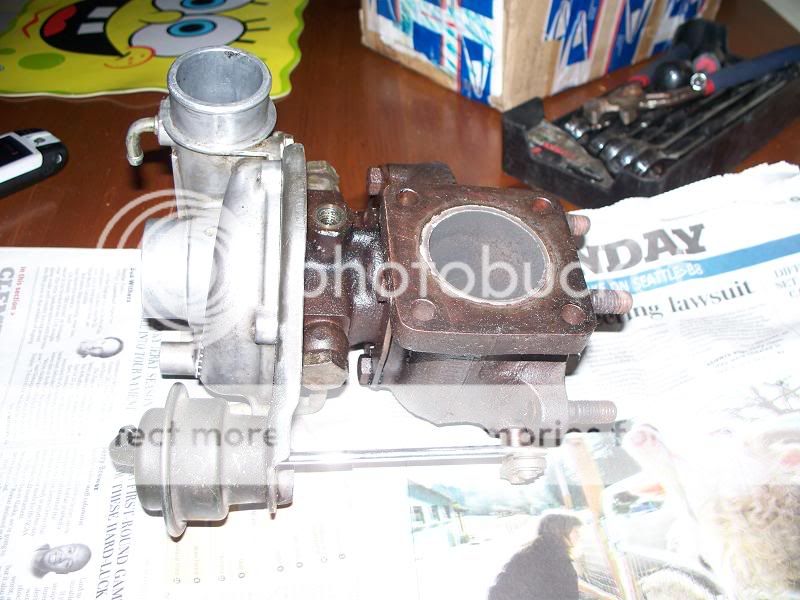

Spare VJ11

Unclip the wastegate

Remove the 6 8mm bolts that hold the cold side housing/wastegate onto the center section

Unbolt the 4 13mm bolts that hold the hot side to the center section

Remove these plates after removing the bolts

This is all you really need from the vj11

Bolt the vj17 center section to the vj11 hot side

Pic of it all assembled

Packed away till further notice

I still have to tap the oil feed hole to accomidate the vj11 restrictor. If someone else has a better way(using differnet fittings for the turbo and block with a ss line) let me know.



[jeffmsp]

jeffscortlx from feoa made stupid power on his sohc cvh escort motor using the same hybrid turbo. im sure you will be happy with it.
