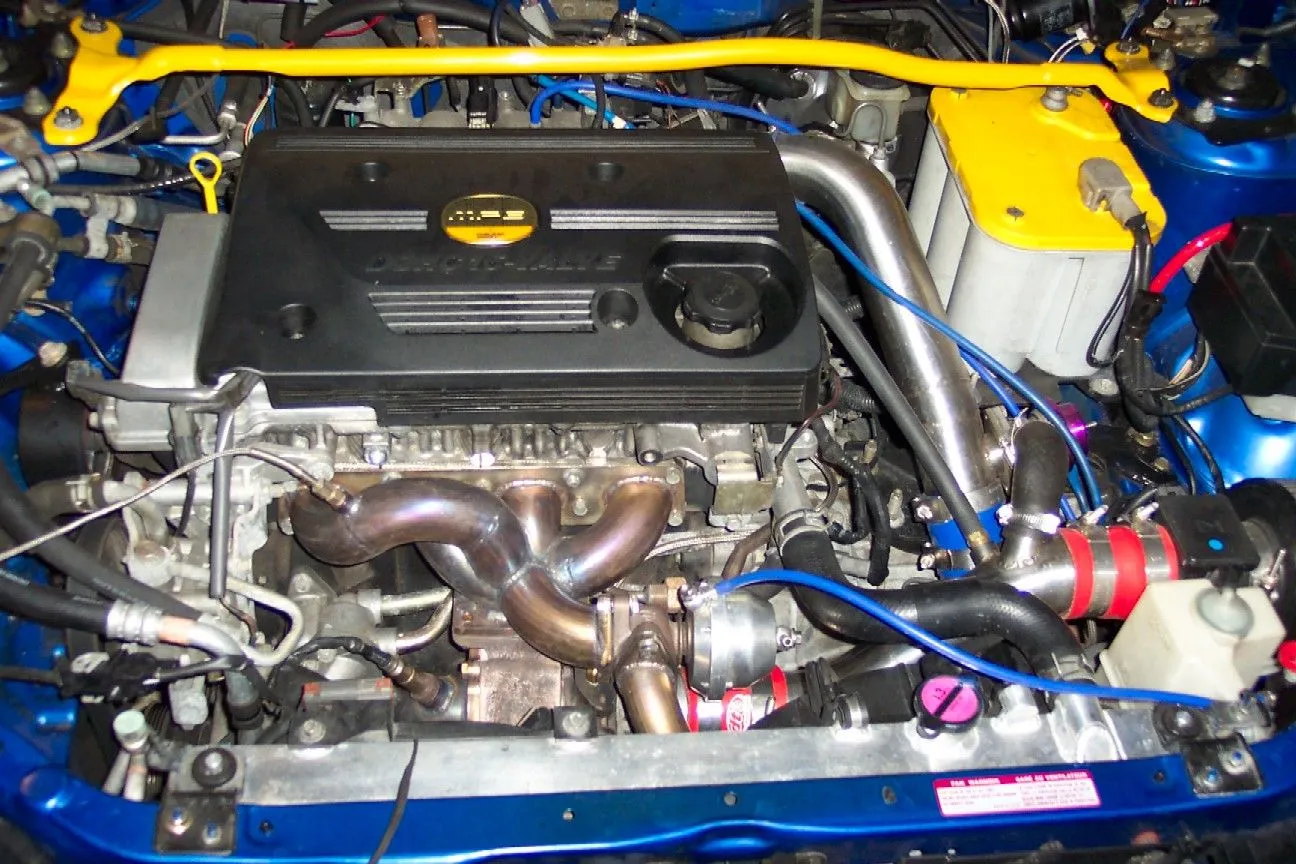

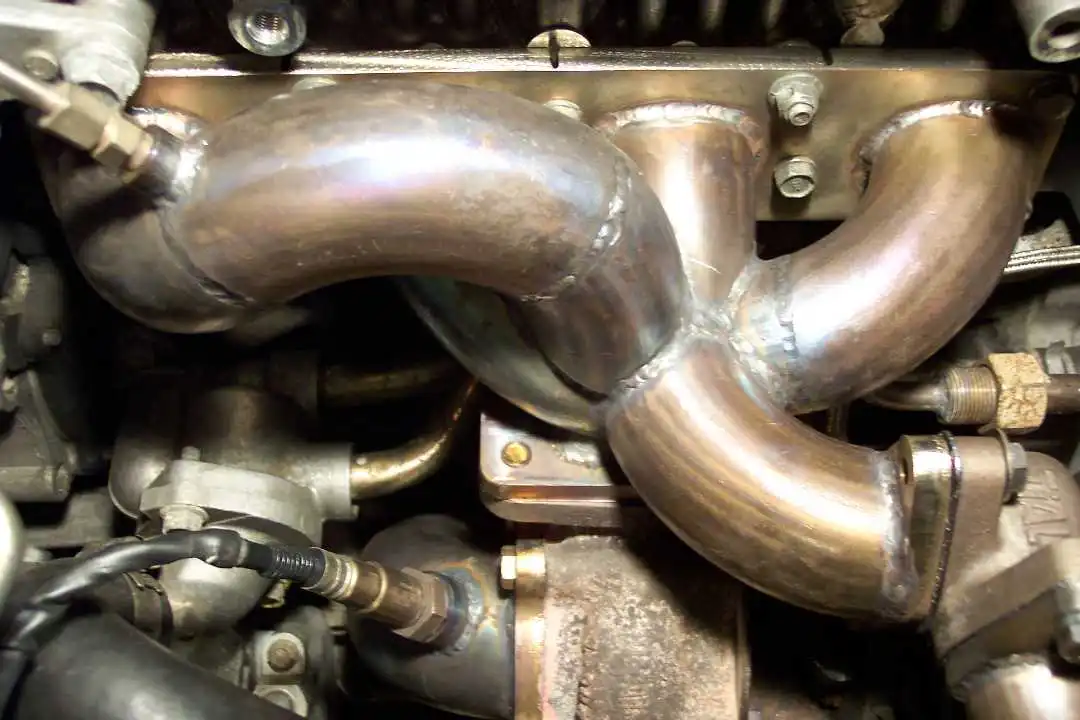

roni's new stainless exhaust manifold
- Thread starter roni
- Start date
- :
- 02 1500 4x4, mp3
yeah thats the same thing that went through my brain when i saw the pics. its freaking awesome.
It does look nice, but beware that thing glowed like crazy then caught fire on Kooldino's car. Don't think the spool mani's ever did that. I don't mean to be a dick, but after seeing it in action, those mani's are s***! You would of been better of staying with what you had or went with a cast one.
Mental Addiction
Banned
What was the back pressure VS the intake pressure?
Example 6psi of boost with 8psi of pack pressure in the mani..
Example 6psi of boost with 8psi of pack pressure in the mani..
Mental Addiction
Banned
Pressure gauge before the turbo.Bigg Tim said:
As far as I understand, my manifold and Kooldino's manifold are not that similar. Apparently, they aren't even made with the same material. And as far as I understand, there were other problems with Kooldino's manifold that he supposedly tried to fix before his dyno runs. I don't remember exactly what went on with that but I know that Wagner had to change suppliers after he made PaulMP3's and Kooldino's exhaust manifolds. Both those manifolds had some difficulty, but they were running quite a bit more boost than I am.Bigg Tim said:

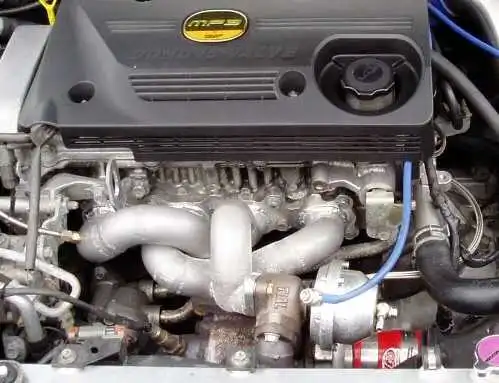

I know that my car is so much happier with the new manifold. The design of the old one might have been to blame for my problems, but it could have been something else.
As far as I discerned, I thought I could get a new manifold and that might possibly fix the bad boost creep and spiking I had previously. Basically, one step at a time, I have re-done my turbo setup with materials and parts I agree with in order to fix the myriad of problems that came with the car when I bought it.
My interpretation:ddogg777 said:
Well the whole "equal length" idea has it's merits. However, with a turbo manifold with an external wastegate, the collector for the external wastegate needs to be taken into consideration. Also, the flow from each cylinder into the collector need to be taken into consideration (the length and direction, as well as the placement of the collector). So in theory, if it is providing an equal escape from each cylinder, it can function properly even if it's not completely equal length. I am more than willing to hear feedback from anyone here (even vendors) with their thoughts about my exhaust manifold.
