Hello guys,
Hope anyone here will be able to help to sort out my problem. I connected the Belsee android radio to my Mazda 6 2017.
All functions working normally. I completely bypass the boss amp using my own DSP- digital signal processor and amplifiers. We cut the wire from the bose plug and run new wires to the amps and new aftermarket speakers and sub. Later i noticed the Mazda 2016 + up has TAU - pre amp which probably manages to work radio and CD player.
I have sound from android radio via AUX output to the DSP. I can listen to USB and SSD disc connected via USB. I can listen to my phone via Bluetooth. I can make calls via Bluetooth and using Android auto apple car play voice. I have no sound from the CD player and no sound from the Radio station.
Did I miss something?

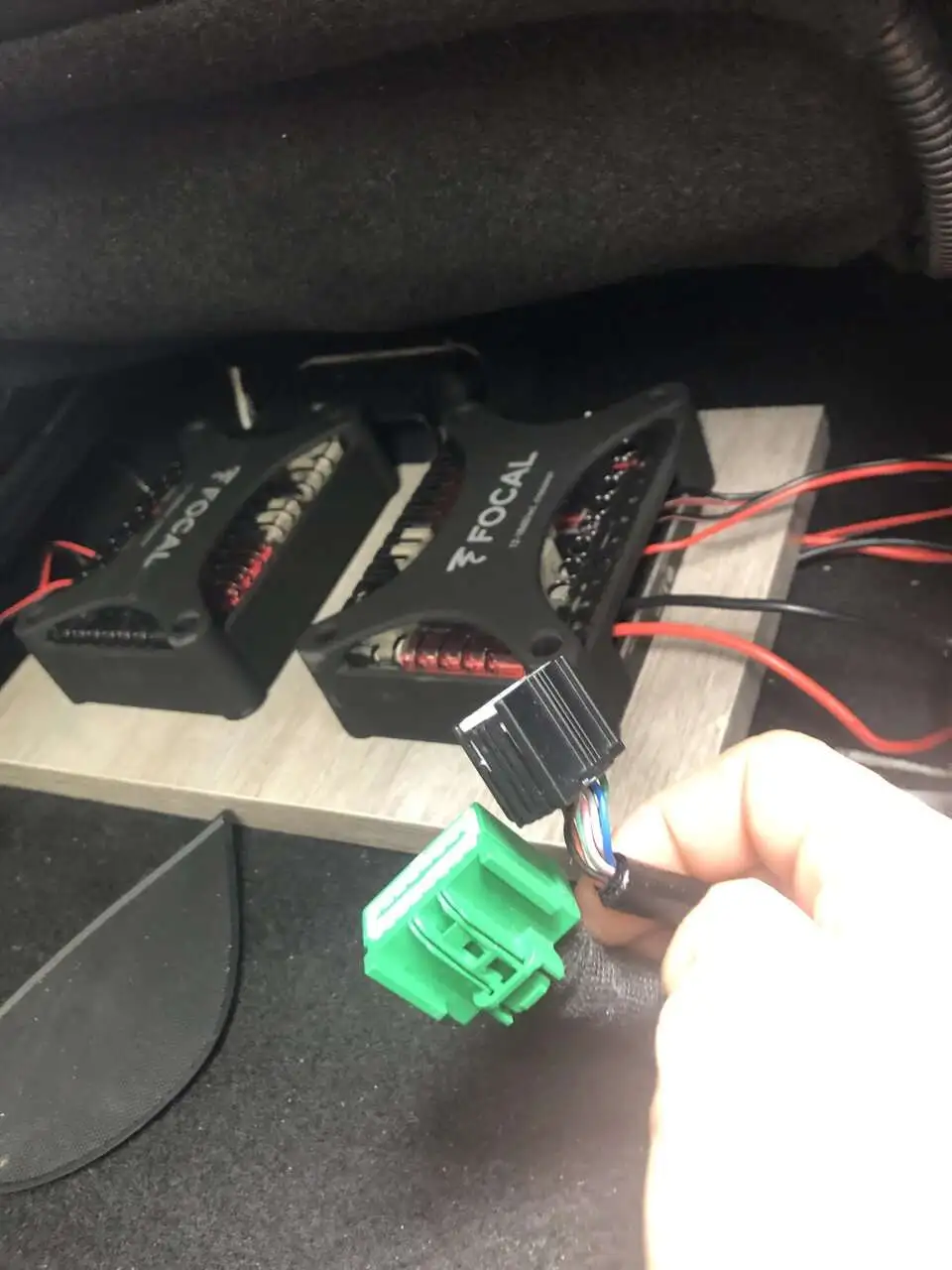

Does it have to do something with the black and green plug which originally went into the bose amp?

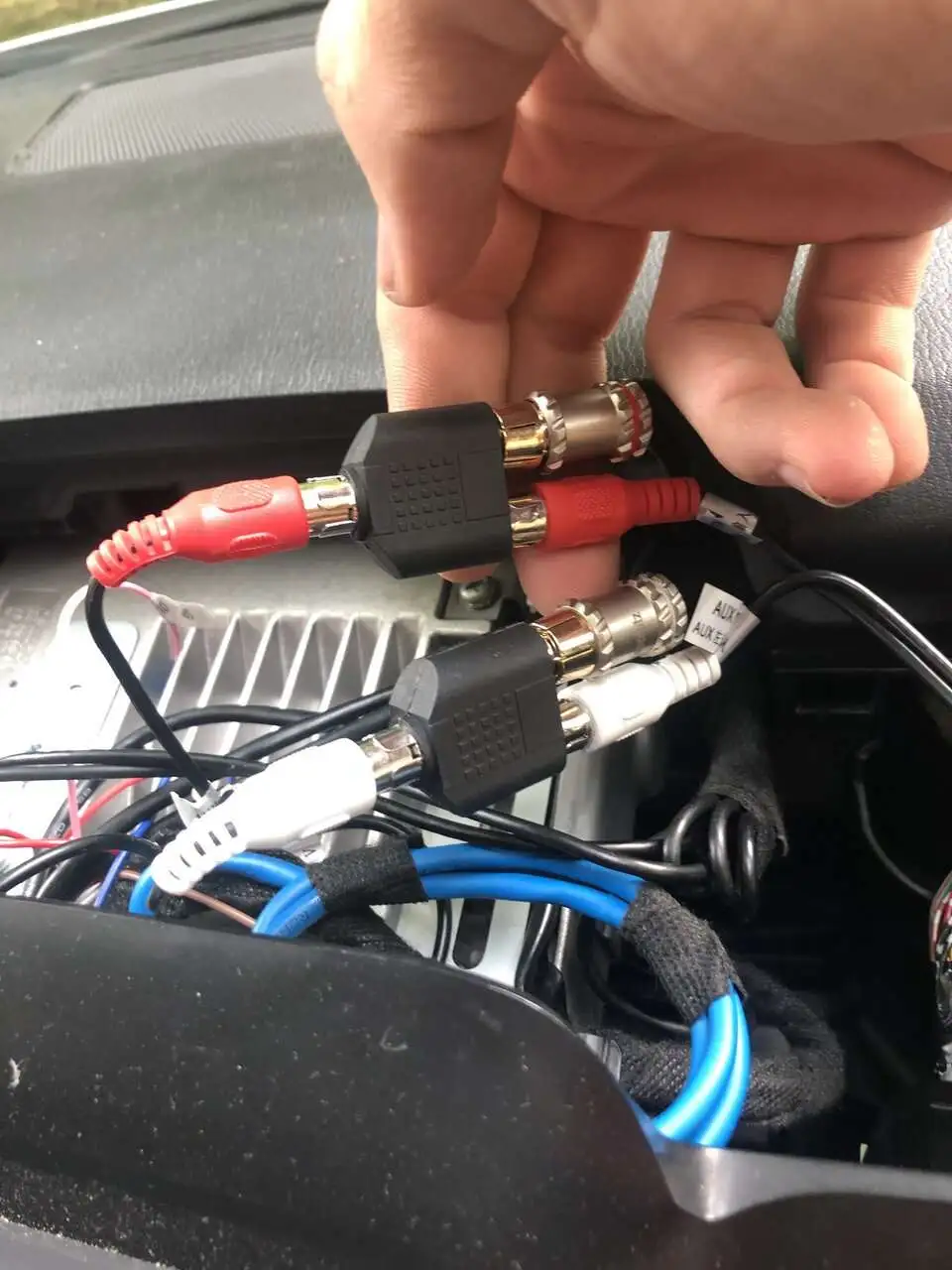

I as well attach pictures of when i connect the aftermarket plug with RCA to connect it to the AUX output radio using a splitter from the Aux output im running 2 RCA into the DSP input. I would really appreciate the direction and help as I'm getting completely lost and I'm not sure what I did wrong.
The radio station finds the station with a good RDS signal, even DAB radio but as i said no sound..Cd player playing CD but no sound coming out.
