Making Custom hood...Need input,opinions and more.

[wicked]

it's a little too close to the windshield,but looks good,even if if impersonating another car.



[nate0123]

it's a little too close to the windshield,but looks good,even if if impersonating another car.

say no more, done



[Shane5425]

it's a little too close to the windshield,but looks good,even if if impersonating another car.

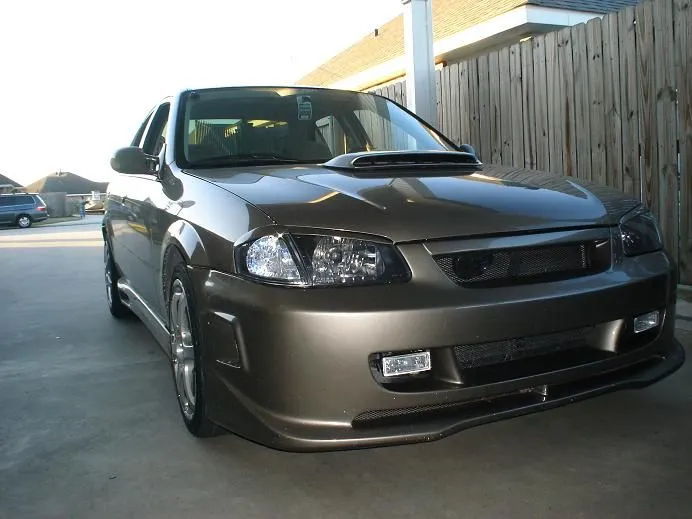

regaurdless, i just wanted to see what it looked like on the car, now i have to hunt one down, gonna go check the subie forums for guys upgrading to sti an sell there wrx ones..



[ForceFed]

Could you try do do a couple more from different agles of the stang scoop nate?

I would appreciate it.



[nate0123]

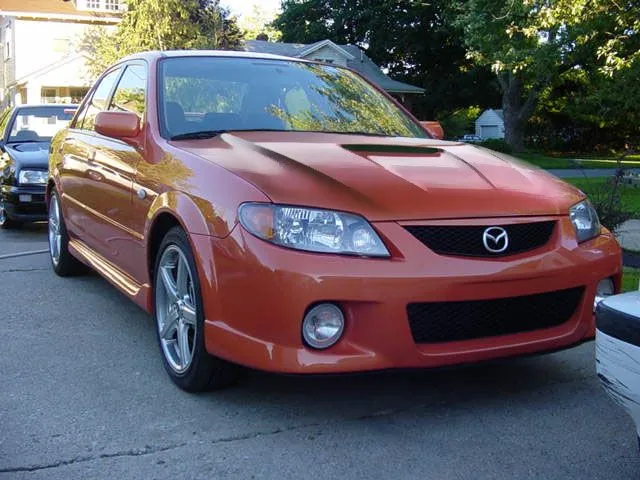

ok, this one's a bit cleaner... hope this works for ya



[wicked]

say no more, done

moving it that little bit made it look a lot better.



[Shane5425]

looks good, but dont put that much of a rise in it on the sides imo



[ForceFed]

looks good, but dont put that much of a rise in it on the sides imo

Hey you got it right...I DONT want a RISE at ALL...I want the stock hood lines..including the drop between the headlights to stay...I also want to keep the center body line of the hood intact as it blends into the scoop area about 10-12'' back from the grille(this measurement refers to the body line only,not to the scoop location),and the scoop will drop even lower into the bay.This is hard to describe,but I basically want cut a hole and plop the mustang scoop section right onto the protege hood with a little blending and modding.Try making that pic nate...I hope you understand what i am referring to ..and that last pic looked great if it dint have the rise effect to it.I want to keep the hood low profile for now...The picture you used was perfect as well...good shot and angle.



[nate0123]

Hey you got it right...I DONT want a RISE at ALL...I want the stock hood lines..including the drop between the headlights to stay...I also want to keep the center body line of the hood intact as it blends into the scoop area about 10-12'' back from the grille(this measurement refers to the body line only,not to the scoop location),and the scoop will drop even lower into the bay.This is hard to describe,but I basically want cut a hole and plop the mustang scoop section right onto the protege hood with a little blending and modding.Try making that pic nate...I hope you understand what i am referring to ..and that last pic looked great if it dint have the rise effect to it.I want to keep the hood low profile for now...The picture you used was perfect as well...good shot and angle.

yea, I didn't understand what you wanted, sorry

give me a little time



[nate0123]

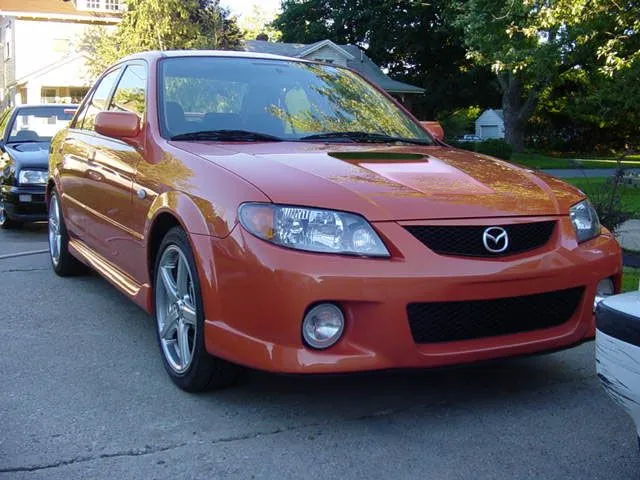

yea this looks a lot better



[nate0123]

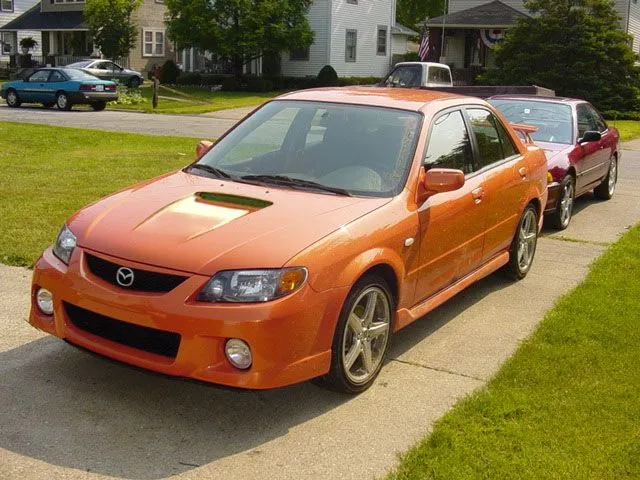

I also fixed this one



[ForceFed]

Yeah that looks a lot better....The first redone pic is a little off center though...It looks like its out of rotation with the car or something...the other one really loks like its right in place..



[nate0123]

Yeah that looks a lot better....The first redone pic is a little off center though...It looks like its out of rotation with the car or something...the other one really loks like its right in place..

I couldn't get it exactly right because the donor pic was at a bit higher angle than your car and showed less curvature

I've nudged it a little bit more..



[bonesmp5]

nice work nate --



[wicked]

thats pretty clean.you could really be a lot of help on designing hoods for us.



[ForceFed]

I couldn't get it exactly right because the donor pic was at a bit higher angle than your ...car and showed less curvature

I've nudged it a little bit more..

Let me see if i can find a better donor pic...I think the vent just needs shifted toward the drivers side.If you look at the front it is way out of center.



[wicked]

this thread is cool as hell since Nate got into the mix,but now I got to make myself a custom hood,damn.



[nate0123]

Let me see if i can find a better donor pic...I think the vent just needs shifted toward the drivers side.If you look at the front it is way out of center.

you need to project the lines of the vent forward, you'll see they aren't really out of center

what's throwing you off is the lack of curvature



[Shane5425]

updates???



[Shane5425]

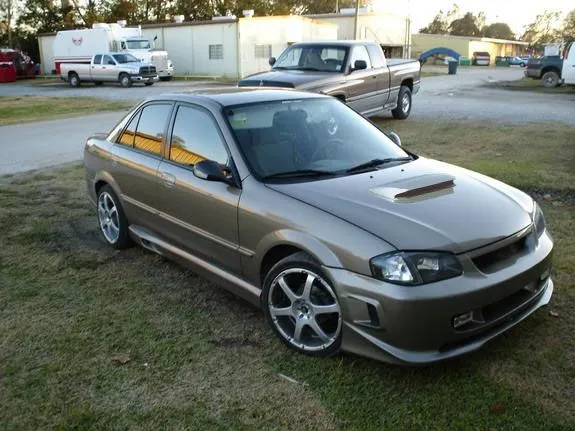

here is my updates.. is bieng put on this week...
http://www.msprotege.com/members/shaneMazda2000P/scoop/DSC02265.JPG
http://www.msprotege.com/members/shaneMazda2000P/scoop/DSC02266.JPG
http://www.msprotege.com/members/shaneMazda2000P/scoop/DSC02267.JPG
http://www.msprotege.com/members/shaneMazda2000P/scoop/DSC02269.JPG
