How-To: Nardi OEM Steering Wheel

[L8R]

How to: Remove your OEM steering wheel and replace it with another OEM one. Sounds simple enough, but there are no threads about removing a wheel. Easy to do I guess, but I figure I'd make one. I am not responsible for anything that breaks or malfunctions!

First off, if I can do this install, anyone can.

Thanks to TheMAN for selling me the OEM Nardi steering wheel! Great seller and nice packaging.

Anyway, on to the install:

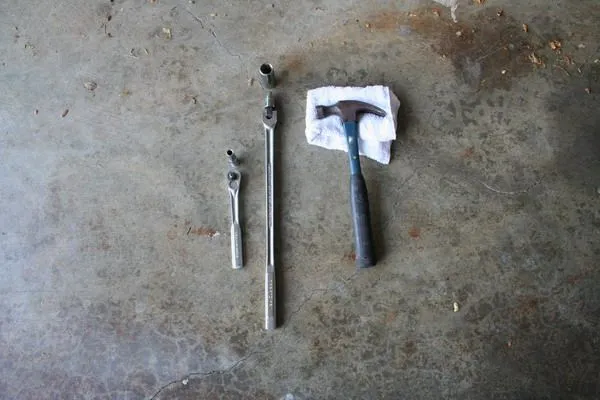

Tools you will need (picture 1): Hammer and cloth, 21mm extended socket (I used a 13/16 extended socket), breaker bar, 10mm socket, and a socket wrench.

REMOVE BATTERY TERMINALS BEFORE STARTING ANYTHING!

From TStar

1 sidenote: after disconnecting negative battery terminal, wait 10 minutes so all electrical devices are discharged... <= that's the hint the mazda techs gave me when working on the electrical system of the car.

i know you mentioned it, but it shouldn't look like it was optional, it's rather a must-do.

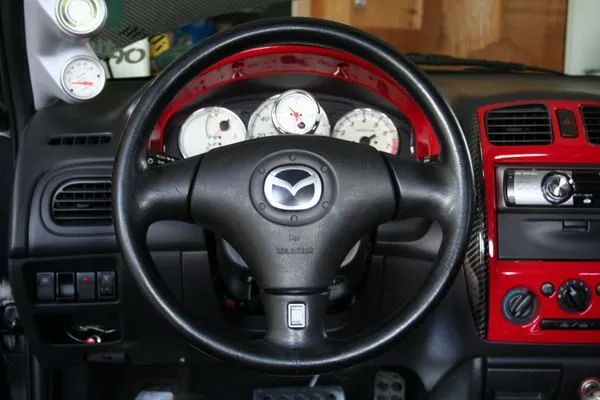

Here is a shot of the OEM steering wheel (picture 2).

From here, you will need to remove two rubber caps found under the left and right side of the wheel. After removing them, you will expose 1 screw on each side (picture 3).



[L8R]

After the screws are removed from each side, you can remove the airbag module. (picture 1)

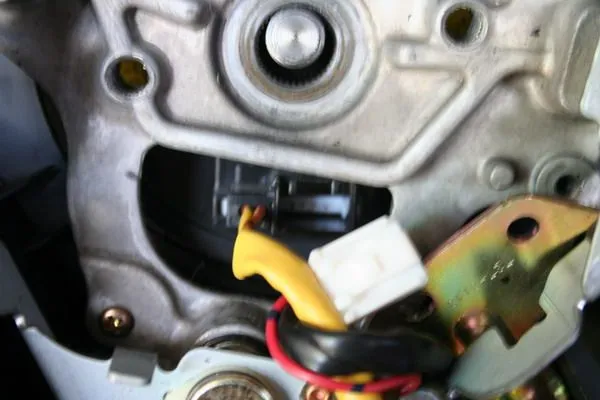

Here is a shot of what is inside. (picture 2)

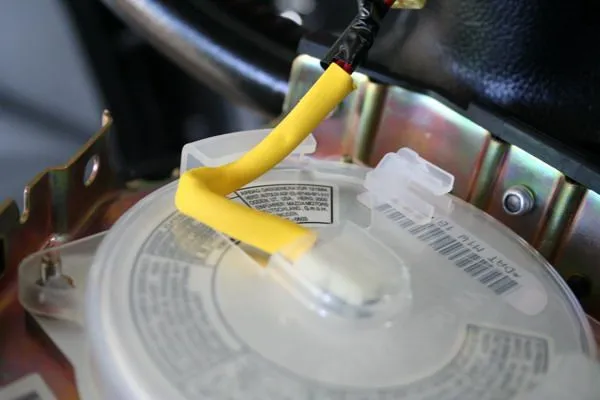

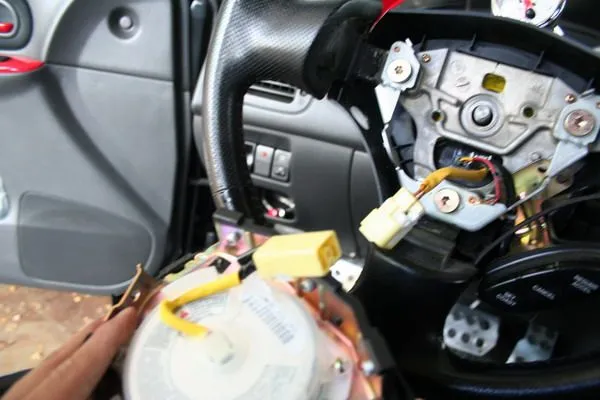

There is a plug attached to the airbag module. You can slide it off making it easier to unplug the plug. (picture 3)

You can now unplug the airbag module. (picture 4)



[L8R]

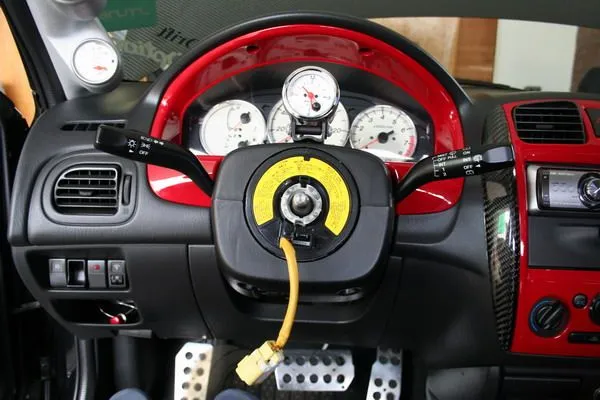

Next, you need to unplug the cruise control module. (picture 1) I removed my cruise control, so I will not need to install the buttons on the new steering wheel. Here is an install thread by TheMAN if you choose to keep your cruise control: http://www.msprotege.com/forum/showthread.php?t=123631479&highlight=Nardi+Cruise+Control

To remove the steering wheel, you will need a 13/16 socket and I used a breaker bar. After removing the nut, I got my trusty hammer and rag. You can use a hub puller, but I don't have one nor does any places rent out for cheap. Just like removing a stuck rim, you need to pound the back of the wheel. I just kept tapping the bottom of the wheel until it came loose.

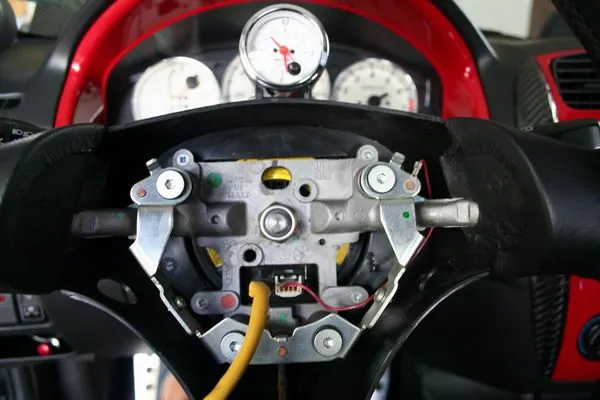

Remove the steering wheel. (picture 2)

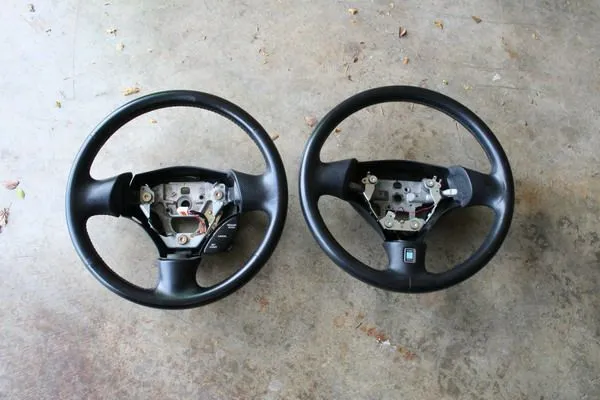

Two wheels side by side. (picture 3)

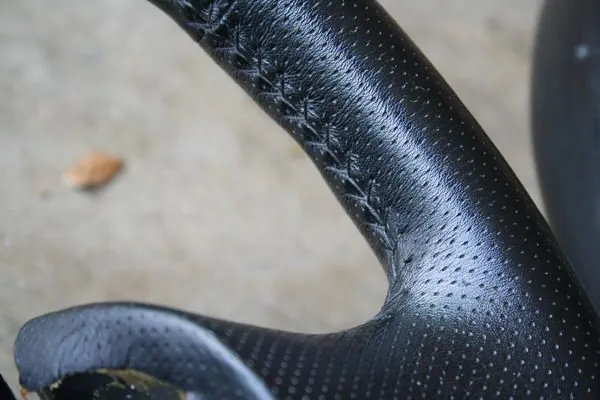

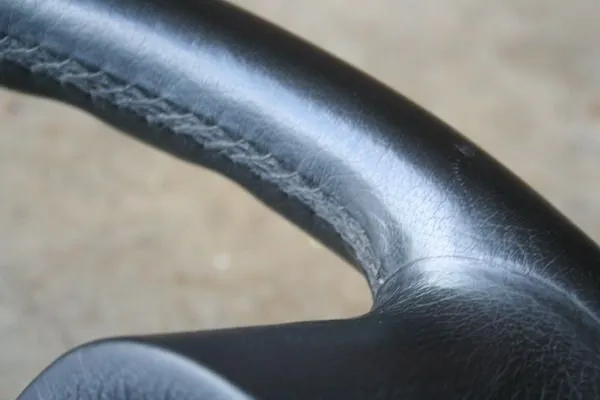

Comparison of the stiching. (picture 4 and 5)



[L8R]

Install in reverse order. Make sure to plug everything back in properly! (picture 1)

From TheMAN

oh yeah, you should list the torque specs for the wheel hub nut and the airbag bolts... the hub/column shaft nut is 34ft lbs and the airbag bolts are 87in lbs... since these are safety related parts, it's VERY important that you torque them down to spec or they may fly off!

New wheel. (picture 2)

Notes:

- I removed my cruise control! I did not transfer the cruise control buttons from one wheel to the other.

- I had a chance to get an aftermarket Nardi wheel and hub for $200, but I chose to keep my airbag and avoid an irritating airbag warning light.

- I just made this thread to help anyone removing the wheel, whether replacing it with an OEM or aftermarket one. At least you get an idea what is needed to do.

Peace
