HKS Type 1 Turbo Timer in MS3

[najjar22]

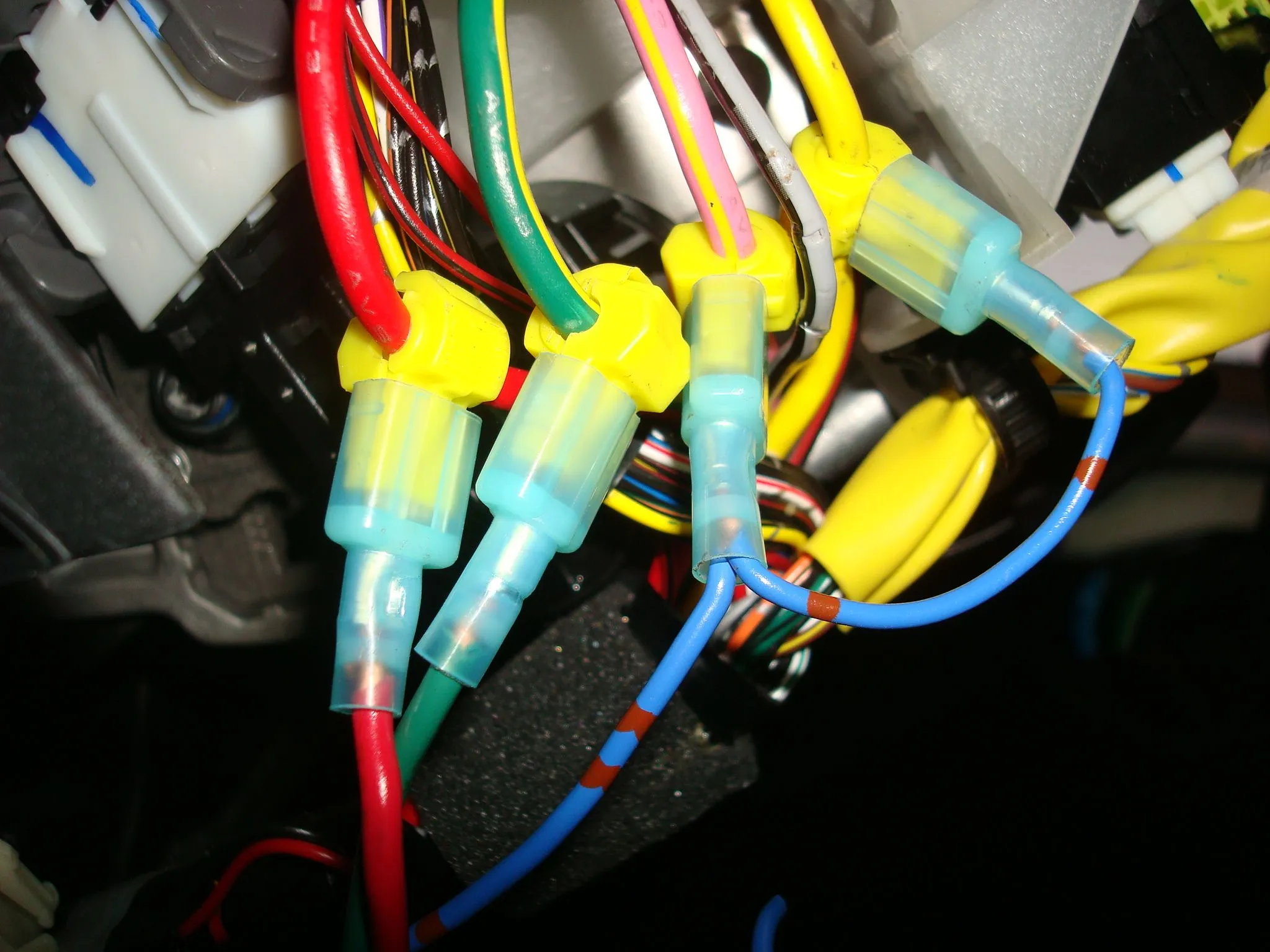

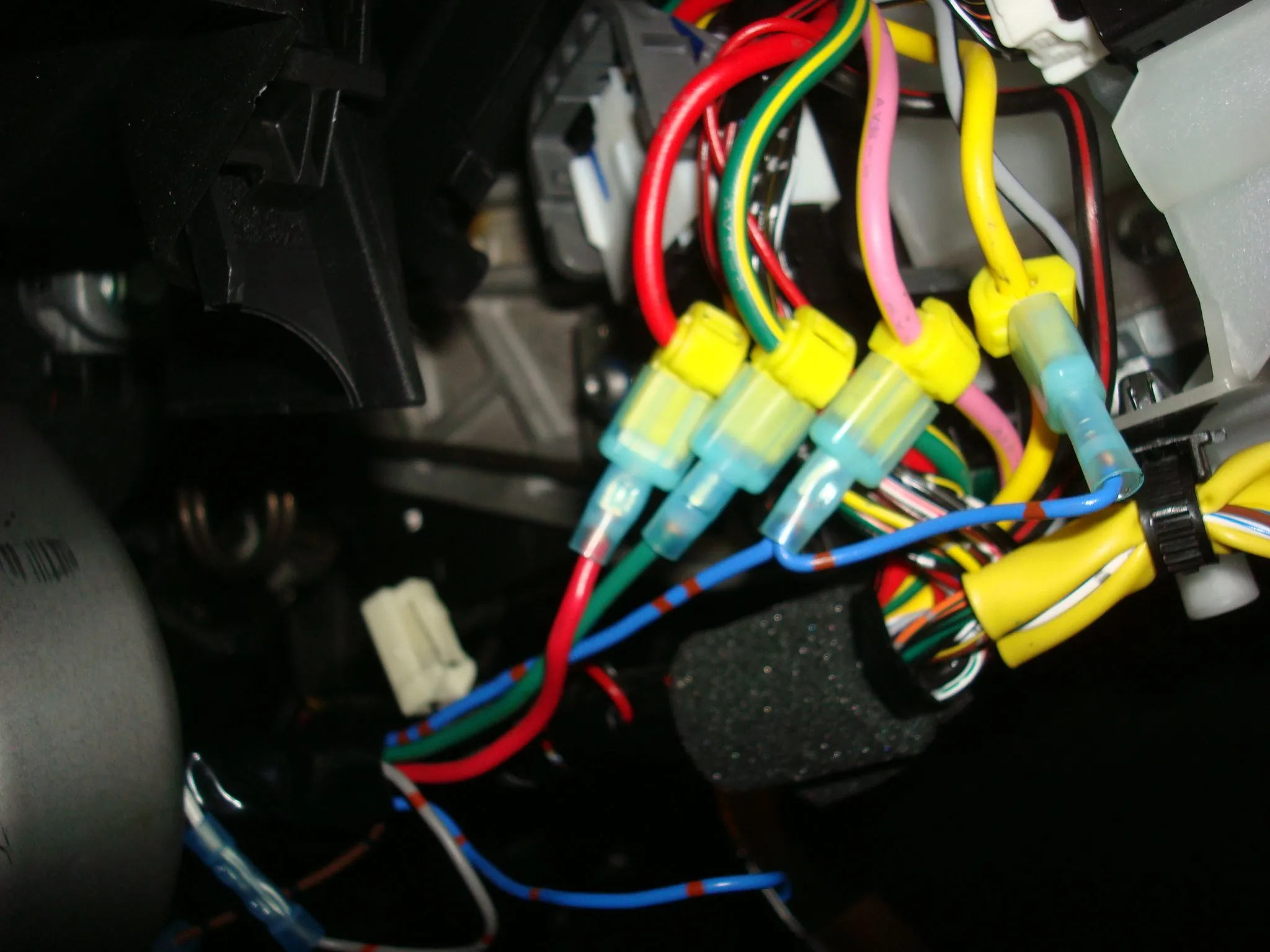

I installed my HKS Type 1 Turbo Timer this weekend and it looks great. But the only thing that didnt work was that the TT wasn't reading the cars speed nor the RPM. I cant figure out what cables to I have to connect to make this work. If theres anybody that knows what to do in an MS3 please help me. These are some pics of the connection now.



[h0rsies]

where did u get the harness



[lestat13]

harness?? look like he just tapped into his wires. now, if they did make a plug-n-play harness, I would buy one tonight!!



[najjar22]

I dont think there is a harness for the MS3. or is there?



[lestat13]

I don't think so
