Fuel Door; Which Side?

[Buster1]

First fill up today in the new CX-9! First time getting gas.

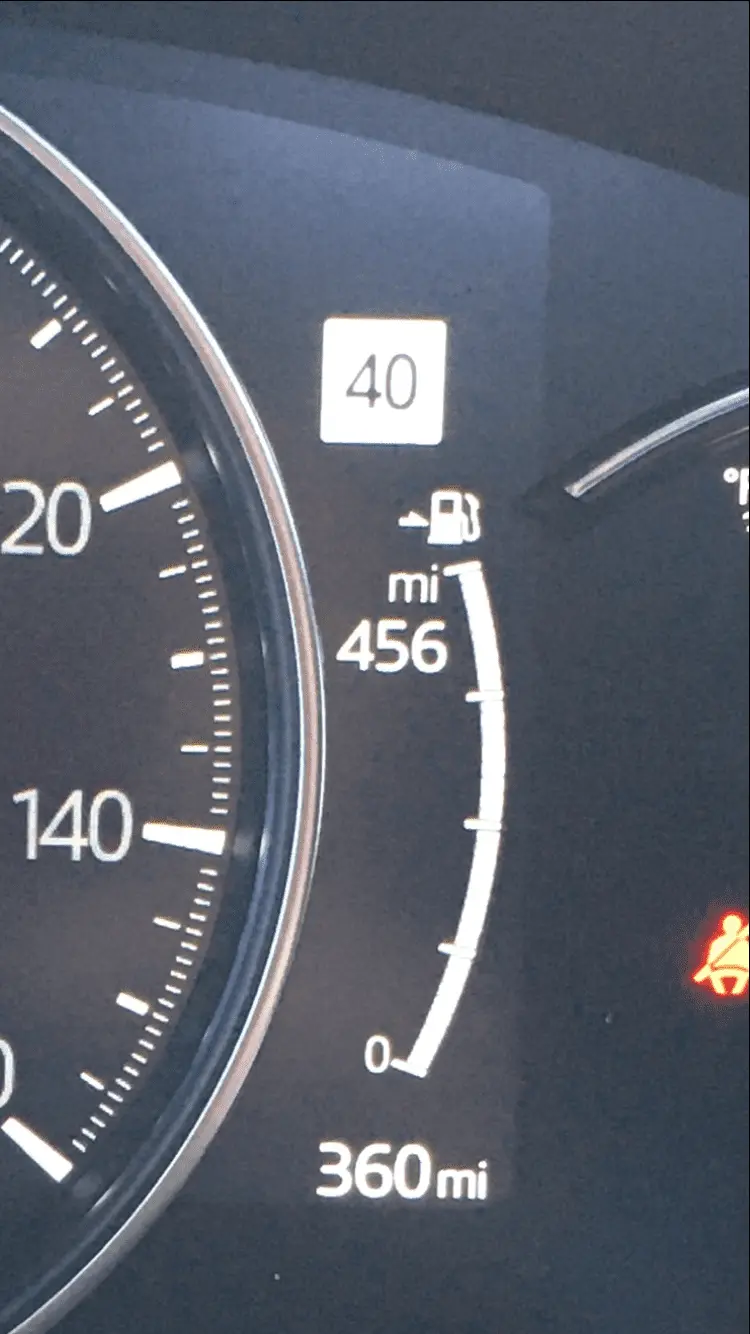

Seeing the below display, what side of the car is the fuel door on? Any guesses?

I’ll tell you I got it wrong and pulled up to the wrong side.



[youri]

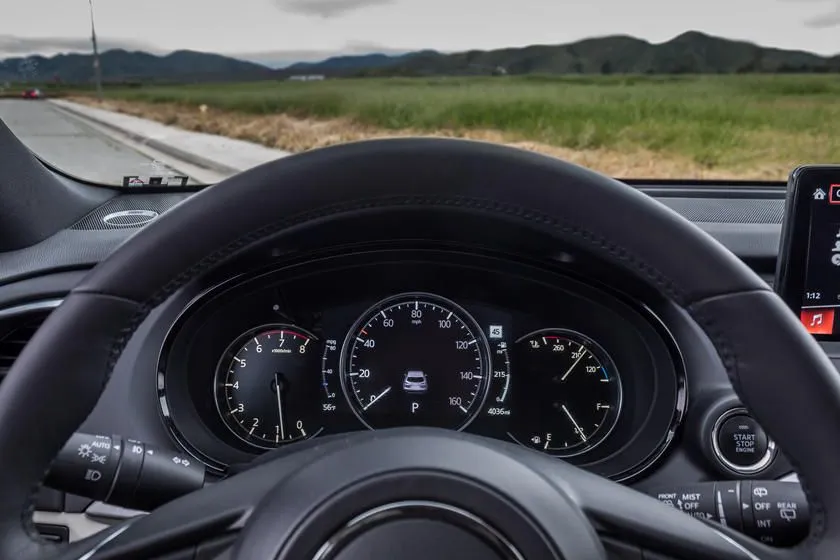

Haha! Someone else posted on this as well. But I think that is a different symbol isn’t it (fuel economy, range or something like that). The actual fuel gage being on the bottom right with the gas tank symbol and the arrow pointing to the side of the fuel door ?



[Buster1]

OMG! You’re right! Never saw that. But there’s another fuel pump with right arrow in the center screen too, depending on what you have showing. And why the arrow on the upper screen? Makes no sense.



[youri]

Yeah it seems to be confusing a few people. The arrow is different, the one in the centre/upper screen is meant to mean distance to empty (as opposed to fuel level). The symbol isn't very clear. They tried to differentiate fuel level from distance-to-empty and didn't really do a good job. I agree it is a poor choice of symbol, but the other one is permanently displayed and literally 2 inches away. Designers probably didn't realize it was going to cause some issues.
