Current Engine bay pics everyone

[Sleezer1533]

Quoted for awesomeness



[Dpwhitehead1]

here's what we have been working on at Exile Motorsports



[icd_rob]

Here's my current:



[Lewis7789]

I just soiled my trousers... So sexy. (2thumbs)



[Chefsp0t]

Yeah man that looks good. I can't wait until my mx6 is on the road.

That maf is probably pretty darn restrictive though. My setup has a cold air intake on the turbo inlet with the maf attached to that. No boost through the maf that way.



[PrinceValorum]

It looks like the downpipe would heat the heck out of the cold pipe on the way to the intake mani. Is there some kind of heat shield in there?



[Chefsp0t]

Not functional yet but hopefully soon. Need a new downpipe made and a blow off valve welded to the water to air intercooler.



[icd_rob]

It looks like the downpipe would heat the heck out of the cold pipe on the way to the intake mani. Is there some kind of heat shield in there?

It needs some tweaking but sadly that's how the kit was designed. I will be wrapping the pipes to help with the heat issue. Hopefully that will take care of some of it.



[JKPgt96]

Can't wait to see it this weekend Rob!

..I need to get a current one up of mine....after I put in my new fans and shroud.



[icd_rob]

Can't wait to see it this weekend Rob!

..I need to get a current one up of mine....after I put in my new fans and shroud.

Yeah man, definitely! It should be a good time. It needs a fresh thick coat of wax on the car. Other than that it should be good to go!



[JKPgt96]

Mine needs a major cleaning, some rubbing compound, and a waxing...and a couple other things.



[719prottege]

with the amount of us that blow our motors up and replace them multiple times, im suprised that i dont see more radical painted/tucked bays...
pulling my motor this friday to start project awesome pants



[JKPgt96]

Hey, hey, hey...I have only spun a bearing in one motor in my 10 years ok KL ownership! lol



[Chefsp0t]

I would be up for a nice motor bay modding spree but I still have a working motor in there. If it comes out (blows up) fun things will happen.



[Wagonbacker9]

Worked on a little paint project over the weekend, my first time with a spray gun:



[johnpili]

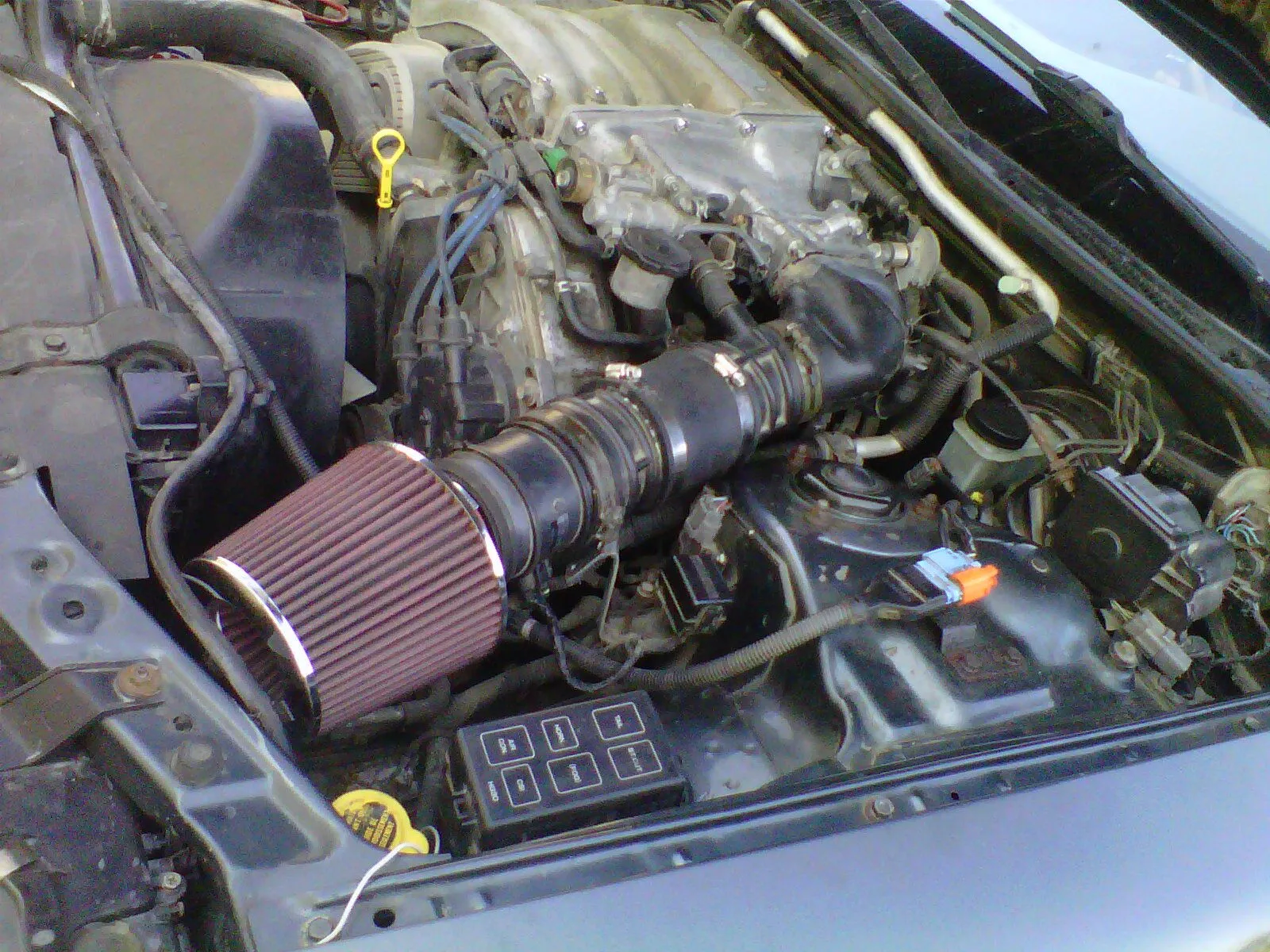

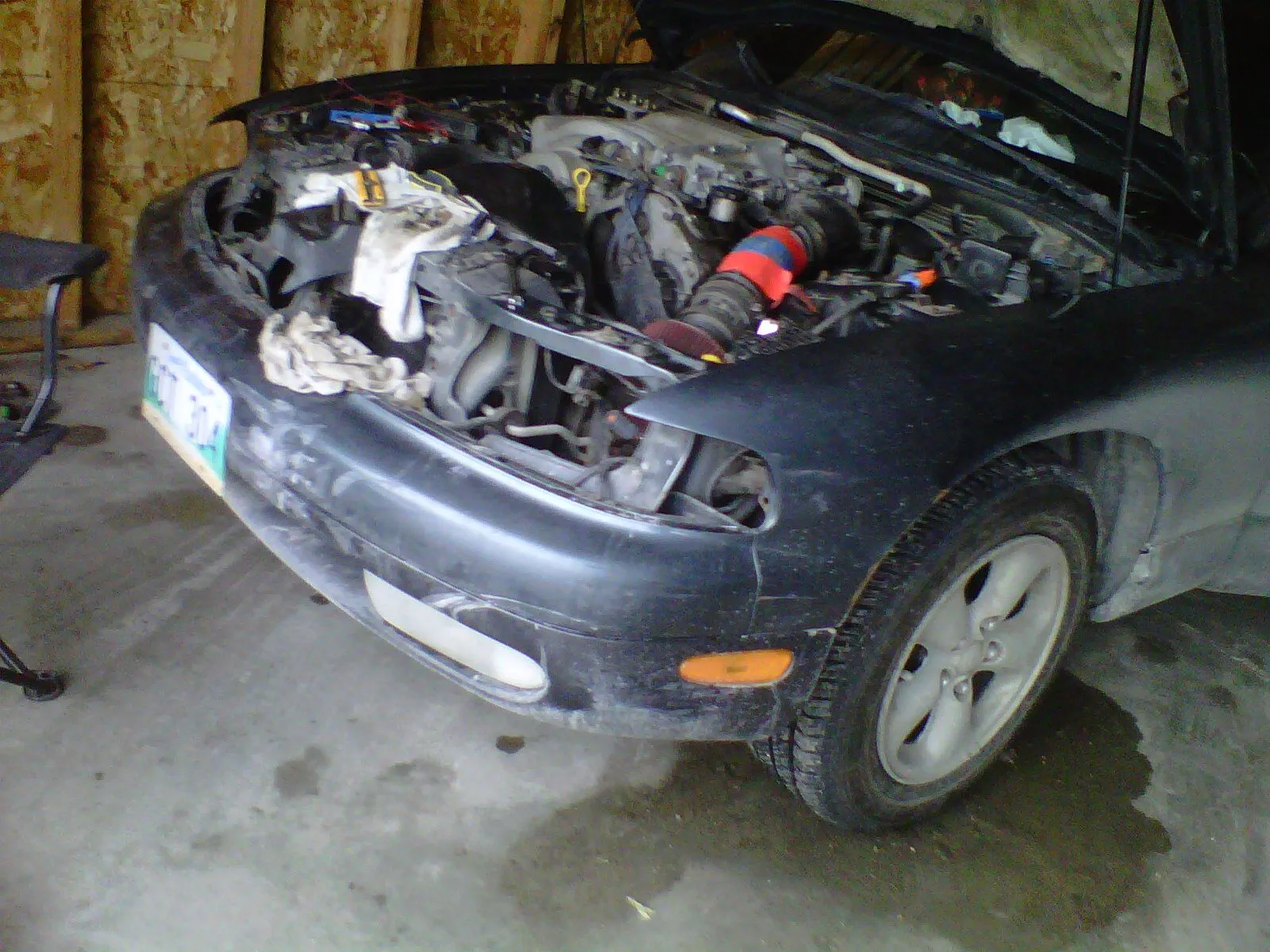

mine would be the dirtiest xD


the weird tape mod would be the previous owner's mod
-i try to make it better believe me(whistle)



[92BigJohn]

new color on the valve cover going purple next week..



[br289165]

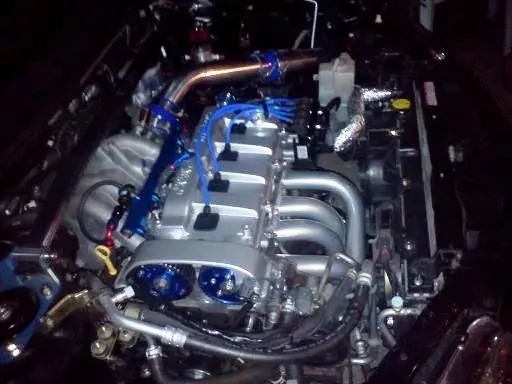

Newest P5 motor pic.



[joka1]

^ Nice.............

Rob



[mymmeryloss]

Very nice!
