Current Engine bay pics everyone

[blazinrola80]

So what do you do with all the s*** that you "tuck" away? Where does all of it go? Great work, btw....

Behind fenders in frame rails place where the trained eye wouldn't look.. lots of soldering shrink wrap tape zip ties loom... i have fuse box in the area where the windshield wiper bottle would go.. and on opposite side i located my battery..

Thanks guys.. trying to get car done asap while working on customer cars also... to set time for the race car..



[Signature Sound]

I know what you mean about the soldering and tucking. I relocated the fuse box to where the A/C condenser used to be (behind glove box). Its still accessable from the foot well. Had to extend about 50 wires thru the fender and into the cabin behind the dash. Its kinda hard to really appreciate until you have done one. Its easy to get one wire wrong out of 50 and fry everything. I think its worse than defusing a bomb. At least with a bomb, you **** up and you die. LOL



[Salmon_Rob]

dont know if my girlfriend would like that. thanks though! lol

blazinrola80, very nice bay.

s***. b****'s ain't nothing but tricks and hoes. someone that appreciates a bf is forever



[719prottege]

Cars harness is all tucked.. the engine bay harness is not installed yet but i will be running my own wires from the Microtech.. im running Injector Dynamic 1000cc so i am able to tuck the plug behind the rail.. ill start wiring next week.. i relocated fuse box... also going to add a different ignition system so i can upgrade to a higher powered coils.

I am awaiting the machine shop to call me for all the flanges i have a few manifolds to make Msp the ae86 my race car for its new motor im building for it. and a GtiR powerd sentra i built for a buddy of mine..





here a wiring job i did on a customer's AE86 street car sr20 powered Microtech ltx10 dis4 ignition system:

ive done a few this is the most recent one i can find pics of..


Signature Sound: Thanks bro.. i appreciate it.. your bay looks good also.. love how clean it looks..!!

so fresh and so clean clean. good job man. ever swap an sr20 into a s12 200sx btw?



[blazinrola80]

so fresh and so clean clean. good job man. ever swap an sr20 into a s12 200sx btw?

Thanks man cars getting a new turbo and intake manifold and turbo manifold..

no i have never done a s12 200sx .. I am sure the ca18det would be easy to drop in but a sr would just be a bit more work but definitely doable i have seen them before..
i have don't rwd corollas 240's sentra's fwd 200sx with sr20's ..



[blackdragon11]



[323]

needs red or black couplers



[blackdragon11]

yea, i want black. i'll swap them out eventually.



[blackdragon11]



[funkalicious21]



[Mazdaspeed2oo35]

These are the most recent pictures of my Engine bay as of today after some work i've done to it.. lol lol It's obvious what i have done.... But i still have tons of work to do to make things look better and cleaner. I just need some more free time and few bucks to finish it up....



[StealthWyvern]

^ wanna touch up my engine bay next? lol



[blackdragon11]



[Mazdaspeed2oo35]

I Wonder where you got the idea to put the Vaccum block in there !!!!!!!!!!!! lol lol lol



[JM1Protege]

took these today with the freshly painted valve cover cover. I need to do some serious cleaning under the hood...



[09WhiteBlackAzz]

^sick VC



[justanothermp5]

lol valve cover cover

looks nice, what happened to the strut bar?



[JM1Protege]

Well... Its sitting in the garage... I decided to paint it one day but got lazy and never put it back on...



[funkalicious21]

These are the most recent pictures of my Engine bay as of today after some work i've done to it.. lol lol It's obvious what i have done.... But i still have tons of work to do to make things look better and cleaner. I just need some more free time and few bucks to finish it up....

That's sexy period....!



[RedCaballero]

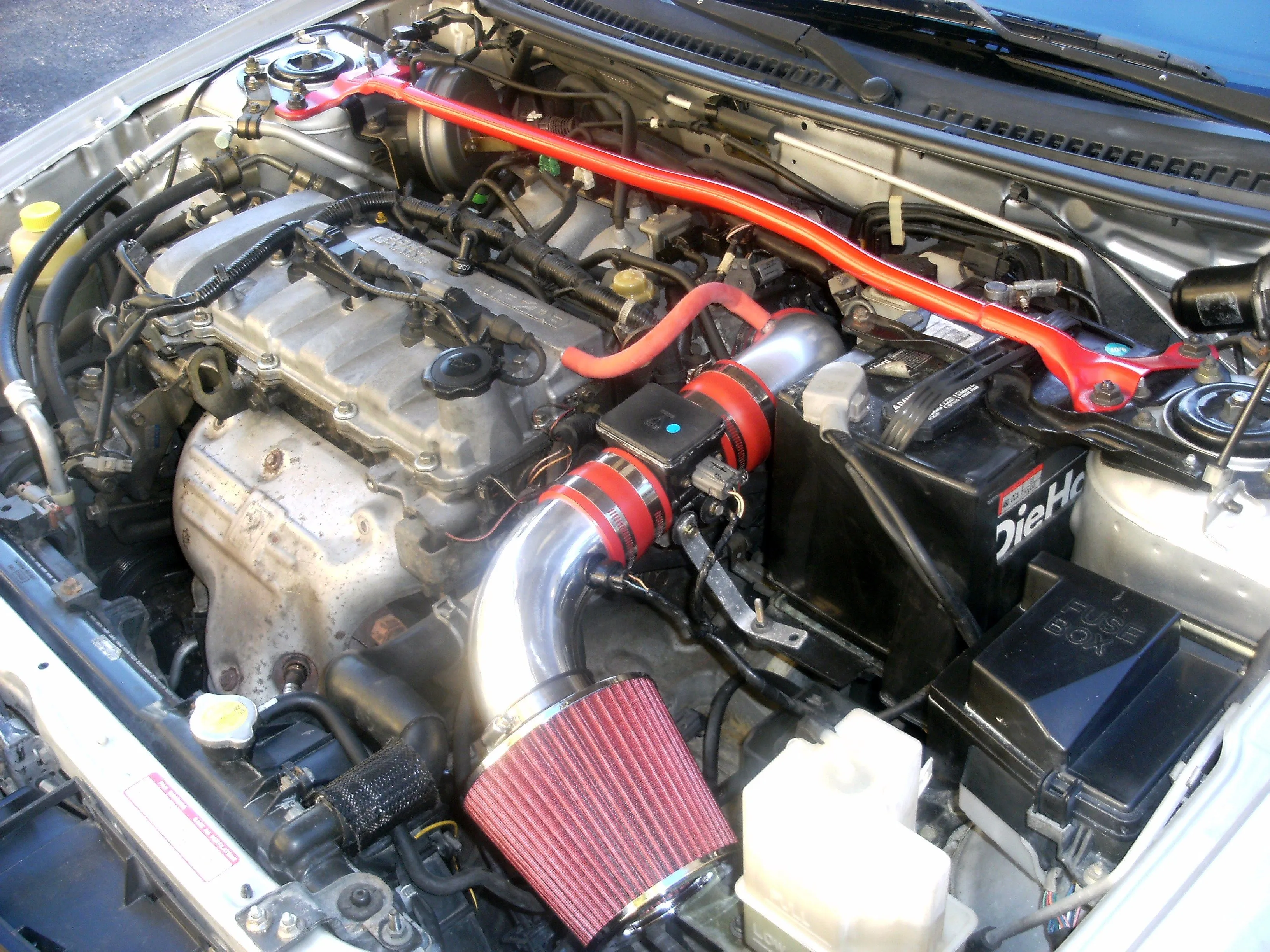

My engine bay

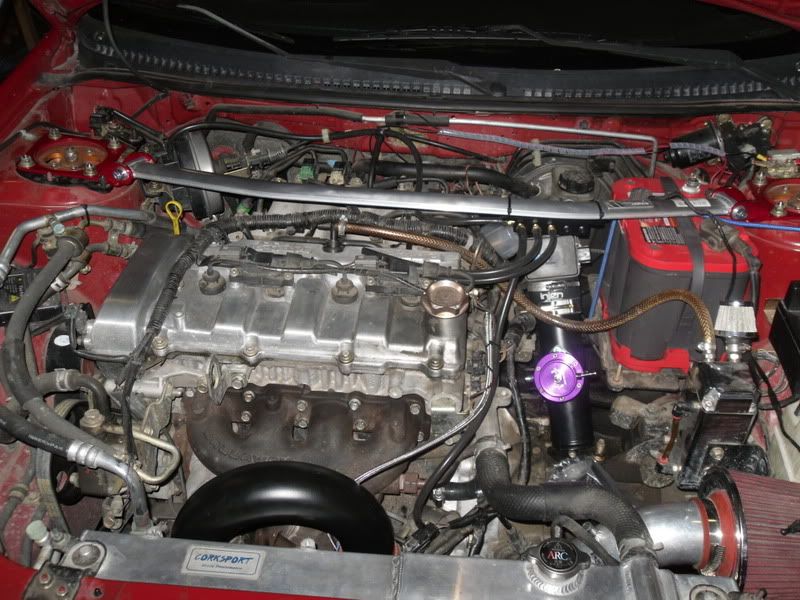

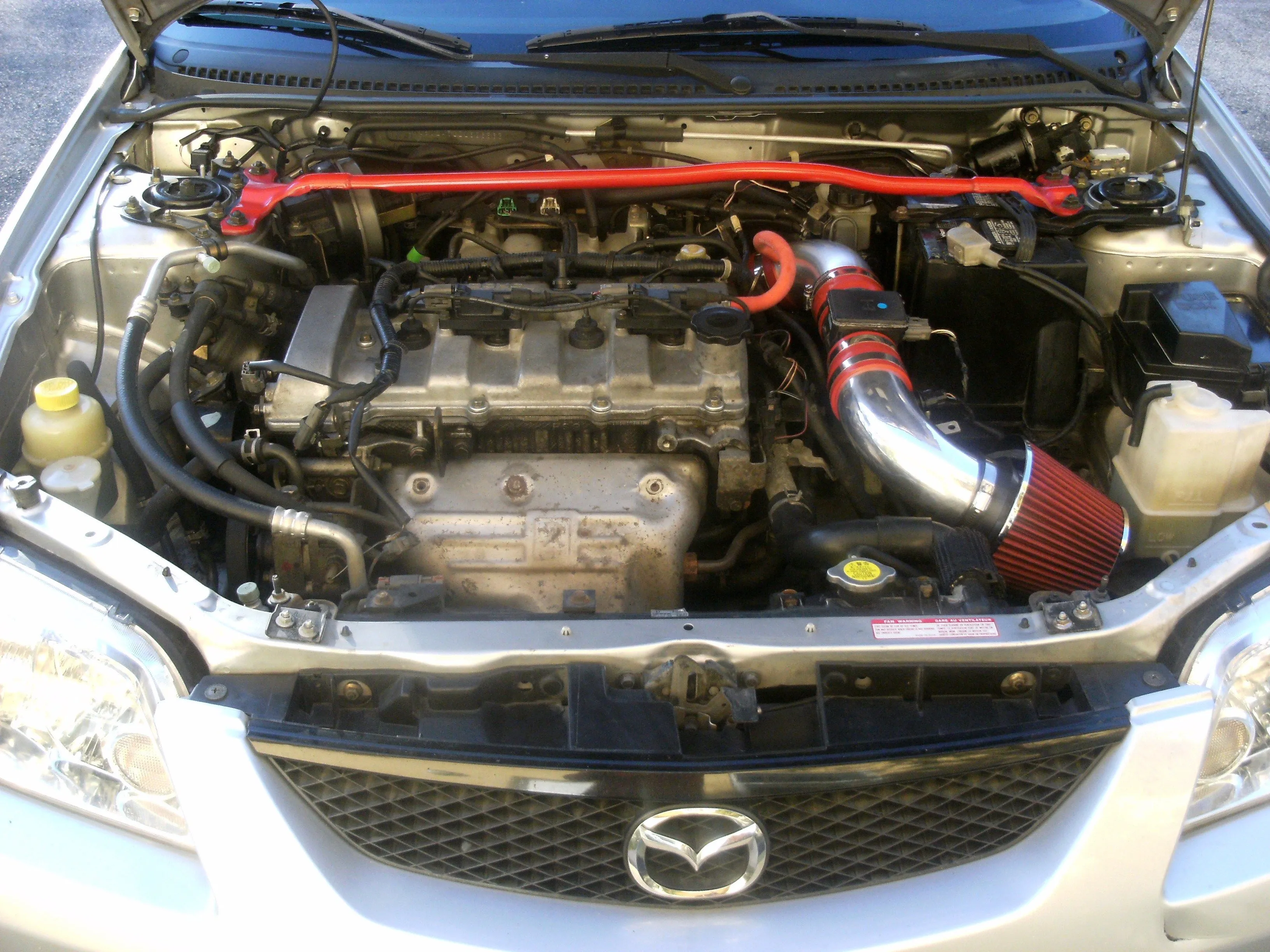

Here is mine, soon I will ceramic paint the valve cover head
