IAC Valve Pro'5

[Grand32]

hey guys
protege5
rough start, cuts off.

was told it was the IAC valve, error p0505 something something.
anways, i have been reading i can clean this with carb cleaner? save myself $700 mazda wants for a new one..

can anyone get me a picture of where and what it looks like?
so i can clean it?
many thanks!!



[Dimitrios]

It's mounted to the bottom of the TB. You need to remove the throttle body to do any decent attempt at a cleaning. Watch the screws as they're soft (zinc/bronze) and you may end up stripping them.



[Grand32]

thanks!
i've been having a hard time finding it.
i heard it has a hex style screw patterns? this true?



[Grand32]

this is a common issue for this car?
if anyone knows..lol



[jdmdikk]

it does have hex screws but also 4 philip screws on it..use a hammer and a philip screwdriver to give it a few hits to break loose and twist them off(philip screws) if that doesnt work,take the tb off and remove the screws with grips..



[Grand32]

thanks jdmdikk

is it faster to just remove the TB completely to get at it?
im sick of this issue lol.
keeps cutting off when i start it up, after about a min or so with my foot on the gas, it revs about 6-700rpm. i was told it was stuck in the "on" position..

can this issue create another problem?
and does anyone know where i may be able to find a cheap new part, or used?
cant find this car in a junk yard, i get laughed at cuz the junk yards claim to almost never get that car towed in.
hopefully this is the one and only issue i will have with it.



[jdmdikk]

depends on your location..i am in CT and found 2 protege sedans and was able to get my throttle bodie from 1 in the junkyard..u can also use the iacv from a 626 and maybe millenia but i am unsure on year..try the hammer thing 1st and then the tb removal but u might have to get a new gasket for the tb



[slavrenz]

It's mounted to the bottom of the TB. You need to remove the throttle body to do any decent attempt at a cleaning. Watch the screws as they're soft (zinc/bronze) and you may end up stripping them.

You're thinking of the EGR valve. I IACV sits right in top of the throttle body - it's got a little black solenoid attached with hex head security screws.

Unfortunately, new they cost $300+. You might get lucky by checking salvage yards - also look on eBay.



[jdmdikk]

^^^he is abosolutely right,it sits on top of the TB..u cant miss it..



[shane02pro5]

car-parts.com Throttle body with iac and tp sensor should be close to $50...



[justanothermp5]

You're thinking of the EGR valve. I IACV sits right in top of the throttle body - it's got a little black solenoid attached with hex head security screws.

Unfortunately, new they cost $300+. You might get lucky by checking salvage yards - also look on eBay.

i was just about to correct him lol



[LinuxRacr]

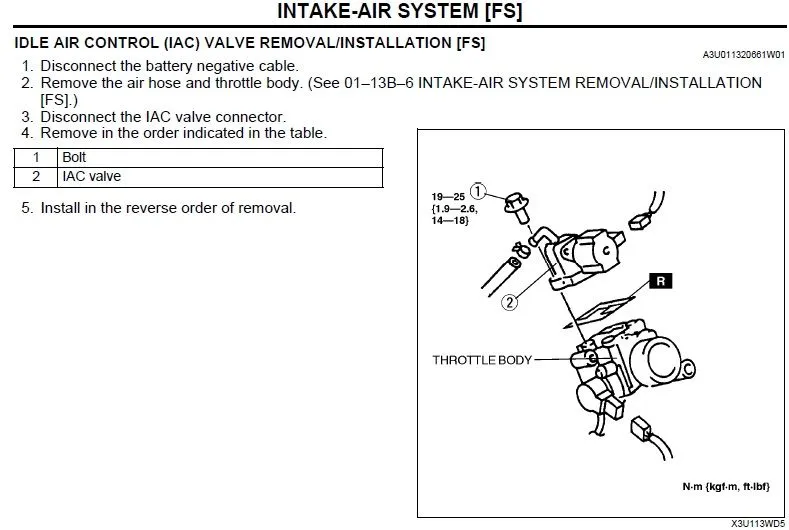

See below snapshot of the shop manual.
