Piston ring clocking??????

[dany10boy]

Can't find much info anywhere.... Anyone know??????????????? (braindead



[nicholsspeed]

from the Weisco site i got this page.http://www.wiseco.com/PDFs/Manuals/RingEndGap.pdf

they go as follows. in a clock formation
front of engine is on 9 side.

Top Comp ring, 3
2nd Comp ring, 9
Oil expander, 6
top oil ring, 10:30
Bottom Oil ring 1:30

hope this helps.



[Alejo_NIN]

miami local, huh?
join us on facebook for meets
not a forum
sflamazdacrew.com



[iracemine]

good guide for figuring out gap. Thanks!!!!!



[bryanoverlin]

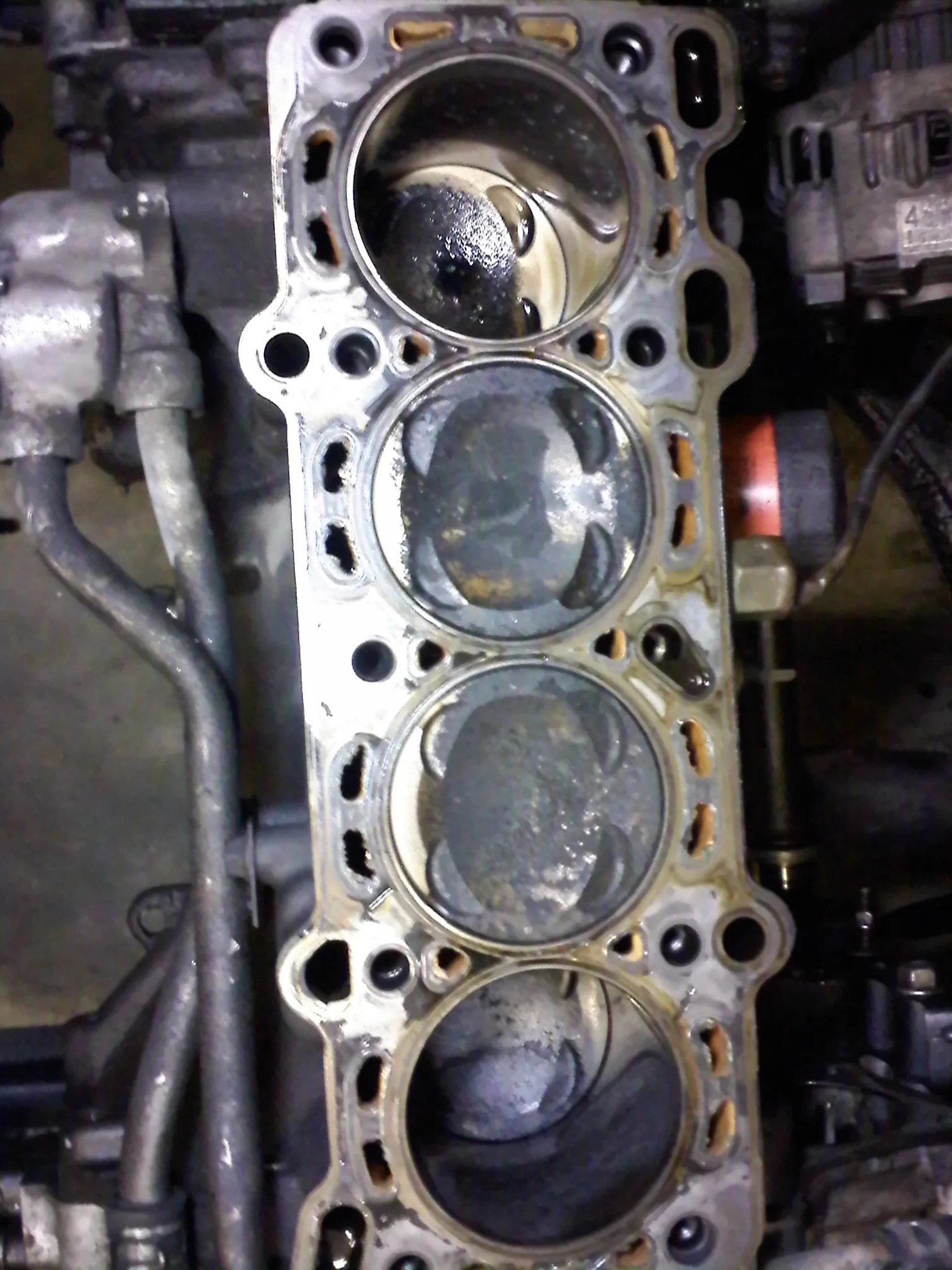

Would you happen to you know if those pistons are stock? Usually dished pistons are aftermarket? Flat pistons are stock? Domed pistons are usually aftermarket too and are for high compression? Mine has the same pistons and im wondering if it is built or not.



[iracemine]

"those" I assume are from the fist post are stock.



[iracemine]

anyone else want to post up their end ring gaps?
