Sounds good bro.......I think I might be goin out of town a little later tonite up to worcester. So Ill get back to you sunday night if I do go.


Chris

I received contact from Mazda USA. I'm going to have to negotiate licensing of the logo with Mazda in Japan. They are forwarding my design and requirements today and I will go from there.

In the mean time. I have the 3x52mm panels ready. I have one request for 1x52 w/ Greddy TT/EBC slot, and one request for a 1x52 w/ 2 Greddy TT/EBC slots. I need one more of each of those and I can get those parts in.

Thanks!

Steve

Will do... if this goes through I'll be the only vendor authorized by Mazda to use their logos for products. They don't typically license for products they said... just hats and clothing etc... but they may consider this I guess... so we'll see!

Turf............I have the moeny waitin on your pm.......if you want to talk on the phone hit me up....413 265 5595........really need these things! haha


Chris

We should be all good Chris. I'll get that stuff together and hit you up when it is ready. I'll pm you final prices tonight or tomorrow as well.

Later!

Steve

Here are two more designs that are ready to go. If you are intersted pm me and we can work out the details. The rectangular slots are sized to hold a Greddy TT or EBC.

Also, I can now do lower volumes for you guys on these panels. I'll notify if pricing changes. But if you want a panel made specifically for your desire and there are not multiple others after that panel, you can get one designed. Once that has been done, you put downa 50% deposit on the total cost of the panel (1 off designs will typically run about 60-65 dollars). And then once the panel is complete you'd pay the last half and I would ship out to you. So I will do single panels for you.

Thanks and let me know if you want one of these designs or something else.

Steve
NSN Motorsports

EDIT: I reviewed the dimensions and discovered that the TT dimensions are wrong!! The TT is much wider than what I drafted based off of. Two gauges can't be fitted.


Attachments

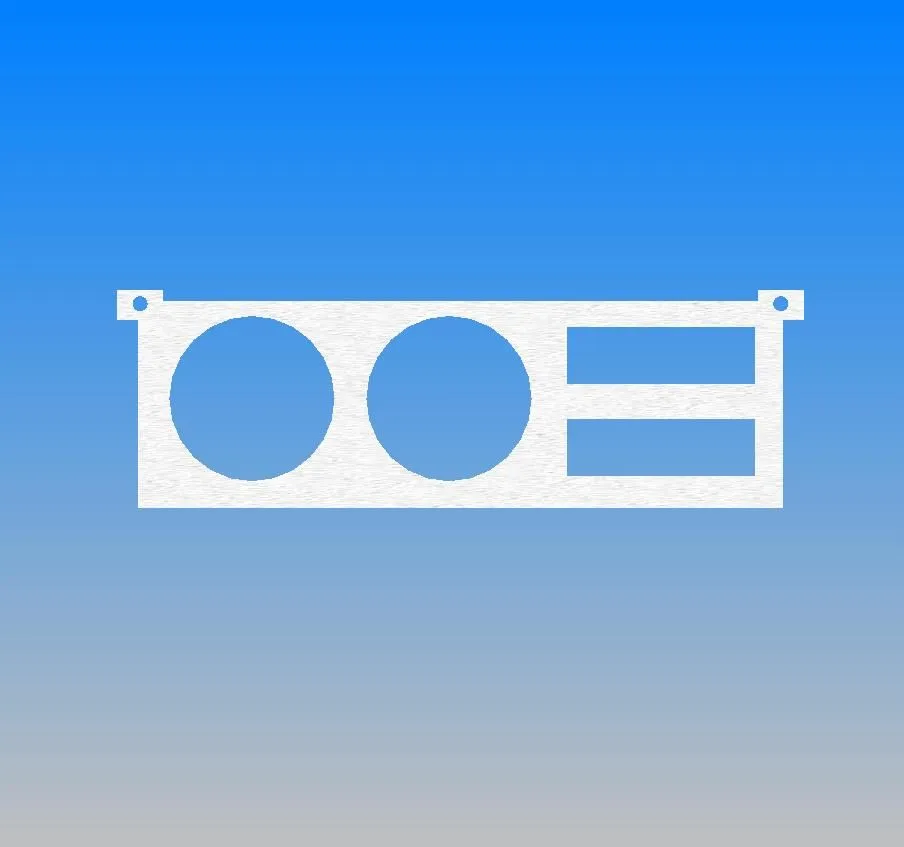

  • 2 gauge dual tt.webp
    2 gauge dual tt.webp
    13.8 KB · Views: 143

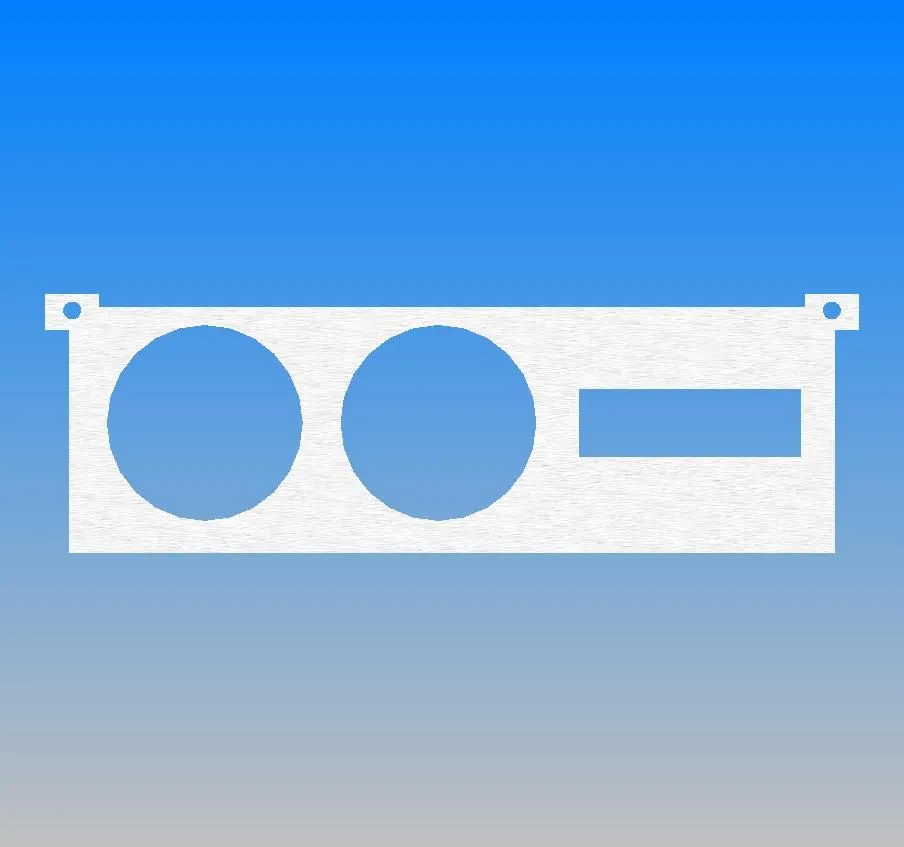

  • 2 gauges 1 tt.webp
    2 gauges 1 tt.webp
    17.8 KB · Views: 150
Last edited:
apexi SAFC and/ or Apexi AVC-r

Can you make on that will fit the Apexi SAFC? price range? Could you make one to fit the SAFC and one guage A/F guage. Is anyone else out there that would want one for Apexi SAFC or the Apexi AVC-r Boost controller. i think they are the same size. I have the DG motorsports Carbon fiber Radio plate is there anything I could get to cover this i carbon fiber to match. Do I need to contact DG motorsports?

I can cut into it whatever you want.. but I'd need dimensions as I don't have any of those parts to measure... But I can do all of those things... As far as the carbon fiber... that's tricky... I'd have to see if the laser can be used on carbon fiber.. I'm not 100% sure... Otherwise they make carbon fiber appearing sticker patterns that could be laid over it... but that'd be it.. carbon fiber is typically not stiff enough to make a good mounting face plate unless it is rather thick.

Update:.. I edited the post up top, but I got to measure a TT to compare against my drafting (which was based on interpolated dimensions from images I had) and found the TT is wider than what I originally thought.. this means that two gauges can't be fitted next to the TT's.. only one.

Damn I just saw this. If the inital panel is still available pm me the paypal address. Also does the free shipping apply to Hawaii?

The initial panel is still available... shipping wouldn't be free to Hawaii, but I would discount the shipping by the 6-8 bucks it normally runs for in the states. So you'd get the "free shipping" just YOUR shipping wouldn't be completely free.

TurfBurn said:
The initial panel is still available... shipping wouldn't be free to Hawaii, but I would discount the shipping by the 6-8 bucks it normally runs for in the states. So you'd get the "free shipping" just YOUR shipping wouldn't be completely free.
This panel that your talking about is that the one I wanted you to make turfburn? Did mazda get back to you on it yet?

No, the "initial" one is the 3 gauge panel that I have a couple left of.

Mazda has called and talked to me a couple times to get some clarifications here and there, and they are working on what can be done as far as licensing... but nothing that clears me to make anything yet. I'll update as soon as I do get a yay or nay... But also, keep in mind from what they are telling me they've never licensed anything like this in the US before... It's not done/requested all that often I guess... usually for clothes and key chains they get requests and grand licesnes... so anything else you see that uses the logos or names is likely illegal unless it is from the dealer.

If this gauge doesnt get approved then what? Can you make me a gauge din that has two hole then? How much for that? Have you ever make a gauge holder for the little hole my the left of the steering wheel?

mspeed555 said:
If this gauge doesnt get approved then what? Can you make me a gauge din that has two hole then? How much for that? Have you ever make a gauge holder for the little hole my the left of the steering wheel?

I can do the two hole without issue.. I could also put the NSN logo in the middle for you, or a bank of auxillary switches or whatever else you want. The price would be the same.. (depends on the cut time.. which is dependent on the number of features) but roughly 58-62 because it is a one off part.

I could look into making one for that hole. I'll have to take a peak at it, but that does sound like a good idea! :)

You caould make a single pod for that little cuddy hole and face it up at the driver. humm.. I want one like that. Possible? It wound be 53-60 for a duel gauge pod for the din ? I was thinking about this design
I'll email it to you
