Need hookup info for stock Protege radio / CD

[craig haggart]

Hi,

I've got a stock radio/CD player from a Protege that I'd like to install in an older Tercel. Does anyone know where I might find an online diagram that describes the stock radio's connector block? Actually, all I really need to know is the correct terminals on the radio for 12V, left speaker, and right speaker. The car has no power antenna, no rear speakers, no external amp, no subwoofer, etc..

Thanks in advance for any help!

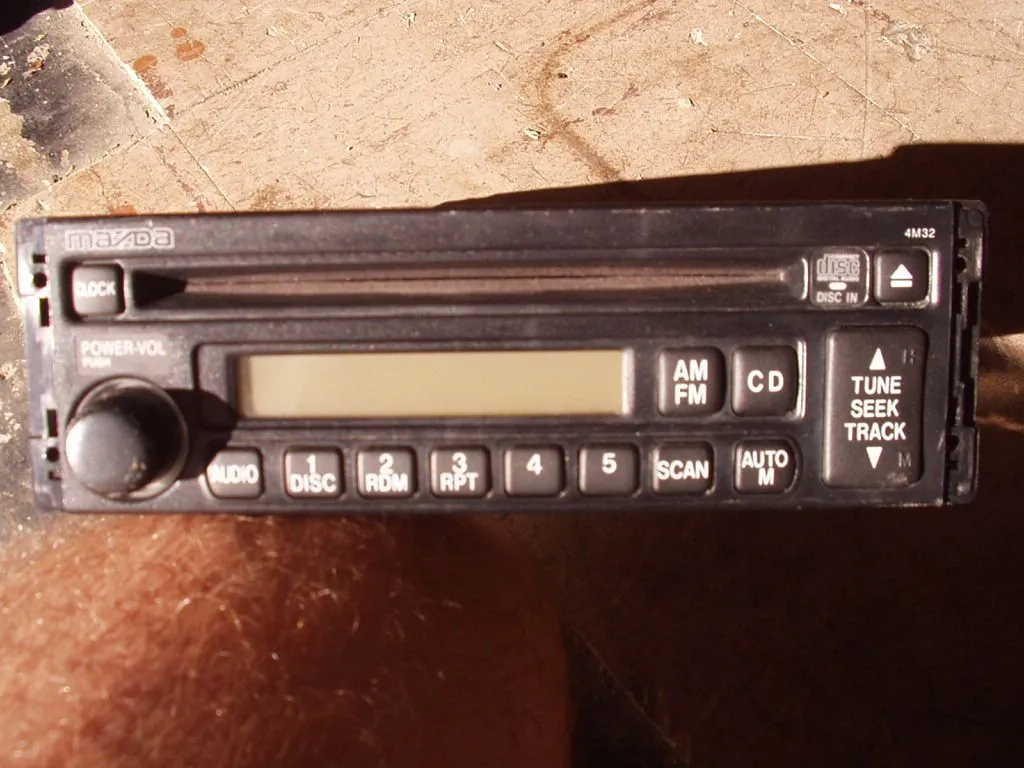

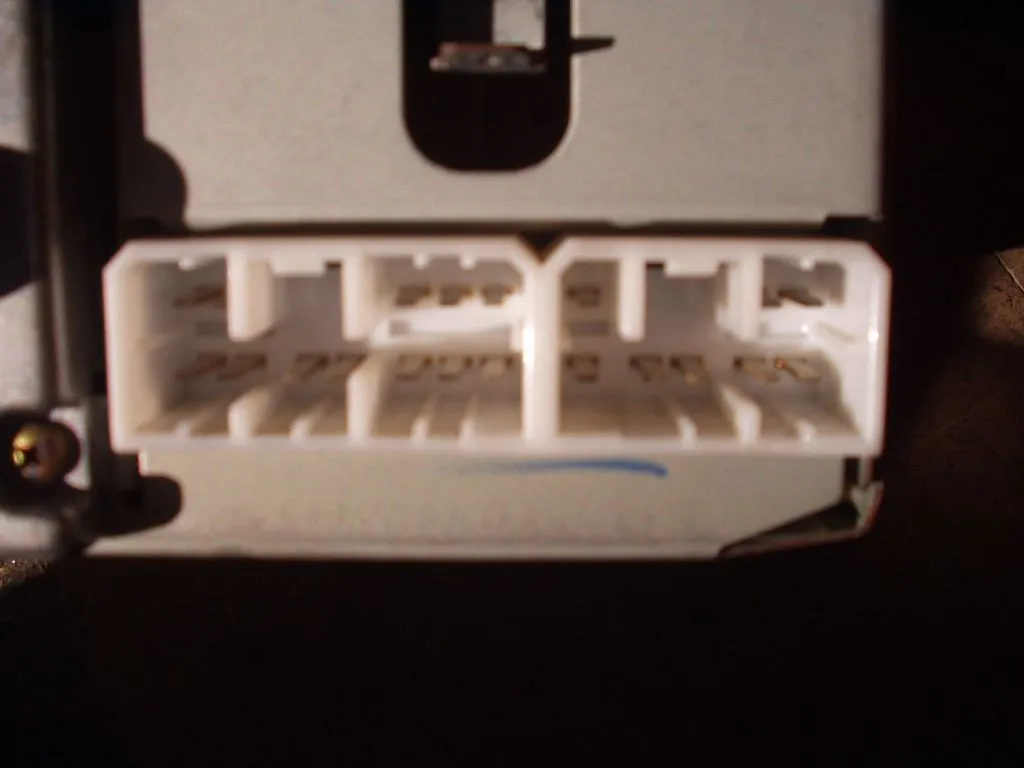

Oh, I'll try to include a photo of the radio front panel and the main connector on the back. If that doesn't work, though, see them at http://pg.photos.yahoo.com/ph/craig_s_haggart/my_photos

-Craig Haggart
Sunnyvale, California



[Mike R]

Might be in the sticky at the top of this page. I know the one for the 6 disc is. I'm also pretty sure you can get a reverse harness for it.
