Need help removing panel under steering wheel

mazda3gs

Member
Hi Everyone,

I am trying to figure out how to remove the panel underneath the steering wheel where your knees are closes too. I couldn't find any screws to remove. I am trying to access to the back of the extra empty switch panels on the left side under the gauges. Any help will be greatly appreciated.

I'm going to attempt to take apart most of the interior this weekend. If no one else responds, I will post pix next week.

Krs

mazda3gs said:
Hi Everyone,

I am trying to figure out how to remove the panel underneath the steering wheel where your knees are closes too. I couldn't find any screws to remove. I am trying to access to the back of the extra empty switch panels on the left side under the gauges. Any help will be greatly appreciated.

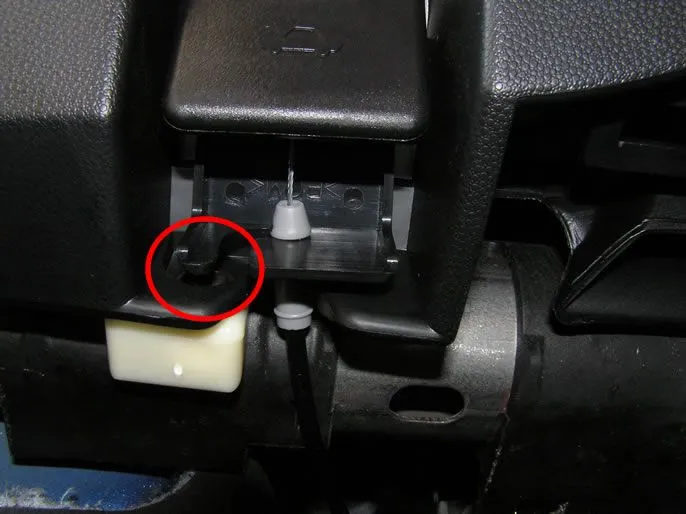

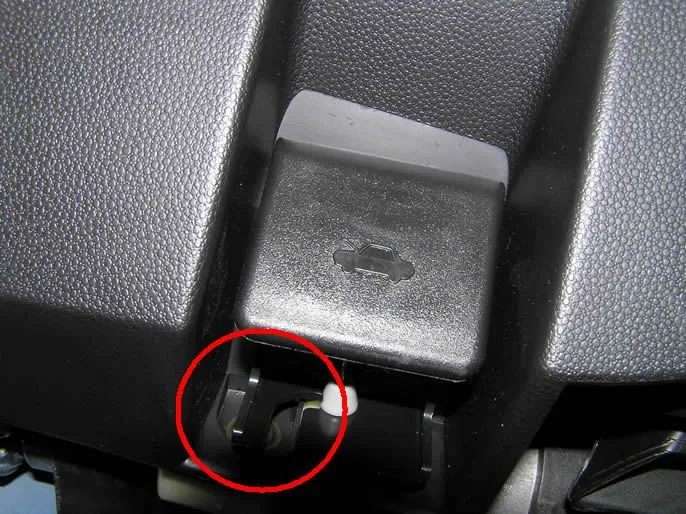

Here are the pics of the screw you need to remove. I was able to get the screw driver in without removing the latch only because i had trouble getting the latch out, but it does need to be removed.


Attachments

  • under Wheel.jpg
    under Wheel.jpg
    43.9 KB · Views: 1,104
  • under Wheel2.jpg
    under Wheel2.jpg
    82.1 KB · Views: 1,000
