Need help installing shift light

Fai

Member
:
2003.5 Mazdaspeed
I just brought the Razo RS13 shift-up indicator there is a wire that I will need to connect to the computer which says "Engine Revolution Signal" Do you guys know which wire to connect to? I have incluced an attachment of the instruction that the shift ligh includes saying where to connect the wire, but i dunno which one is correct, please take a look at the pic and tell me plz... i really need your help :confused:

(help)


Attachments

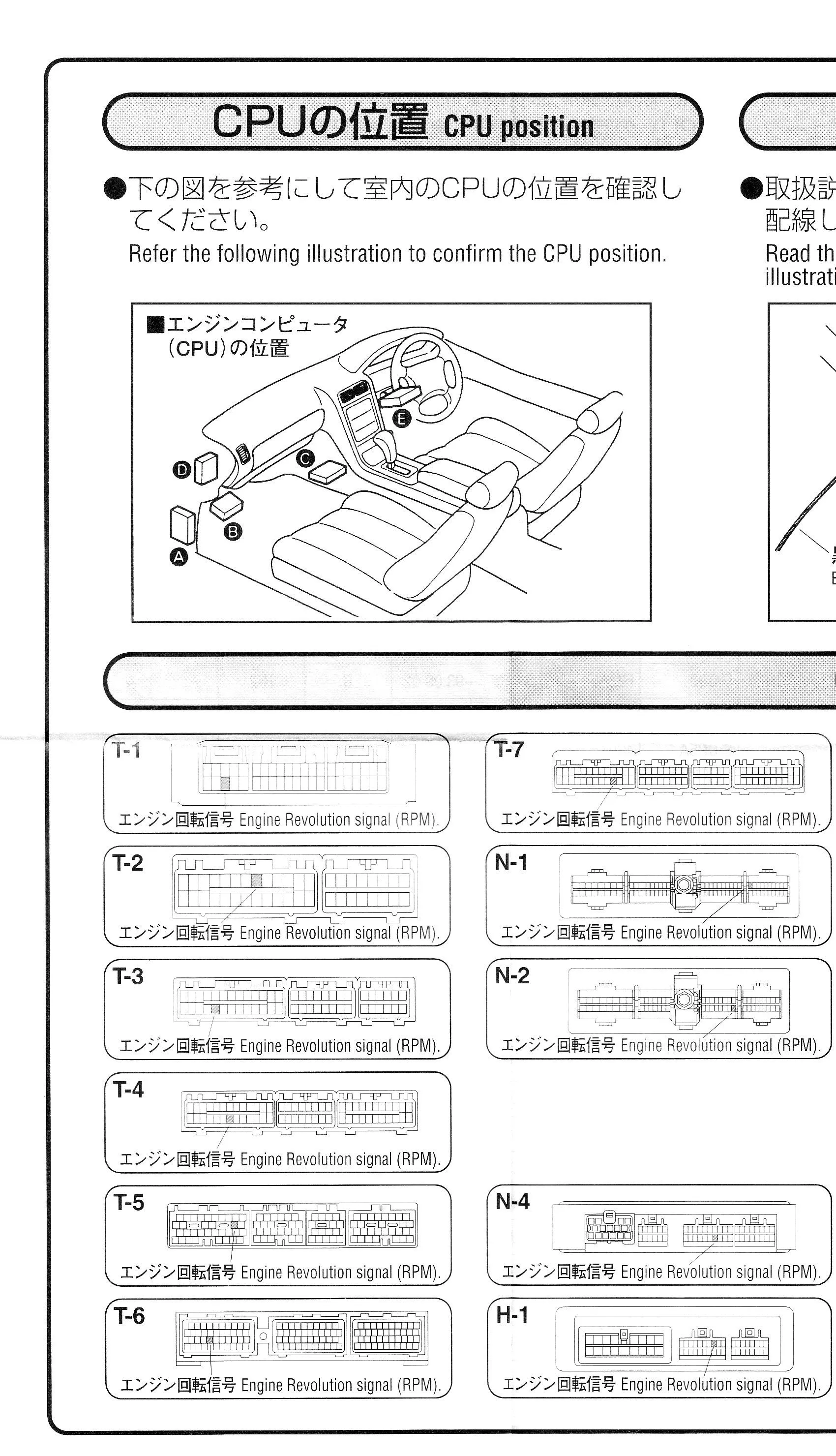

  • Leftside.webp
    507.5 KB · Views: 845

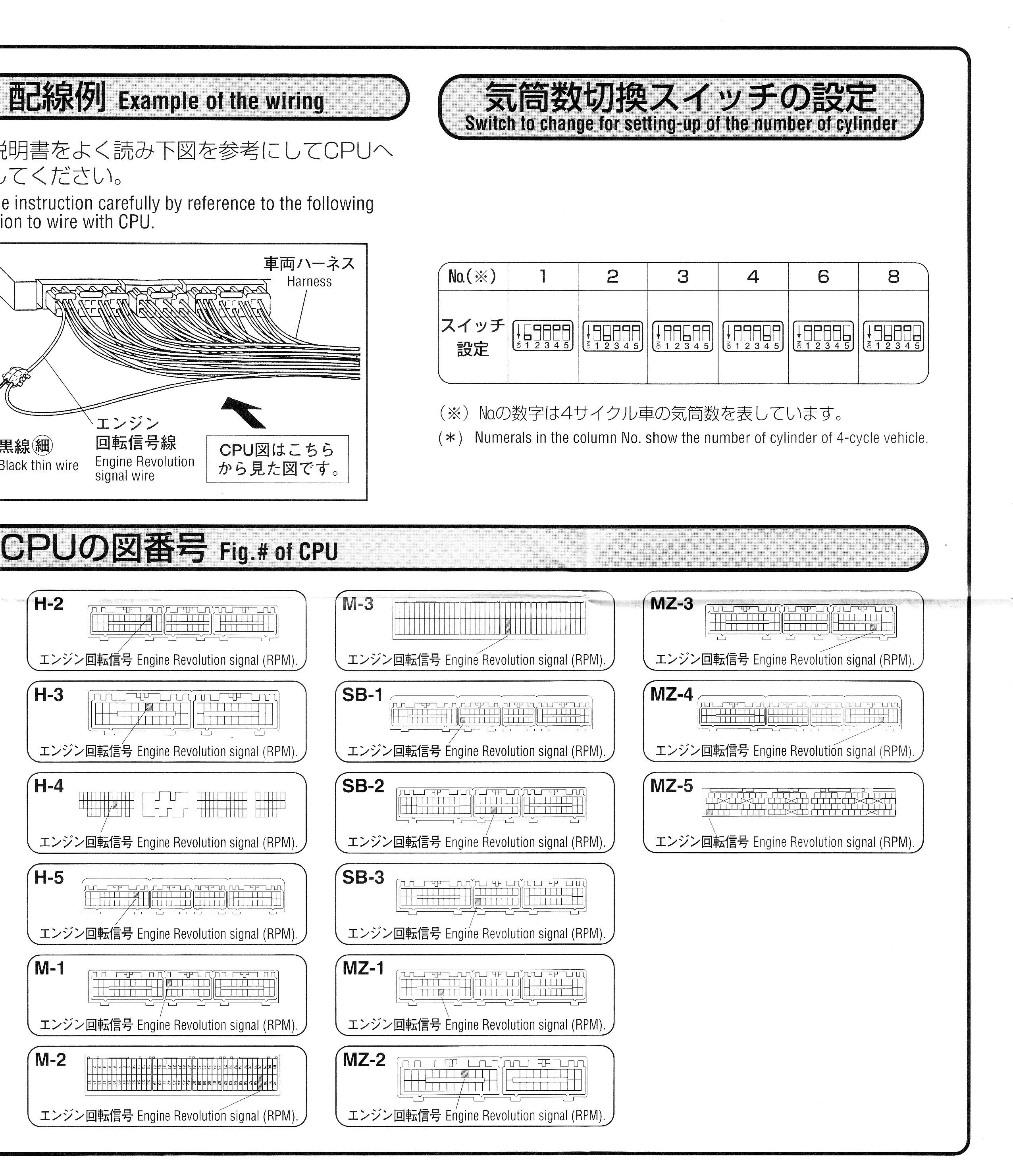

  • Rightside.webp
    829.7 KB · Views: 878
Fai said:
I just brought the Razo RS13 shift-up indicator there is a wire that I will need to connect to the computer which says "Engine Revolution Signal" Do you guys know which wire to connect to? I have incluced an attachment of the instruction that the shift ligh includes saying where to connect the wire, but i dunno which one is correct, please take a look at the pic and tell me plz... i really need your help :confused:

(help)
connect it to that one :)
