Lowered CX-5 Appreciation: Show us your drop!

[MazdaGLD]

we see from the photo in post #137 above a part number for EIBACH

11 55 021 03 RA

I will assume: E11-55-021-03-22

Eibach Pro-Kit Performance Spring Kit E10-15-021-03-22 | Eibach Suspension | EibachShop

The UK's leading online Eibach Suspension store, featuring the complete Eibach Suspension range available in the UK.

www.eibachshop.co.uk

My current research only shows a part number similar

2.0 AWD [118kW/160HP] E10-55-021-03-22

2.0 [114kW/155HP] E10-55-021-03-22

2.0 [121kW/165HP] E10-55-021-03-22

@MazdaGLD

can you confirm your CX-5 year, model and the EIBACH sprint part number ordered?

Link to the catalog
2.5 2019 2WD

Passenger car

web2.carparts-cat.com



[Ceej007]

Hi All.
New here as a member, but following for a long time.
And I thought, why not...

This is my 4th CX-5
2.5L 2019 GT-M Pure White leather.
For his first year anniversary, this month, I lowered him with the Eibach Pro kit.
The past year he allready got:
- Full LED.
- LED DRL including Dynamic Blinking, front and back in the bumper. And also in the mirrors Dynamic...
- LED Doorplates.
- Mazda LED Logo door lights (ground projector)
- Mazda Dealer Bodykit.
- Fox Exhaust.
- K&N filter.
- RVS Pedals.
- 20 inch MAK, summer. Original 19 inch for the winter.

View attachment 224695
View attachment 224696
View attachment 224697
View attachment 224698

That is the best looking CX-5 I have seen.



[Jef]

just had the car aligned last night and it feels great! Set to -1 degree camber all around. Tight on turns. Feels like I’m driving a compact and not a suv. Love it.
Stock shocks, Corksport springs and the Godspeed camber arms(you’ll need them!)

Corksport springs:

Mazda CX-5 Lowering Springs

The best Mazda CX-5 lowering spring on the market, combines the dropped look and the ability to still carry passengers and enjoy the ride.

corksport.com

Godspeed arms:
https://www.amazon.com/dp/ (commissions earned)



[CX5_Driver]

...
Stock shocks, Corksport springs and the Godspeed camber arms(you’ll need them!)

I propose a new guideline.. you mention a product you provide part numbers and links.

Corksport spring

CX5-3-289-10

GEN2

https://corksport.com/2017-mazda-cx-5-lowering-springs-fwd-and-awd.html

Godspeed rear upper arms

AK-233 - (KE/KF) 2013-19 ADJUSTABLE CAMBER REAR UPPER ARMS

ALL

https://godspeedproject.com/mazda-c...-rear-upper-arms-with-spherical-bearings.html



[Tylermj404]

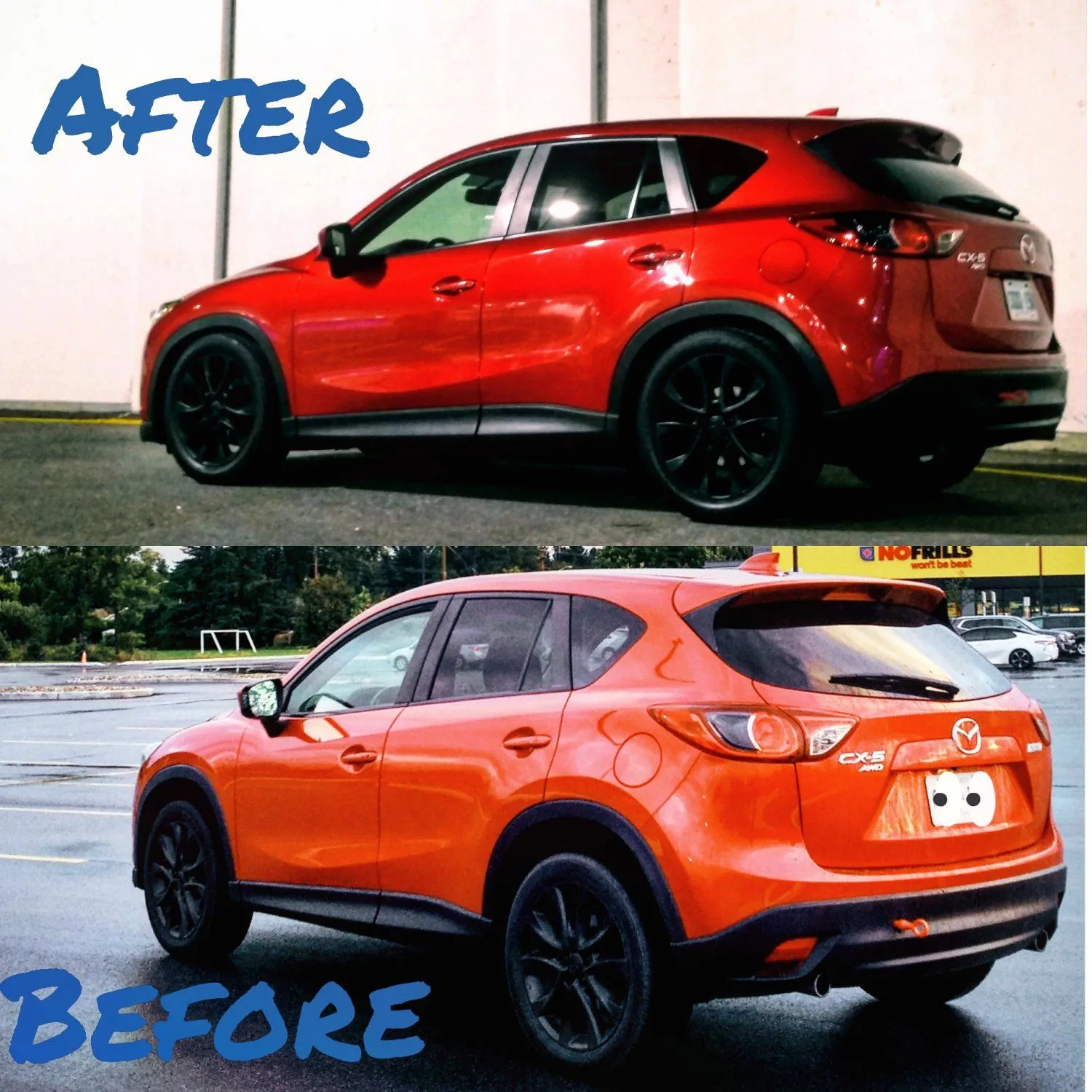

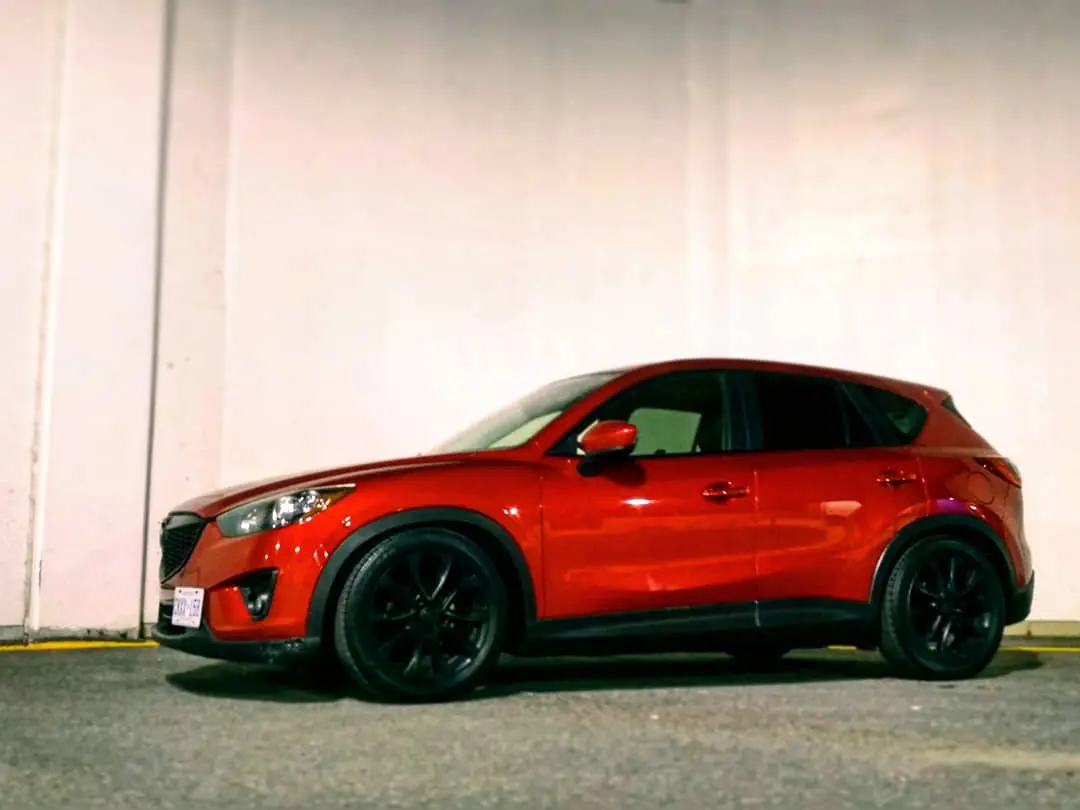

Corksport Springs for 2014. Stock dampened for now. Checking options for dampeners. 25mm spacers on stock 19's. Have some new wheels on the way that are +35 offset 19x8



[PatrickGSR94]

are those the bolt-on type of spacers with new, separate lug studs?



[Tylermj404]

are those the bolt-on type of spacers with new, separate lug studs?

Yes they are, with OEM wheels they fit perfectly since the back of the OEM wheel has an indent where the new studs come out.



[d1gp]

For anyone looking for a quick reference:
Bilstein
4600 Heavy Duty (B6)
22-291240 Front Left
22-291257 Front Right

You should also included the rear as well.



[Tylermj404]

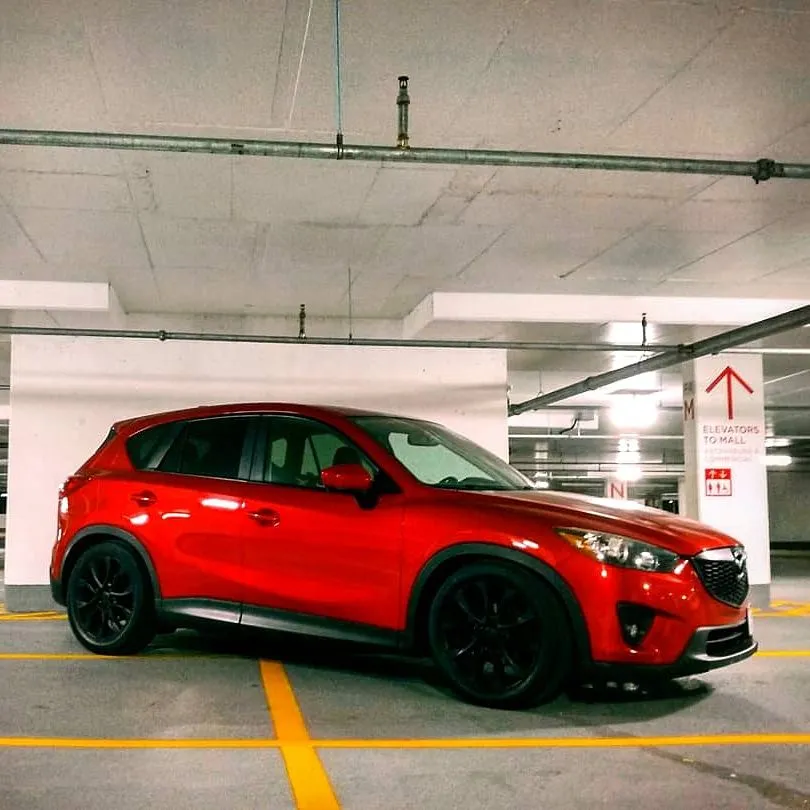

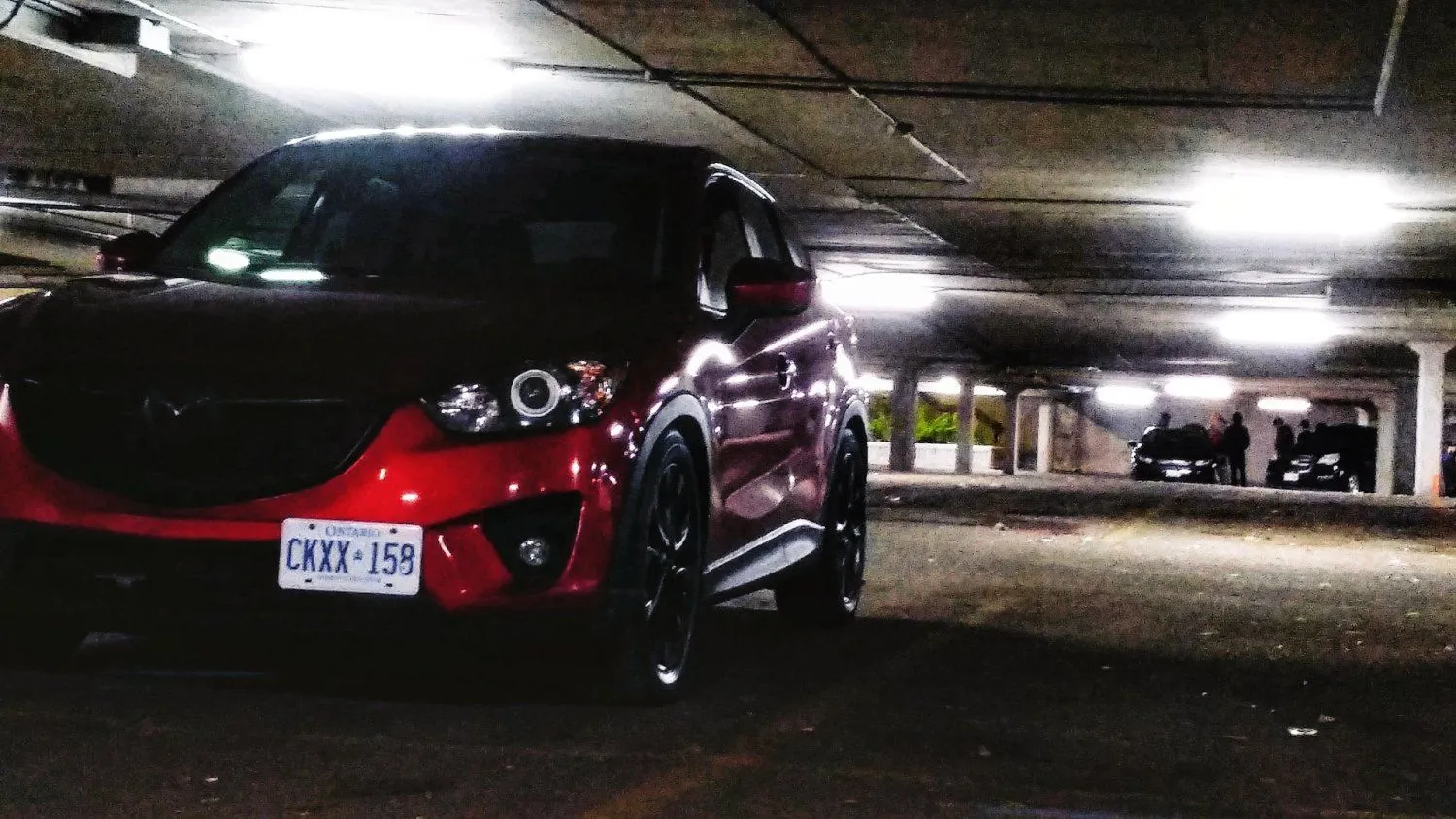

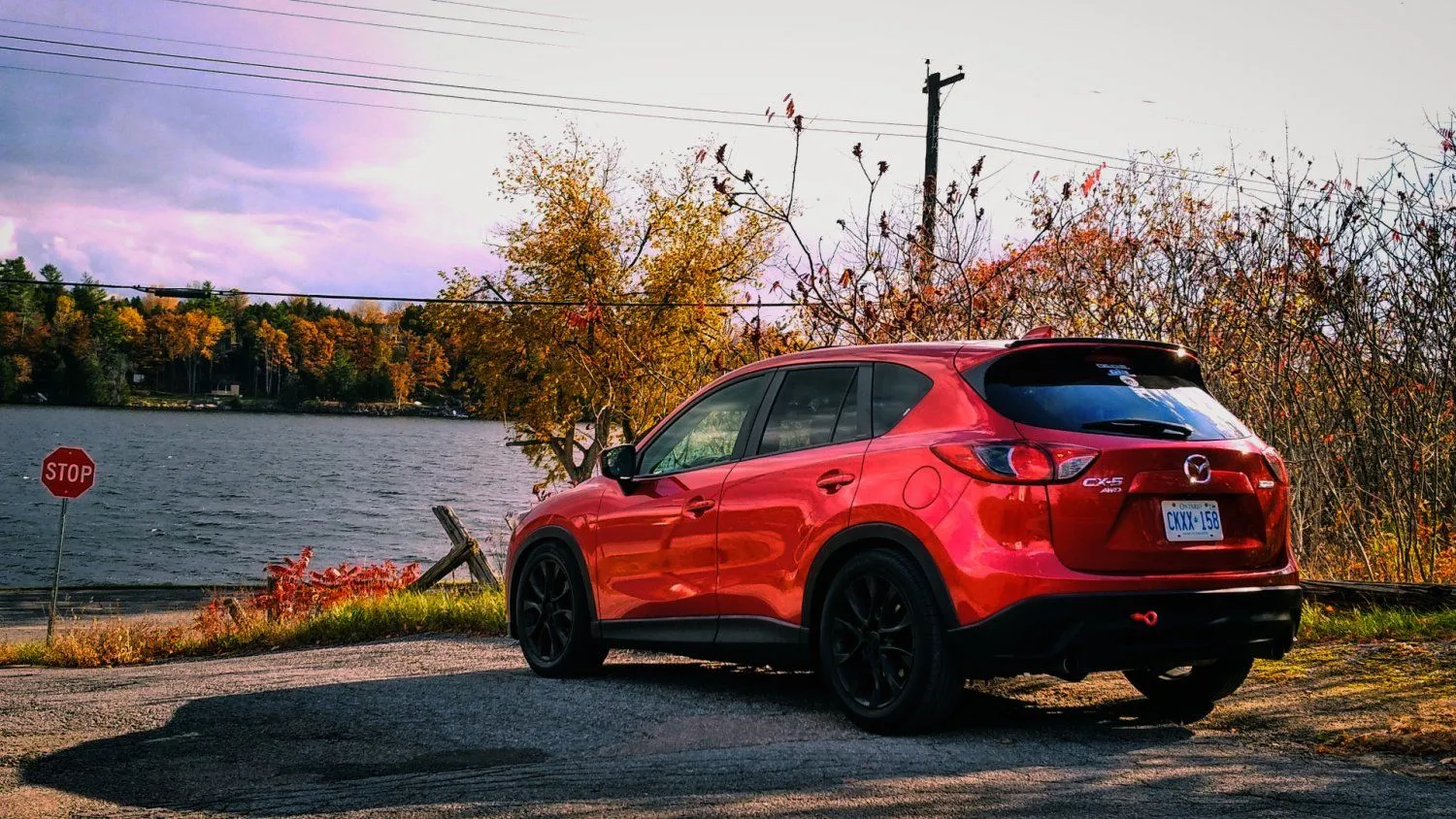

Some new pics, have a little carbon hatch tail spoiler. It's settled and lowered a bit more, roughly a 5 inch drop from stock but love how it handles.



[Dgo1800]

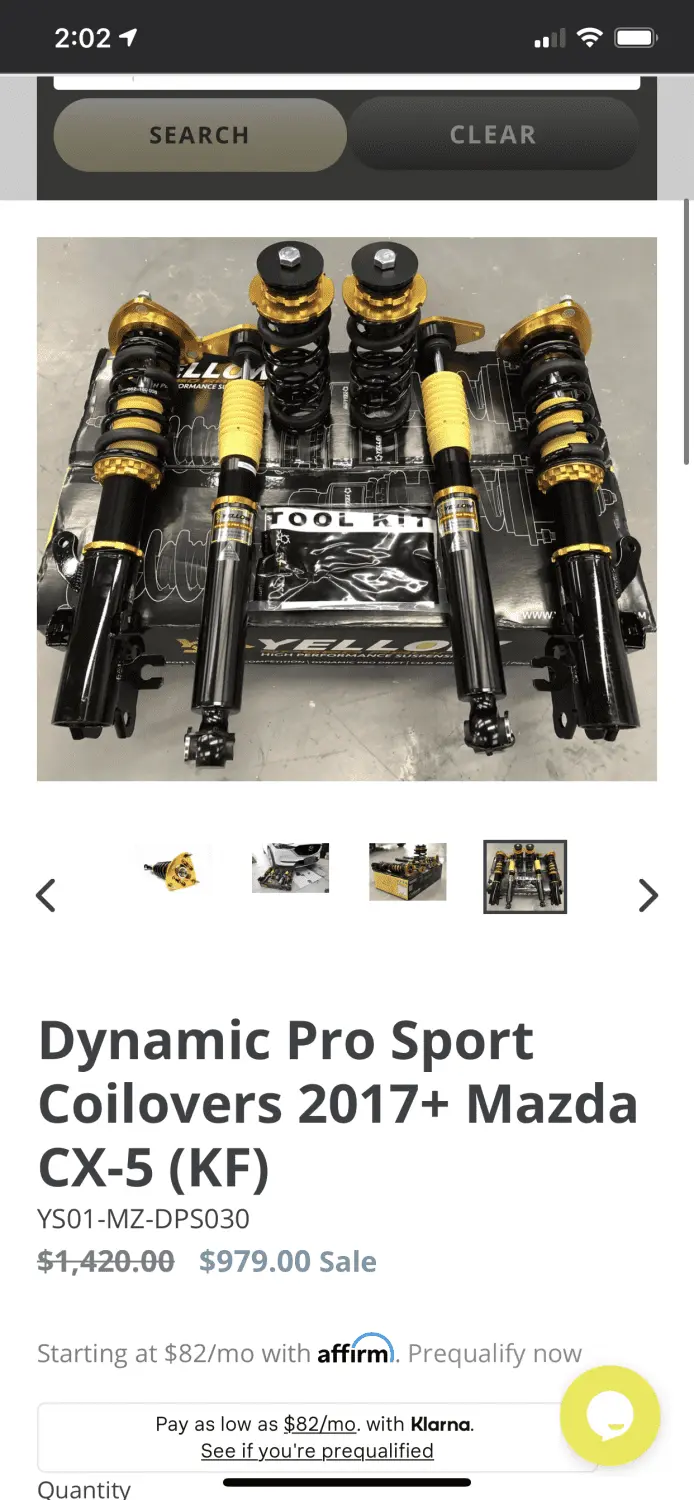

Loving this thread guys! I’ve had my GTR for about 4 months now and I’m ready to upgrade the suspension.. what would you guys recommend if I go with coilovers? Been looking at these... would I need the rear camber arms or anything else to install these smoothly?



[sm1ke]

Loving this thread guys! I’ve had my GTR for about 4 months now and I’m ready to upgrade the suspension.. what would you guys recommend if I go with coilovers? Been looking at these... would I need the rear camber arms or anything else to install these smoothly?

I've never heard of that brand, so I can't offer any insight. See if you can find reviews (ideally from other 2nd gen CX-5 owners with these coilovers installed) on their website, or maybe on other car-specific forums. One thing I've noticed after shopping for coilovers when I was younger is that a lot of it is hit or miss, and it really depends on what you're after (comfort or sportiness, for example).

Toe and camber adjustment upgrades will depend on how much you plan to lower the car. Lowering (or raising) the suspension by an inch or so usually won't affect the camber enough to warrant an upgrade, but if you're thinking about 2" or more, I would recommend it. Some people simply throw 3" lowering springs on their vehicles without upgrading any other suspension components, and paid for it a couple of years later (in new tires and component replacement).



[Dgo1800]

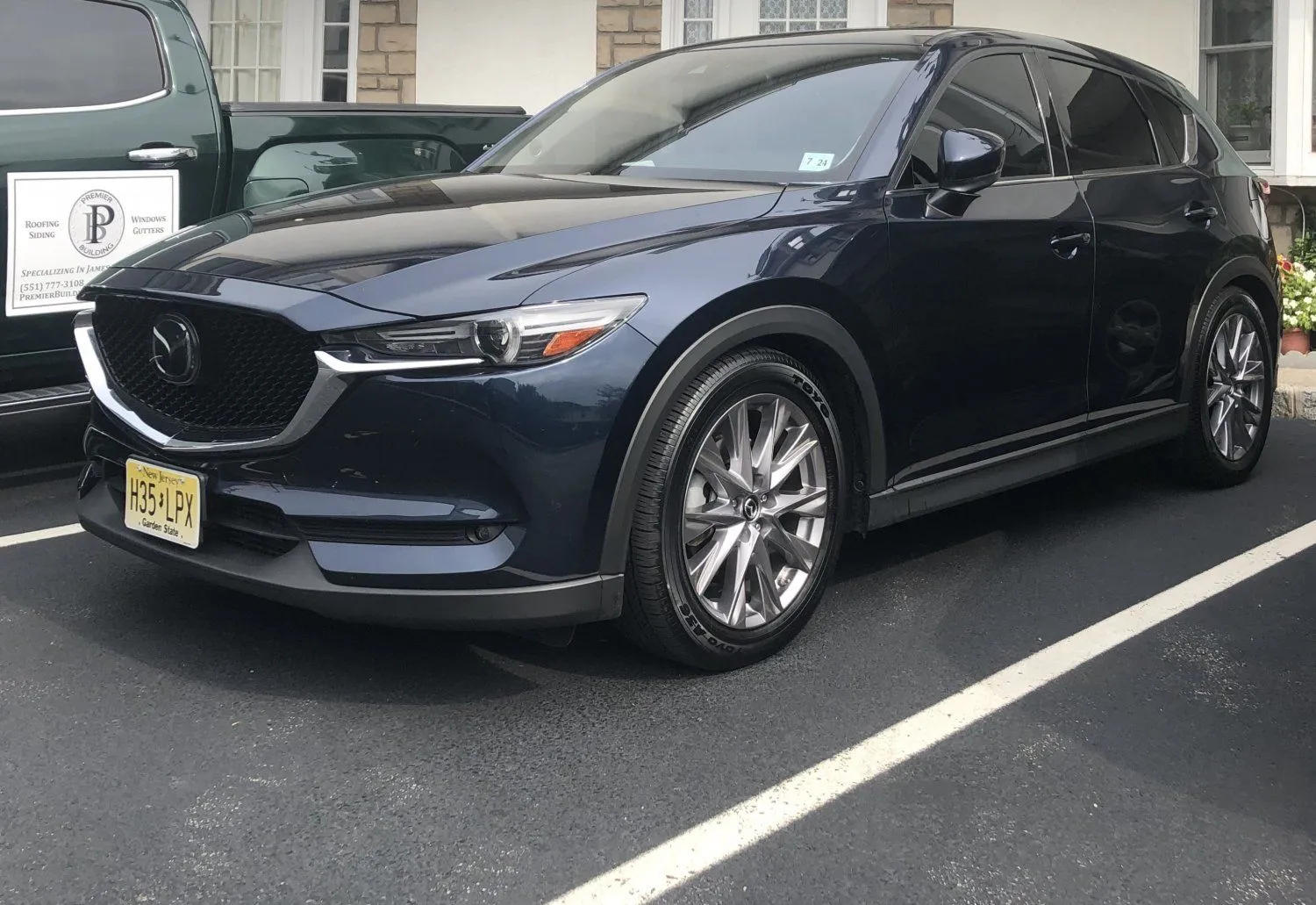

View attachment 227092just had the car aligned last night and it feels great! Set to -1 degree camber all around. Tight on turns. Feels like I’m driving a compact and not a suv. Love it.
Stock shocks, Corksport springs and the Godspeed camber arms(you’ll need them!)

Corksport springs:

Mazda CX-5 Lowering Springs

The best Mazda CX-5 lowering spring on the market, combines the dropped look and the ability to still carry passengers and enjoy the ride.

corksport.com

Godspeed arms:
https://www.amazon.com/dp/ (commissions earned)

Do you know if the camber arms apply to 2020 models?



[d1gp]

Do you know if the camber arms apply to 2020 models?

Yes, and No depending how low you lower your vehicle. Check your PM I’d message you.



[Jef]

Do you know if the camber arms apply to 2020 models?

the arms give you a lot of room for adjustment. You have to drop the subframe to install them. Easier to just do it when you get the springs installed. I’d say just order and install



[Dgo1800]

the arms give you a lot of room for adjustment. You have to drop the subframe to install them. Easier to just do it when you get the springs installed. I’d say just order and install

Thanks man. I know I have the KF chassis. It’s a 2020 but the specs on the camber arms say only up to 2019. I should be fine right?



[Ceej007]

Some of these dropped CX-5s look really good. I put a full WRX suspension on my first Forester, it looked great but I hated the ride so I swapped it back.



[CX5_Driver]

Loving this thread guys! I’ve had my GTR for about 4 months now and I’m ready to upgrade the suspension.. what would you guys recommend if I go with coilovers? Been looking at these... would I need the rear camber arms or anything else to install these smoothly?

These look like so many other "Ebay" coilovers. I'm not saying they are the bad Chinese cheap coilovers .. just the company website reads / looks like so many other drop ship sites on the internet. Basically a person can get their logo slapped on a product and then dropped shipped as their own to your house. Here is a very simple search.. I'd imagine with 10 minutes of looking I could find the exact ones featured on the page:

yellow coilovers - Buy yellow coilovers with free shipping on AliExpress

Quality yellow coilovers with free worldwide shipping on AliExpress

www.aliexpress.com

Official company website:

Dynamic Pro Sport Coilovers

Dynamic Pro Sport Coilovers. Ride height adjustability & 33 levels of dampening. Designed for daily driving and occasional track use. Click to learn more!

yellowspeedracingusa.com

they have a 24 month limited warranty.. so I guess that is something.

Warranty Info

Yellow Speed Racing Warranty Terms: All Yellow Speed Racing coilovers, air suspension kits, big brake kits and accessories are for off road use or Motorsports use only. Our products are not to be installed on vehicles that will be driven on public roadways. The YSR USA warranty is limited to the...

yellowspeedracingusa.com

but reading it really is a 3 month warranty.. buyer beware.

as a new owner.. you will want to check this resource out:

CX-5 General knowledge and information sharing

A simple document that attempts to capture the common parts and pieces used by the CX-5 community into a single place for easier reference. Post and discussion can be found...

www.mazdas247.com

search 'suspension' in that document



[tibimakai]

For $1000, you can get some better known coilover sets imho. I'm one of those, who has just thrown in a 3-1/4" drop, but I also made my own lateral links, that compensated for camber. Some, back then were against it, but I'm still OK with them, after many many miles.

Ride is not for the faint hearted for sure, but I still prefer it, then to sit that high and have that big gap. Recently, I have installed Koni Yellow Sport struts.



[PatrickGSR94]

Some new pics, have a little carbon hatch tail spoiler. It's settled and lowered a bit more, roughly a 5 inch drop from stock but love how it handles.

settling = torn bushings (or more stressed, which will eventually tear), unless you for sure went around and loosened all the control arm bolts, and torqued them back to spec at the new ride height.



[Dgo1800]

For $1000, you can get some better known coilover sets imho. I'm one of those, who has just thrown in a 3-1/4" drop, but I also made my own lateral links, that compensated for camber. Some, back then were against it, but I'm still OK with them, after many many miles.

Ride is not for the faint hearted for sure, but I still prefer it, then to sit that high and have that big gap. Recently, I have installed Koni Yellow Sport struts.

What suspension did you go with? I’m hearing people say they barely notice a difference vs stock on how it handles so I wonder how it really rides on BC racing coils
